Type | Wiring Harness |
Conductor | Bare Copper |
PIN | 2/3/4/5/6/8PIN/Customized |
Connector Type | SM/PH/XH/XHB/JST/VH/VHR/Molex Pitch Male to Female Connector |
Connector material | ABS |
Sheath | PVC |
Waterproofand dustproof rating | IP67 |
Size | 18/20/22/23/24/Customized |
Color | Yellow/Brown/Blue/Customized |
Length | 0.1/0.2/0.3/0.5M/Customized |
Brand | YUXUN/OEM |
Place of Origin | Guangdong, China |
Package | OP Bag/Carton Box/Customized |
Certificate | CE/ROHS/REACH/CCC/ISO9000/ISO14001 |
1. Application
Widely used in:
1. Home appliances (such as air conditioner and washing machine control module connections), internal wiring of small industrial control equipment;
2. Consumer electronics (set-top boxes and router module connections), medical equipment (internal signal transmission of small testing instruments);
3. Automotive electronics (connecting vehicle central control and lighting control modules), smart home systems (connecting sensors to control units);
4. Industrial automation equipment (connecting PLCs to expansion modules), communications equipment (connecting internal boards in base stations);
5. Kitchen appliances (connecting oven and dishwasher control circuits), smart bathroom equipment (connecting smart toilet modules);
6. Security systems (connecting cameras to decoders), audio equipment (connecting amplifiers to audio source modules);
7. DIY electronics projects (makers creating smart devices), rapid assembly of small equipment production lines; factory automation production lines (robot control, conveyor equipment electronic control), elevator control systems (connecting elevator cars to control cabinets);
8. 3C products (internal motherboards and peripheral modules in laptops), small smart hardware (internal connections in wearable devices). );
9. Electronic equipment OEM factories (directly using wiring harnesses during mass assembly) and repair markets (replacing original wiring harnesses).
2. Features

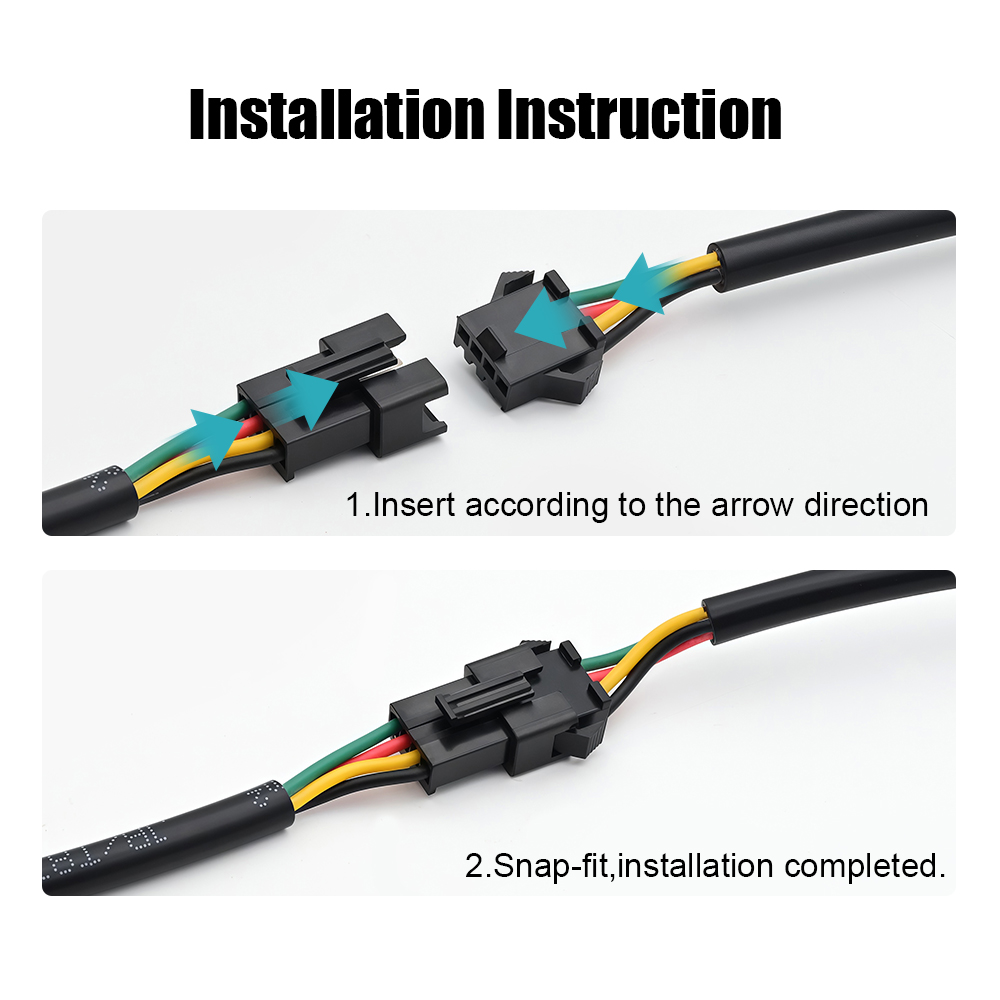

1) Equipped with a standard plug-and-play connector, it adapts to corresponding interfaces, tidying wiring and enabling plug-and-play operation, simplifying the wiring process and reducing manual wiring errors.
2) The outer sheath is insulated, and the internal multi-core conductors are suitable for multiple signal/power transmission, protecting the conductors and meeting the device's multi-line parallel transmission requirements.
3) The insulation thickness and material are adapted to the voltage and environmental requirements of common electronic equipment, providing stable insulation and preventing short circuits, making it suitable for most low-voltage electronic scenarios.
4) The integrated multi-core conductors, paired with a unified connector, enable compact wiring, reducing wiring space, improving internal cleanliness, and simplifying maintenance.
5) Adaptable to the operating environment of home appliances (temperature, humidity, vibration, etc.), the connector's anti-mistakable plug-in design is resistant to common home appliance environmental interference and ensures stable operation.
6) The conductor impedance and shielding design are adapted to the signal type, ensuring signal quality, reducing signal attenuation and interference, and improving transmission accuracy.
7) The connector is clearly labeled, with a clear plug-in and unplug feel, and adapts to common installation procedures, eliminating the need for specialized wiring skills and shortening device assembly and maintenance time.
8) The reinforced wires are wear-resistant and tear-resistant, and the connectors have a high level of protection, adapting to complex industrial environments (vibration, oil, etc.), extending their service life.
9) The wire harness has a small diameter and excellent flexibility, and the connector is compact and precise, adapting to miniaturized electronic device designs without occupying excessive internal space.
10) Standardized production processes, with parameters and lengths prefabricated on demand, improve production efficiency at the factory and reduce adjustment and debugging time at the maintenance end.
FAQ
Q1 : What’s your MOQ?
A1 : Generally our MOQ is 1KM, but if we have spot goods,then there’s no MOQ limitation.
Q2 : Why Choose Yuxun Cable ?
A2 : Yuxun Company have a young and professional international team with many years’ experience cooperate with more than 30 countries in communication cable industry .
Yuxun Company focus on design and supply innovation , suitable and competitive communication cables .
Q3: Do you provide sample ? Is it free?
A3: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
