BNC To Terminal Adapter

1. Application

They serve to convert the BNC connector interface to a terminal block interface. Specifically, they enable the transmission of electrical signals (often in analog video, RF (radio frequency), or other signal applications where BNC is commonly used) from a BNC - equipped device (like a surveillance camera, oscilloscope, etc.) to a wired system that uses terminal block connections. For example, in a security camera setup, they can connect the BNC - output camera to a terminal - block - based video recorder or monitoring system, facilitating signal transfer.

2. Features

1) Interface Compatibility: Bridge the gap between BNC - based equipment and terminal - block - wired systems. This allows for integrating legacy BNC - using devices into newer or custom - built wiring infrastructures that rely on terminal blocks, avoiding the need to replace entire systems just for interface matching.

2) Easy Installation and Maintenance: Simplify the process of connecting and disconnecting wires compared to dealing directly with BNC connectors in some cases. The terminal block side allows for tool - assisted (e.g., screwdriver) wire attachment and detachment, making installation, troubleshooting, and component replacement more straightforward.

3) Cost - Effective: Provide a more affordable solution than overhauling an entire system to change the connector type. They offer a way to extend the usability of existing BNC - equipped devices with minimal investment.

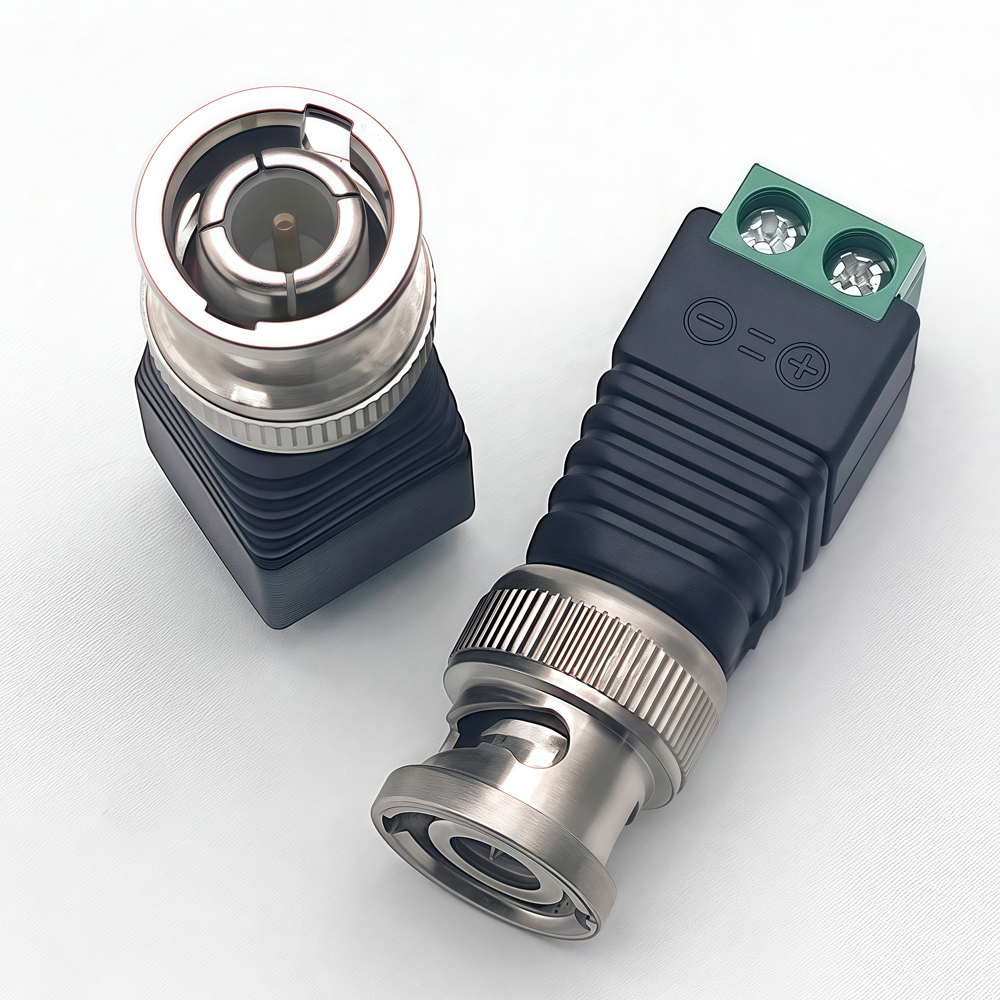

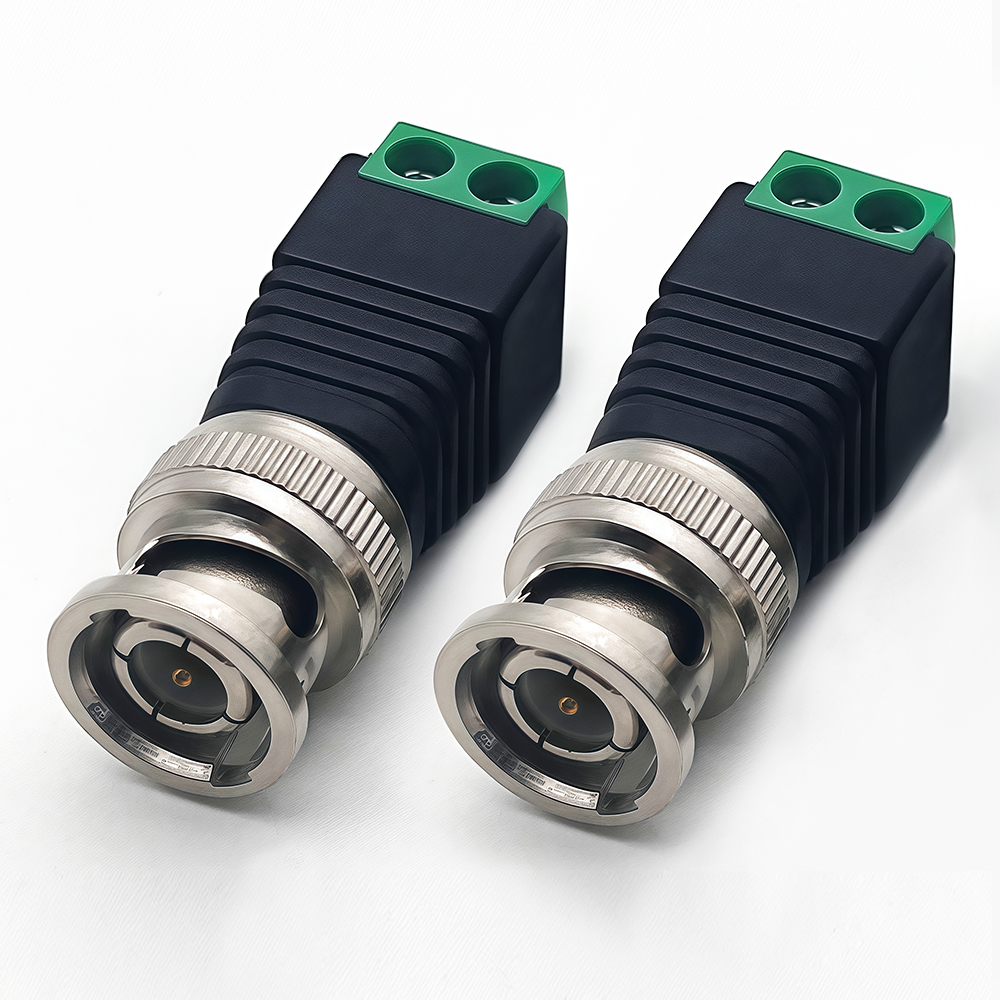

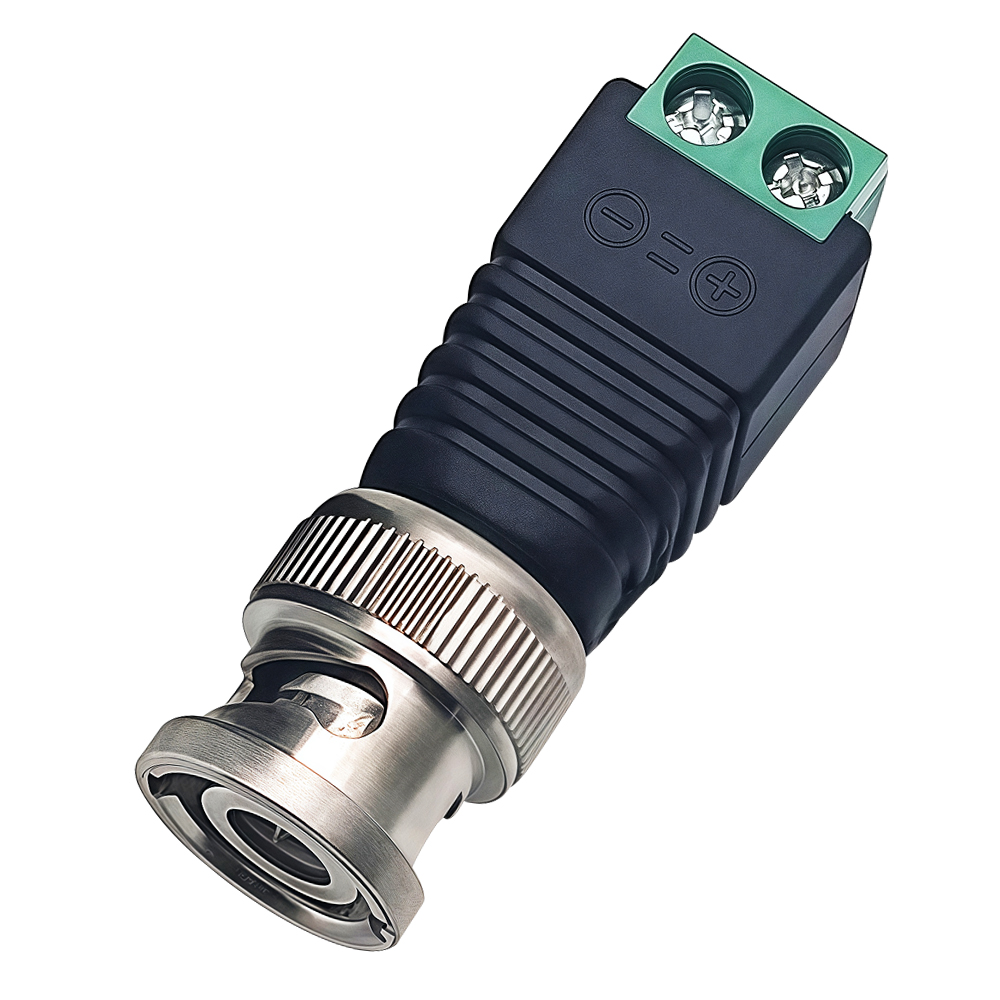

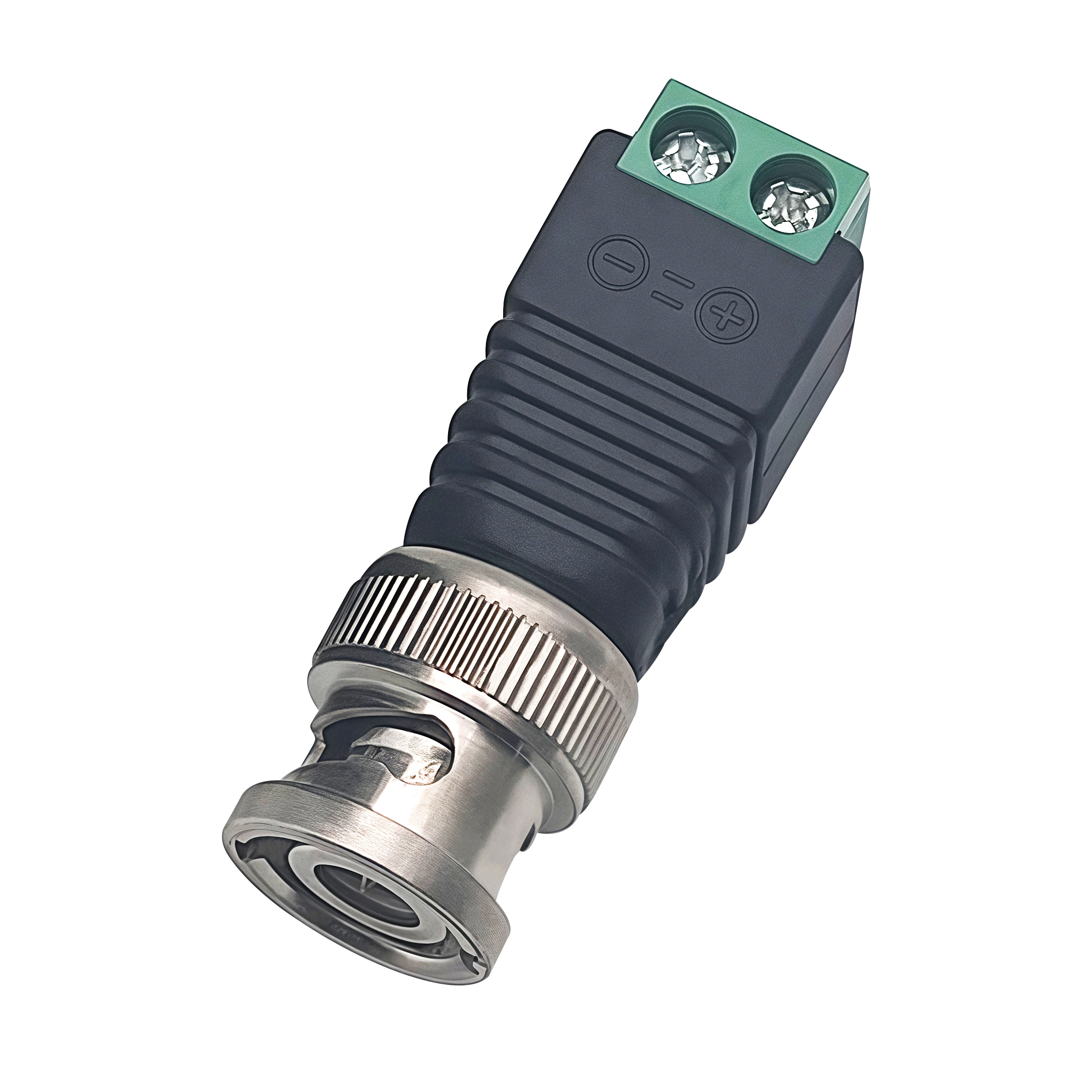

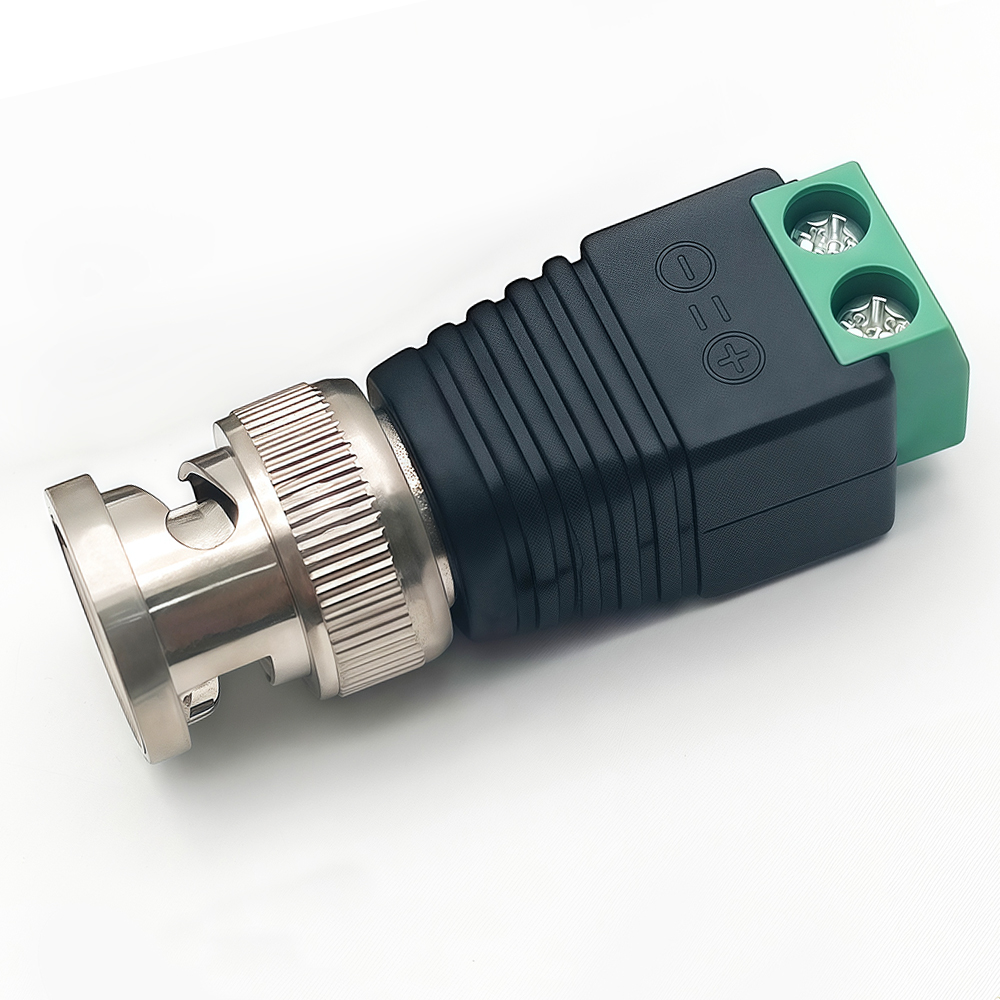

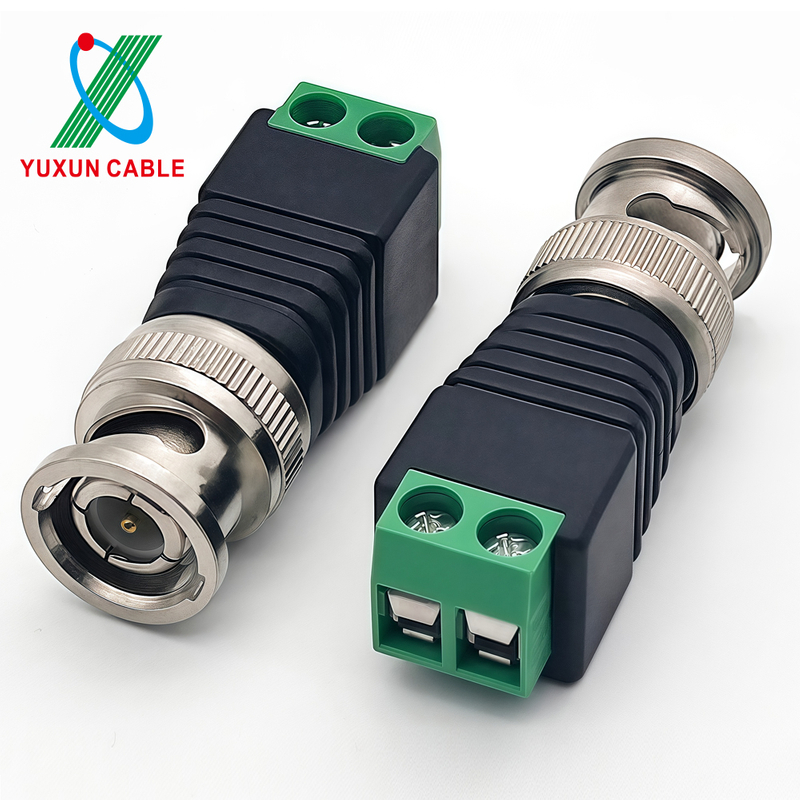

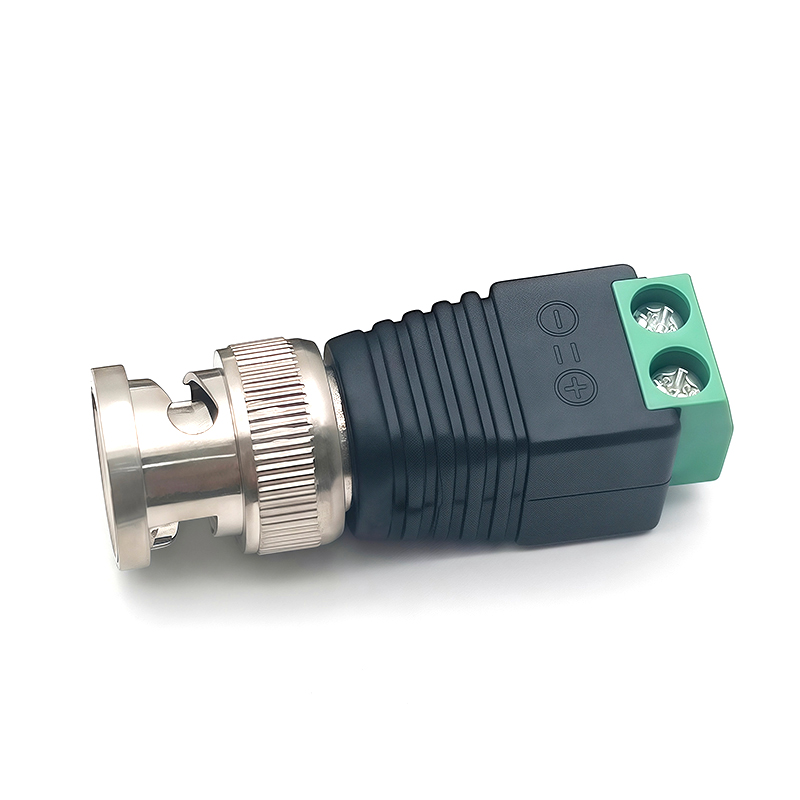

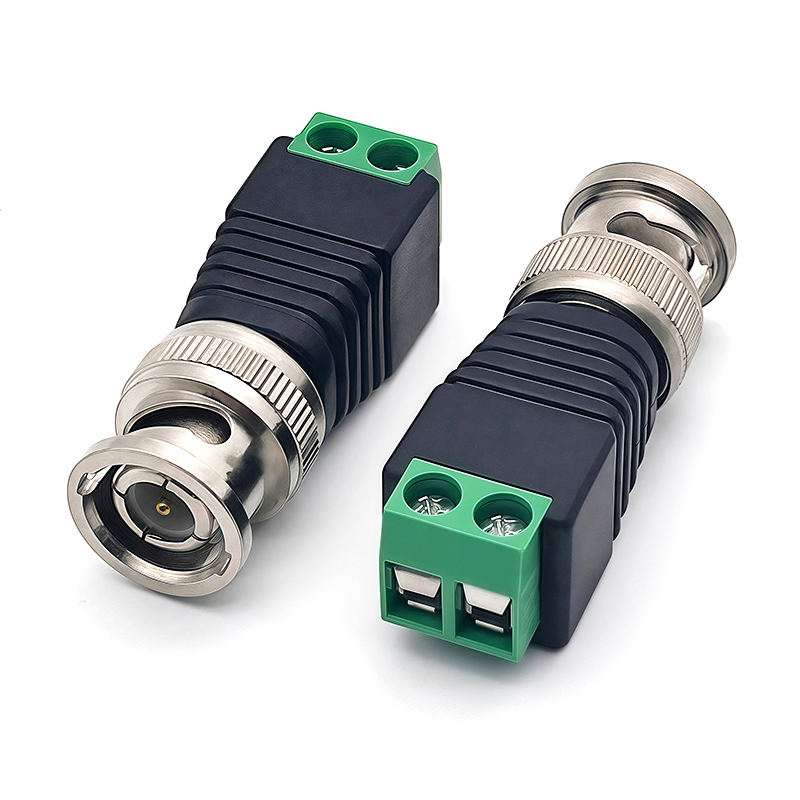

4) Hybrid Structure: Combine a BNC connector (with its characteristic bayonet - style coupling for secure mechanical and electrical connection) on one end and a two - port terminal block (with screw - down clamps for wire retention) on the other. The BNC end ensures compatibility with standard BNC - mating devices, while the terminal block end enables easy wire connection.

5) Durable Construction: Typically made with metal for the BNC connector part (ensuring good signal integrity and mechanical strength) and plastic for the terminal block housing (providing insulation and some degree of impact resistance). This combination allows for reliable performance in different environments, whether in indoor surveillance setups or laboratory test environments.

6) Signal Integrity Focus: Designed to maintain good signal quality during conversion. The BNC connector is well - suited for high - frequency or analog signal transmission, and the adapter is engineered to minimize signal loss, interference, or distortion as the signal passes from the BNC - connected device through the adapter to the terminal - block - wired circuit.

FAQ

Q1 :  What’s your MOQ?

A1 : Generally our MOQ is 100PCS, but if we have spot goods,then there’s no MOQ limitation.

Q2 : Why Choose Yuxun Cable ?

A2 : Yuxun Company have a young and professional international team with many years’ experience cooperate with more than 30 countries in communication cable industry .

Yuxun Company focus on design and supply innovation , suitable and competitive communication cables .

Q3: Do you provide sample ? Is it free?

A3: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.
