Introduction

The arrival of USB-C has brought about a new era of universal connectivity, promising a single cable for charging, data transfer, and video output. However, the landscape has become more complex with the introduction of Thunderbolt 4, which uses the same USB-C connector but offers a host of advanced features and higher performance. This article explores the question: Is a Thunderbolt 4 cable the same as USB-C? We'll break down the differences, explain compatibility, and help you choose the right cable for your needs.

What Is USB-C?

USB-C, or USB Type-C, is a 24-pin, reversible connector that has become the standard for modern devices. It replaced previous USB connectors (Type-A and Type-B) and is now used for connecting everything from smartphones and laptops to monitors and external drives[4]. The key points about USB-C:

- Physical Connector Only: USB-C refers to the shape and design of the connector, not the protocol or speed it supports[4][5].

- Versatile: It can carry data, video, audio, and power.

- Protocols Supported: USB-C can be used for USB 2.0, 3.0, 3.1, 3.2, USB4, Thunderbolt 3, Thunderbolt 4, DisplayPort, HDMI, and more, depending on the device and cable[4][12].

- Reversible: The connector works either way up, making it user-friendly.

What Is Thunderbolt 4?

Thunderbolt 4 is Intel's latest high-speed connectivity standard, designed to deliver ultra-fast data transfer, advanced display support, and robust power delivery—all through the USB-C connector[1][7]. Key features include:

- Data Transfer: Up to 40 Gbps, guaranteed across all certified devices[1][7][10].

- Display Support: Up to two 4K displays at 60 Hz or one 8K display[1][3][7].

- Power Delivery: Up to 100W charging for laptops and 15W for accessories[1][7][8].

- Security: Built-in Direct Memory Access (DMA) protection for enhanced security[3][7].

- Cable Length: Full performance up to 2 meters, longer than previous Thunderbolt versions[3].

- Backward Compatibility: Works with Thunderbolt 3, USB4, and USB-C devices[8][11].

Thunderbolt 4 vs USB-C: Key Differences

While Thunderbolt 4 and USB-C use the same connector, they are not the same. The differences lie in their protocols, capabilities, and certification requirements.

Feature	USB-C (General)	Thunderbolt 4
Connector	USB-C	USB-C
Data Transfer Rate	Up to 40 Gbps (USB4), but may be 480 Mbps, 5 Gbps, 10 Gbps, or 20 Gbps depending on standard[12]	Always 40 Gbps, guaranteed[1][7][10]
Video Output	Varies: May support DisplayPort, HDMI, or none; depends on Alt Mode[4][9]	Always supports up to two 4K or one 8K display[1][3][7]
Power Delivery	Up to 240W (USB PD 3.1), but not guaranteed; varies by cable/device[12]	Up to 100W charging, 15W for accessories, always supported[1][7][8]
Certification	No mandatory certification; capabilities vary widely[2][7]	Mandatory certification; strict requirements[2][7]
Security	Varies	DMA protection required[3][7]
Cable Length	High-speed performance may drop after 1m (passive cables)[3]	Full 40 Gbps up to 2 meters[3]
Backward Compatibility	Yes, with older USB standards	Yes, with Thunderbolt 3, USB4, USB 3.2, USB 2.0[8][11]

Thunderbolt 4 Cable vs USB-C Cable: Physical and Functional Differences

Physical Similarity

Both Thunderbolt 4 and USB-C cables use the same USB-C connector, making them visually indistinguishable unless you look for specific markings[5][6][8].

Functional Differences

- Thunderbolt 4 cables are certified to support the full Thunderbolt 4 specification: 40 Gbps data, 100W power, and advanced video capabilities, even at lengths up to 2 meters[3][8][11].

- USB-C cables can range from basic charging cables (supporting only USB 2.0 speeds and minimal power) to high-end USB4 cables (supporting up to 40 Gbps and 100W power), but not all are guaranteed to support video, high-speed data, or high power[4][9][12].

Compatibility: Can You Mix and Match?

Thunderbolt 4 Cable in USB-C Port

- Yes, but limited by the port's capabilities. A Thunderbolt 4 cable will work in any USB-C port, but you'll only get the features supported by the port (e.g., USB 2.0 speeds on a USB 2.0 port)[5][8][12].

USB-C Cable in Thunderbolt 4 Port

- Depends on the cable. If the USB-C cable is not Thunderbolt-certified, it may not support Thunderbolt's full 40 Gbps speed, advanced video, or power delivery. Many USB-C cables only support USB 2.0 or 3.x speeds and basic charging[4][5][12].

How to Identify Thunderbolt 4 and USB-C Cables

Thunderbolt 4 Cable Identification

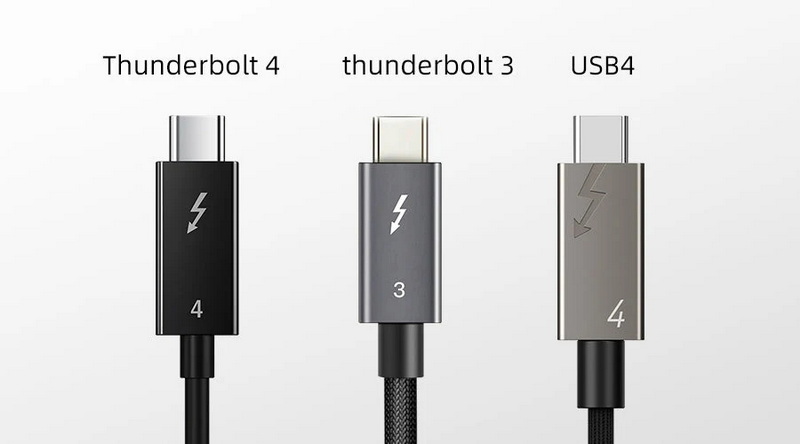

- Markings: Look for the lightning bolt icon and the number 4 on the connector[6][8][11].

- Packaging: Check for “Thunderbolt 4 Certified” on the box.

- Price: Thunderbolt 4 cables are usually more expensive due to certification and higher quality components.

USB-C Cable Identification

- Markings: Most USB-C cables have no special markings. Some may have “SS” for SuperSpeed (USB 3.x), or “10”/“20” for 10/20 Gbps support.

- Specifications: Always check the manufacturer's specs for data rate, power delivery, and video support[9].

- No Guarantee: Unless labeled as Thunderbolt, USB4, or with specific certification, capabilities may be limited.

Real-World Use Cases and Recommendations

When to Use Thunderbolt 4 Cables

- High-speed external SSDs and RAID arrays

- Multiple high-resolution monitors (dual 4K or single 8K)

- Daisy-chaining Thunderbolt devices

- Professional audio/video production

- Universal compatibility for mixed Thunderbolt/USB devices

When a USB-C Cable Is Enough

- Basic charging (phones, tablets)

- Simple data transfer (USB 2.0/3.0 speeds)

- Connecting to a single monitor (if Alt Mode is supported)

- Budget-conscious users with no need for Thunderbolt features

Conclusion

Thunderbolt 4 cables and USB-C cables are not the same, even though they share the same physical connector. Thunderbolt 4 cables are certified to deliver the highest level of performance for data, video, and power, and are fully backward compatible with USB4, Thunderbolt 3, and USB-C devices. USB-C cables, on the other hand, vary widely in their capabilities—some support only basic charging and data transfer, while others can match Thunderbolt speeds if they are USB4-certified.

If you want maximum compatibility, performance, and reliability, a Thunderbolt 4 cable is the best choice. For basic needs, a standard USB-C cable may suffice, but always check the specifications to ensure it meets your requirements.

Frequently Asked Questions

1. Are Thunderbolt 4 cables and USB-C cables physically the same?

Yes, both use the USB-C connector, making them look identical. The difference lies in their internal wiring and certification, which affects performance[4][5][6].

2. Can I use a Thunderbolt 4 cable with a USB-C device?

Yes, Thunderbolt 4 cables are backward compatible with all USB-C devices. However, you'll only get the features supported by the device and port[8][11].

3. Will a USB-C cable work in a Thunderbolt 4 port?

Yes, but you may not get Thunderbolt speeds or features unless the cable is certified for Thunderbolt or USB4[5][12].

4. How can I tell if my cable is Thunderbolt 4 or just USB-C?

Look for the lightning bolt icon and the number 4 on the connector. Check the packaging or manufacturer's website for certification details[6][8][11].

5. Do all USB-C cables support video output?

No, only cables and ports that support Alternate Mode (Alt Mode) can transmit video. Always check the specifications before buying[9].
