How To Use USB To Sata Cable?

Content Menu

● What Is a USB to SATA Cable?

>> Key Features:

● How to Use USB to SATA Cable: Step-by-Step Guide

>> Step 1: Prepare Your Equipment

>> Step 2: Connect the SATA Drive to the Adapter

>> Step 3: Connect the USB Cable to Your Computer

>> Step 4: Verify Drive Detection

>> Step 5: Use the Drive

>> Step 6: Safely Remove the Drive

● Visual Guide and Videos

>> Images

>> Recommended Videos

● Important Tips and Considerations

● Advantages of USB to SATA Cables

● Common Issues and Troubleshooting

● Conclusion

● Frequently Asked Questions (FAQs)

>> 1. Can I Use a USB to SATA Cable for All SATA Drive Sizes?

>> 2. Do USB to SATA Adapters Work on All Operating Systems?

>> 3. How Fast Is Data Transfer Using USB to SATA Adapters?

>> 4. Can I Make My Own USB to SATA Cable?

>> 5. What Should I Do If My Drive Is Not Recognized?

● Citations:

Connecting SATA drives to your computer via USB has become a practical and popular solution for data transfer, backup, and drive testing. USB to SATA cables and adapters enable you to use internal SATA hard drives or SSDs as external USB drives without needing to install them inside a computer. This article provides an in-depth explanation of how to use USB to SATA cables, including setup, troubleshooting, and tips, supported by images and videos for clarity.

What Is a USB to SATA Cable?

A USB to SATA cable or adapter is a device that converts the SATA interface of a hard drive or SSD to a USB interface, allowing the drive to connect externally to a computer's USB port. This is especially useful for accessing data on old drives, cloning drives, or using drives as portable storage.

Key Features:

- Connects 2.5” and 3.5” SATA HDDs and SSDs to USB ports.

- Supports USB 2.0, USB 3.0, and USB 3.1 standards.

- May include external power adapters for 3.5” drives requiring 12V power.

- Plug and play with most modern operating systems (Windows, macOS, Linux).

How to Use USB to SATA Cable: Step-by-Step Guide

Step 1: Prepare Your Equipment

- USB to SATA adapter or cable: Ensure it supports your drive size (2.5” or 3.5”) and USB version for optimal speed.

- Power adapter: Required for 3.5” drives that need 12V power.

- SATA drive: HDD or SSD you want to connect.

- Computer with USB port: Preferably USB 3.0 or higher for faster transfer speeds.

Step 2: Connect the SATA Drive to the Adapter

- Plug the SATA data connector on your drive into the SATA port on the USB to SATA adapter.

- For 3.5” drives, connect the power cable from the power adapter to the drive and plug the adapter into a power outlet.

Step 3: Connect the USB Cable to Your Computer

- Insert the USB end of the adapter into an available USB port on your computer.

- The system should detect the drive automatically.

Step 4: Verify Drive Detection

- On Windows: Open Disk Management (search “Create and format hard disk partitions”) to see if the drive appears.

- On macOS: Open Disk Utility to check if the drive is listed.

- If the drive is new, you may need to initialize and format it before use.

Step 5: Use the Drive

- Access the drive like any external USB storage device.

- Transfer files, backup data, or perform diagnostics as needed.

Step 6: Safely Remove the Drive

- Use the “Safely Remove Hardware” option on Windows or eject the drive on macOS before unplugging to avoid data corruption.

Visual Guide and Videos

Images

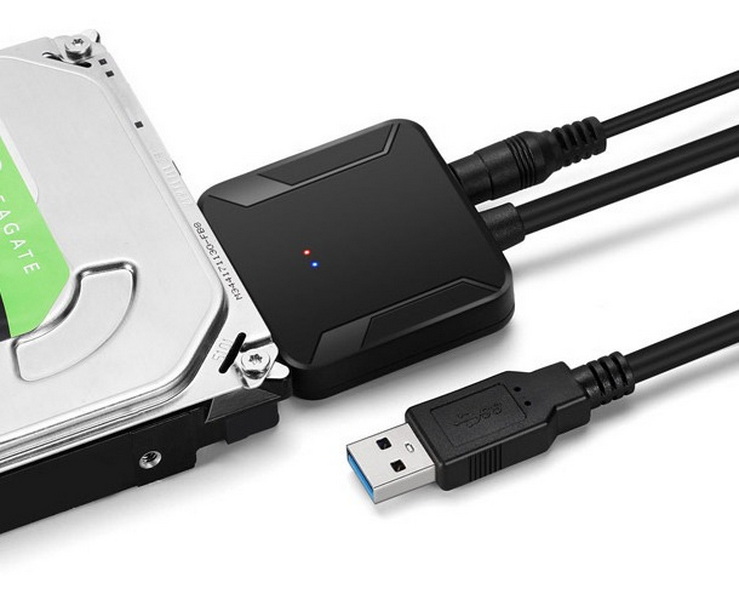

- USB to SATA adapter with power supply connected to a 3.5” hard drive.

- Close-up of SATA data and power connectors.

- USB cable plugged into a laptop USB 3.0 port.

Recommended Videos

- How to Use a USB 2.0 to SATA-IDE Cable — Demonstrates connecting SATA and IDE drives using USB adapters.

- Instructions on USB To SATA/IDE Adapters & Cables — Step-by-step hardware connection and software detection.

- Custom USB to SATA Power Cable to Power SSD Drive — Shows making a custom power cable for SATA drives using USB power.

Important Tips and Considerations

- Power Requirements: 2.5” drives can usually be powered by USB alone, but 3.5” drives require an external 12V power supply.

- Compatibility: Check that your USB to SATA adapter supports the capacity and SATA version of your drive.

- USB Version: USB 3.0 or higher is recommended for faster data transfer.

- Drive Initialization: New or unformatted drives need to be initialized in Disk Management or Disk Utility.

- Avoid Hot-Plugging SATA Drives Without Adapter: Always connect the adapter to the computer first, then connect the drive to avoid power issues.

Advantages of USB to SATA Cables

Feature	Benefit
Portability	Easily connect drives without opening PC.
Versatility	Supports HDDs and SSDs of various sizes.
Cost-effective	Cheaper than external drive enclosures.
Plug and Play	No driver installation needed on modern OS.
Fast Data Transfer	USB 3.0 adapters support up to 6Gbps.

Common Issues and Troubleshooting

- Drive Not Detected: Check connections, try different USB ports, ensure power adapter is connected for 3.5” drives.

- Insufficient Power: Use USB 3.0 ports or powered USB hubs for 2.5” drives; use external power for 3.5” drives.

- Drive Requires Initialization: Format the drive in Disk Management or Disk Utility before use.

- Adapter Compatibility: Some adapters do not support drives larger than 2TB or certain SATA versions.

Conclusion

Using a USB to SATA cable is a straightforward and efficient way to connect internal SATA hard drives and SSDs externally to your computer. Whether you need to recover data, clone drives, or expand your storage options, these adapters provide a versatile and portable solution. Remember to consider power requirements, USB version compatibility, and proper drive initialization to ensure smooth operation. With the right adapter and setup, you can enjoy fast, reliable access to your SATA drives through a simple USB connection.

Frequently Asked Questions (FAQs)

1. Can I Use a USB to SATA Cable for All SATA Drive Sizes?

No. While USB to SATA cables generally support 2.5” drives powered via USB alone, 3.5” drives require an external 12V power adapter. Make sure your adapter includes a power supply if you plan to use 3.5” drives[1][6][9].

2. Do USB to SATA Adapters Work on All Operating Systems?

Most USB to SATA adapters are plug and play on Windows, macOS, and Linux without needing additional drivers. Older operating systems may require driver installation[8][9].

3. How Fast Is Data Transfer Using USB to SATA Adapters?

Transfer speed depends on the USB version and the drive. USB 3.0 adapters can support up to 6Gbps SATA III speeds, but actual speeds may be limited by the drive or USB host controller[11][16].

4. Can I Make My Own USB to SATA Cable?

Yes, it is possible to make a custom USB to SATA cable by soldering the correct wires and ensuring proper power connections. However, this requires electronics skills and tools such as a soldering iron and multimeter[2][12].

5. What Should I Do If My Drive Is Not Recognized?

Try connecting to a different USB port, use a powered USB hub, check if the drive needs initialization or formatting, or test the adapter and drive on another computer. If the problem persists, the adapter or drive may be faulty[7][14].
