How To Use Usb Console Cable?

Views: 222     Author: Tina     Publish Time: 2025-04-16      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Content Menu

What Is a USB Console Cable?

Why Use a USB Console Cable?

Equipment Needed

Step-by-Step Guide on How to Use a USB Console Cable

>> 1. Identify the Correct Console Port and Cable

>> 2. Install Necessary Drivers

>> 3. Connect the Cable

>> 4. Verify Connection and COM Port

>> 5. Configure Terminal Emulator Software

>> 6. Establish the Console Session

Tips for Using USB Console Cables

Common Issues and Troubleshooting

Conclusion

Frequently Asked Questions (FAQs)

>> 1. What is the difference between a USB console cable and a traditional RJ45 console cable?

>> 2. How do I install drivers for a USB console cable?

>> 3. Can I use a USB console cable on macOS or Linux?

>> 4. What terminal settings should I use for console connections?

>> 5. Why does my USB console cable keep disconnecting?

Citations:

A USB console cable is an essential tool for network administrators, engineers, and IT professionals who need to configure, manage, and troubleshoot network devices such as routers, switches, firewalls, and other hardware. This article provides an in-depth explanation of what a USB console cable is, how to use it effectively, and answers common questions related to its usage. The guide includes detailed steps, tips, and multimedia resources to help you master the use of USB console cables.

how to use usb console cable

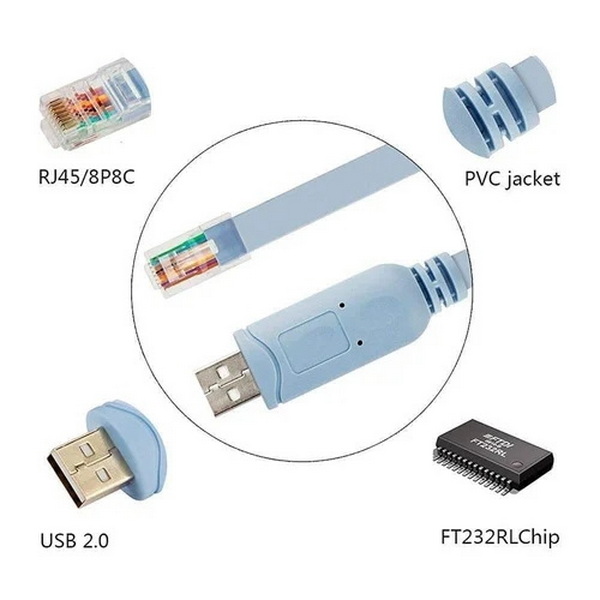

What Is a USB Console Cable?

A USB console cable is a specialized cable used to connect a computer (usually a PC or laptop) to the console port of a network device. This connection allows direct access to the device's command-line interface (CLI) for configuration and management purposes.

- One end of the cable typically has a USB Type-A connector that plugs into the computer.

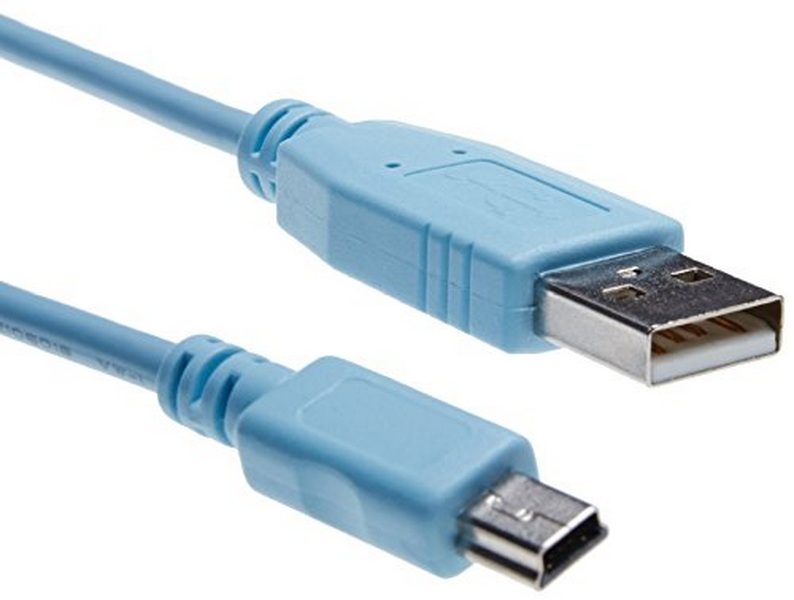

- The other end has an RJ45 connector (or sometimes a USB Mini-B or Micro-B connector) that connects to the console port of the network device.

Unlike traditional RJ45-to-serial console cables, USB console cables use USB interfaces, making them compatible with modern computers that often lack serial ports[4][10].

Why Use a USB Console Cable?

- Compatibility: Modern laptops and desktops rarely have serial ports, but USB ports are ubiquitous.

- Ease of Use: USB console cables often come with plug-and-play drivers, simplifying setup.

- Faster Data Transfer: USB supports higher data rates than traditional serial connections.

- Cross-Platform Support: Works with Windows, macOS, and Linux with appropriate drivers.

- Convenience: Eliminates the need for additional adapters or converters.

Equipment Needed

Before starting, ensure you have the following:

- USB console cable (USB to RJ45 or USB to Mini/Micro USB depending on device)

- Network device with a console port (router, switch, firewall, etc.)

- Computer with an available USB port

- Terminal emulator software (e.g., PuTTY, Tera Term, HyperTerminal)

- Necessary drivers for the USB console cable (often provided by the cable manufacturer or device vendor)

USB Console Cable Setup Guide

Step-by-Step Guide on How to Use a USB Console Cable

1. Identify the Correct Console Port and Cable

- Confirm the console port type on your network device. It may be an RJ45 console port or a USB console port (Mini-B or Micro-B).

- Use the USB console cable that matches the port type. For example, Cisco devices often use USB to RJ45 rollover cables, while some devices have USB Mini-B console ports[1][7][8].

2. Install Necessary Drivers

- Before connecting the cable, install the USB-to-serial drivers required for your cable. These drivers enable your computer to recognize the USB console cable as a serial COM port.

- Drivers can usually be downloaded from the device or cable manufacturer's website.

- For example, FTDI or Silicon Labs drivers are common for USB-to-serial adapters[6][12].

3. Connect the Cable

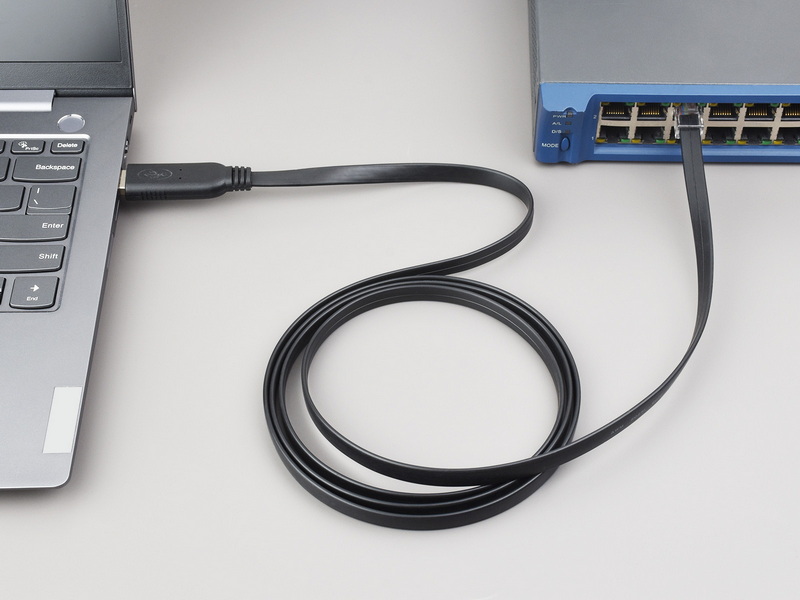

- Plug the RJ45 end into the console port of the network device.

- Plug the USB Type-A end into your computer's USB port.

- For devices with USB Mini-B or Micro-B console ports, connect the corresponding USB end to the device and the USB Type-A end to the computer[2][7][8].

4. Verify Connection and COM Port

- Open your computer's Device Manager (Windows) or equivalent on other OS.

- Look under “Ports (COM & LPT)” to find the COM port number assigned to the USB console cable.

- If the device is not recognized, troubleshoot driver installation or try a different USB port[6][12].

5. Configure Terminal Emulator Software

- Open your terminal emulator (e.g., PuTTY).

- Select “Serial” as the connection type.

- Enter the COM port number identified earlier.

- Set the serial communication parameters, typically:

- Baud rate: 9600 (default, but check device documentation)

- Data bits: 8

- Parity: None

- Stop bits: 1

- Flow control: None

- These settings may vary depending on the device; consult the device's manual or search online for “device name + console port settings”[13].

6. Establish the Console Session

- Click “Open” in the terminal emulator.

- Press Enter to see if you get a login prompt or command line interface.

- If no response, verify connections, COM port settings, and terminal parameters.

- Once connected, you can enter commands to configure or troubleshoot the device[13].

USB To Serial Console Cable Instructions

Tips for Using USB Console Cables

- Always use the console cable labeled specifically for console use; do not plug it into a regular Ethernet port.

- Label both ends of your console cable to avoid confusion during setup[2].

- If you experience connection drops, check cable integrity, driver installation, and terminal settings[4].

- Disable any serial port communication software before unplugging or plugging the USB console cable to avoid driver issues[2].

- For devices with both RJ45 and USB console ports, only one port can be active at a time[2][14].

Common Issues and Troubleshooting

- Device Not Recognized: Ensure drivers are installed before connecting the cable. Try different USB ports.

- No COM Port Appears: Check Device Manager for unknown devices and update drivers manually.

- Connection Drops: Verify cable integrity and terminal settings.

- Wrong COM Port Number: Adjust COM port number in Device Manager if terminal software does not detect it.

- Multiple COM Ports: Each USB console cable may get a different COM port number; confirm the correct one before connecting.

Conclusion

Using a USB console cable is a fundamental skill for network professionals to access and manage network devices directly. The USB console cable offers modern compatibility, ease of use, and faster data transfer compared to traditional serial cables. By following the steps outlined—identifying the correct cable, installing drivers, connecting properly, and configuring terminal software—you can efficiently establish console sessions for device configuration and troubleshooting. With proper setup and troubleshooting, USB console cables become indispensable tools in network management.

USB Console Cable Configuration Steps

Frequently Asked Questions (FAQs)

1. What is the difference between a USB console cable and a traditional RJ45 console cable?

A USB console cable uses a USB interface on the computer side, making it compatible with modern devices lacking serial ports. Traditional RJ45 console cables connect to serial ports and often require USB-to-serial adapters for modern computers. USB console cables also support faster data transfer and easier driver installation[4][10].

2. How do I install drivers for a USB console cable?

Drivers are usually provided by the cable or device manufacturer. Common drivers include FTDI or Silicon Labs USB-to-serial drivers. Download the appropriate driver for your operating system, install it before connecting the cable, and verify the COM port in Device Manager[6][12].

3. Can I use a USB console cable on macOS or Linux?

Yes, most USB console cables support Windows, macOS, and Linux. However, you may need to install compatible drivers and use terminal software like screen (macOS/Linux) or PuTTY (Windows)[4].

4. What terminal settings should I use for console connections?

The standard settings are usually 9600 baud rate, 8 data bits, no parity, 1 stop bit, and no flow control. Always check your device's documentation for exact parameters[13].

5. Why does my USB console cable keep disconnecting?

Disconnections can be caused by faulty cables, incorrect driver installation, or terminal software misconfiguration. Ensure the cable is securely connected, drivers are up to date, and terminal settings match the device requirements[4].

Citations:
