Introduction to SATA to USB Cables

SATA to USB cables are versatile tools that allow users to connect internal SATA hard drives or solid-state drives (SSDs) to a computer via a USB port. This is particularly useful for accessing data from an old computer's hard drive without having to install it inside a new computer. The process involves using a USB to SATA adapter, which can be a simple and cost-effective solution for data transfer and backup.

Components Needed

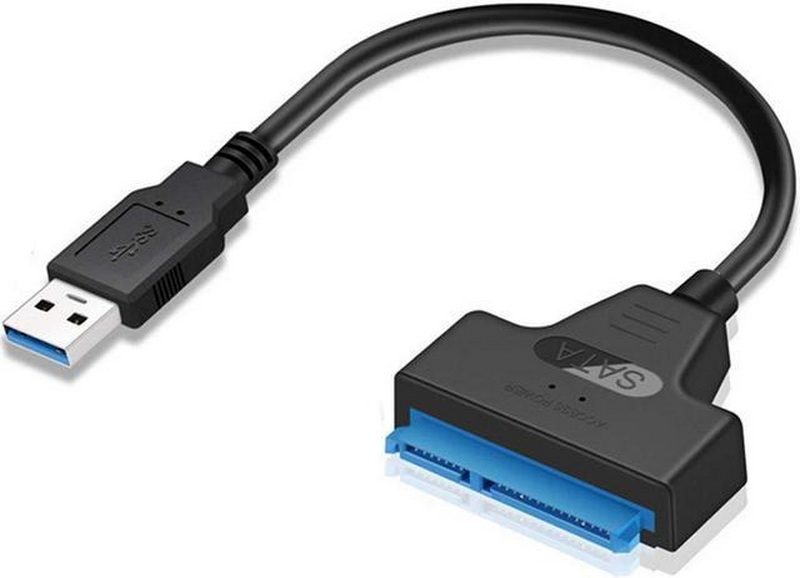

- USB to SATA Adapter: This is the primary device that connects the SATA drive to a USB port. It usually includes a SATA connector for the hard drive and a USB connector for the computer.

- Power Adapter (for 3.5-inch drives): A separate power adapter is often required for 3.5-inch desktop hard drives, as they need more power than what a USB port can supply.

- SATA Hard Drive or SSD: The internal drive you want to connect via USB.

Step-by-Step Guide

1. Connect the SATA Drive to the Adapter:

- Attach the SATA connector of the adapter to the SATA port on your hard drive or SSD. Ensure it is securely connected to avoid data loss or corruption.

2. Power the Adapter (if necessary):

- For 3.5-inch hard drives, insert the power adapter into the dedicated power port on the USB to SATA adapter. Then, plug the power adapter into an electrical outlet.

3. Connect the Adapter to the Computer:

- Plug the USB end of the adapter into a USB port on your computer. Ensure it is a compatible port, preferably USB 3.0 for faster data transfer.

Troubleshooting Common Issues

Drive Not Detected:

- Ensure all connections are secure and not loose.

- Try a different USB port or a powered USB hub if using a 2.5-inch drive without an external power supply.

- Check if the drive needs to be initialized or formatted in Disk Management.

Power Issues:

- For 3.5-inch drives, ensure the external power adapter is connected and turned on.

- Some mobile devices or TVs may not supply enough power through their USB ports.

Types of SATA to USB Adapters

USB 2.0 vs. USB 3.0 Adapters:

- USB 3.0 adapters offer faster data transfer speeds compared to USB 2.0, making them ideal for large data transfers.

- USB 3.0 adapters can support larger capacity drives, up to 6 TB in some cases[1].

Compatibility with Different Drive Sizes:

- 2.5-inch Drives: These are typically bus-powered, meaning they can draw power directly from the USB port.

- 3.5-inch Drives: Require an external power supply due to higher power requirements[8].

Safety Precautions

- Avoid Sudden Movement: When the drive is spinning, avoid moving it to prevent damage to the mechanical components.

- Safe Removal: Always use the "Safely Remove Hardware" option before disconnecting the drive from the computer to prevent data corruption.

Conclusion

Using a SATA to USB cable is a straightforward process that allows users to access internal drives externally. However, it's crucial to ensure compatibility with the drive size and type, and to follow proper connection and power procedures to avoid damage or data loss.

Frequently Asked Questions

1. What is the Difference Between USB 2.0 and USB 3.0 SATA Adapters?

USB 3.0 adapters offer faster data transfer speeds and can support larger capacity drives compared to USB 2.0 adapters[1][6].

2. Can I Use a SATA to USB Cable with a 3.5-inch Hard Drive?

Yes, but you will need an external power adapter to supply the required 12V power[8][10].

3. How Do I Safely Remove a SATA Drive Connected via USB?

Use the "Safely Remove Hardware" option in your computer's system tray before unplugging the drive[6].

4. Why Does My SATA Drive Not Show Up When Connected via USB?

Check that all connections are secure, try a different USB port, and ensure the drive is properly powered and initialized[4][5].

5. Can I Use a SATA to USB Cable with an SSD?

Yes, but ensure the cable is compatible with SATA SSDs. Some cables may not support certain types of SSDs[4].
