Introduction
PuTTY is a powerful terminal emulator that allows users to connect to various devices, including network equipment like routers and switches, using a serial connection. When combined with a USB console cable, it provides a flexible and efficient way to manage these devices without needing a traditional serial port. This article will guide you through the process of using PuTTY with a USB console cable, including setup, troubleshooting, and common issues.
Supplies Needed
- PuTTY Software: Download and install PuTTY from its official website.

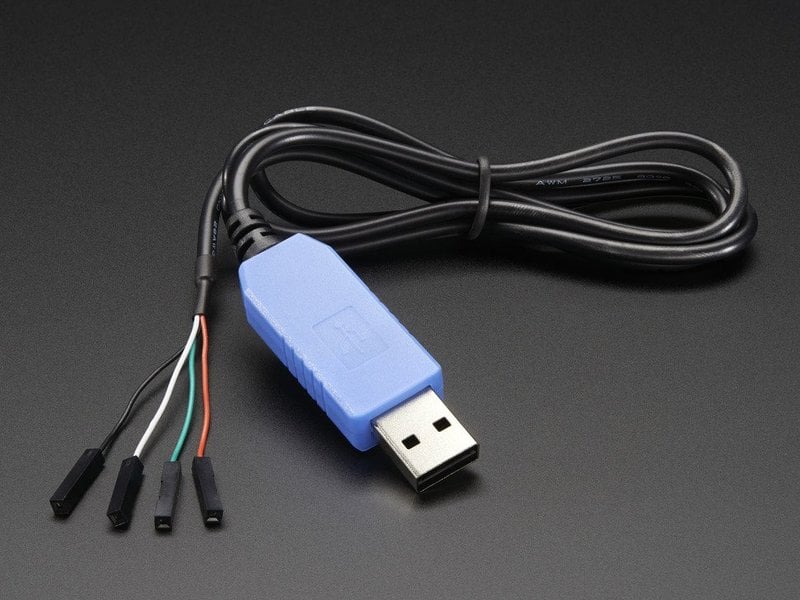

- USB to Serial Adapter: Ensure you have a USB to serial adapter if your device doesn't have a serial port.

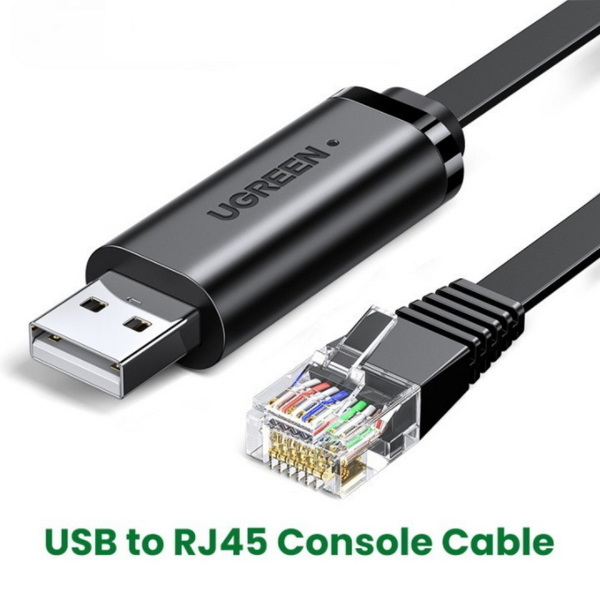

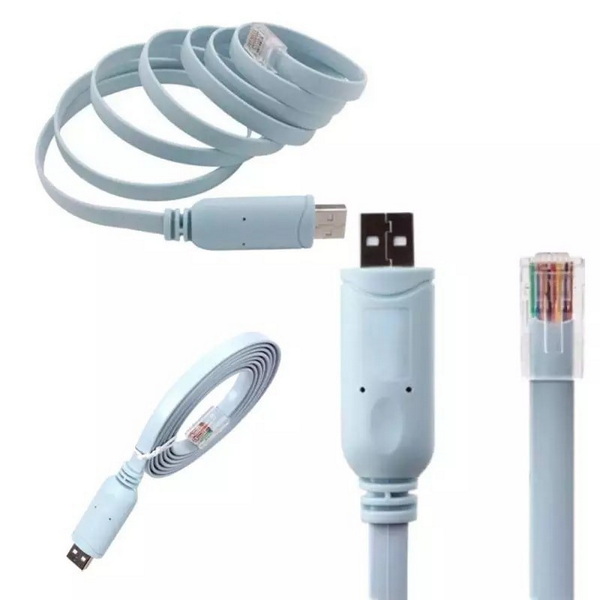

- USB Console Cable: This cable connects your USB port to the device's console port.
- Device Drivers: Install necessary drivers for the USB to serial adapter.
Step-by-Step Guide
1. Install PuTTY
First, download and install PuTTY on your computer. It's available for Windows, macOS, and Linux.
2. Install USB to Serial Adapter Drivers
If you're using a USB console cable with a USB to serial adapter, ensure the adapter's drivers are installed. You can usually find these drivers on the manufacturer's website.
3. Connect the USB Console Cable
Connect the USB end of the console cable to your computer and the other end to the device's console port.
4. Identify the COM Port
To find the COM port assigned to your USB to serial adapter:
1. Open Device Manager on Windows.
- Right-click on My Computer or This PC, select Properties, then click on Device Manager.
- Alternatively, press the Windows key + X and select Device Manager.
2. Expand Ports (COM & LPT).
3. Look for the USB serial port (e.g., Prolific USB-to-Serial Comm Port (COM4)).
5. Configure PuTTY
1. Open PuTTY.
2. Select Serial under Connection type.
3. Enter the COM port number identified in Device Manager (e.g., COM4).
4. Set the baud rate, data bits, stop bits, and parity according to your device's specifications. Common settings are:
- Baud rate: 9600 or 115200
- Data bits: 8
- Stop bits: 1
- Parity: None
- Flow control: None or XON/XOFF
5. Click Open to establish the connection.
Advanced Tips for Using PuTTY with USB Console Cables
1. Logging Sessions
PuTTY allows you to log your sessions, which can be useful for auditing or troubleshooting purposes. To enable logging, go to Session > Logging and select a log file type and location.
2. Customizing the Terminal
You can customize the appearance and behavior of the PuTTY terminal by adjusting settings under Window and Terminal. This includes changing the font, background color, and enabling features like auto-wrap.
3. Using PuTTYgen for SSH Keys
PuTTYgen is a tool that comes with PuTTY, used to generate SSH keys. This can enhance security by allowing passwordless login to devices that support SSH.
4. Port Forwarding
PuTTY supports port forwarding, which allows you to tunnel network traffic through an SSH connection. This can be useful for accessing devices behind a firewall.
5. Using Plink for Command-Line Operations
Plink is a command-line version of PuTTY that allows you to automate tasks by running commands directly from the command line. This is useful for scripting and automation.
Troubleshooting Common Issues
1. Unable to Open COM Port
- Solution: Ensure the USB to serial adapter drivers are correctly installed and the COM port is not in use by another application.
2. No Response from Device
- Solution: Check the baud rate and other serial settings match your device's requirements. Press Enter twice to prompt the login screen.
3. PuTTY Not Recognizing Keyboard Input
- Solution: Verify the Tx wire is correctly connected and the device is powered on. Ensure PuTTY is configured to use the correct COM port.
Best Practices for Using PuTTY with USB Console Cables
- Regularly Update Drivers: Keep your USB to serial adapter drivers updated to ensure compatibility and stability.
- Use Secure Connections: When possible, use SSH instead of Telnet for secure connections.
- Backup Configurations: Regularly backup device configurations to prevent data loss in case of failure.
Conclusion
Using PuTTY with a USB console cable is a straightforward process that allows for efficient management of network devices. By following the steps outlined above and troubleshooting common issues, you can effectively use PuTTY to configure and troubleshoot your devices.
Frequently Asked Questions
1. How Do I Find the Correct COM Port for My USB to Serial Adapter?
To find the COM port, open Device Manager, expand Ports (COM & LPT), and look for the USB serial port entry.
2. What Are the Common Serial Settings for Network Devices?
Common settings include a baud rate of 9600 or 115200, 8 data bits, 1 stop bit, None parity, and None or XON/XOFF flow control.
3. Why Can't I Open the COM Port in PuTTY?
Ensure the USB to serial adapter drivers are installed and the COM port is not in use by another application.
4. How Do I Troubleshoot No Response from the Device?
Check the serial settings match your device's requirements. Press Enter twice to prompt the login screen.
5. What If PuTTY Doesn't Recognize My Keyboard Input?
Verify the Tx wire connection and ensure the device is powered on. Check that PuTTY is using the correct COM port.
