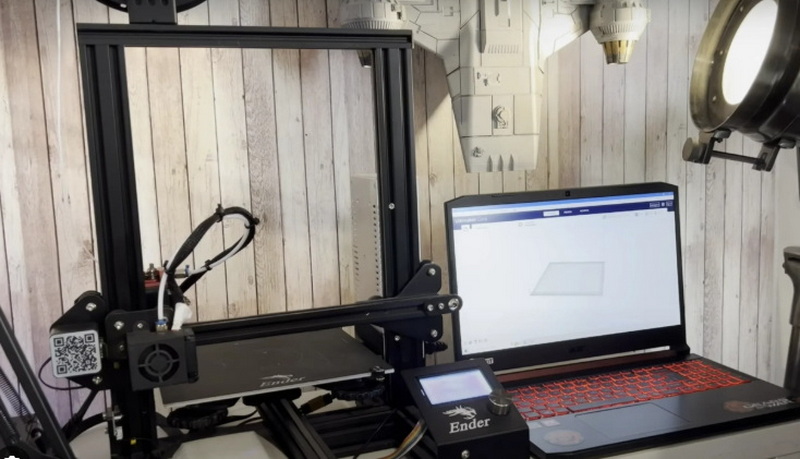

Introduction to Printing with Ender 3 via USB Cable
Printing with the Ender 3 3D printer using a USB cable allows for direct control from a computer, which can be beneficial for monitoring and managing prints in real-time. This method is particularly useful for those who prefer not to use SD cards or want to integrate their printer into a network setup. However, it's essential to understand the steps involved and the potential limitations of this approach.
Step-by-Step Guide to Connect Ender 3 to PC via USB
1. Tools You Need:
- Ender 3 3D printer
- Micro USB cable (or Mini USB for older models)
- PC with a compatible operating system (Windows, macOS, Linux)
- Slicer software (e.g., UltiMaker Cura, Pronterface)

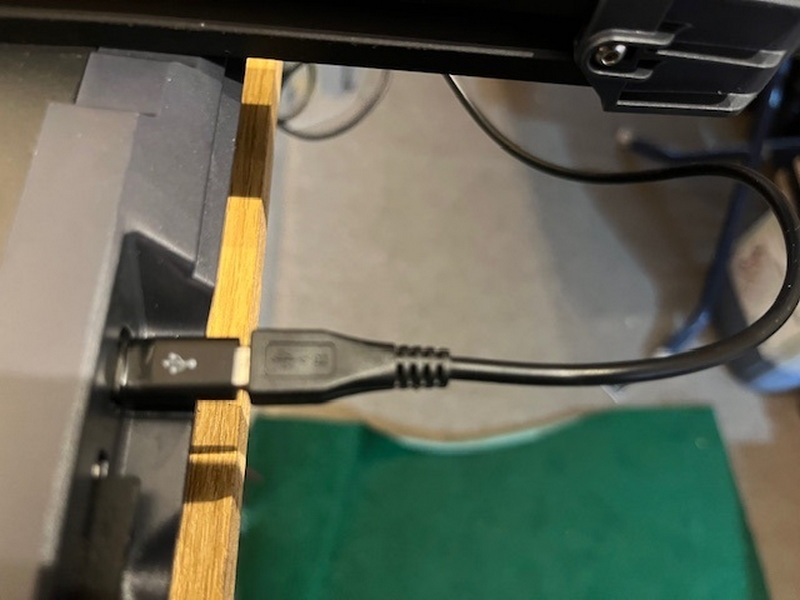

2. Connect the USB Cable:
- Plug the micro USB end into the Ender 3's USB port, usually located on the front of the printer next to the SD card slot.
- Connect the other end of the cable to an available USB port on your computer.
3. Install Necessary Software:
- Download and install a slicer software that supports USB printing, such as UltiMaker Cura or Pronterface. UltiMaker Cura is widely used due to its user-friendly interface and extensive support for various printers.
4. Configure the Slicer Software:
- Open the slicer software and add your Ender 3 printer to its settings. For Cura, go to "Settings" > "Printer" > "Add Printer" and select your Ender 3 model. Ensure that the correct firmware version is selected to match your printer's configuration.
5. Prepare and Print Your Model:
- Load your 3D model into the slicer software. This can be done by importing STL or OBJ files.
- Configure print settings as desired. This includes selecting the layer height, infill density, and support type.
- Select "Print via USB" to start the print job directly from your computer. Make sure the printer is powered on and recognized by the software.
Advantages and Limitations of USB Printing
Advantages:
- Real-time Monitoring: Allows you to monitor the print process directly from your computer, enabling immediate adjustments if needed.
- Direct Control: Can be useful for adjusting settings during the print, such as temperature or speed.
Limitations:
- Computer Dependence: The printer relies on the computer to remain active throughout the print, which can lead to issues if the computer goes to sleep or experiences connectivity problems.
- Software Compatibility: Not all slicer software supports USB printing, and some may have limitations in their latest versions.
Alternative Methods: SD Cards and Network Printing
While USB printing offers direct control, using SD cards or network printing via tools like OctoPrint can provide more flexibility and reliability, especially for managing multiple prints or dealing with power outages.
SD Cards
SD cards are a common method for printing with the Ender 3. They allow the printer to operate independently of a computer once the print file is loaded. This method is reliable and easy to use, making it suitable for most users.

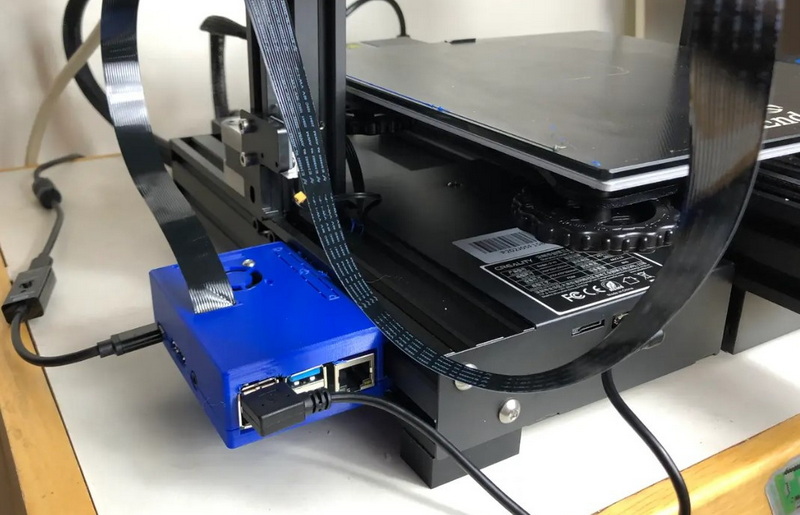

Network Printing with OctoPrint
OctoPrint is a powerful tool that allows you to manage your 3D printer over a network. It provides features like remote monitoring, print job management, and plugin support for enhanced functionality. OctoPrint can be installed on a Raspberry Pi or other compatible devices, offering a robust solution for managing multiple printers or complex print setups.
Troubleshooting Common Issues
When using USB printing, several issues may arise. Here are some common problems and their solutions:
- Printer Not Recognized: Ensure that the USB cable is securely connected and that the printer is powered on. Check the device manager to see if the printer is listed under "Ports (COM & LPT)".
- Software Connection Issues: Restart both the printer and the computer. Ensure that the correct COM port is selected in your software.
- Print Job Stalls: Check for loose connections or software glitches. Restarting the print job or the software can sometimes resolve this issue.
Optimizing Print Settings for Better Results
Optimizing print settings can significantly improve the quality and reliability of your prints. Here are some key settings to consider:
- Layer Height: Lower layer heights (e.g., 0.1 mm) provide more detailed prints but increase print time. Higher layer heights (e.g., 0.3 mm) are faster but less detailed.
- Infill Density: Adjusting infill density affects the print's strength and weight. Higher infill densities provide stronger prints but use more material.
- Support Material: Enable support material for prints with overhangs or complex geometries to prevent sagging or collapse.
Safety Precautions
When working with 3D printers, safety should always be a priority:
- Electrical Safety: Ensure all electrical components are properly connected and insulated to avoid electrical shock.
- Heat Safety: Be cautious around heated components like the hotend and heated bed, as they can cause burns.
- Ventilation: Maintain good ventilation in the printing area to prevent inhalation of fumes from melted plastics.
Conclusion
Printing with the Ender 3 via a USB cable is a viable method for those who prefer direct computer control. However, it's crucial to consider the potential drawbacks and explore alternative methods like SD cards or network printing for more robust and reliable printing experiences.
Frequently Asked Questions
1. Where is the USB Port on the Ender 3?
The USB port on the Ender 3 is typically located on the front of the printer, next to the SD card slot. It may be a Micro USB or Mini USB port, depending on the model.
2. What Software Can I Use for USB Printing with Ender 3?
You can use software like UltiMaker Cura or Pronterface for USB printing with the Ender 3. Cura is widely supported and user-friendly, while Pronterface offers more manual control.
3. Why Should I Avoid Using the USB Port for Everyday Printing?
Using the USB port for everyday printing can be inconvenient because it requires the computer to remain active and connected throughout the print. This can lead to issues if the computer goes to sleep or experiences connectivity problems. SD cards or network printing are often more reliable.
4. Can I Use Creality Print Software for USB Printing?
As of the latest versions, Creality Print software does not support USB printing directly. Users have reported switching to other slicers like Cura for this functionality.
5. How Do I Troubleshoot USB Connection Issues with My Ender 3?
If you encounter issues with the USB connection, ensure that the correct COM port is selected in your software, and that the printer is properly powered on and recognized by your computer. Rebooting both the printer and computer can sometimes resolve connectivity issues.
