Introduction

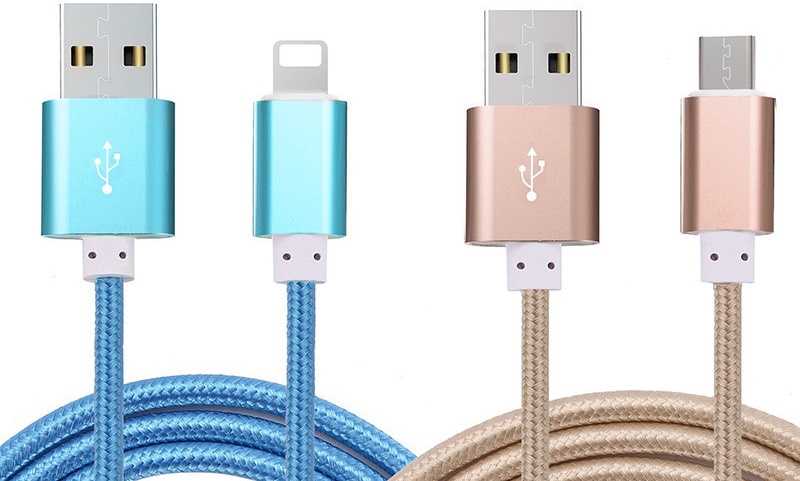

USB cables are essential for charging devices and transferring data, and the wire gauge inside these cables plays a crucial role in their performance. This article explores the different wire gauges used in USB cables, focusing on USB Type-C cables, and explains how wire gauge affects charging speed, data transfer, and cable length. We will also cover the technical specifications, practical considerations, and provide visual aids and videos to help you understand the topic comprehensively.
Understanding Wire Gauge in USB Cables
What Is Wire Gauge?
Wire gauge refers to the thickness of the wire inside a cable. It is measured using the American Wire Gauge system, where a lower gauge number means a thicker wire, and a higher gauge number means a thinner wire. For example, a wire with gauge twenty is thicker than a wire with gauge twenty-eight.
Thicker wires (lower gauge) can carry more current with less resistance, which means faster charging and less voltage drop over longer distances. Thinner wires (higher gauge) have higher resistance and are usually found in cheaper or longer cables where cost or flexibility is a priority.
Common Wire Gauges Used in USB Cables
USB cables typically use different wire gauges for power and data lines:
- Power wires: Usually thicker to handle higher current. Common gauges are twenty-four, twenty-two, or even twenty for high-power cables.
- Data wires: Usually thinner, commonly twenty-eight or thirty gauge, as data lines carry low current but require good signal integrity.
Typical USB Cable Wire Gauges
| Wire Gauge | Diameter (mm²) | Typical Use in USB Cables |
| Twenty | 0.5189 | High-current power lines, longer cables |
| Twenty-two | 0.3247 | Power lines for medium-length cables |
| Twenty-four | 0.2047 | Standard power lines in most USB cables |
| Twenty-six | 0.1281 | Sometimes used for power or data |
| Twenty-eight | 0.0804 | Data lines, low current power lines |
| Thirty | 0.0507 | Data lines in some USB cables |
| Thirty-two | 0.0316 | Thin data lines in some cables |
Wire Gauge in USB Type-C Cables
USB Type-C cables are the latest USB standard, supporting high data rates, power delivery up to one hundred watts, and video signals. Because of these capabilities, USB-C cables often use a combination of wire gauges to meet both power and data requirements.
- Power wires: Usually twenty-four gauge or thicker (sometimes twenty-two or twenty in premium cables) to support high current charging up to five amperes at twenty volts.
- Data wires: Typically twenty-eight or thirty gauge for USB two-point-zero data lines, and additional pairs of twisted wires for USB three-point-x SuperSpeed data lines, which may also be twenty-eight gauge but twisted and shielded for signal integrity.
For example, a high-quality USB two-point-zero cable might have twenty-four gauge power wires and twenty-eight gauge data wires. USB three-point-zero or three-point-one cables add extra pairs for SuperSpeed data, often using twenty-eight gauge twisted pairs with shielding.
Why Wire Gauge Matters in USB Cables
Charging Speed and Current Capacity
Thicker power wires (lower gauge) reduce resistance, allowing more current to flow with less voltage drop. This means faster charging and better power delivery, especially for devices requiring higher currents like tablets and laptops.
- Wires at twenty-four gauge can safely handle up to two amperes of current.
- Wires at twenty gauge can handle even higher currents, suitable for USB Power Delivery up to five amperes.
Using thinner wires (like twenty-eight gauge) for power limits the current to around five hundred milliamperes, which is slow charging by modern standards.
Cable Length Limitations
The USB specifications limit cable length partly due to voltage drop and signal integrity concerns:
- For twenty-four gauge power wires, the maximum recommended cable length is about two meters to maintain voltage within USB requirements.
- Using thicker wires (twenty gauge) can extend this length up to around five meters without significant voltage drop.
- Data wires, usually twenty-eight gauge, are twisted and shielded to reduce noise and maintain signal quality over the cable length.
USB Cable Construction and Specifications
USB cables consist of multiple wires inside a protective jacket:
- Power wires: Usually red (positive voltage) and black (ground).
- Data wires: Typically white (data negative) and green (data positive).
- Additional wires: For USB three-point-x, extra twisted pairs for SuperSpeed data.
- Shielding: Aluminum foil and braided copper shielding to reduce electromagnetic interference.
A typical USB two-point-zero cable might have twenty-eight gauge data wires and twenty-four gauge power wires, while USB three-point-zero cables have more wires and shielding to support higher speeds.
Practical Tips for Choosing USB Cables Based on Wire Gauge
- Look for cables labeled with two numbers, such as twenty-eight/twenty-four gauge or twenty-eight/twenty gauge, where the first number is the data wire gauge and the second is the power wire gauge.
- Avoid cables with all wires at twenty-eight gauge if you want faster charging.
- For longer cables (over two meters), prefer thicker power wires (twenty-two or twenty gauge) to reduce voltage drop.
- For USB-C cables supporting Power Delivery up to one hundred watts, ensure the cable supports five amperes current, which requires thicker power wires.
- Check manufacturer specifications for wire gauge and certification to ensure performance and safety.
Conclusion
The wire gauge used in USB cables significantly impacts their charging speed, data transfer quality, and maximum cable length. USB cables commonly use twenty-eight gauge wires for data and twenty-four gauge or thicker wires for power. USB Type-C cables, especially those supporting high power delivery, use thicker wires (twenty to twenty-four gauge) to handle higher currents safely. When choosing a USB cable, considering the wire gauge helps ensure optimal performance for charging and data transfer, especially for demanding devices like tablets and laptops.
Frequently Asked Questions About USB Cable Wire Gauge
1. What is the difference between twenty-eight gauge and twenty-four gauge USB cables?
Twenty-eight gauge wires are thinner and typically used for data lines or low-current power lines, supporting up to five hundred milliamperes charging. Twenty-four gauge wires are thicker, used for power lines, and can safely handle up to two amperes current, enabling faster charging.
2. Can I use a USB cable with twenty-eight gauge power wires for charging a tablet?
It is not recommended because twenty-eight gauge wires have higher resistance and can cause slower charging and voltage drop. Tablets usually require cables with twenty-four gauge or thicker power wires for optimal charging.
3. How does wire gauge affect USB cable length?
Thicker wires (lower gauge) allow longer cable lengths without significant voltage drop. For example, twenty-four gauge cables are recommended up to two meters, while twenty gauge cables can extend up to five meters.
4. What wire gauge is used in USB Type-C cables for Power Delivery?
USB Type-C cables supporting Power Delivery up to one hundred watts typically use twenty gauge or twenty-two gauge power wires to safely carry up to five amperes current at twenty volts.
5. Why do USB three-point-zero cables have more wires than USB two-point-zero cables?
USB three-point-zero cables include additional twisted pairs of wires (usually twenty-eight gauge) for SuperSpeed data transfer, requiring more wires and shielding to maintain signal integrity at higher speeds.
