Introduction to USB to RCA Cables

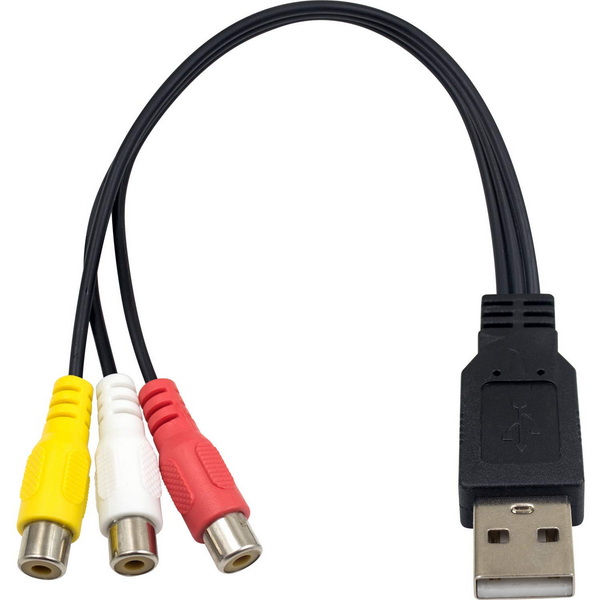

USB to RCA cables are used to connect devices with USB outputs to those with RCA inputs, typically for transmitting audio and video signals. However, creating a functional USB to RCA cable requires more than just splicing wires together; it involves understanding the fundamental differences between digital USB signals and analog RCA signals. In this article, we will explore how to make a USB to RCA cable, the challenges involved, and the necessary components.
Understanding USB and RCA Signals
- USB Signals: USB is a digital interface primarily used for data transfer and power supply. It consists of four wires: VCC (5V power), GND (ground), and two data lines (D+ and D-).
- RCA Signals: RCA cables are used for analog audio and video signals. They typically consist of three color-coded connectors: yellow for composite video, white for left audio, and red for right audio.
Creating a USB to RCA Cable
To create a functional USB to RCA cable, you need a device that can convert digital USB signals into analog RCA signals. This is typically achieved using a digital-to-analog converter (DAC) or a specific adapter with built-in conversion capabilities.
Steps to Create a Basic USB to RCA Connection
1. Acquire Necessary Components:
- A USB to RCA adapter or a DAC that supports USB input and RCA output.
- RCA cables.
- Power source if the adapter requires it.
2. Connect the Adapter:
- Connect the USB end of the adapter to your device (e.g., a computer or smartphone).
- Connect the RCA ends to your TV or stereo system.
3. Power the Adapter (if necessary):
- Some adapters require a separate power source. Ensure it is properly connected.
DIY Approach with Conversion
If you're looking to create a DIY solution without a commercial adapter, you would need to integrate a DAC into your setup. This involves soldering and electronics knowledge.
Example: Using an SJ4000 Camera Cable

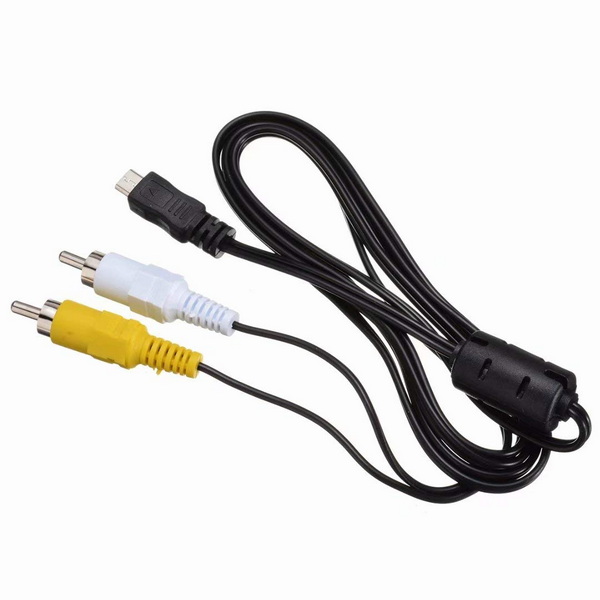

For devices like the SJ4000 camera, you can modify a MicroUSB cable to output AV signals, but this requires soldering and does not directly convert USB to RCA without additional components. The process involves stripping the cable, identifying the correct pins, and soldering a new lead to an empty pin to create a signal output[1].
Challenges and Limitations
- Signal Conversion: The primary challenge is converting digital USB signals to analog RCA signals. Without a proper converter, the signals will not be compatible.
- Power Requirements: Some adapters may require additional power, which can complicate the setup.
- Compatibility Issues: Not all adapters are compatible with all devices or operating systems, which can lead to connectivity issues.
Commercial Solutions

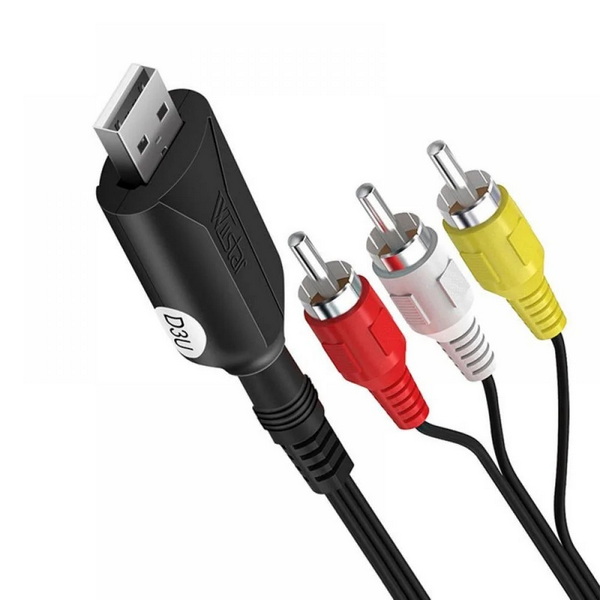

Commercial USB to RCA adapters are available and often include the necessary conversion hardware. These adapters can simplify the process but may require additional power.
Example: USB-C to RCA Adapter
This adapter allows you to connect modern devices with USB-C ports to older TVs or audio systems with RCA inputs. It includes a power port for the adapter itself.
Detailed Considerations for Different Applications
Audio Applications
When using a USB to RCA adapter for audio, ensure it supports stereo output if you want to connect to a stereo system. Some adapters may only support mono output, which could limit the audio quality.
Video Applications
For video applications, such as connecting a computer to an older TV, ensure the adapter supports the resolution and video format of your device. Some adapters may not support high-definition video or specific video formats like HDMI (which requires a different type of conversion).
Troubleshooting Common Issues
- Poor Signal Quality: This can be due to low-quality cables or interference from other devices. Use high-quality cables and keep them away from other electronic devices.
- Compatibility Problems: Check the adapter's compatibility with your device and operating system. Some adapters may require specific settings or configurations to work correctly.
Conclusion
Creating a functional USB to RCA cable requires careful consideration of signal conversion and power requirements. While DIY solutions are possible, they often involve complex electronics and soldering. Commercial adapters provide a simpler solution but may require additional power.
FAQs
1. What is the purpose of a USB to RCA adapter?
A USB to RCA adapter is used to convert digital signals from USB to analog signals compatible with RCA inputs, typically for audio and video transmission.
2. Do I need software for a USB to RCA adapter?
Some adapters require software installation to function properly, especially for managing the conversion process and ensuring compatibility with your operating system.
3. Can I use any USB cable for conversion?
No, you need a specific adapter designed for USB to RCA conversion. Regular USB cables do not support analog signal transmission.
4. Is a USB to RCA adapter suitable for video capture?
Not all adapters are suitable for video capture; look for those specifically designed for this purpose, ensuring they support the required resolution and video format.
5. Can I use a USB to RCA adapter for audio only?
Yes, it can be used for audio only. Ensure the adapter supports stereo output if you want to connect to a stereo system.
