Micro USB cables are widely used for charging and data transfer in various devices. However, they can often become damaged, especially at the connector pins. Fixing these pins requires some basic electronics knowledge and tools. This article will guide you through the process of repairing micro USB cable pins, including step-by-step instructions, tips, and tools needed.
Micro USB cables are essential for many electronic devices, including smartphones, tablets, and portable speakers. They provide both power and data connectivity, making them a crucial component in our daily lives. However, due to frequent use, these cables can suffer from wear and tear, leading to issues like loose or damaged pins.
1. Loose Pins: Over time, the pins inside the micro USB connector can become loose, causing unreliable connections.
2. Damaged Connectors: The connector itself can break or become detached from the cable.
3. Corrosion: Moisture can lead to corrosion on the pins, affecting conductivity.
Before starting the repair, inspect the cable for any visible damage. Check if the issue is with the cable itself or the connector. This step is crucial to determine if you need to replace the entire cable or just the connector.

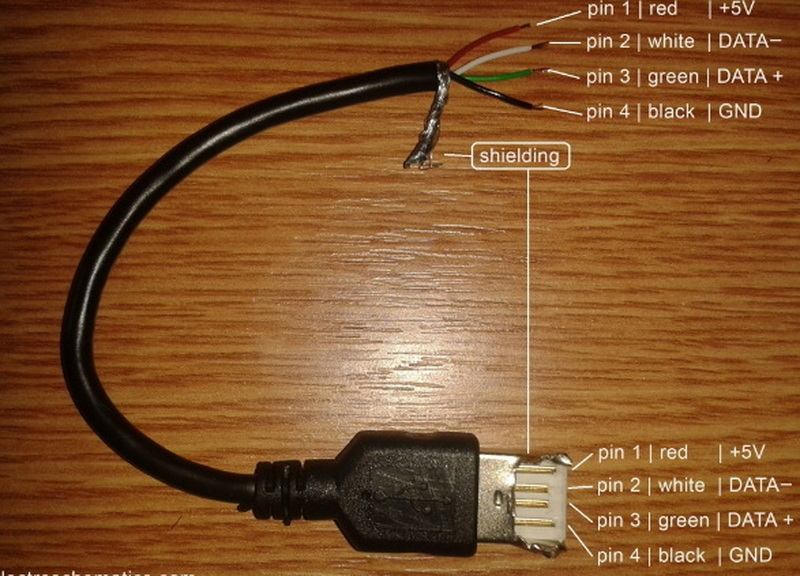

If the connector is damaged, you will need to remove it. Use a wire stripper to carefully strip the outer jacket of the cable. This exposes the inner wires, which are typically five in number for a micro USB cable: GND (black), 5V (red), Data+ (green), Data- (white), and an optional drain wire[1][3].

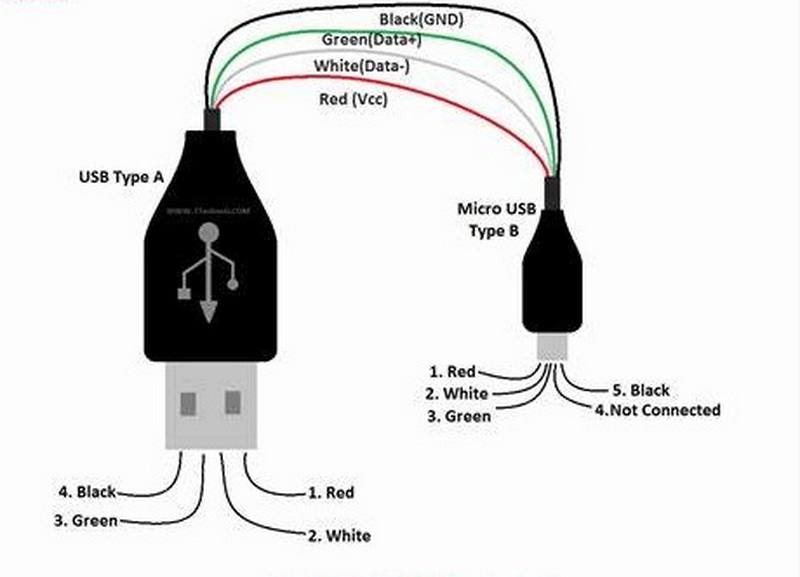

Strip the inner wires to expose the conductive parts. Ensure that you leave enough length to connect to a new connector. The standard wire colors for a micro USB cable are:
- Red: 5V (VBUS)
- White: Data- (D-)
- Green: Data+ (D+)
- Black: Ground (GND)

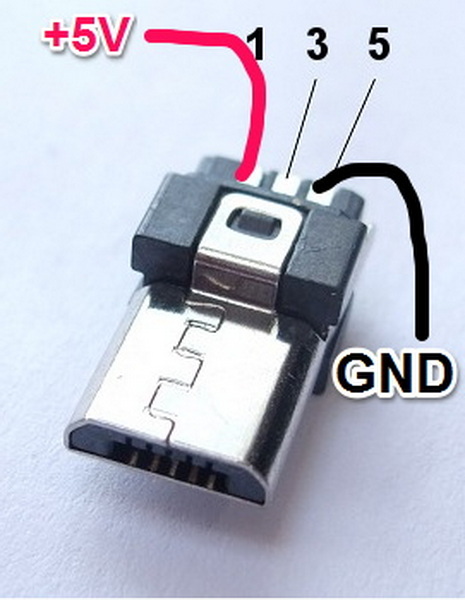

Obtain a replacement micro USB connector and solder the wires to it. Ensure the correct pinout is followed:
| Pin | Name | Wire Color | Description |
|---|---|---|---|
| 1 | VBUS | Red | +5 V |
| 2 | D− | White | Data− |
| 3 | D+ | Green | Data+ |
| 4 | ID | N/A | Permits detection of which end of a cable is plugged in |
| 5 | GND | Black | Signal ground |
When soldering, use a soldering iron with a fine tip to ensure precision. Apply a small amount of soldering paste to the connections to improve conductivity[2].
Use electrical tape to insulate the soldered joints and protect them from short circuits. This step is crucial to prevent electrical shocks and ensure the longevity of the repair.

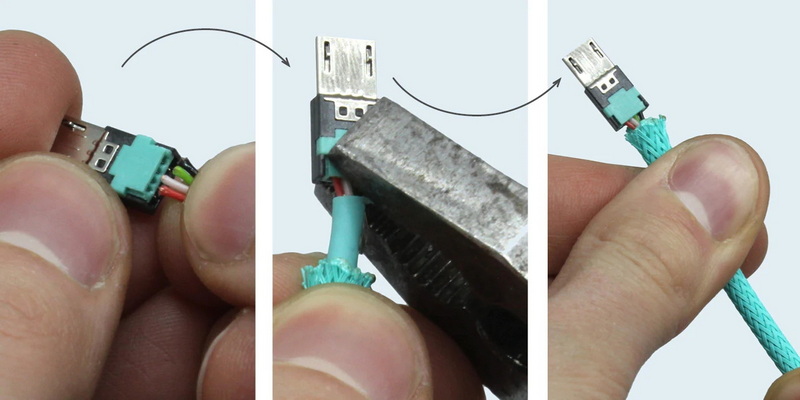

Finally, assemble the connector by fitting it into its housing. Use pliers to secure it in place. Ensure that all parts are aligned properly to avoid any mechanical stress on the soldered joints.
- Use Standardized Wire Colors: Ensure that the wire colors match the standard micro USB pinout to avoid confusion during the repair process.
- Clean the Port: Regularly clean the micro USB port on your device to prevent dust buildup, which can cause connectivity issues.
- Handle with Care: Be gentle when handling the wires and connectors to avoid further damage.
1. Loose Connection: One of the most common problems with USB cables is a loose connection. This can happen due to wear and tear of the cable or the port it is connected to. To solve this issue, try using a different USB cable or port. If the problem persists, it may be time to replace the cable or get the port repaired[4].
2. Slow Data Transfer: Another issue that users face is slow data transfer. This can be due to damaged or corroded pins. Cleaning the pins or replacing the cable can resolve this issue.
- Wire Stripper: To remove the outer and inner insulation of the cable.
- Soldering Iron: For soldering the wires to the new connector.
- Electrical Tape: To insulate the soldered joints.
- Pliers: To secure the connector in place.
- Multimeter: To test the continuity of the wires.
- Soldering Paste: Improves conductivity during soldering.
Repairing micro USB cables not only saves money but also contributes to environmental protection by reducing electronic waste. Each repaired cable means one less piece of plastic waste in landfills or oceans.
Fixing micro USB cable pins requires patience and attention to detail. By following these steps and using the right tools, you can extend the life of your cables and reduce electronic waste. Remember to always handle electronics with care and follow safety precautions when soldering.
The standard wire colors for a micro USB cable are:
- Red: 5V (VBUS)
- White: Data- (D-)
- Green: Data+ (D+)
- Black: Ground (GND)
You will need a wire stripper, soldering iron, electrical tape, pliers, and a multimeter for testing.
Regularly clean the port with a small brush or cotton swab to remove dust and debris. Avoid forcing the connector into the port.
Ensure that the replacement connector matches the original in terms of pin layout and size to avoid compatibility issues.
Yes, it is safe if you follow proper safety precautions such as using protective eyewear, keeping the workspace well-ventilated, and avoiding direct contact with hot solder.
