Fixing a bent USB-C cable can be a straightforward process if you have the right tools and follow the correct steps. This guide will walk you through the process, providing detailed instructions and tips to help you repair your USB-C cable effectively.
Introduction to USB-C Cables
USB-C cables have become ubiquitous due to their versatility and speed. They support both data transfer and power delivery, making them essential for modern devices. However, like any other cable, they can suffer from physical damage, such as bending or crushing, which can render them unusable.
Common Issues with USB-C Cables
- Slow Charging: This can be due to debris in the port, damaged cables, or using low-quality cables.
- Connectivity Issues: Loose connections, worn-out ports, or damaged cables can cause devices to fail to recognize the cable.
- Physical Damage: Bent or broken connectors, frayed wires, or damaged insulation can render the cable unusable.
Troubleshooting Before Repair
Before attempting to fix a bent USB-C cable, it's crucial to troubleshoot the issue:
1. Check for Visible Damage: Look for any signs of physical damage such as frayed wires, bent connectors, or broken insulation.
2. Try Different Ports: Use a different USB-C port on the device or try a different device to rule out port-specific issues.
3. Clean the Connectors: Use a soft brush or compressed air to remove any debris from the connectors.
Repairing a Bent USB-C Cable
If your cable is bent or crushed, you might need to repair it. Here's a step-by-step guide:
Step 1: Identify the Damage
Examine your USB-C cable for visible damage. Mark the damaged area for easy reference.
Step 2: Cut the Damaged Section
Using wire cutters, carefully cut out the damaged section of the cable. Ensure you leave enough length on both sides to work with.
Step 3: Prepare the Wires for Soldering
- Expose the Strands: Use wire strippers to expose the internal wires.
- Clean the Wires: Ensure the wires are free from debris.
Step 4: Solder the Connections
Use a soldering iron to reconnect any broken wires. Make sure to match the correct wires:
- Red (VCC)
- Black (GND)
- Green (Data+)
- White (Data-)
Step 5: Insulate Each Connection
Use heat shrink tubes to protect the soldered connections.
Step 6: Reassemble the Cable

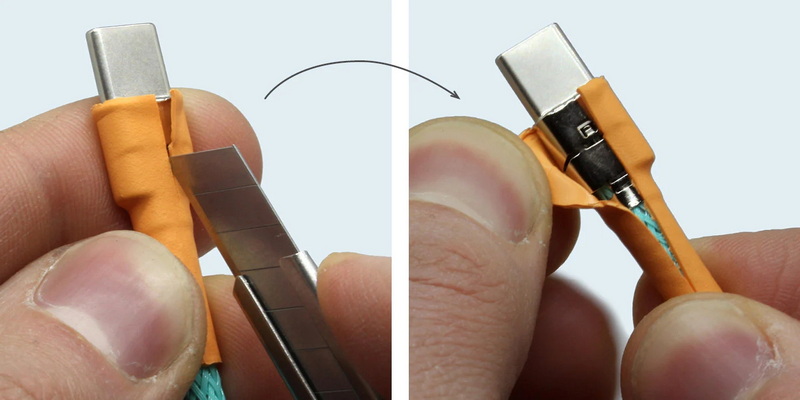

Once the connections are secure and insulated, reassemble the cable by placing the housing back over the USB-C connector.
Tips for Preventing Future Damage
- Use High-Quality Cables: Invest in cables with durable materials.
- Avoid Overbending: Handle cables with care to prevent bending.
- Regular Maintenance: Clean connectors regularly to prevent debris buildup.
Common Problems and Solutions
1. What if My Cable Doesn't Charge After Repair?
If your cable doesn't charge after repair, check the soldering connections to ensure they are secure and not short-circuited. Also, verify that the power delivery wire (red) is correctly connected.
2. How Do I Prevent My USB-C Cables from Breaking in the Future?
Preventing breakage involves using high-quality cables, avoiding overbending, and storing them properly. Regular cleaning of connectors can also help extend the cable's lifespan.
3. Is It Safe to Use a Repaired USB-C Cable?
Generally, a well-repaired USB-C cable is safe to use. However, ensure that all connections are secure and insulated properly to avoid electrical hazards.
4. When Should I Replace My USB-C Cable Instead of Repairing It?
Replace your USB-C cable if the damage is extensive or if you lack the necessary tools and expertise for a proper repair. In some cases, replacement might be more cost-effective than repair.
5. What Tools Do I Need to Repair a USB-C Cable?
To repair a USB-C cable, you will need:
- Wire cutters
- Soldering iron
- Solder
- Heat shrink tubing
- Multimeter (for testing)
- Electrical tape
- Cutter knife
- Lighter or heat gun
Conclusion
Repairing a bent USB-C cable can be a cost-effective and environmentally friendly option if done correctly. By following the steps outlined in this guide and using the right tools, you can restore your cable to working condition. Remember to handle your cables with care to prevent future damage.
FAQ
1. Can All USB-C Cables Be Repaired?
- Not all USB-C cables can be repaired, especially if the damage is extensive or involves complex components.

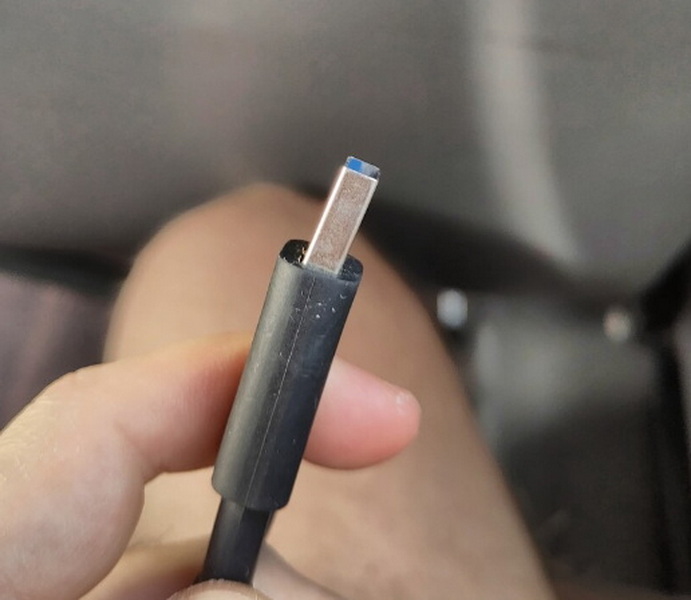

2. How Do I Fix a Bent USB-C Connector?
- Use a butter knife or pliers to gently unbend the connector. Be cautious not to apply too much pressure, which could cause further damage.
3. What Causes USB-C Cables to Break Easily?
- Common causes include physical stress, poor quality materials, and improper handling.
4. Can I Use a Repaired USB-C Cable for Power Delivery?
- Yes, if the repair is done correctly and all connections are secure. However, ensure that the cable supports power delivery.
5. How Often Should I Clean My USB-C Connectors?
- Clean your connectors regularly, ideally every few months, to prevent debris buildup.
