Extending USB Cables with CAT5: A Comprehensive Guide
Extending USB cables using CAT5 Ethernet cables is a creative and cost-effective way to connect USB devices over longer distances. This method is particularly useful when you need to connect devices that are far apart, such as in home automation systems, security setups, or professional AV installations. In this article, we will explore how to extend USB cables using CAT5, discuss the limitations and benefits, and provide step-by-step instructions for both DIY and commercial solutions.
Introduction to USB and CAT5
USB (Universal Serial Bus) is a standard interface for connecting devices to computers, while CAT5 (Category 5) Ethernet cables are commonly used for networking. The idea of using CAT5 cables to extend USB connections leverages the existing infrastructure in many homes and offices, reducing the need for additional wiring. Understanding the basics of both technologies is essential for a successful setup.
USB cables typically have a maximum effective length of about 5 meters (16.4 feet), which can be limiting in many applications. CAT5 cables, on the other hand, are designed for longer distances and can be used to extend USB connections significantly.
Benefits of Using CAT5 for USB Extension
1. Longer Distance: Standard USB cables have a maximum effective length of about 5 meters (16.4 feet). Using CAT5 cables, you can extend this distance significantly, up to 100 meters (330 feet) with the right equipment.
2. Cost-Effective: CAT5 cables are often readily available and cheaper than purchasing long USB extension cables.
3. Flexibility: CAT5 cables can be used in existing Ethernet infrastructure, making it easier to connect devices across different rooms or floors.
4. Reduced Clutter: By utilizing existing wiring, you can reduce the clutter of additional cables in your setup.
DIY USB Extension Using CAT5
For those who prefer a hands-on approach, creating a DIY USB extension using CAT5 cables is possible. However, it requires some technical knowledge and tools.
Materials Needed:
- CAT5 Ethernet cable

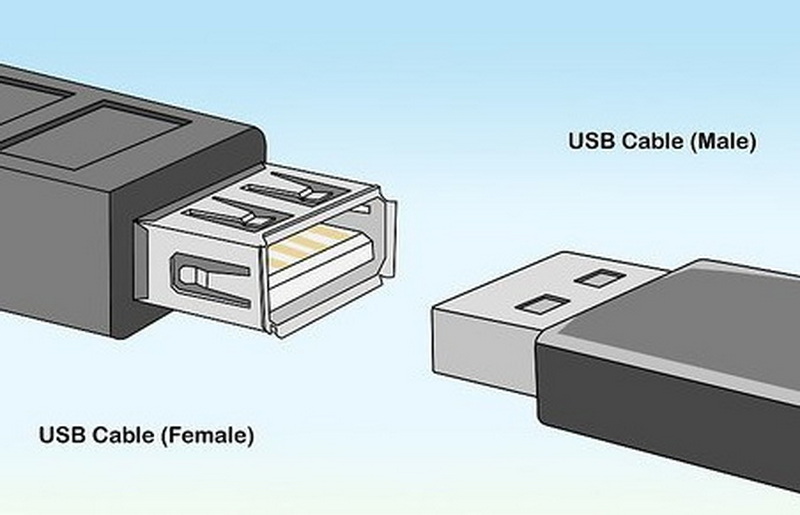

- USB connectors (male and female)
- Soldering iron and solder
- Wire strippers
- Electrical tape
Steps:
1. Cut the CAT5 Cable: Determine the length you need and cut the CAT5 cable accordingly.
2. Strip the Wires: Use wire strippers to expose the inner wires.
3. Identify the Pairs: CAT5 cables have four twisted pairs. You can use one pair for data (e.g., green and green-white) and another pair for power (e.g., blue and blue-white).
4. Solder the USB Connectors: Attach the USB connectors to the ends of the CAT5 cable, ensuring that the data and power lines are correctly connected.
5. Test the Connection: Use a multimeter to verify that the connections are correct and functioning.

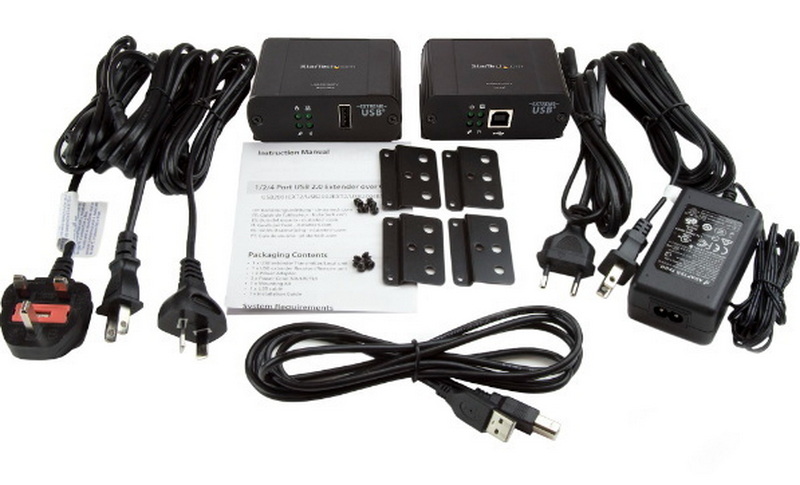

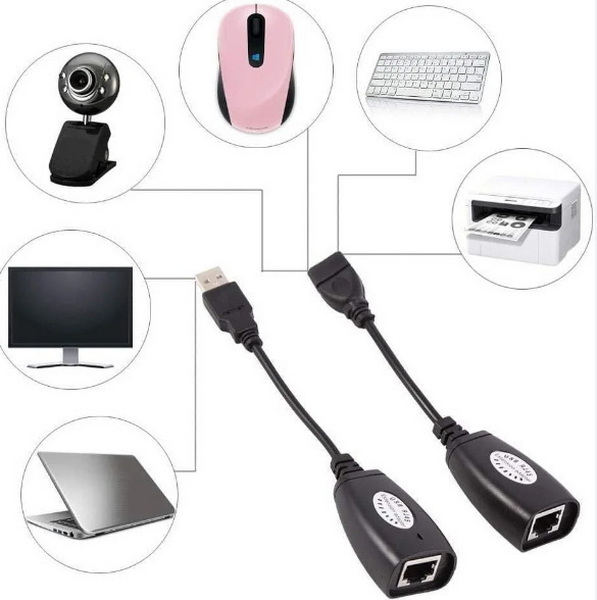

Commercial Solutions
While DIY solutions can be cost-effective, they might not be reliable for all applications. Commercial USB extenders over CAT5 offer more robust and reliable connections.
Features of Commercial Solutions:
- Longer Distances: Up to 100 meters with CAT5e/6/7 cables.
- Multiple Devices: Some extenders support connecting multiple USB devices to a single host.
- Power Over Ethernet (PoE): Some models can be powered remotely using PoE, reducing the need for additional power supplies.
- Signal Integrity: Commercial extenders often include signal amplification or regeneration to maintain data integrity over long distances.
Commercial solutions are ideal for professional setups where reliability and performance are critical. They are also easier to install since they do not require soldering or technical expertise.
Common Issues and Considerations
1. Signal Degradation: Longer cables can lead to signal degradation, affecting data transfer speeds.
2. Power Delivery: Ensure that the power delivery is sufficient for the connected devices, especially if using longer cables.
3. Interference: CAT5 cables can be susceptible to electromagnetic interference (EMI), which may affect signal quality.
4. Compatibility: Check that the devices you are connecting are compatible with the extended USB setup.
Advanced Applications
Extending USB cables with CAT5 can be applied in various advanced scenarios, such as:
- Home Automation Systems: Connecting sensors and controllers across a large area without the need for additional wiring.
- Security Systems: Extending camera connections to monitor remote areas effectively.
- Professional AV Installations: Connecting audio and video devices over long distances for events or permanent installations.
In these applications, the ability to use existing infrastructure can significantly reduce setup costs and complexity.
Troubleshooting Common Issues
When using CAT5 cables to extend USB connections, several issues may arise. Here are some common problems and their solutions:
- No Connection: Check that the USB connectors are properly soldered and that the cable is not damaged.
- Slow Data Transfer: Ensure that the cable is not too long and that there is minimal interference.
- Device Not Recognized: Verify that the device is compatible with the extended USB setup and that power delivery is sufficient.
Conclusion
Extending USB cables using CAT5 Ethernet cables offers a versatile solution for connecting devices over longer distances. Whether you opt for a DIY approach or commercial products, understanding the limitations and benefits is crucial for a successful setup. With the right equipment and knowledge, you can effectively extend your USB connections, making it easier to manage devices in various settings.
FAQs:
1: What is the maximum distance for extending USB with CAT5?
- A: Up to 100 meters with commercial extenders.
2: Can I use any USB device with a CAT5 extension?
- A: Most USB devices can be used, but performance may vary based on device requirements.
3: Is a DIY setup reliable?
- A: Reliability depends on the quality of the setup and materials used.
4: Do I need special tools for a DIY setup?
- A: Yes, you need a soldering iron and wire strippers.
5: Can I use CAT5 for USB 3.0 extension?
- A: While possible, performance may be compromised due to bandwidth requirements.
