Connecting to a Cisco switch using a USB console cable is a straightforward process that allows you to manage and configure your network devices locally. This method is particularly useful when you need to perform initial setup, troubleshoot issues, or access the device without an IP address. Below, we will guide you through the steps to connect your Cisco switch using a USB console cable.
Introduction to USB Console Cables

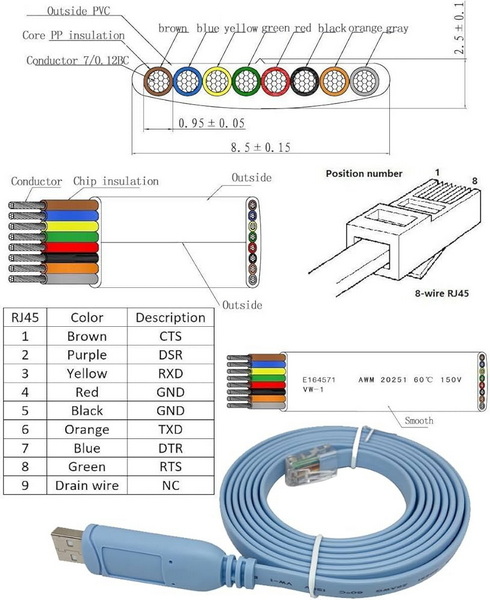

USB console cables are designed to connect your computer to a Cisco switch or router via the console port. These cables typically have an RJ45 connector on one end that plugs into the switch's console port and a USB connector on the other end that connects to your computer.
Choosing the Right Cable
When selecting a USB console cable, ensure it is compatible with your Cisco device. Some cables may require specific drivers to function properly.
Step-by-Step Connection Guide

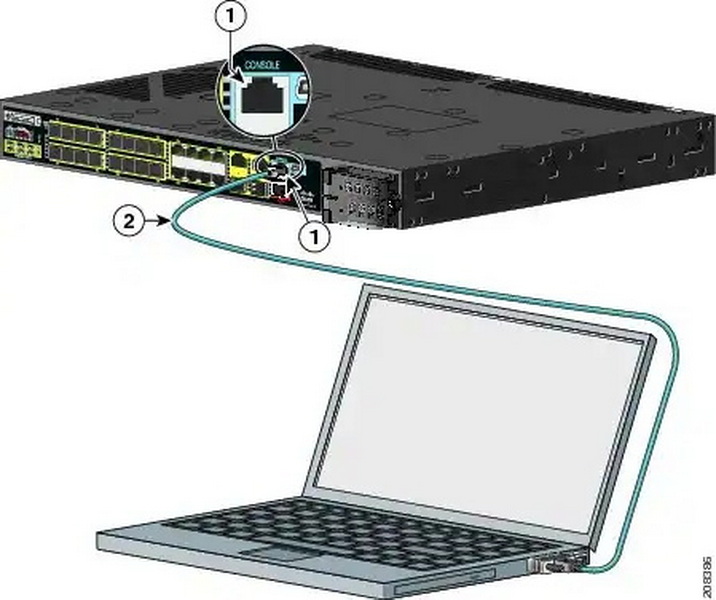

Step 1: Connect the Console Cable

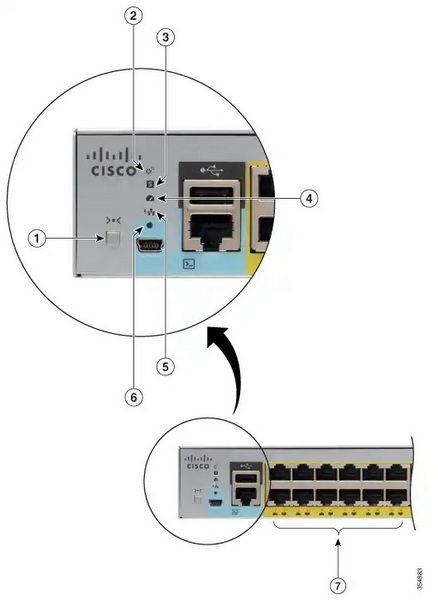

1. Connect the RJ45 End: Locate the console port on your Cisco switch. It is usually labeled as "Console" and is an RJ45 port. Plug the RJ45 end of the console cable into this port.
2. Connect the USB End: Plug the USB end of the cable into a free USB port on your computer.
Step 2: Install Drivers
If your cable requires specific drivers, you will need to install them before proceeding. Cisco often provides drivers for their USB console cables, which can be downloaded from their official website.
1. Download Drivers: Visit the Cisco website and download the appropriate USB console driver for your cable.
2. Install Drivers: Follow the installation wizard to install the drivers. You may need to restart your computer after installation.
Step 3: Identify the COM Port
After installing the drivers, you need to identify which COM port your console cable is using.
1. Open Device Manager: On Windows, right-click on the Start button and select "Device Manager."
2. Find the COM Port: In the Device Manager, expand the "Ports (COM & LPT)" section. Look for a port labeled as "Cisco Virtual Comm Port" or similar.
Step 4: Use a Terminal Emulator
To connect to your Cisco switch, you will need a terminal emulator like PuTTY.
1. Download PuTTY: Visit the PuTTY website and download the latest version for your operating system.
2. Configure PuTTY:
- Open PuTTY.
- Select "Serial" as the connection type.
- Enter the COM port number you identified earlier.
- Set the baud rate to 9600, data bits to 8, stop bits to 1, and parity to None.
- Click "Open" to establish the connection.
3. Access the Switch: Once connected, you should see the switch's command-line interface. Press Enter to start interacting with the switch.
Common Issues and Solutions
Connecting via a USB console cable can sometimes present challenges. Here are some common issues and their solutions:
Common Issues
1. Device Not Recognized: Ensure that the drivers are correctly installed and that the cable is properly connected to both the switch and your computer.
2. COM Port Not Found: Check the Device Manager to ensure the COM port is listed. If not, reinstall the drivers.
3. Connection Fails: Verify that the baud rate and other settings in PuTTY match the switch's console settings.
Conclusion
Connecting to a Cisco switch using a USB console cable is a straightforward process that requires the right cable, drivers, and terminal emulator software. By following these steps and troubleshooting common issues, you can easily manage and configure your Cisco devices locally. Whether you are setting up a new network or troubleshooting existing infrastructure, this method provides reliable access to your network devices.
Frequently Asked Questions
1. What is the typical baud rate for a Cisco console connection?
- The typical baud rate for a Cisco console connection is 9600.
2. Do I need to install drivers for a USB console cable?
- Yes, you typically need to install drivers for a USB console cable, especially if it is not recognized by your operating system.
3. How do I identify the COM port used by my USB console cable?
- You can identify the COM port by checking the Device Manager under "Ports (COM & LPT)".
4. What terminal emulator software can I use to connect to a Cisco switch?
- PuTTY is a popular terminal emulator for connecting to Cisco devices via a console cable.
5. Can I use a USB console cable on any Cisco device?
- Yes, most Cisco devices support USB console cables, but ensure compatibility and install necessary drivers.
