When overseas brands ask us whether Mini HDMI or Micro HDMI is the better choice for their next device, they usually expect a quick answer based only on connector size. In reality, the decision affects product design, durability, user experience, and long‑term compatibility with cameras, tablets, and embedded systems. [jingzhengli]
Both Mini HDMI (Type C) and Micro HDMI (Type D) transmit the same digital audio and video signals as full‑size HDMI, using the same 19 pins and supporting the same core HDMI standards. The real differences lie in connector dimensions, typical device usage, mechanical robustness, and manufacturing difficulty, all of which matter a lot to OEM and ODM decision‑makers. [posh-e]
From a manufacturer's point of view, you should never ask only "Which one is smaller?" but "Which connector makes installation, assembly, and daily use more reliable for my target customers?" [twcn.rs-online]
Mini HDMI is a smaller version of the standard HDMI connector, designed for compact devices that still need full‑quality video output. Its connector is about 10.42 mm x 2.42 mm, and it carries the same 19 signals as Type A, just rearranged to fit the smaller shell. [0xzx]
Typical use cases include:
- DSLR and mirrorless cameras
- Camcorders and some field monitors
- Certain older tablets and media players [jingzhengli]
For OEMs, Mini HDMI strikes a balance between space saving and mechanical reliability, which is why it has been popular in camera and video equipment. [0xzx]
Micro HDMI goes even smaller, with connectors around 6.4 mm x 2.8 mm, again keeping all 19 pins but arranged differently from Type A and Type C. It was introduced to support devices where every millimeter counts, such as compact tablets, some smartphones, and action cameras. [zh.wikipedia]
However, Micro HDMI has never achieved the same level of adoption as Mini HDMI and has even been phased out on many mobile devices in favor of USB‑C or wireless solutions. For OEM projects, this means Micro HDMI is now a more niche, specialized choice that requires careful justification. [jingzhengli]

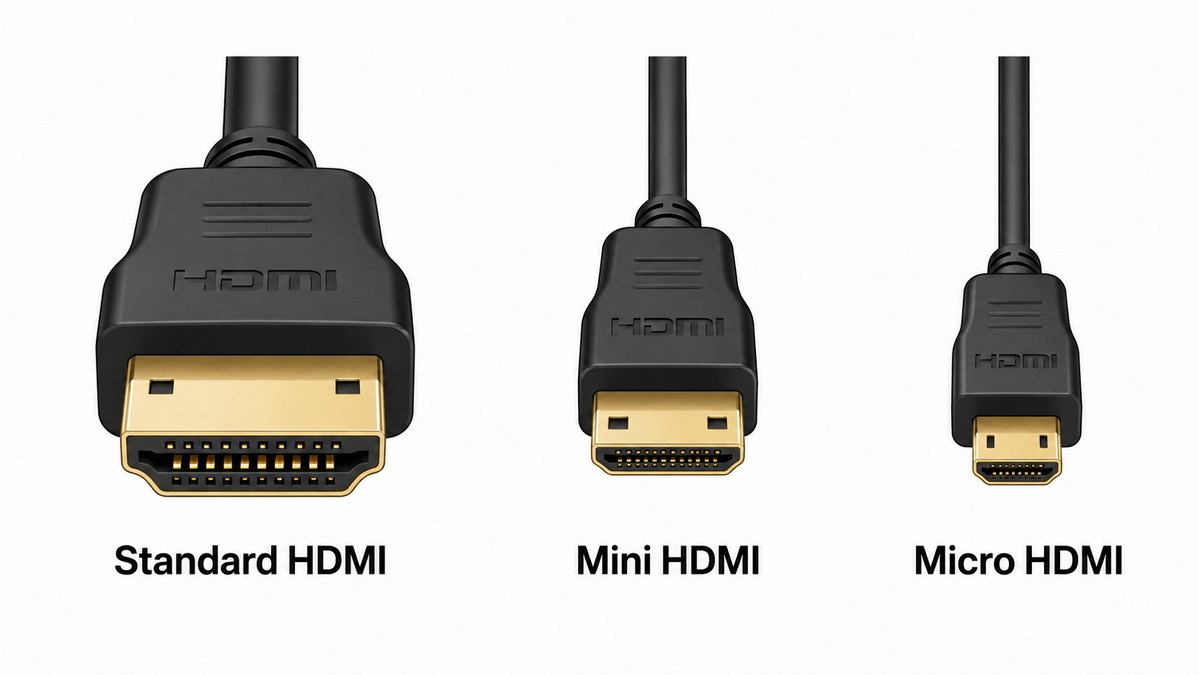

From an engineering and manufacturing perspective, both Mini HDMI and Micro HDMI support the HDMI standard, but they behave differently in real products. [posh-e]
| Feature | Mini HDMI (Type C) | Micro HDMI (Type D) |
|---|---|---|
| Approx. connector size | About 10.42 mm x 2.42 mm | About 6.4 mm x 2.8 mm |
| Pin count | 19 pins, rearranged | 19 pins, different layout |
| Typical devices | Cameras, camcorders, some tablets | Ultra‑compact tablets, some phones, small devices |
| Mechanical robustness | Generally more robust due to larger shell | Smaller, more delicate, higher mechanical risk |
| Assembly difficulty | Moderate | Higher; requires finer manufacturing precision |
| Current ecosystem trend | Still seen on cameras and specialty AV gear | Less common as USB‑C and other ports replace it |
For OEM/ODM brands, this table should be part of your design review before finalizing the connector type on any new board. [twcn.rs-online]

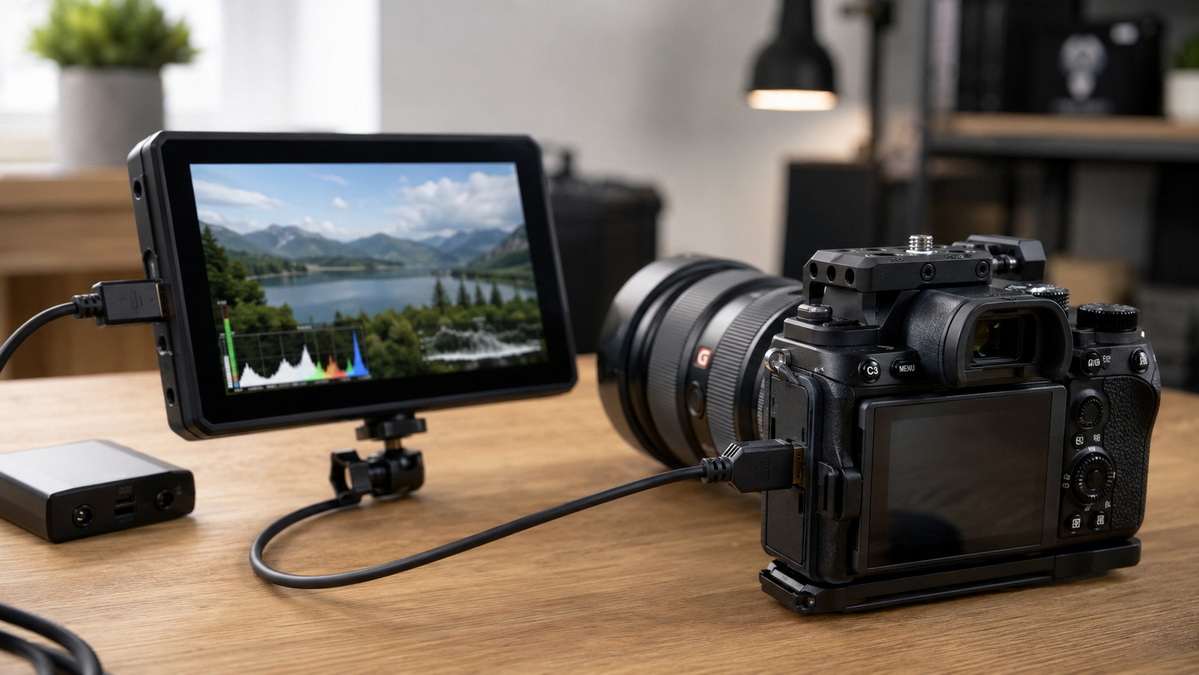

As a cable manufacturer serving camera and AV brands, we see Mini HDMI used heavily on:
- Professional and prosumer cameras that need reliable external monitoring
- On‑camera monitors and recorders
- Portable projectors and compact media players [0xzx]
Mini HDMI offers more mechanical strength than Micro HDMI, which is crucial when operators frequently plug and unplug cables on set or in the field. This makes it a safer choice for products targeting content creators, videographers, and production crews who cannot afford loose connections or broken ports during a shoot. [posh-e]
From a user‑experience perspective, Mini HDMI:
- Is still small enough for compact devices
- Feels more solid and less fragile during connection
- Is easier for users to identify and align correctly than Micro HDMI [twcn.rs-online]
For overseas brands, this translates into fewer support tickets and lower RMA rates due to damaged ports, which is a hidden cost many teams underestimate in early design discussions. [store.px.com]

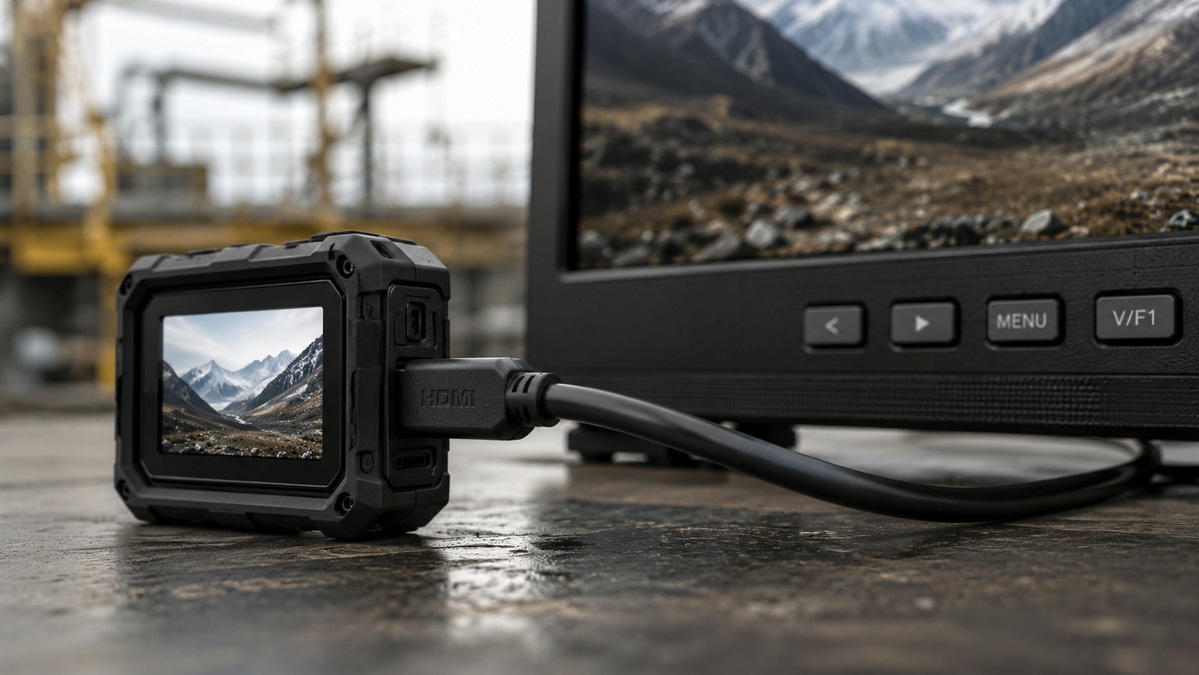

Micro HDMI remains an option for products where every millimeter of board space matters, and you still want a direct HDMI output. Examples include: [zh.wikipedia]
- Some action cameras
- Certain industrial modules or embedded boards
- Specialized compact tablets or handheld devices [0xzx]
In these cases, Micro HDMI allows engineers to keep the device footprint minimal while still offering direct HDMI output—often to a full‑size HDMI input via an adapter cable. [zh.wikipedia]
Choosing Micro HDMI means accepting:
- Higher assembly complexity and tighter tolerances
- More risk of port damage from heavy or repeated use
- Greater need for cable strain relief and user guidance [posh-e]
As a manufacturer, we usually recommend Micro HDMI only when product design teams have no alternative and have already validated mitigation strategies, such as recessed connectors, secure cable routing, or bundled right‑angle adapters. [posh-e]
To go beyond theory, here are a few real‑world scenarios similar to what we see from overseas OEM/ODM projects. [jingzhengli]
- Device type: Mid‑range mirrorless cameras with 4K video output
- Usage pattern: Frequent on‑off connections to external monitors
- Key concern: Port durability and professional perception
Recommendation:
Choose Mini HDMI for its better mechanical robustness and familiarity in the camera ecosystem. Pair it with certified Mini HDMI to full‑size HDMI cables that are optimized for on‑camera use (short length, flexible jacket, angled options). [rsonline]
- Device type: Rugged compact tablet used in field maintenance
- Usage pattern: Occasional HDMI connection for training or presentations
- Key concern: Saving PCB space and maintaining IP rating
Recommendation:
If space is extremely limited, Micro HDMI can be acceptable, but design should include recessed ports and robust housings. OEM cable sets should include Micro to full‑size HDMI cables with extra strain relief. [rsonline]
- Device type: Small single‑board computer selling into DIY and education
- Usage pattern: Users plug and unplug often, sometimes roughly
- Key concern: Minimizing support issues and returns
Recommendation:
Use Mini HDMI instead of Micro HDMI. The slight size increase is worth the higher durability and easier handling for non‑expert users. Offer branded Mini HDMI cables and adapters in your accessory ecosystem. [store.px.com]
These scenarios highlight that for most B2B use cases, Mini HDMI is the safer default, and Micro HDMI is for niche, ultra‑compact designs with careful risk management. [0xzx]

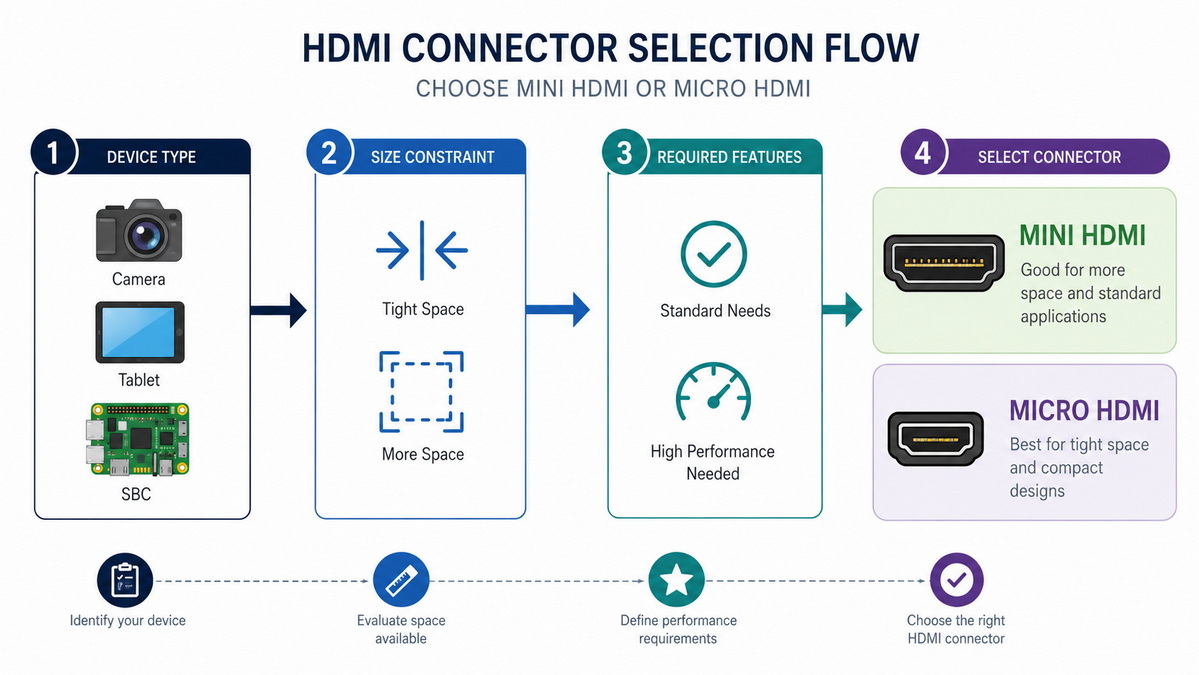

To help your team choose between Mini HDMI and Micro HDMI efficiently, use this simple decision checklist during early product planning. [rsonline]
1. Clarify device size constraints
If you have a few extra millimeters of space, Mini HDMI is usually the better choice. [0xzx]
2. Assess typical usage intensity
Frequent plug/unplug or field use strongly favors Mini HDMI for robustness. [posh-e]
3. Define target user profile
Professional camera operators and educators benefit from connectors that feel more solid and are easier to handle. [twcn.rs-online]
4. Estimate support and RMA risk
Smaller, more fragile ports increase long‑term service costs; factor this into your TCO calculation. [store.px.com]
5. Plan cable and accessory strategy
Decide early whether you will bundle Mini or Micro HDMI cables or sell them separately as branded accessories. [rsonline]
6. Review with your HDMI cable OEM/ODM partner
Let your cable manufacturer evaluate mechanical design, certification feasibility, and cost impacts before locking the connector type. [hdmi]
Following this checklist helps align engineering, marketing, and procurement around a connector choice that supports both user experience and lifetime profitability. [store.px.com]
Regardless of connector size, your Mini HDMI and Micro HDMI cables must follow HDMI guidelines to ensure reliable transmission at the required resolutions and frame rates. [hdmi]
- Work with suppliers familiar with HDMI licensing and certification requirements
- Use packaging that follows HDMI naming rules and avoids misleading "version numbers" on cable labels
- Highlight compliance to reassure B2B buyers and reduce compatibility concerns [hdmi]
For Mini and Micro HDMI, cable and device design should consider:
- Strain relief to prevent stress on the connector
- Cable length optimized to the scenario (on‑camera short, desktop longer)
- Optional angled connectors for cramped spaces or wall‑mounted installations [rsonline]
OEM/ODM partners who understand both port design and cable behavior can advise on the best combination for your product. [rsonline]
On your product pages and spec sheets, explain connector choices in simple, benefit‑driven language:
- "Mini HDMI port for robust camera to monitor connections"
- "Micro HDMI output for ultra‑compact tablets, bundled with high‑flex cable"
If your team is planning a new camera, tablet, single‑board computer, or embedded device, the choice between Mini HDMI and Micro HDMI will influence not only your PCB layout, but also durability, support costs, and end‑user satisfaction. Working with a dedicated HDMI cable OEM/ODM manufacturer allows you to align connector choice, cable design, certification, and branding from day one. [store.px.com]
Share your device concept, size constraints, and target use cases with an experienced HDMI cable partner, and they can help you select Mini or Micro HDMI, design the right cables, and plan a complete branded accessory line for your overseas B2B channels. [twcn.rs-online]
Q1. Do Mini HDMI and Micro HDMI support the same video quality as standard HDMI?
Yes. Both Mini HDMI (Type C) and Micro HDMI (Type D) carry the same 19‑pin HDMI interface and can support the same resolutions and frame rates as the underlying HDMI standard, assuming proper cable quality and design. [zh.wikipedia]
Q2. Which connector is more durable for frequent plugging and unplugging?
Mini HDMI is generally more mechanically robust because of its larger shell and contact area, making it better for cameras, monitors, and boards used in demanding environments. [posh-e]
Q3. Why is Micro HDMI less common on new devices today?
Many smartphones and compact devices have moved to USB‑C or wireless solutions, and Micro HDMI's small, delicate connector can be more prone to damage in everyday use. [jingzhengli]
Q4. Should we bundle cables with our Mini or Micro HDMI devices?
Bundling a correctly matched cable (for example, Mini HDMI to HDMI or Micro HDMI to HDMI) improves user experience and reduces complaints about compatibility or poor third‑party cables. [twcn.rs-online]
Q5. How early should we involve an HDMI cable OEM/ODM partner in our design process?
Ideally at the concept or early prototyping stage, so they can advise on connector type, cable specs, and certification requirements before your mechanical design is locked. [hdmi]
