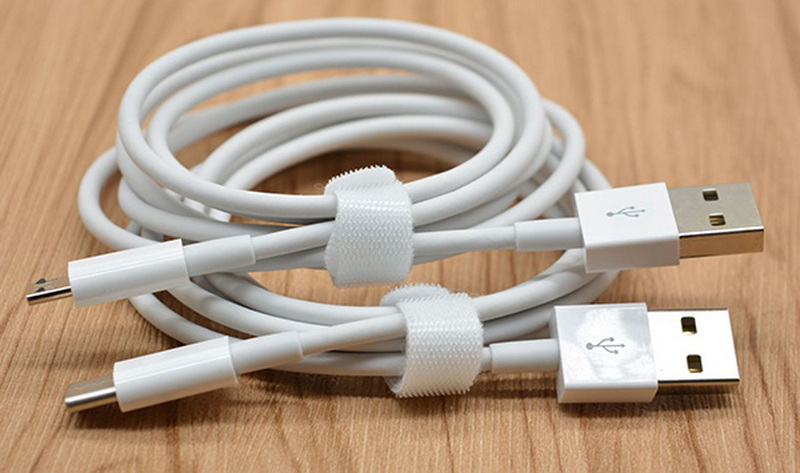

USB cables have become indispensable in our daily lives, connecting devices for charging and data transfer. The manufacturing of USB cables, especially the modern USB-C type, is a complex and precise process involving multiple stages and advanced machinery. This article explores in detail how USB cables are made, from raw materials to final packaging, including quality tests and innovations in the industry.
Overview of USB Cable Components
Before diving into the manufacturing process, it is essential to understand the main components of a USB cable:
- Conductors: Usually copper or aluminum wires that carry power and data signals.
- Insulation: Plastic materials like PVC (Polyvinyl Chloride) or TPE (Thermoplastic Elastomer) that protect the wires and prevent interference.
- Connectors: The USB plugs (USB-A, USB-B, Micro USB, USB-C) that connect devices.
- Shielding: Layers of aluminum foil and braided wire to reduce electromagnetic interference.
- Outer Jacket: The protective outer layer that gives durability and flexibility.
Detailed Manufacturing Process of USB Cables
Step 1: Connector Production
The process begins with manufacturing the connectors, which are crucial for compatibility and durability.
- Circuit boards are assembled with chips such as MFI (Made for iPhone/iPad/iPod) or E-Marker chips for fast charging and intelligent power control.
- Plastic shells are injection molded to form the connector housing.
- Circuit boards are inserted into these shells, and plastic backing pieces are attached to complete the connector assembly.
- This step is semi-automated but requires skilled technicians to ensure precision[1][2][4].
Step 2: Wire Drawing and Annealing
- Copper or aluminum rods are pulled through a series of synthetic diamond dies on a drawbench to reduce their diameter, creating thin wires.
- The wires are annealed (heated and cooled) to make them soft and flexible, improving their electrical performance and ease of handling[1][2][4].
Step 3: Twisting and Stranding
- The individual wires are twisted and stranded together using proprietary formulas to achieve precise twist lengths.
- This twisting enhances flexibility and reduces electromagnetic interference during data transmission.
- The stranded wires are then coated with insulating materials like PVC or TPE through an extrusion process[1][2][4].
Step 4: Cable Assembly and Shielding
- The insulated wires are assembled into the cable core according to the USB standard (e.g., USB-C requires more pins and wires than USB-A).
- Shielding layers, including aluminum foil and braided wire mesh, are applied simultaneously to protect against external electromagnetic interference.
- The entire cable is then wrapped in an outer protective jacket, which may be PVC, TPE, or nylon braid depending on the cable's intended use[2][4].
Step 5: Cutting and Stripping
- The long cables are cut into standard lengths, such as 1 meter or 2 meters, using high-speed cutting machines.
- Both ends of the cable are stripped of the outer jacket to expose the inner wires for soldering.
- Special stripping machines ensure that the wires are not damaged during this process[2][4][7].
Step 6: Soldering Connectors to Cable
- The exposed wires are carefully arranged and soldered to the connector pins.
- Semi-automated soldering machines perform this task under technician supervision to ensure accuracy and consistency.
- Different USB types have specific pin layouts that must be precisely followed[2][4][7].
Step 7: Injection Molding for Protection
- Primary (Internal) Injection Molding: A hard plastic (usually SGP) is molded around the soldered connections inside the connector to protect and stabilize them.
- Secondary (External) Injection Molding: A softer plastic (like PVC) is molded around the connector housing to provide additional protection and durability.
- Some cables may have custom shells made of hard plastic or aluminum alloy instead of injection molding[1][2][4][7].
Step 8: Electrical Testing
- After molding, cables undergo 100% electrical conduction tests to verify connectivity and performance.
- Tests include continuity checks and insulation resistance to prevent short circuits.
- High-speed data transmission capability and power delivery are also tested, especially for USB-C cables supporting fast charging[1][2][4][7].
Step 9: Visual Inspection and Quality Control
- Each cable is visually inspected for defects such as improper molding, bulges, or physical damage.
- Random spot tests are conducted to ensure consistent quality.
- Approved cables receive branding marks like logos through laser or silk printing[2][4][7].
Step 10: Packaging and Shipment
- Finished cables are coiled, bundled, and packaged according to customer specifications.
- Packaging ensures protection during transport and provides product information and certifications[4][7][10].
Innovations and Trends in USB Cable Manufacturing
- USB-C Dominance: USB-C cables have become the industry standard due to their reversible design, higher power delivery (up to 100W+), and faster data transfer rates[2][8].
- Smart Chips: Integration of E-Marker chips enables intelligent power management and fast charging capabilities[2][4].
- Sustainability: Manufacturers increasingly use eco-friendly materials and energy-efficient processes to reduce environmental impact[8].
- Quality Focus: Emphasis on certifications (USB-IF, UL, CE) to ensure safety, durability, and performance[8].
Conclusion
The manufacturing of USB cables, especially USB-C, is a sophisticated process requiring precision at every step—from raw material selection and wire drawing to soldering, molding, testing, and packaging. High-quality cables result from rigorous quality control and advanced technology integration, ensuring reliable data transfer and fast charging. As USB technology evolves, manufacturing processes continue to improve, focusing on sustainability and enhanced functionality.
Frequently Asked Questions (FAQs)
1. What materials are used in USB cables?
USB cables primarily use copper or aluminum for conductors due to their excellent electrical conductivity. Insulating materials include PVC, TPE, or nylon braids for flexibility and protection. Connectors are made from plastic shells with embedded circuit boards and chips for functionality[1][2][4].
2. How long does it take to manufacture a USB cable?
The entire manufacturing process can take several hours, depending on production scale and automation level. This includes wire drawing, twisting, extrusion, soldering, molding, testing, and packaging[4].
3. What types of connectors are available for USB cables?
Common USB connectors include USB-A, USB-B, Micro USB, Mini USB, and USB-C. USB-C is the latest and most versatile, supporting reversible connections and higher power and data rates[2][4].
4. How can I tell if a USB cable is high quality?
Look for certifications like USB-IF, UL, or CE. High-quality cables have thick insulation, sturdy connectors without gaps, and positive user reviews. They also pass rigorous electrical and visual inspections during manufacturing[4][8].
5. Are all USB cables compatible with all devices?
Not necessarily. Compatibility depends on connector type, supported USB standard, and power delivery capabilities. USB-C cables tend to be more universally compatible, but always check device requirements before purchase[6][8].
