Creating a serial to USB cable is a practical project for anyone interested in electronics and computer communication. This guide will walk you through the process, covering the necessary components, steps, and troubleshooting tips. It's essential to understand the basics of serial communication and USB interfaces to successfully complete this project.
Introduction to Serial and USB Communication
Serial communication involves sending data one bit at a time over a single communication channel. It's commonly used in devices like microcontrollers, where it provides a simple way to communicate with computers. USB, on the other hand, is a more modern interface that supports faster data transfer rates and is widely used for connecting peripherals to computers.
Serial Communication Basics
Serial communication typically uses three wires: TX (Transmit), RX (Receive), and GND (Ground). The TX pin sends data from the device, while the RX pin receives data. The GND wire provides a common ground for both devices. Serial communication can be asynchronous or synchronous. In asynchronous communication, data is sent without a clock signal, while synchronous communication uses a clock signal to coordinate data transmission.
USB Basics
USB (Universal Serial Bus) is a plug-and-play interface that supports hot-swapping and provides power to devices. It can connect various peripherals like keyboards, mice, printers, and external storage devices. USB has evolved through several versions, with USB 2.0 offering speeds up to 480 Mbps and USB 3.0 providing even faster transfer rates.
Components Needed
To make a serial to USB cable, you'll need the following components:
- USB to Serial Adapter: This is the core component that converts USB signals to serial signals. Common chips include PL2303, FT232, CP2102, and CH340G. These chips are often available on small breakout boards that make connections easier.
- Breadboard and Jumper Wires: For prototyping and connecting components without soldering.
- USB Cable: A standard USB A to B cable is used to connect the adapter to a computer.

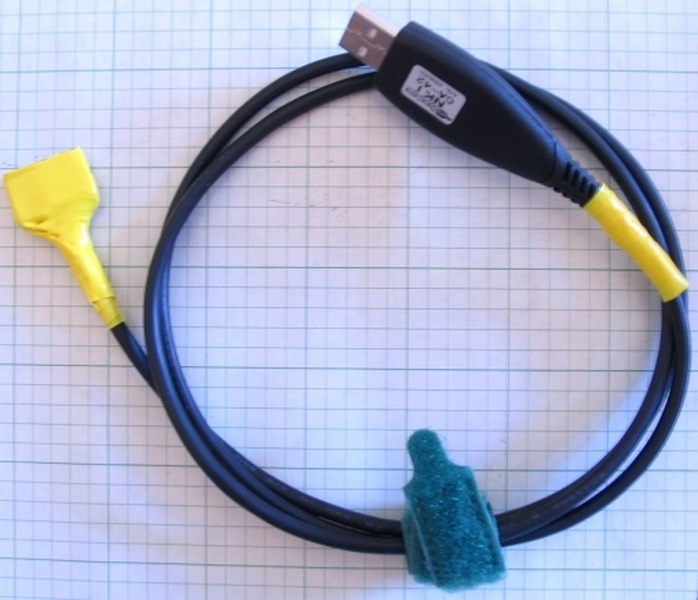

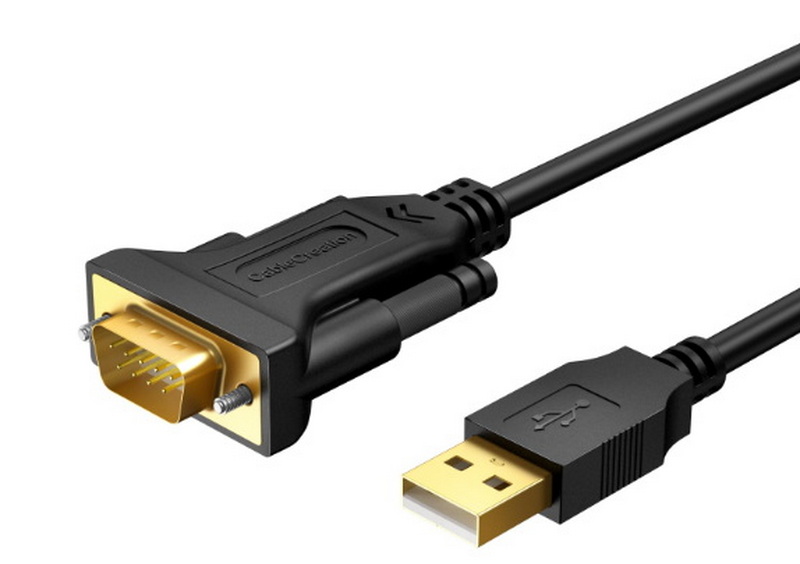

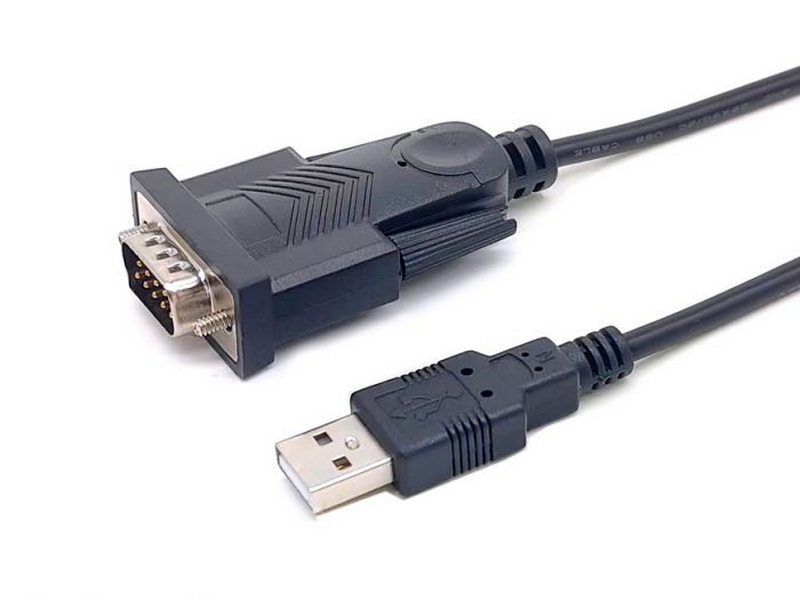

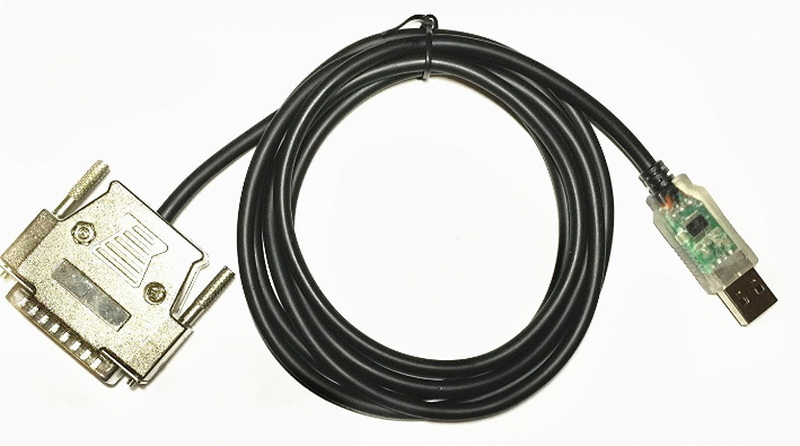

- Serial Connector: Depending on your device, you might need a DB9 connector for RS232 or a TTL-level connector for microcontrollers. The choice of connector depends on the type of serial communication your device uses.
Additionally, you may want some basic tools such as wire strippers, pliers, and a multimeter for testing connections.
Step-by-Step Instructions
Step 1: Choose Your USB to Serial Adapter
Select an adapter based on your needs. For example, the CH340G is a cost-effective option for TTL-level serial communication commonly used in Arduino projects. If you need RS232 compatibility for older devices or industrial equipment, consider using an FTDI or PL2303 adapter.
Step 2: Connect the Adapter
1. Connect the GND wire from the adapter to the GND pin on your device.
2. Connect the TX pin of the adapter to the RX pin of your device.
3. Connect the RX pin of the adapter to the TX pin of your device.
This setup ensures that data sent from the computer (TX on the adapter) is received by the device (RX on the device), and vice versa.
Step 3: Install Drivers
If necessary, install drivers for your USB to serial adapter. Most modern operating systems will automatically detect and install drivers for common adapters. However, if you encounter issues, visit the manufacturer's website for specific drivers compatible with your operating system.
Step 4: Test the Connection
Use a serial terminal program like PuTTY on Windows or minicom on Linux to test the connection. Open the program, select the appropriate COM port (you can find this in your device manager), and set the baud rate to match your device's settings.
1. Open your terminal program.
2. Select "Serial" as your connection type.
3. Enter the correct COM port number.
4. Set parameters such as baud rate (e.g., 9600), data bits (usually 8), parity (none), stop bits (1), and flow control (none).
5. Click "Open" or "Connect" to establish communication.
Step 5: Monitor Data Transmission
Once connected, you can send commands or receive data from your device through the terminal program. This is particularly useful for debugging purposes or when configuring settings on microcontrollers.
Troubleshooting Tips
- Check Connections: Ensure all wires are securely connected and not touching other components.
- Verify Drivers: Make sure the correct drivers are installed and updated.
- Baud Rate: Ensure that both your terminal program and device are set to use the same baud rate.
- Test with Different Software: If you're experiencing issues with one terminal program, try another one as they may handle serial communication differently.
Common Issues and Solutions
Issue 1: No Data Transmission
- Solution: Check if TX and RX connections are swapped; they must be connected correctly for data transmission.
Issue 2: Incorrect Baud Rate
- Solution: Adjust the baud rate in your terminal program until it matches what your device expects.
Issue 3: Device Not Detected
- Solution: Check if the device is properly powered and if the USB adapter is recognized by your computer's operating system.
Issue 4: Garbage Data Received
- Solution: This often indicates mismatched settings between devices; double-check baud rate, parity settings, and other configurations.
Issue 5: Overheating Adapter
- Solution: If your USB to serial adapter gets excessively hot during use, disconnect it immediately as it may indicate a short circuit or incorrect wiring.
Additional Considerations
When making a serial to USB cable, consider potential voltage level differences between devices. TTL levels typically operate at 3.3V or 5V while RS232 levels can range much higher (-12V to +12V). Using an appropriate level shifter can prevent damage when interfacing different voltage systems.
If you plan on using this cable frequently or in various projects, consider soldering connections instead of using jumper wires for better reliability over time.
Conclusion
Creating a serial to USB cable is a straightforward project that requires basic electronics knowledge and the right components. By following these steps and troubleshooting tips, you can successfully connect devices without USB ports to your computer while gaining valuable experience in electronics and communication protocols.
Frequently Asked Questions
1. What is the purpose of a serial to USB cable?
- A serial to USB cable allows devices with serial ports to communicate with computers that only have USB ports.
2. What components are needed to make a serial to USB cable?
- You need a USB to serial adapter, a breadboard (optional), jumper wires, a standard USB cable, and possibly a serial connector depending on your device's requirements.
3. How do I connect the TX and RX pins?
- Connect the TX pin of the adapter to the RX pin of your device and vice versa; this ensures proper data flow between devices.
4. Why do I need to install drivers?
- Drivers are necessary for your computer's operating system to recognize and communicate with the USB to serial adapter effectively.
5. What if my device is not detected?
- Ensure that all connections are secure, check if the adapter is recognized by your operating system's Device Manager, verify power supply issues with your device, and confirm driver installation status.
