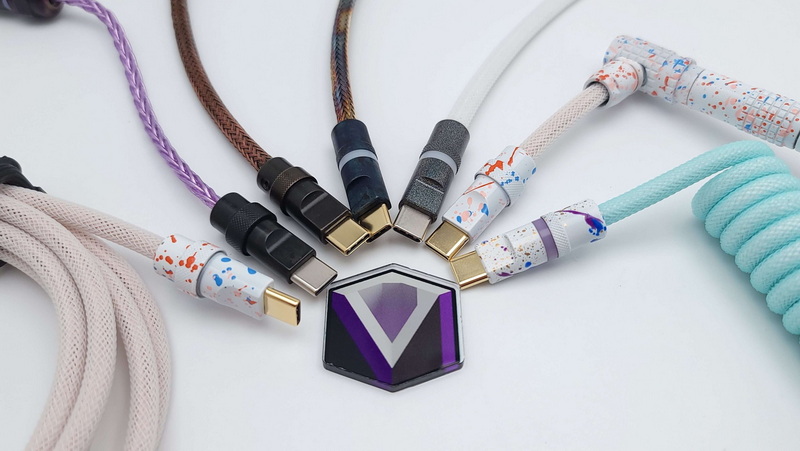

Creating custom USB cables can be a fun and rewarding DIY project, allowing you to tailor cables to your specific needs, whether it's for a mechanical keyboard, a custom desktop setup, or simply to match your personal style. This guide will walk you through the process of making your own custom USB cables, covering the necessary tools, materials, and steps involved.
Custom USB cables offer several advantages over standard cables. They can be made to specific lengths, colors, and styles, making them ideal for custom computer builds or unique projects. Additionally, creating your own cables can save money and provide a sense of accomplishment.
- Customization: You can choose the exact length, color, and style you want.
- Cost-Effective: Often cheaper than buying specialized cables.
- Personal Satisfaction: The pride of creating something with your own hands.
Before starting, you'll need the following tools and materials:
- Cable: You can use Cat-5 cable or a custom 4-core cable (UL2464 26AWG).
- USB Connectors: Type-A, Type-C, or Micro-USB, depending on your needs.
- Soldering Iron and Solder: For connecting the wires to the connectors.
- Wire Strippers: To strip the insulation from the wires.
- Heat Shrink Tubes: To protect the soldered connections.
- Paracord or Cable Sleeving: For aesthetic purposes.
- Tweezers: For handling small components.
- Crimper (Optional): If using crimp connectors.
Each tool plays a crucial role in the process:
- Soldering Iron: Essential for creating strong connections between wires and connectors.
- Wire Strippers: Used to expose the copper wire for soldering.
- Heat Shrink Tubes: Provide insulation and protection for the soldered joints.
Cut your cable to the desired length using a razor knife or wire cutters. If using Cat-5 cable, you'll need to remove the unnecessary wires, as USB only requires four wires.
Use wire strippers to remove about 2mm of insulation from the ends of each wire. This will expose the copper, which you'll solder to the connectors.
If your connectors require soldering, ensure they are ready for the wires. Some connectors may need to be crimped instead.
Use your soldering iron to attach the wires to the connector. Make sure to match the correct wires to their corresponding pins on the connector. The standard USB pinout is as follows:
- Red: Power (5V)
- White: Data+
- Green: Data-
- Black: Ground
Slide heat shrink tubes over the soldered connections to protect them from moisture and physical stress.
If you want to add a custom look, now is the time to sleeve your cable with paracord or Techflex. This not only looks great but also protects the cable from wear.
Before finalizing, test your cable to ensure it works correctly. Plug it into a device and check for any issues.

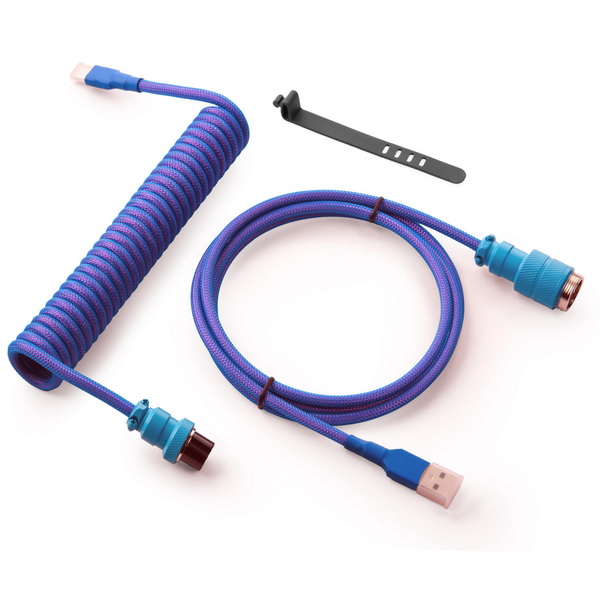

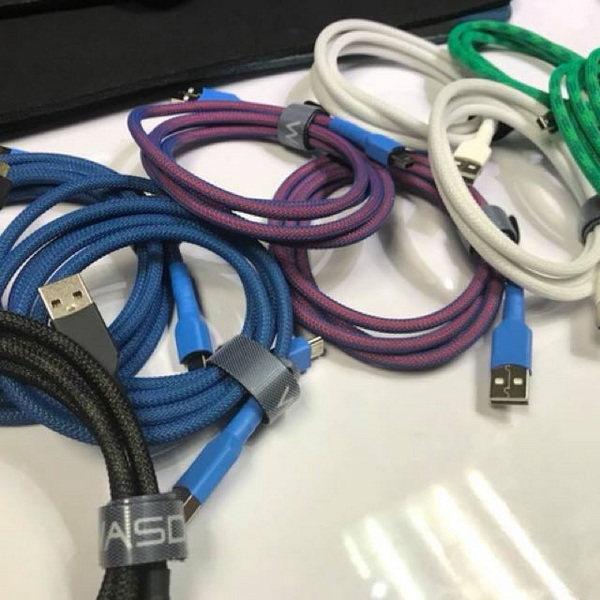

Paracord or cable sleeving can add a professional touch to your custom cable. It not only looks great but also protects the cable from wear. You can choose from a variety of colors and styles to match your setup.
Heat shrink tubes are essential for protecting soldered connections. They come in various colors and sizes, allowing you to match them to your cable's aesthetic. This adds a clean finish to your project.
- Cable Not Working: Check for loose connections or incorrect wire placement.
- Soldering Issues: Ensure your soldering iron is at the right temperature and use flux if necessary.
- Cable Damage: Inspect the cable for any physical damage that might be causing issues.
If you want to create a truly unique cable, consider using custom connectors. These can range from custom-shaped connectors to connectors with specific features like USB-C with Power Delivery (PD).
You can add custom labels to your cables for identification purposes. This is especially useful if you have multiple custom cables for different devices.
One of the biggest advantages of making your own cables is the ability to create them in any length you need. Whether it's a short cable for a compact setup or a long cable for a home office, you have complete control.
When working with electrical components, safety is paramount:
- Use Protective Gear: Wear safety glasses and gloves when soldering.
- Work in a Well-Ventilated Area: Solder fumes can be hazardous.
- Avoid Overheating: Keep your soldering iron at a safe temperature to avoid burns.
Making custom USB cables is a fun and rewarding project that allows you to tailor cables to your specific needs. With the right tools and materials, you can create cables that not only function well but also look great. Whether you're customizing for a mechanical keyboard, a desktop setup, or just for fun, this guide has provided you with the steps and tips needed to get started.
To make a basic USB cable, you'll need a piece of cable (like Cat-5), USB connectors, a soldering iron, solder, wire strippers, and heat shrink tubes.
Choose a cable based on your project's requirements. For USB, a 4-core cable is sufficient. Consider the length and color you need.
Heat shrink tubes protect soldered connections from moisture and physical stress, ensuring your cable lasts longer.
No, you should use a wire suitable for USB applications, typically a 4-core cable with the correct gauge (like 26AWG).
Ensure all connections are secure, test your cable thoroughly, and use high-quality materials to ensure reliability.
