>> Key Features of USB 3.0 Cables
● How Does a USB 3.0 Cable Work?
>> 1. USB 3.0 Type-A to Type-B Cable
>> 2. USB 3.0 Type-A to Micro-B Cable
>> 3. USB 3.0 Type-A to USB-C Cable
>> 4. USB 3.0 Extension Cables
● Benefits of Using a USB 3.0 Cable
>> 1. Significantly Faster Data Transfer
>> 4. Improved Efficiency and Reliability
>> 5. Better Shielding and Construction
● Practical Uses of USB 3.0 Cables
● Troubleshooting USB 3.0 Issues
● Frequently Asked Questions (H2)
>> 1. What are the different types of USB 3.0 cables?
>> 2. Can I use a USB 2.0 cable with a USB 3.0 device?
>> 3. How fast can a USB 3.0 cable transfer data?
>> 4. Are USB 3.0 cables backward compatible?
>> 5. Why are USB 3.0 cables thicker than USB 2.0 cables?
USB 3.0 cables play a crucial role in modern computing and electronics by enabling fast, efficient, and reliable data transfer between devices. Introduced in 2008, USB 3.0, also known as SuperSpeed USB, marked a significant leap from its predecessor, USB 2.0, by offering up to ten times faster data transfer speeds and improved power delivery. This article explores what a USB 3.0 cable does, its features, types, benefits, and practical applications, accompanied by detailed explanations and visual aids to help you understand why USB 3.0 remains relevant today.
A USB 3.0 cable is a physical connection cable designed to transfer data and power between computers and peripherals using the USB 3.0 standard. It supports SuperSpeed data transfer rates of up to 5 Gbps (gigabits per second), which is roughly ten times faster than the maximum 480 Mbps (megabits per second) speed of USB 2.0[1][2].
- Increased Data Transfer Speed: USB 3.0 cables can transfer data at speeds up to 5 Gbps, enabling rapid file transfers, streaming, and backups[1][3].
- Additional Wires and Pins: Unlike USB 2.0 cables that have 4 internal wires, USB 3.0 cables have 9 wires, including 5 extra conductors to support full-duplex (simultaneous send and receive) data transfer[1][11].
- Backward Compatibility: USB 3.0 cables and ports are compatible with USB 2.0 devices and cables, though the transfer speed will default to USB 2.0 rates when mixed[1][7].
- Improved Power Delivery: USB 3.0 can deliver up to 900 mA (4.5 watts) of power per port, compared to 500 mA in USB 2.0, allowing faster charging and powering of more demanding devices[4][10].

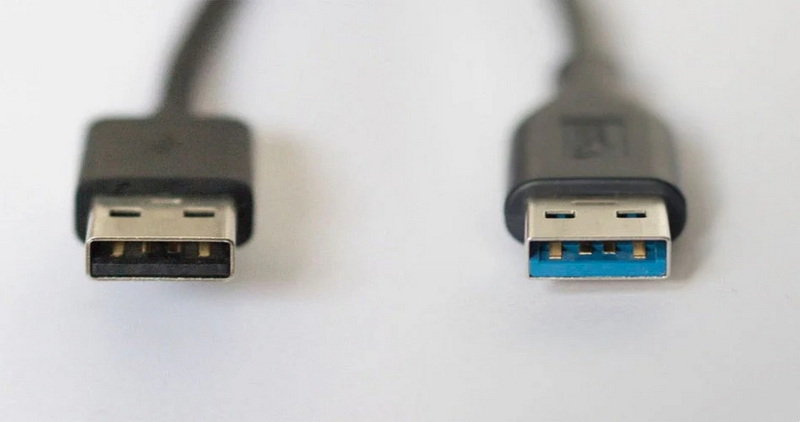

- Distinctive Blue Color: USB 3.0 connectors are often color-coded blue to distinguish them from USB 2.0 connectors, which are usually black or white[1][12].
USB 3.0 cables use a new architecture and protocol called SuperSpeed, which introduces a separate set of data lanes for sending and receiving data simultaneously. This contrasts with USB 2.0's half-duplex communication, which can only send or receive data at one time.
- Full-Duplex Data Transfer: USB 3.0 has two unidirectional data paths, one for transmitting and one for receiving, enabling more efficient and faster data exchange[1][3].
- Signal Coding: USB 3.0 uses an 8b/10b encoding scheme to maintain signal integrity at high speeds[1].
- Power Management: It supports advanced power management states (U0 to U3), allowing devices to conserve power when idle without disconnecting[1][4].

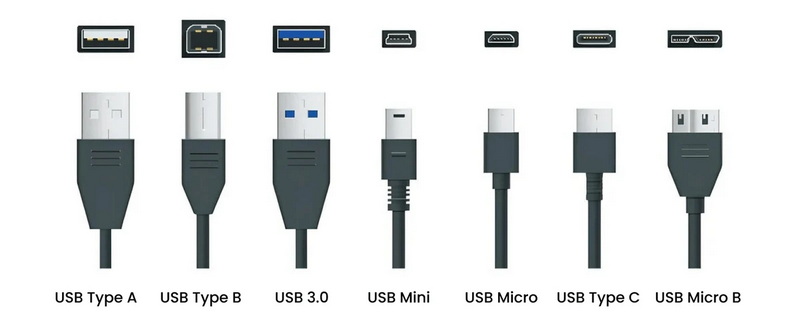

USB 3.0 cables come in several connector types to accommodate various devices and use cases:
- Description: The most common cable type, with a flat rectangular Type-A connector (usually connecting to a computer) and a square Type-B connector (used by printers, scanners, and some external drives).
- Use Case: Ideal for connecting legacy peripherals to computers[8][10].
- Description: Used for external hard drives and portable devices, featuring a standard Type-A connector on one end and a Micro-B connector on the other.
- Use Case: Common for portable external storage devices.
- Description: Bridges older USB 3.0 ports to modern USB-C devices.
- Use Case: Connects legacy computers to newer laptops, smartphones, or peripherals with USB-C ports[8].
- Description: Extends the reach of USB 3.0 connections, available in passive and active versions (active ones include signal boosters for longer distances).
- Use Case: Useful for setups requiring longer cable runs, such as video conferencing or connecting distant peripherals[6][8].
USB 3.0 cables enable transfer speeds up to 5 Gbps, which is about 10 times faster than USB 2.0's 480 Mbps. This speed boost dramatically reduces the time needed to transfer large files, such as HD videos, backups, or game libraries[1][3][5].
With up to 900 mA current at 5V, USB 3.0 cables can charge devices faster and power more demanding peripherals without requiring an external power source[4][10].
USB 3.0 cables and ports work with USB 2.0 and USB 1.1 devices, ensuring broad compatibility while allowing users to upgrade devices gradually[1][7].
The new protocol reduces the need for constant polling by the host, allowing devices to notify the host asynchronously when ready. This reduces CPU load and power consumption, improving overall system efficiency[1][3].
USB 3.0 cables are typically thicker and better shielded to prevent electromagnetic interference, ensuring stable and reliable data transmission[2][6].
- External Hard Drives and SSDs: For fast backups, video editing, and large file transfers[8].
- Printers and Scanners: Many use USB 3.0 Type-B connectors for faster data exchange[10].
- Charging Smartphones and Tablets: Faster charging due to increased power delivery[4].
- Connecting Peripherals: Keyboards, mice, webcams, and gaming controllers benefit from improved bandwidth and power[6].
- Video Conferencing and VR Devices: USB 3.0 cables support high data rates required for webcams, VR sensors, and microphones[6].
Common problems with USB 3.0 connections include device recognition failures, slow speeds, or power issues. Solutions include:
- Using a proper USB 3.0 cable (not USB 2.0 cable) to achieve SuperSpeed transfer[11].
- Connecting devices to USB 3.0 ports (usually marked blue) rather than USB 2.0 ports[9].
- Updating USB drivers and chipset firmware on the computer[9].
- Avoiding USB hubs or using powered hubs to maintain sufficient power delivery[9].
- Ensuring cables are high quality with proper shielding to avoid data loss[2][9].
A USB 3.0 cable is a vital component for fast, efficient, and reliable connections between computers and peripherals. It offers up to 10 times the data transfer speed of USB 2.0, improved power delivery, and backward compatibility, making it an excellent choice for a wide range of devices from external hard drives to printers and smartphones. Despite the rise of USB-C, USB 3.0 cables remain widely used and relevant due to their performance and compatibility. Choosing the right USB 3.0 cable ensures you get the best speed, power, and reliability for your devices.
0
USB 3.0 cables include Type-A to Type-B, Type-A to Micro-B, Type-A to USB-C, and USB 3.0 extension cables. Each serves different device connection needs, from printers to external drives and modern USB-C devices[8][10].
Yes, but the connection will operate at USB 2.0 speeds (up to 480 Mbps) and will not benefit from USB 3.0's SuperSpeed capabilities. Also, USB 2.0 cables lack the extra wires needed for full USB 3.0 performance[11].
USB 3.0 cables support data transfer rates up to 5 Gbps (about 500 MB/s), roughly ten times faster than USB 2.0's 480 Mbps. Real-world speeds vary but are significantly faster than previous standards[1][2][3].
Yes, USB 3.0 cables and ports are designed to work with USB 2.0 and USB 1.1 devices and cables, although the transfer speed will be limited to the older standard's maximum[1][7].
USB 3.0 cables have more internal wires (9 vs. 4) to support full-duplex data transfer and higher power delivery. This requires thicker cables with better shielding to maintain signal integrity and reduce interference[2][11][12].
