USB cables are ubiquitous in our digital lives, connecting devices for power and data transfer. Yet, many users are unaware of the significance behind the colored wires inside these cables. Understanding the wire colors and their functions can be valuable for DIY repairs, troubleshooting, or electronics projects. This comprehensive article explores the wire color codes in various USB cables, explains their purposes, and provides detailed insights into USB cable types and standards.

USB Cable Wire Colors: The Basics

Most standard USB cables contain four core wires, each with a specific color and function. These wires are usually:

- Red: Positive power wire (+5V)

- Black: Ground wire (0V)

- White: Data- (D-), negative data line

- Green: Data+ (D+), positive data line

This color scheme is the most common for USB 2.0 cables and earlier versions. The red wire carries a 5-volt direct current to power the device, while the black wire serves as the ground completing the electrical circuit. The white and green wires form a differential pair that transmits data signals between devices[1][2][4][6][11].

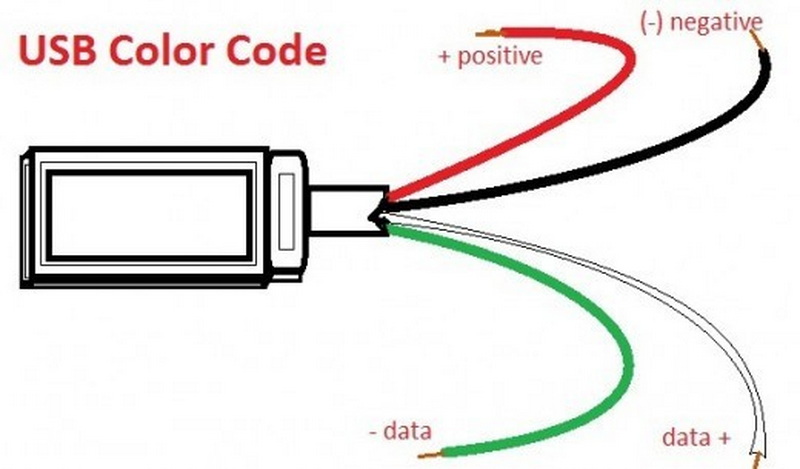

Visual Representation

Imagine a standard USB cable stripped at one end, revealing four wires with these colors. The red wire connects to the 5V power pin, black to ground, white to the D- data line, and green to the D+ data line. This setup ensures both power delivery and data communication.

Variations in USB Wire Colors

While the red, black, white, and green color scheme is standard, some USB cables may use alternative colors depending on manufacturer or cable type:

- Orange: Sometimes used instead of red for the positive power wire.

- Blue: Occasionally used as a ground wire or for data lines.

- Yellow: Can represent power wires in some cables.

- Brown or Grey: Sometimes used as ground or neutral wires.

For example, a cable might have orange for +5V, white for ground, green for D+, and blue for D-. This variation is less common but important to recognize for correct wiring[1][2][5][10].

USB 3.0 and USB-C Cable Wire Colors

USB 3.0 Cables

USB 3.0 cables are more complex, containing additional wires to support higher data transfer speeds (up to 5 Gbps). They typically have 9 or 10 wires, including the original four plus extra pairs for SuperSpeed data transmission:

- Red: +5V power

- Black: Ground

- White: D- (USB 2.0 data)

- Green: D+ (USB 2.0 data)

- Additional pairs (often in blue, yellow, orange, purple) for SuperSpeed transmit and receive differential pairs[1][2].

USB-C Cables

USB-C cables are even more advanced, supporting USB 2.0, USB 3.x, power delivery, and alternate modes like video. Their wiring includes multiple pairs and special configuration channels:

Wire Color	Function	Notes
Red	+5V Power (VBUS)	Power supply, can vary in current capacity
Black	Ground (GND)	Electrical ground
White	USB 2.0 Data- (D-)	Data transmission negative line
Green	USB 2.0 Data+ (D+)	Data transmission positive line
Blue	SuperSpeed Transmit+ (SSTXp+)	USB 3.x high-speed data
Yellow	SuperSpeed Transmit- (SSTXp-)	USB 3.x high-speed data
Purple	SuperSpeed Receive+ (SSRXp+)	USB 3.x high-speed data
Orange	SuperSpeed Receive- (SSRXp-)	USB 3.x high-speed data
Black (separate)	Configuration Channel (CC)	Used for cable orientation and power negotiation

USB-C cables have symmetrical pinouts, meaning the wiring is duplicated on both sides for reversible plug orientation. The color coding helps manufacturers and technicians identify each wire's role in the complex USB-C architecture[3][9][10].

The Role of USB Port and Connector Colors

In addition to wire colors inside the cable, USB ports and connectors themselves are often color-coded to indicate their specifications and capabilities:

- White: USB 1.x ports or some USB 2.x ports.

- Black: USB 2.x Hi-Speed ports.

- Blue: USB 3.x SuperSpeed ports.

- Teal Blue: USB 3.1 SuperSpeed+ ports.

- Green: Qualcomm Quick Charge ports.

- Purple: Huawei SuperCharge ports.

- Yellow or Red: High-current or sleep-and-charge ports.

- Orange: Industrial or high-retention connectors[1][2].

These colors help users quickly identify the type of USB port and the expected performance or charging capabilities.

Understanding USB Cable Construction

Beyond color coding, USB cables have a layered construction for durability and signal integrity:

- Outer jacket: Protective plastic or braided shielding.

- Braided shielding net: Protects against electromagnetic interference.

- Aluminum foil layer: Additional shielding.

- Copper core wires: Carry power and data signals, each insulated with colored jackets[5].

This multi-layer design ensures reliable data transfer and safe power delivery even in electrically noisy environments.

How USB Wires Work Together

The four main wires inside a USB cable work in concert:

- Power wires (Red and Black): Deliver electrical power from the host (e.g., computer) to the device (e.g., phone).

- Data wires (White and Green): Carry differential data signals, enabling communication between devices.

The differential data lines (D+ and D-) transmit data by sending opposite signals on each wire, improving noise immunity and allowing for faster data rates.

In USB 3.x and USB-C cables, additional differential pairs enable SuperSpeed data transfer, supporting higher bandwidths and advanced features like video output and power negotiation.

Practical Applications and DIY Tips

Knowing USB wire colors is useful for:

- Repairing USB cables: Identifying which wires to splice or replace.

- Custom cable making: Building USB cables for specific purposes.

- Electronics projects: Powering devices or transferring data using USB cables.

For example, connecting an LED to a USB cable requires connecting the LED's positive lead to the red wire (+5V) and the negative lead to the black wire (ground), possibly with a resistor to limit current[8].

Conclusion

The wire colors in a USB cable are standardized to help identify their functions: red for +5V power, black for ground, white for data-, and green for data+. Variations exist depending on cable type and manufacturer, especially in USB 3.0 and USB-C cables, which include additional wires for higher data speeds and advanced features. USB port colors also provide visual cues about the port's capabilities. Understanding these color codes and wiring details empowers users to troubleshoot, repair, or create USB cables confidently.

Frequently Asked Questions (FAQs)

1. What do the different colors in a USB cable represent?

Red is for +5V power, black is ground, white is the negative data line (D-), and green is the positive data line (D+). Additional colors like blue, orange, or yellow may appear in USB 3.x or specialized cables[1][2][4].

2. Are USB cable wire colors always the same?

No, while the red, black, white, and green scheme is standard, some cables use different colors like orange or blue for power or ground wires. Always verify with a multimeter or manufacturer specs before making connections[1][10].

3. How many wires are inside a USB 3.0 cable?

USB 3.0 cables typically have 9 or 10 wires, including the original four plus additional differential pairs for SuperSpeed data transfer[1][2].

4. What is the purpose of the Configuration Channel (CC) in USB-C cables?

The CC wires detect cable orientation, manage power delivery negotiation, and enable alternate modes like video output in USB-C connections[3][9].

5. Why are USB ports color-coded?

USB ports use colors like white, black, blue, and teal to indicate their USB version and capabilities, such as data speed and charging power. This helps users identify the best port for their needs[1][2].
