Universal Serial Bus (USB) cables are ubiquitous in our digital lives, connecting devices for data transfer and charging. Understanding the four wires inside a USB cable is fundamental for anyone interested in electronics, DIY repairs, or just curious about how these cables work. This article dives deep into the four wires in a USB cable, their functions, color codes, and variations across USB types, accompanied by images and videos to enhance understanding.

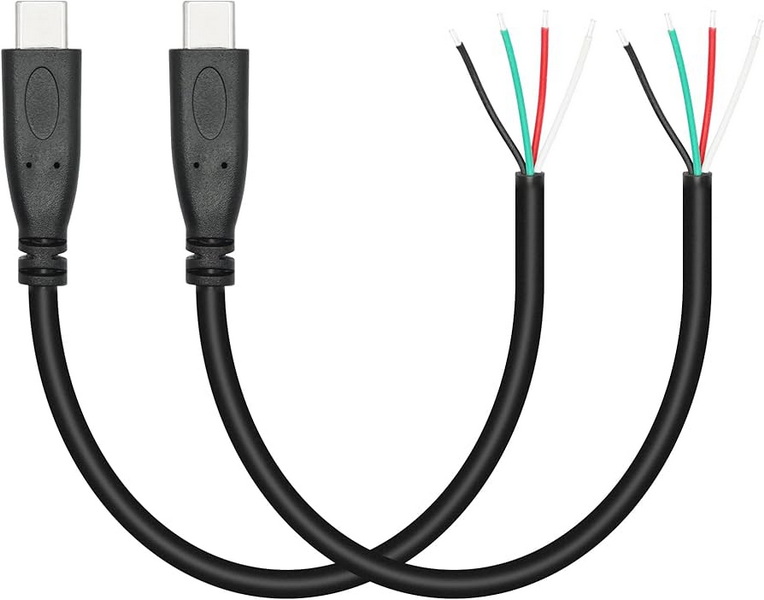

The Four Wires Inside a USB Cable: Overview

A standard USB cable typically contains four wires, each serving a specific function:

- Red wire: Carries +5 volts DC power (VCC)

- Black wire: Ground wire (GND)

- White wire: Data- (D-), the negative data signal line

- Green wire: Data+ (D+), the positive data signal line

These wires enable the USB cable to perform two main roles: supplying power and transferring data between devices[3][5][6][12][17].

Detailed Explanation of Each Wire

1. Red Wire – Power (VCC)

The red wire is responsible for delivering 5 volts of direct current (DC) from the host device (like a computer or charger) to the peripheral device (such as a smartphone or USB drive). This power line enables charging and powering of connected devices[3][5][6][17].

2. Black Wire – Ground (GND)

The black wire acts as the ground or negative return path for the electrical circuit, completing the power loop. It ensures the safe and stable operation of the power supply within the USB connection[3][5][6][17].

3. White Wire – Data Minus (D-)

The white wire carries the negative differential data signal. It is part of the data pair that transmits information between the host and the device. It works in conjunction with the green wire to enable bidirectional data transfer[3][5][6][12][17].

4. Green Wire – Data Plus (D+)

The green wire carries the positive differential data signal. Together with the white wire, it forms a twisted pair that transmits data efficiently and with reduced interference[3][5][6][12][17].

Visual Representation of USB Cable Wires

Here is a simplified diagram of the four-wire USB cable wiring:

Wire Color	Function	Description
Red	VCC (Power +5V)	Supplies power to the device
Black	Ground (GND)	Completes the electrical circuit
White	Data- (D-)	Carries negative data signal
Green	Data+ (D+)	Carries positive data signal

Variations in USB Cable Wiring

USB 2.0 vs USB 3.0 and USB-C

While traditional USB 2.0 cables have four wires as described, USB 3.0 and USB-C cables include additional wires for higher data speeds and power capabilities:

- USB 3.0 cables have nine or ten wires, adding extra differential pairs for SuperSpeed data transfer[12].

- USB-C cables include configuration channel (CC) wires for role detection, orientation, and power negotiation, sometimes totaling more than four wires internally[1][2][17].

However, the fundamental four-wire setup (power and USB 2.0 data lines) remains present even in USB-C cables for backward compatibility[1][17].

How Do These Wires Work Together?

- The red and black wires provide power to the device.

- The green and white wires form a differential pair for data transmission, allowing devices to communicate.

- In USB-C cables, additional wires handle configuration and higher power levels, enabling faster charging and data transfer[1][2][10].

Practical Applications and Tips

- Charging-only cables might omit the white and green data wires, meaning they only supply power but cannot transfer data[11].

- Using a cable without data wires can cause issues like devices freezing or failing to sync[11].

- Identifying wires correctly is crucial when repairing or modifying USB cables[4][13].

How to Identify the Positive and Negative Wires

- The red wire is always positive (+5V).

- The black wire is always negative (ground).

- Use a multimeter to confirm voltage and polarity if unsure[14][19].

USB Cable Color Codes Summary

Wire Color	Typical Function	Notes
Red	Power (VCC, +5V)	Supplies power to the device
Black	Ground (GND)	Completes circuit, negative terminal
White	Data- (D-)	Negative data line
Green	Data+ (D+)	Positive data line
Blue/Yellow	SuperSpeed data lines	USB 3.0+ additional wires (not in basic 4-wire cables)

Conclusion

Understanding the four wires inside a USB cable-red (power), black (ground), white (data-), and green (data+)-is essential for anyone working with USB devices or cables. These wires form the backbone of USB's ability to deliver power and transfer data efficiently. While newer USB standards add more wires for enhanced features, the core four-wire setup remains fundamental. Proper identification and use of these wires ensure optimal device performance, safe charging, and reliable data communication.

Frequently Asked Questions (FAQs)

1. What are the four wires in a USB cable used for?

The four wires are used for power delivery (red for +5V, black for ground) and data transfer (white for D-, green for D+)[3][5][17].

2. Can a USB cable have fewer than four wires?

Yes, some USB cables are "charge-only" and contain only the red and black wires for power, omitting data wires[11].

3. How can I identify the positive and negative wires in a USB cable?

Typically, red is positive (+5V) and black is negative (ground). Use a multimeter for verification[14][19].

4. Do USB-C cables have the same four wires?

USB-C cables include the same four basic wires for USB 2.0 data and power, plus additional wires for configuration and higher-speed data[1][17].

5. Why are there different color codes in USB cables?

Color codes help identify wire functions but can vary by manufacturer. The standard red, black, white, and green scheme is most common for USB 2.0 cables[12][19].
