USB cables are everywhere in our daily lives, powering and connecting everything from smartphones and tablets to printers, cameras, and keyboards. But have you ever wondered what goes on inside these seemingly simple cables? At the heart of every standard USB cable are four distinct wires, each with a crucial role. Understanding what these wires do can help you troubleshoot problems, repair cables, and make informed choices when buying new ones.
In this comprehensive guide, we'll explore the four wires in a USB cable, their color codes, their functions, and how they work together. We'll also look at different USB cable types, explain why some cables have only two wires, and answer common questions about USB wiring. By the end, you'll have a clear understanding of the inner workings of USB cables and be better equipped to use, repair, or select the right cable for your needs.

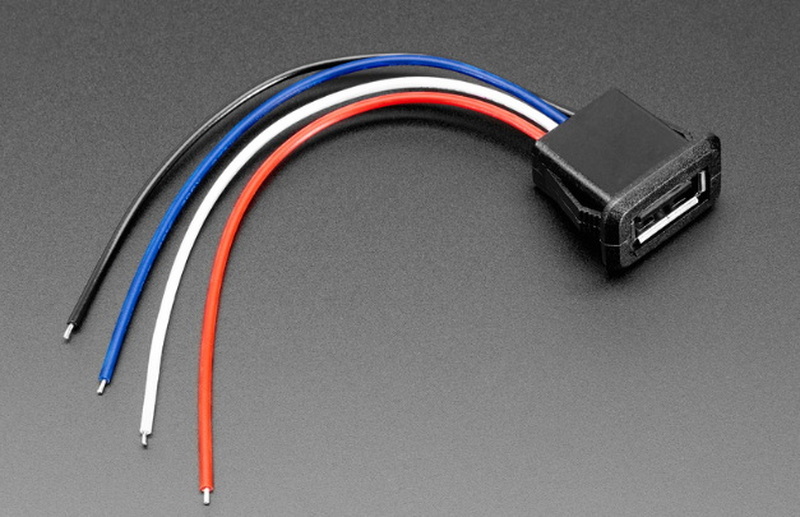

A standard USB cable, such as those used for USB 2.0 connections, contains four wires. Each wire serves a specific function that is essential for the cable's operation. Here's a summary of the four wires:
- Red Wire: Power (VCC, +5V)
- Black Wire: Ground (GND)
- White Wire: Data- (D-)
- Green Wire: Data+ (D+)
These four wires are present in the vast majority of USB cables, including USB-A, USB-B, Micro USB, and USB-C cables designed for USB 2.0 and earlier standards. The arrangement and function of these wires allow USB cables to transmit both power and data between devices.
Understanding the color codes in USB cables is crucial for identifying each wire's function, especially if you need to repair or modify a cable. The standard color codes for USB 2.0 cables are as follows:
| Color | Function | Description |
|---|---|---|
| Red | Power (VCC, +5V) | Supplies +5V DC from the host to the device |
| Black | Ground (GND) | Provides electrical ground |
| White | Data- (D-) | Carries negative data signal |
| Green | Data+ (D+) | Carries positive data signal |
While these are the most common color codes, some manufacturers may use alternative colors. Always check the device documentation or use a multimeter if you are unsure.
The red wire delivers +5 volts of direct current (DC) from the host device (such as a computer or charger) to the connected device. This wire is essential for charging batteries and powering devices that rely on USB for their energy needs.
The black wire serves as the ground connection. It completes the electrical circuit by providing a return path for the current supplied by the red wire. The ground wire is crucial for safety and stable operation, preventing electrical faults and ensuring the correct flow of electricity.
The white wire carries the negative side of the differential data signal. This wire, together with the green wire, is responsible for transmitting data between the host and the connected device. The use of differential signaling helps reduce interference and allows for reliable high-speed data transfer.
The green wire carries the positive side of the differential data signal. Working in tandem with the white wire, it enables the bi-directional transfer of data. This setup is what allows you to transfer files, sync devices, and use peripherals like keyboards and mice.
All these USB types typically use the same four-wire arrangement for USB 2.0 and earlier standards. The main difference lies in the shape and size of the connectors, but the internal wiring remains consistent. This means that, regardless of the connector type, the four wires inside serve the same functions.
USB-C connectors are designed to support more advanced features, such as higher power delivery and faster data transfer rates. While legacy USB-C cables for USB 2.0 use only four wires, more advanced USB-C cables (such as those for USB 3.0, 3.1, or Thunderbolt) include additional wires. These extra wires enable higher data rates, video output, and increased power delivery, but the basic four wires are still present for backward compatibility.
Not all USB cables are created equal. Some are designed as "charge-only" cables and contain only the red (VCC) and black (GND) wires. These cables lack the white (D-) and green (D+) data wires, which means they cannot transfer data.
- Charge-only cables: Can only supply power to a device. They are suitable for charging smartphones, tablets, and other gadgets but cannot be used for data transfer.
- Full 4-wire cables: Support both charging and data transfer, making them suitable for syncing files, updating firmware, and using peripherals.
If you find that your device charges but isn't recognized by your computer, you might be using a charge-only cable.
Carefully peel back the outer insulation of the cable (if you're comfortable doing so) and look for four individual wires inside. You should see red, black, white, and green wires. If only two wires are present, it's a charge-only cable.
If you have a multimeter, you can test for continuity between the pins on each end of the cable. The outermost pins are for power, and the two inner pins are for data. If there's no continuity on the data pins, the cable lacks the data wires.
A simple way to check is by connecting the cable between a device and a computer. If you can transfer files or sync data, the cable has all four wires. If it only charges the device, it may be a two-wire cable.
- Charging Devices: The red and black wires deliver power for charging.
- Data Transfer: The white and green wires enable file transfers, device synchronization, and peripheral communication.
- Peripheral Connectivity: Devices like keyboards, mice, printers, and cameras require all four wires for full functionality.
- Device Not Recognized: If your device charges but isn't detected by your computer, check if your cable has all four wires.
- Slow Charging or No Data: Inspect for broken or disconnected wires, especially the data lines.
- Cable Repair: If you're repairing a cable, use the color code to correctly connect the wires and ensure proper insulation.
The four wires inside a standard USB cable—red (VCC), black (GND), white (D-), and green (D+)—are fundamental to the cable's ability to deliver both power and data. Understanding their functions and color codes is essential for anyone working with electronics, repairing cables, or simply choosing the right cable for their device.
While USB technology continues to evolve, the basic principles of USB wiring remain consistent for most everyday applications. Always ensure you use a full 4-wire cable for data transfer and device communication, and remember that not all cables are created equal.
A two-wire USB cable can only charge devices; it cannot transfer data. This is fine for charging but unsuitable for syncing files or using peripherals that require data communication.
You can:
- Check the packaging for "data transfer" or "sync" capability.
- Test the cable by connecting a device to a computer and attempting a file transfer.
- Use a multimeter to check for continuity on the data pins.
No. USB-C cables can have more than four wires, especially for USB 3.0/3.1/3.2 and Thunderbolt, which require additional wires for higher data rates and features. However, legacy USB-C cables for USB 2.0 often use just four wires.
While red, black, white, and green are standard, some manufacturers use alternative colors. Always refer to device documentation or use a multimeter to confirm each wire's function before making repairs or modifications.
Yes, if you can identify the wires and have basic soldering skills. Match the colors according to the standard, ensure good insulation, and test the cable before use.
