Universal Serial Bus (USB) cables are ubiquitous in today's digital world, connecting countless devices from smartphones to computers and peripherals. Understanding how USB cables work involves exploring their physical structure, data transfer mechanisms, power delivery, and the evolution of USB standards. This article delves deeply into these aspects, enriched with diagrams, videos, and detailed explanations.

What Is a USB Cable?

A USB cable is a standardized cable used to connect a host device (like a computer) to peripheral devices (such as printers, cameras, or smartphones). It facilitates both data transfer and power supply between devices. The USB standard was introduced in 1995 to simplify connections and replace a multitude of different cables and ports[1][4].

The Physical Structure of USB Cables

USB Cable Components

A typical USB cable contains four wires:

- Red wire (Vbus): Carries +5 volts power (positive).

- Black wire (GND): Ground wire (negative).

- Green wire (D+): Carries positive data signal.

- White wire (D-): Carries negative data signal.

These wires are enclosed in a shield to protect against electromagnetic interference[2][3][9].

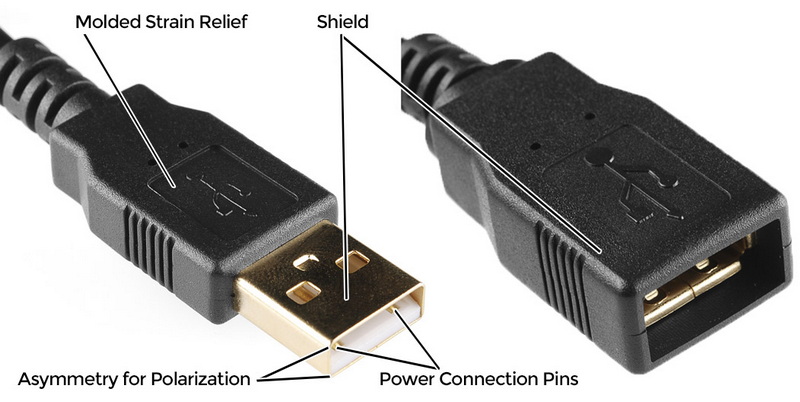

USB Connectors and Types

USB cables come with various connector types, each designed for specific roles and devices:

USB Cable Type	Description	Common Use Cases
USB Type-A	Flat rectangular plug, usually on host devices	PCs, chargers
USB Type-B	Square-shaped plug, used for peripherals	Printers, scanners
USB Type-C	Small, reversible plug supporting data, power, video	Smartphones, laptops, docks
Micro-USB	Smaller plug for mobile devices	Older smartphones, tablets
Mini-USB	Older standard for cameras and MP3 players	Legacy devices

The USB Type-C connector is the newest and most versatile, supporting reversible insertion and multiple protocols like Thunderbolt 3, DisplayPort, and HDMI[2][5][9].

How USB Cables Work: Data and Power Transmission

Power Delivery

Power flows from the host device to the peripheral via the red (Vbus) and black (GND) wires. The standard voltage is 5 volts, but with USB Power Delivery (USB PD) technology, the voltage can increase up to 20 volts to support fast charging and power-hungry devices[10][8].

Data Transmission

Data is transmitted through the green (D+) and white (D-) wires, which form a twisted pair to reduce electromagnetic interference. The data lines use differential signaling, where one wire carries the positive signal and the other the negative, improving signal integrity[1][3].

USB communication uses a serial data transfer method, meaning data is sent one bit at a time in a sequence. USB operates in half-duplex mode, so it cannot send and receive data simultaneously on the same pair of wires[3].

Device Detection and Communication

When a USB device is connected, the host detects it and assigns a unique address. The host then manages data transfer and power delivery, ensuring the device operates correctly. This involves a “handshake” process where the device and host negotiate power requirements and data transfer protocols[1][3][10].

USB Versions and Their Capabilities

USB has evolved through several versions, each improving speed, power, and functionality:

USB Version	Max Data Speed	Power Delivery Support	Video Support	Typical Use Cases
USB 1.1	12 Mbps	No	No	Basic peripherals
USB 2.0	480 Mbps	Yes	No	Most common legacy devices
USB 3.0	5 Gbps	Yes	Yes	High-speed peripherals
USB 3.1	10 Gbps	Yes	Yes	Fast external drives, displays
USB 4	40 Gbps	Yes	Yes	Latest high-performance devices

USB Type-C cables support most of these versions and offer backward compatibility, making them highly versatile[2][6][7].

Advanced Features of USB-C

USB-C cables are considered “future-proof” because they support:

- Reversible plug design for easy connection.

- Power Delivery (PD) for fast charging up to 100W.

- Multiple protocols including DisplayPort and Thunderbolt 3.

- High data transfer speeds up to 40 Gbps with USB4 or Thunderbolt 3 ports.

- Video and audio transmission capabilities[2][8].

Common USB Cable Use Cases

- Charging mobile phones, tablets, and laptops.

- Connecting peripherals like keyboards, mice, printers.

- Transferring data between devices.

- Connecting external displays using video protocols.

- Powering and syncing wearable and IoT devices[10][11].

Conclusion

USB cables are a fundamental technology enabling seamless data transfer and power delivery across a vast range of devices. Their design—with four core wires for power and data, shielded and twisted for signal integrity—ensures reliable communication. The evolution from USB 1.1 to USB 4 and the introduction of USB-C connectors have dramatically increased speed, power capabilities, and versatility. Understanding how USB cables work helps users choose the right cable for their needs and appreciate the technology behind everyday connections.

Frequently Asked Questions (FAQs)

1. How does a USB cable transmit both power and data simultaneously?

A USB cable has separate wires for power (Vbus and GND) and data (D+ and D-). Power flows through the red and black wires, while data signals travel over the twisted pair of green and white wires, allowing simultaneous transmission without interference[1][3].

2. What is the difference between USB Type-A, Type-B, and Type-C connectors?

Type-A is the standard rectangular plug found on host devices. Type-B is square-shaped and used on peripherals. Type-C is a smaller, reversible plug supporting higher speeds, power delivery, and video transmission[2][5][9].

3. Can a USB 3.0 cable work with a USB 2.0 device?

Yes, USB 3.0 cables are backward compatible with USB 2.0 devices but will operate at USB 2.0 speeds when connected to USB 2.0 hosts or devices[4][7].

4. Why are USB-C cables considered “future-proof”?

USB-C cables support multiple protocols (USB 2.0 to USB4, Thunderbolt 3), high data speeds (up to 40 Gbps), high power delivery (up to 100W), and reversible connectors, making them compatible with current and upcoming technologies[2][8].

5. How does USB Power Delivery (PD) enhance charging?

USB PD allows devices to negotiate power requirements dynamically, enabling faster and safer charging by increasing voltage and current beyond the standard 5V/0.5A, up to 20V/5A depending on the device and cable capabilities[8][10].
