USB-C cables have become the universal standard for charging, data transfer, and video output across countless modern devices. From smartphones and laptops to gaming consoles and monitors, USB-C offers a versatile, fast, and reversible connection that simplifies connectivity. This comprehensive guide will explore everything you need to know about how to use USB-C cables effectively, including their features, capabilities, compatibility, troubleshooting, and tips for choosing the right cable.
What Is a USB-C Cable?

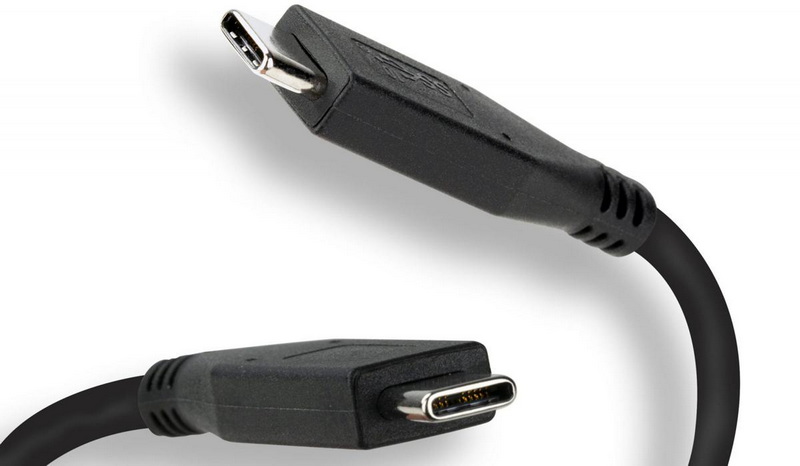

USB-C (Universal Serial Bus Type-C) is a 24-pin, reversible connector designed to replace older USB connectors like USB-A, USB-B, and Micro-USB. Unlike previous USB types, USB-C cables can transmit power, data, audio, and video signals through a single cable and connector. The reversible design means you can plug it in either way without worrying about orientation[2][3].
Key Features of USB-C Cables
- Reversible Connector: The symmetrical oval shape allows for easy, no-fuss connection.
- Universal Compatibility: Works across many devices and supports multiple protocols.
- Power Delivery: Supports up to 100W or more for fast charging.
- High-Speed Data Transfer: Speeds range from 480 Mbps (USB 2.0) up to 40 Gbps (USB4).
- Video Output: Supports DisplayPort, HDMI, and Thunderbolt alternate modes for video transmission[2][3][4].
How to Use USB-C Cable: Step-by-Step Guide
1. Identify the USB-C Ports on Your Devices
USB-C ports are small, oval-shaped, and symmetrical. Most modern laptops, smartphones, tablets, and peripherals now feature USB-C ports. Before connecting, confirm that your device has a USB-C port and check if it supports the functions you need (charging, data transfer, or video output)[2][11].
2. Choose the Right USB-C Cable
Not all USB-C cables are created equal. Depending on your needs, select a cable that supports:
- Charging: For fast charging, pick a cable with USB Power Delivery (PD) support.
- Data Transfer: Choose cables rated for USB 3.1, USB 3.2, or USB4 for faster speeds.
- Video Output: Ensure the cable supports Alternate Mode (Alt Mode) like DisplayPort or HDMI for video[4][5][12].
3. Connect the Cable
- Plug the USB-C connector into the device port; it can be inserted either way due to its reversible design.
- Connect the other end to the power adapter, another device, or a peripheral.
- Devices will negotiate power and data transfer protocols automatically.
4. Use the Cable for Charging
USB-C supports variable power delivery, allowing devices to charge quickly and safely. For example, a USB-C charger can deliver up to 100W, enough to charge laptops, tablets, and phones efficiently[1][2][12].
5. Use the Cable for Data Transfer
When connected to a compatible device, USB-C cables can transfer files, sync data, or connect to external drives at speeds depending on the cable's USB version:
| USB Version | Max Speed | Typical Use |
| USB 2.0 | 480 Mbps | Basic peripherals (keyboards, mice) |
| USB 3.2 Gen 1 | 5 Gbps | External storage, webcams |
| USB 3.2 Gen 2 | 10 Gbps | High-speed SSDs, docking stations |
| USB 3.2 Gen 2x2 | 20 Gbps | Professional video equipment |
| USB4 | 40 Gbps | Thunderbolt devices, 8K displays |
6. Use the Cable for Video Output
If your device and cable support Alternate Mode, you can connect your device to external monitors or TVs. USB-C can transmit video signals using:
- DisplayPort Alt Mode: Supports up to 8K resolution.
- HDMI Alt Mode: Supports up to 4K resolution.
- Thunderbolt Mode: Supports very high data and video bandwidth, including 8K[4][11].
Tips for Choosing the Right USB-C Cable
- Check Device Compatibility: Ensure your device supports the features you want (e.g., fast charging, video output).
- Look for Certification: Choose USB-IF certified cables to ensure safety and performance.
- Consider Cable Length: Longer cables offer flexibility but may reduce charging speed slightly.
- Check Cable Markings: Some cables have logos indicating support for DisplayPort or Thunderbolt.
- Read Reviews: User feedback can reveal real-world performance and durability[4][5][12].
Troubleshooting Common USB-C Cable Issues
- Loose Connection: Inspect for debris or worn connectors. Clean ports gently with compressed air.
- Cable Not Working: Try another cable or port to isolate the problem.
- Slow Charging or Data Transfer: Ensure the cable and charger support your device's power and data requirements.
- No Video Output: Confirm both cable and device support Alternate Mode for video[7][10].
Conclusion
USB-C cables have revolutionized device connectivity by combining power, data, and video transmission into a single, reversible connector. Understanding how to use USB-C cables properly ensures you get the most out of your devices, whether charging your phone quickly, transferring large files at high speed, or connecting to high-resolution displays. Always choose the right cable for your needs, prioritize certified products, and maintain your cables and ports for optimal performance.
Frequently Asked Questions (FAQs)
1. What devices use USB-C cables?
Many modern devices use USB-C cables, including smartphones, tablets, laptops, gaming consoles, and peripherals like external drives and monitors[5].
2. Can all USB-C cables support video output?
No, only USB-C cables and ports that support Alternate Mode (such as DisplayPort or HDMI Alt Mode) can transmit video signals[4].
3. Is it safe to use any USB-C cable for charging?
While most USB-C cables can charge devices, for fast and safe charging, it's best to use cables that match your device's specifications and are USB-IF certified[5][12].
4. What is the difference between USB 2.0 and USB 3.2 USB-C cables?
USB 2.0 supports data transfer speeds up to 480 Mbps, while USB 3.2 can reach speeds up to 20 Gbps or more, enabling faster file transfers and better performance[2][12].
5. How do I know if my USB-C cable supports fast charging?
Look for cables that support USB Power Delivery (PD) and check the wattage rating. Certified cables often indicate support for fast charging protocols[1][12].
