● Introduction to USB Cable Plug Repair
● Step-by-Step Guide to Repairing a USB Cable Plug
>> Step 1: Identify the Problem
>> Step 2: Cut Off the Damaged Section
>> Step 3: Remove the Outer Jacket
>> Step 6: Insulate the Connections
>> Step 7: Reassemble the Plug (If Necessary)
● Additional Tips for Repairing USB Cables
>> Frayed Wires
>> Broken Plugs
>> Soldering in Confined Spaces
>> 1. What are the typical colors of wires in a USB cable?
>> 2. How do I solder wires together?
>> 3. What if my USB cable has shielding?
>> 4. Can I repair a moulded USB plug?
>> 5. How do I ensure my soldered connections are secure?
USB cables are ubiquitous in our daily lives, connecting devices like smartphones, laptops, and peripherals. However, these cables can become damaged over time, often at the plug end. Repairing a USB cable plug can save money and reduce electronic waste. This article will guide you through the process of repairing a USB cable plug, including step-by-step instructions, tips, and resources.
USB cables typically consist of four wires: red (power), black (ground), white (data-), and green (data+). Some newer cables, like USB 3.0, may have additional wires for faster data transfer. Understanding the wire layout is crucial for successful repair. The standard USB 2.0 cable has these four wires, while USB 3.0 adds two more for super speed data transfer.
First, determine if the issue is with the plug itself or the cable. If the plug is damaged, you may need to replace it entirely. Otherwise, you can focus on repairing the damaged section of the cable. Common issues include frayed wires, broken connections, or a damaged plug.
Use wire cutters to remove the damaged part of the cable. If the plug is damaged, cut it off completely. Be careful not to cut too much of the cable, as this can reduce its overall length.
Strip the outer insulation from both ends of the cable using a wire stripper or scissors. Be careful not to cut the inner wires. This step is crucial for exposing the wires that need to be soldered.

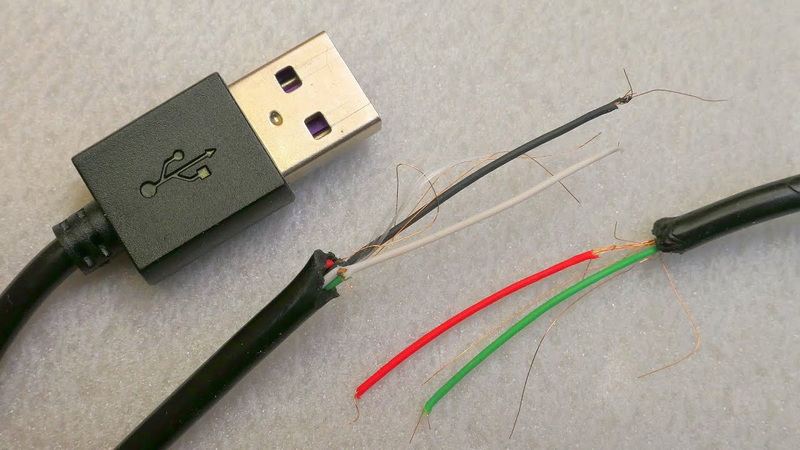

Pull off the outer covering to expose the individual wires. Sort them by color: red (power), black (ground), white (data-), and green (data+). For USB 3.0 cables, you will have additional wires for super speed data transfer.

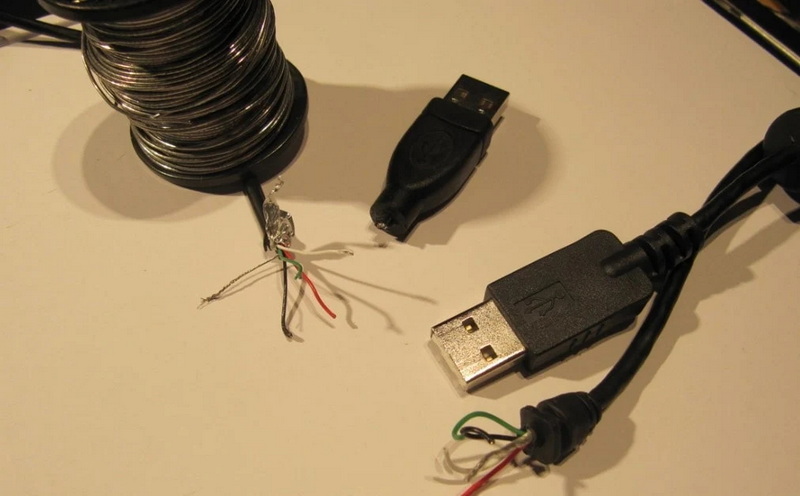

Solder like-colored wires together. Ensure the connections are secure and insulated to prevent short circuits. Use a soldering iron and solder to create strong electrical connections.
Use electrical tape or hot glue to insulate the soldered connections. This step is crucial for preventing electrical shorts and ensuring the longevity of your repair.
If you replaced the plug, assemble the new one according to the manufacturer's instructions. Use a glue gun to secure any parts that need to be glued together. Make sure all parts are properly aligned before gluing.
Plug the repaired cable into a device to ensure it works properly. If it doesn't, check your soldering and insulation for errors. Testing is crucial to ensure that your repair was successful.
- Shielding: If your cable has shielding (a mesh of silver wires), carefully unwrap it during repair and rewrap it afterward. Use heat shrink tubing to protect the repaired section.
- Data Transfer: Ensure that data wires (white and green) are properly connected for data transfer functionality. For USB 3.0, ensure all additional wires are correctly connected.
- Tools: Have a multimeter handy to verify wire connections if you're unsure. This can help you identify any issues before finalizing the repair.
- Safety Precautions: Always work in a well-ventilated area and avoid touching electrical components with your bare hands to prevent shock.

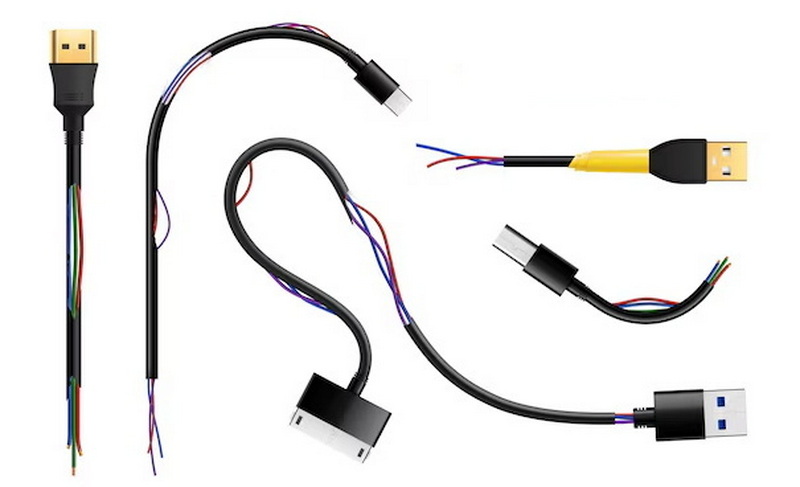

Frayed wires are common near the plug due to frequent bending. To fix this, cut off the frayed section and solder the remaining wires together. Ensure they are well-insulated to prevent short circuits.
If the plug itself is broken, you may need to replace it entirely. Purchase a replacement plug and solder the wires to it according to the manufacturer's instructions.
Poor soldering can lead to weak connections. Use a soldering iron with a temperature control to ensure the solder flows smoothly and evenly.
If your USB cable has a moulded plug, repairing it can be more challenging. You will need to carefully cut open the moulding, remove the damaged part, and reassemble it with glue. This requires patience and precision.
Heat shrink tubing is useful for protecting soldered connections and providing additional insulation. It can be applied over the repaired section to ensure durability and prevent moisture from entering the cable.
When soldering in tight spaces, use a small soldering iron tip to ensure precision. This helps prevent accidental soldering of adjacent wires.
Repairing a USB cable plug can be a cost-effective and environmentally friendly solution to extend the life of your devices. By following these steps and tips, you can successfully repair your USB cables and keep them functioning properly. Remember to always test your repairs thoroughly to ensure they are reliable.
The typical colors are red (power), black (ground), white (data-), and green (data+). Some cables may have additional wires for USB 3.0.
Soldering involves heating the wires with a soldering iron and applying solder to create a strong electrical connection. Ensure the wires are clean and the solder flows smoothly.
Carefully unwrap the shielding during repair, and rewrap it afterward. Use heat shrink tubing to protect the repaired section.
Yes, you can repair a moulded plug by carefully cutting it open, removing the damaged part, and reassembling it with glue.
Use electrical tape or hot glue to insulate the connections. This prevents electrical shorts and ensures durability.
