USB cables are ubiquitous in modern technology, used for charging devices, transferring data, and connecting peripherals. However, they are prone to damage due to frequent use and handling. Repairing a broken USB cable can save money and reduce electronic waste. This guide will walk you through the steps to repair a USB cable, including identifying damage, cutting and stripping the cable, soldering wires, and insulating the connections.
Most USB cables consist of four wires: red (VCC or power), black (ground), white (data-), and green (data+). Some newer cables, like USB 3.0, may have additional wires for faster data transfer, but the repair process remains similar. Understanding the basic structure is crucial for successful repair.
Identify where the cable is damaged. Common signs include fraying, bent connectors, or intermittent connectivity. Use a multimeter to check for shorts or breaks in the wire if necessary. This step is crucial as it determines the extent of the repair needed.
1. Cut the Damaged Section: Use wire cutters to remove the damaged part of the cable. Ensure you have enough length on both sides to work with comfortably.
2. Strip the Insulation: Remove about 1-2 cm of the outer insulation from both ends of the cut cable to expose the internal wires. Use wire strippers to strip a small amount of insulation from each wire. Be careful not to cut the wires themselves.
Match the corresponding wires by color (red to red, white to white, etc.) and twist them together to ensure a good connection. This step is important for maintaining the integrity of the signal and power transmission.
Use a soldering iron to solder each twisted wire pair. Ensure a strong and secure connection for each wire. Apply a small amount of solder to the iron tip before touching it to the wires to help the solder flow smoothly.
Cut small pieces of heat shrink tubing and slide them over each soldered connection. Use a heat gun or lighter to shrink the tubing, providing insulation for each wire. This prevents shorts and protects the connections.

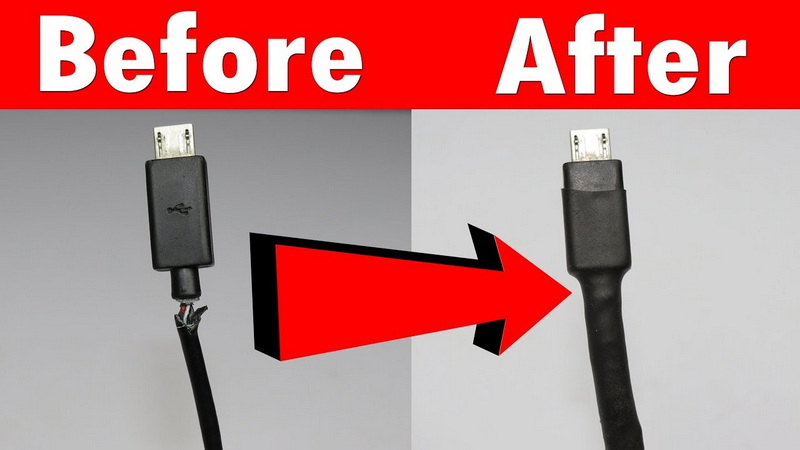

Slide a larger piece of heat shrink tubing over the entire repaired section and shrink it using a heat gun or lighter to provide an additional layer of protection and strength. This helps to reinforce the repair and prevent future damage.
Use a multimeter to check the continuity of the repaired cable. Ensure there are no shorts and that each wire is properly connected. Connect the repaired USB cable to a device and power source to ensure it functions correctly.
Sugru is a mouldable glue that can be used to repair frayed or split USB cables by wrapping it around the damaged area and allowing it to set overnight. This method is particularly useful for minor damage where soldering is not necessary.

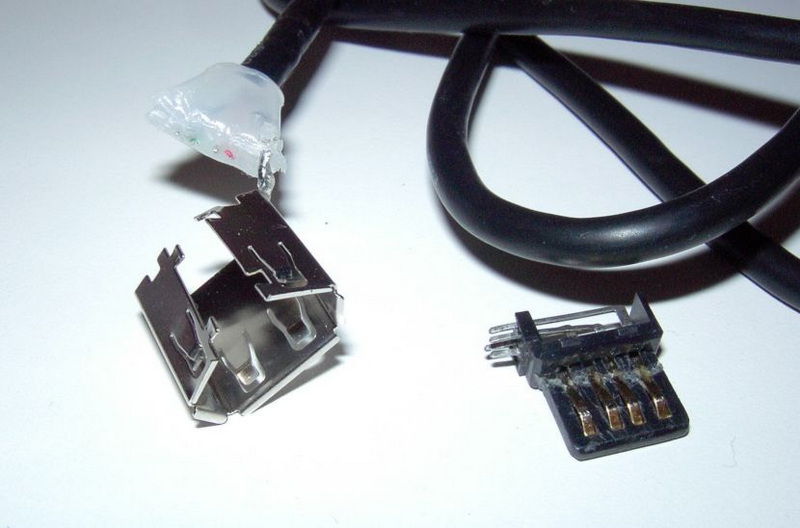

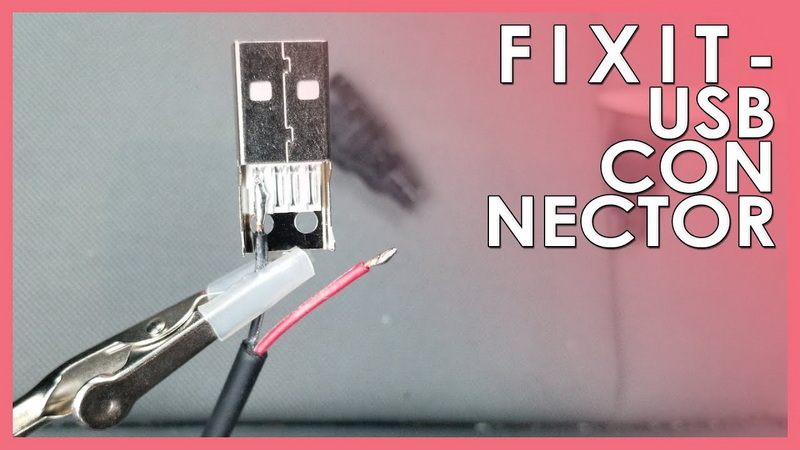

If the USB plug itself is damaged, you may need to strip the plug apart, cut out the damaged cable, and re-solder the cable onto the plug. This requires more advanced tools and techniques but can be cost-effective.
To prolong the life of your USB cables and reduce the need for repairs:
1. Avoid Sharp Bends: Especially near connectors, as these can cause internal wire damage.
2. Grip the Connector: When unplugging, grip the connector itself, not the cable, to avoid putting stress on the wires.
3. Store Properly: Use cable organizers or loose coils to prevent tangling and kinking.
4. Keep Away from Heat: Avoid direct sunlight and heat sources, as these can degrade the insulation.
5. Clean Connectors: Regularly clean with a soft, dry cloth to remove dust and debris.
If you encounter corrosion on the connectors or wires, use a gentle cleaning solution like vinegar or a specialized electronics cleaner to remove it before attempting repair.
If your repaired USB cable is not delivering enough power, check for any shorts or poor connections. Ensure that all wires are securely soldered and insulated.
For more complex repairs, such as fixing a damaged USB-C connector or repairing a high-speed USB 3.2 Gen 2 cable, specialized tools and knowledge may be required. In these cases, consulting a professional or purchasing a replacement cable might be more practical.
Repairing a broken USB cable is a cost-effective and environmentally friendly solution. By following these steps and using the right tools, you can extend the life of your USB cables and reduce electronic waste. Regular maintenance and proper handling can also prevent many common issues.
Identifying USB cable damage involves looking for signs such as fraying, bent connectors, or intermittent connectivity. Use a multimeter to check for shorts or breaks in the wire if necessary.
The repair process for USB 3.0 cables is similar to that of standard USB cables, but it requires handling additional wires for faster data transfer.
To use Sugru, mold it into a shape that fits the damaged area, wrap it around the damage, and let it set overnight. This method is ideal for minor damage where soldering is not required.
After repairing a USB cable, use a multimeter to check for continuity and ensure there are no shorts. Then, connect the cable to a device and power source to test its functionality.
Replace a USB cable if the internal damage is severe or if the cost of repair exceeds the cost of purchasing a new cable.
