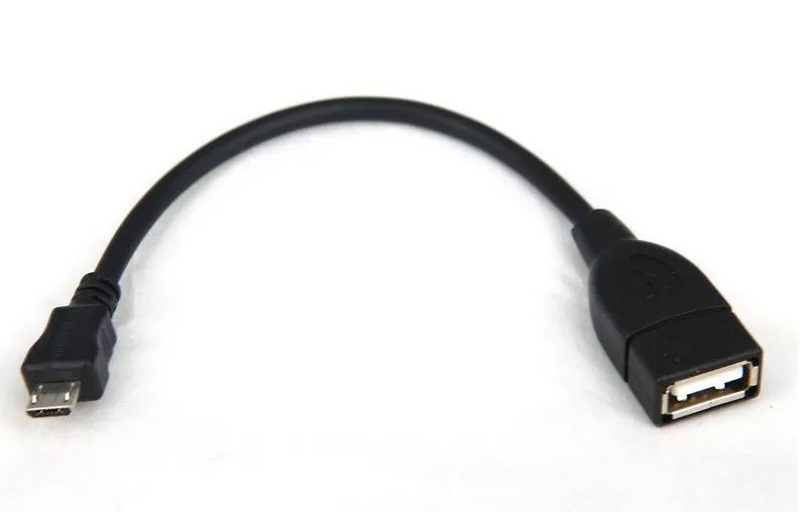

USB On-The-Go (OTG) cables are a gateway to extended functionality for your devices, transforming them into both USB hosts and peripherals. Imagine connecting a USB flash drive, keyboard, or mouse directly to your smartphone or tablet without needing a computer as an intermediary – that's the power of OTG. Crafting your own OTG cable is a straightforward and economical project, particularly if you have spare USB cables and a basic understanding of soldering. This detailed guide will walk you through each step, providing clear explanations and visual aids to help you create a functional OTG cable.
USB OTG technology expands the capabilities of standard USB, allowing devices such as smartphones and tablets to function as a USB host. This unique capability enables your phone to connect to and utilize devices like USB flash drives for data transfer, keyboards for easier typing, and mice for improved navigation. Without OTG, these devices would invariably require a computer to act as an intermediary, limiting their utility on the go. The OTG standard overcomes this limitation by enabling direct device-to-device communication.
- Cost Savings: Purchasing a pre-made OTG cable is always an option, but building one yourself can save you a significant amount of money, especially if you already possess spare USB cables. Why spend extra when you can repurpose what you already have?
- Customization: Constructing your own cable grants you the freedom to customize the length and quality to perfectly match your specific requirements. Need a shorter cable for portability, or a more durable one for frequent use? The choice is yours.
- Educational Experience: Embarking on this project provides an excellent opportunity to learn about USB connections, basic electronics principles, and the fundamentals of soldering. It's a hands-on way to expand your technical knowledge and gain a deeper understanding of how electronic devices interact.
To begin, gather the following materials:
- One USB cable with a female Type-A connector (the standard USB port you typically find on computers).
- One USB cable with a Micro-B connector (commonly used for smartphones and tablets).
- Thin, insulated copper wires for making connections.
- A soldering iron and solder for creating secure electrical joints.
- Scissors or wire strippers for cutting and preparing the wires.
- Electrical tape or heat shrink tubing for insulating the connections.
- A sharp knife for carefully exposing the wires.
- Hot glue (optional, but highly recommended) for reinforcing the connections and providing extra durability.
1. Cut the Cables: Begin by cutting both the USB Type-A and Micro-B cables. Leave an adequate length of cable to work with comfortably – approximately 20-25 cm from the female connector is usually sufficient. This provides enough slack for soldering and maneuvering.
2. Strip the Wires: Using wire strippers or a sharp knife, carefully remove the outer insulation of the cables, exposing the internal wires. Exercise extreme caution during this step to avoid nicking or cutting the wires themselves, as this can compromise their integrity and lead to connection issues.
3. Identify the Wires: Inside each USB cable, you will typically find four wires, each with a distinct color coding:
- Red: Represents the +5V Power supply.
- Black: Represents Ground (GND), the reference point for electrical signals.
- White: Represents Data -.
- Green: Represents Data +.
1. Match the Wires: Carefully align the wires from both the USB Type-A and Micro-B connectors. Match the colors meticulously: red to red, black to black, white to white, and green to green. Ensuring correct alignment is crucial for proper functionality.
2. Tin the Wires: Apply a small amount of solder to the exposed ends of each wire. This process, known as "tinning," creates a thin coating of solder on the wires, making them easier to solder together and resulting in a stronger, more reliable connection.
3. Solder the Connections: Solder the wires together, strictly adhering to the color-matching scheme. Ensure that each connection is solid, free of any loose strands of wire, and shiny in appearance, indicating a good solder joint.
- Red to Red (+5V)
- Black to Black (Ground)
- White to White (Data -)
- Green to Green (Data +)

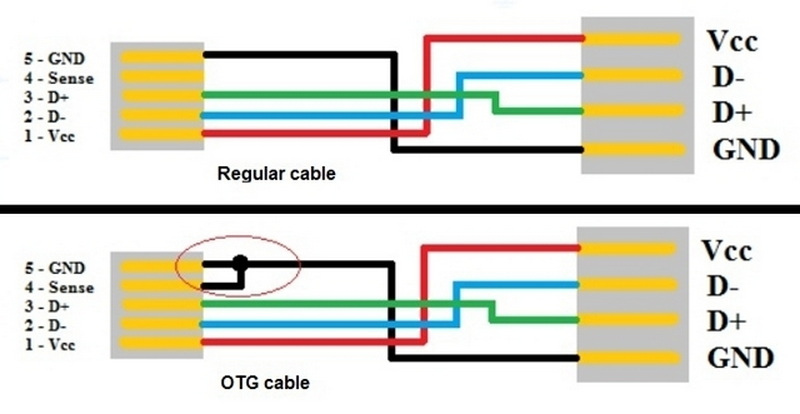

1. Understanding the Sense Pin: The Micro-B connector features five pins, each with a specific function. The fifth pin, often referred to as the "sense" pin (or ID pin), plays a critical role in determining whether the device operates as a host or a peripheral. In a standard USB cable, this pin is typically left unconnected. To enable OTG functionality, the sense pin must be connected to the ground pin.
2. Expose the Micro-B Connector Pins: Carefully expose the pins on the Micro-B end of the spliced cable. This might require using a sharp knife to gently cut through the plastic housing, providing access to the pins.

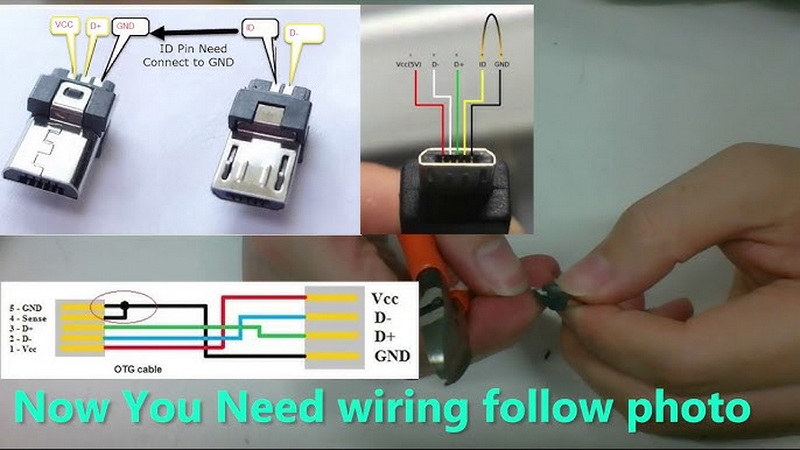

3. Solder the Sense Pin to Ground: Solder a short piece of wire to bridge pin 4 (sense pin) and pin 5 (ground). Exercise extreme care to avoid creating any solder bridges to adjacent pins, as this could lead to short circuits or malfunctions.
1. Insulate the Connections: Employ electrical tape or heat shrink tubing to meticulously insulate each soldered connection. This critical step prevents short circuits, protects the connections from physical damage, and ensures the longevity of your OTG cable.
2. Reinforce the Splice: Wrap the entire splice with electrical tape to provide additional protection and strain relief. Alternatively, you can use hot glue to reinforce the connections, ensuring they are stable, secure, and resistant to bending or pulling forces.
3. Reassemble the Micro-B Connector: If you disassembled the Micro-B connector to access the pins, carefully reassemble it and secure it with tape or glue, ensuring that all components are properly aligned and firmly in place.
1. Connect to Your Devices: Plug the Micro-B end into your Android phone or tablet and the Type-A end into a USB device, such as a flash drive or a keyboard.
2. Test the Connection: If all the wiring is correct, your Android device should recognize the USB device almost immediately. You may need to install a file manager app (if you don't already have one) to access the files stored on the USB drive.
3. Troubleshooting: If the connection fails to establish, systematically troubleshoot the following potential issues:
- Ensure that the sense pin is securely and properly connected to the ground on the Micro-B connector.
- Thoroughly inspect your soldering work for any short circuits, cold solder joints, or loose connections.
- Verify that your Android device explicitly supports USB OTG functionality. Not all devices have this capability enabled by default.
- External Power: Some USB devices, particularly those with high power requirements (like external hard drives), may not function correctly when powered solely by your phone's battery. In such cases, consider incorporating an external power source into your OTG cable design. This typically involves splicing in a separate power cable to provide additional power to the connected device.
- USB Hub Support: Connecting a USB hub to your OTG cable allows you to connect multiple USB devices to your phone simultaneously. However, remember that each connected device consumes power, so an externally powered USB hub is often necessary to ensure stable operation.
- Device Compatibility: While most modern Android devices support USB OTG, there can be exceptions. Refer to your device's documentation or online resources to confirm compatibility before embarking on this project.
- Multimeter Mastery: A multimeter is an invaluable tool for diagnosing electrical issues. Use it to check for continuity in your connections and to identify any short circuits that may be present.
- Soldering Practice: If you are new to soldering, practice on scrap wires before working on the actual USB cables. This will help you develop your technique and avoid damaging the delicate components.
- Heat Shrink Tubing Preference: Heat shrink tubing provides a cleaner, more professional finish compared to electrical tape. It also offers superior insulation and protection for your connections.
Creating your own USB OTG cable is a rewarding and empowering project that not only saves you money but also unlocks a world of possibilities for your mobile devices. By meticulously following these detailed steps and investing a bit of time and effort, you can create a reliable, customized OTG cable that perfectly suits your needs. Whether you're transferring files on the go, connecting peripherals for enhanced productivity, or delving into the world of electronics experimentation, a DIY OTG cable is an indispensable tool to have in your arsenal. The knowledge and skills you gain from this project will undoubtedly prove valuable in future endeavors.
The primary benefit is enabling direct connection between your mobile device (like a phone or tablet) and USB peripherals (like flash drives or keyboards) without needing a computer.
Check your phone's specifications online or in the user manual. Many modern Android devices support OTG, but it's not universal.
Use an OTG cable that includes a port for external power, or connect a powered USB hub between your phone and the power-hungry device.
Yes, you can use a USB hub with your OTG cable. However, for devices needing a significant amount of power, a powered USB hub is recommended.
While generally safe, it's best to connect only trusted devices to avoid potential security risks like malware or data theft.
