USB-C cables have become increasingly popular due to their versatility and ability to transfer data and power quickly. While you can easily purchase USB-C cables, creating your own allows for customization and can be a fun project for tech enthusiasts. This comprehensive guide will walk you through the process of making your own USB-C cable, from gathering the necessary materials to the final assembly.

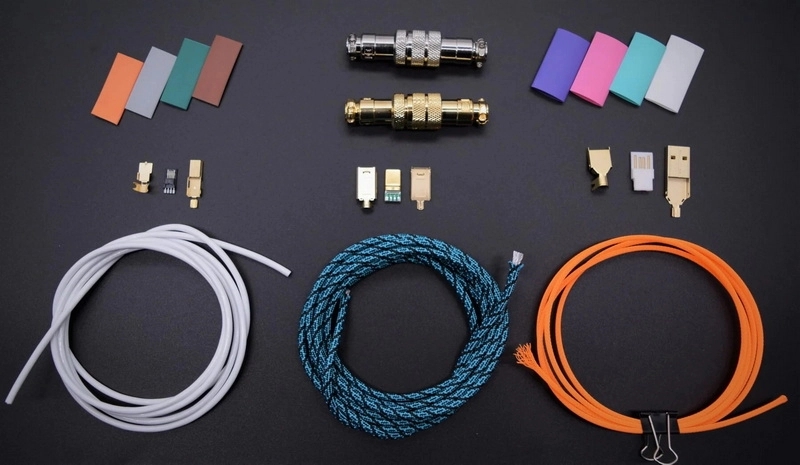

Before you start, gather all the necessary materials and tools. This will ensure a smooth and efficient cable-making process.
- USB 2.0 cable
- USB-C connector (metal shell)
- USB-A connector (metal shell)
- Sleeving (Tech flex and paracord)
- Heat shrink (assorted colors and sizes)
- Solder
- Wires (28 AWG or similar)
- Outer rubber layer
- Braided shielding mesh
- Silver conductive textile
- Coaxial cables (optional, for high-speed data)
- Power wire
- Data wire
- Tensile fibers
- Soldering iron
- 1. 5 mm hex tool
- Wire strippers
- Flush cutters
- Heat gun
- Multimeter
- Helping hands
- Precision tweezers
- Magnifying glass or head-mounted magnifier
1. Cut the USB Cable: Determine the length of the cable you want to create and cut the USB cable accordingly. It's better to leave a bit of extra length to work with, giving you room for error and easier manipulation.
2. Strip the Outer Sheathing: Carefully strip the outer sheathing of the USB cable to expose the internal wires. Use wire strippers to avoid damaging the wires themselves. Typically, you'll find four wires inside: red (VCC/power), black (GND/ground), white (D-/data minus), and green (D+/data plus).
3. Prepare the Wires: Strip a small amount of insulation from the ends of each of the four internal wires. Tin the exposed ends with solder. This will make it easier to attach them to the USB-C connector. Tinning involves heating the wire with the soldering iron and applying a small amount of solder so that it coats the exposed wire strands. This creates a stronger, more reliable connection.
1. Pinout Diagram: Familiarize yourself with the USB-C connector pinout diagram. USB-C connectors have 24 pins, but for a basic USB 2.0 cable, you'll only need to connect the four wires mentioned earlier. Understanding the pinout is crucial to ensure proper connections and avoid damaging your devices.
2. Identifying the Correct Pins: The USB-C connector's pinout can seem daunting, but focus on identifying the VCC, GND, D+, and D- pins. Consult a reliable USB-C pinout diagram; many are available online. Be aware that the pin arrangement can vary slightly depending on the specific connector you're using, so double-check the documentation or markings.
1. Securing the Connector: Use "helping hands" or a similar tool to hold the USB-C connector in place. This will free up both of your hands for soldering, making the process much easier and safer.
2. Soldering VCC and GND: Carefully solder the red (VCC) wire to the VCC pin on the USB-C connector and the black (GND) wire to the GND pin. Use a small amount of solder to create a solid connection. Make sure the solder flows smoothly and creates a strong bond between the wire and the pin. Avoid using too much solder, which can cause shorts.
3. Soldering D+ and D-: Solder the green (D+) and white (D-) wires to their corresponding pins on the USB-C connector. Ensure the connections are secure and free from shorts. Proper data line connections are essential for reliable data transfer.
4. Check for Shorts: After soldering, use a multimeter to check for shorts between the pins. Set the multimeter to the continuity setting and test between each pin. If you detect continuity between any of the pins that shouldn't be connected, carefully inspect your soldering and remove any excess solder that may be causing the short.
1. Strain Relief: Apply a small amount of hot glue or epoxy around the soldered connections to provide strain relief. This will prevent the wires from breaking due to bending or pulling.
2. Heat Shrink Tubing: Slide a piece of heat shrink tubing over the connector and wires, then use a heat gun to shrink it. This provides additional protection and insulation for the connections. Choose heat shrink tubing that fits snugly around the connector and wires for the best results.

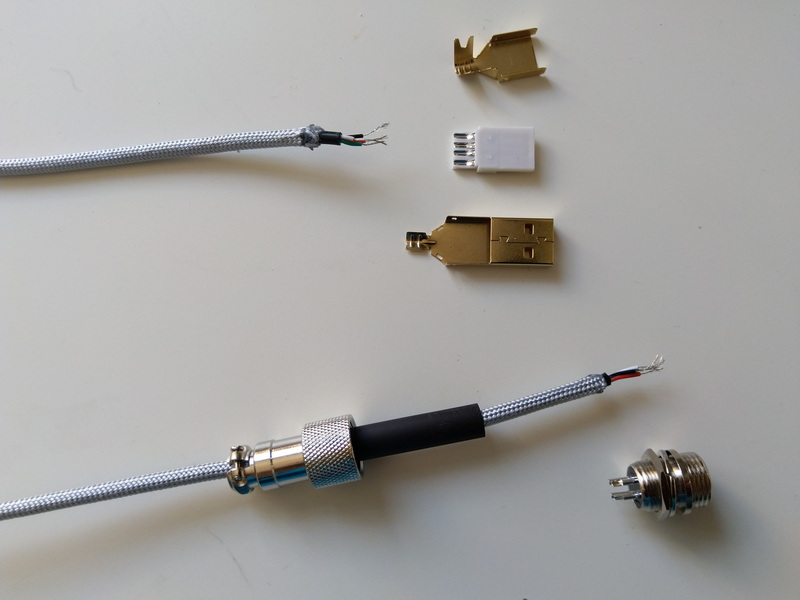

1. Prepare the USB-A Connector: Open the USB-A connector housing. Usually, this involves sliding or snapping it open.
2. Solder the Wires: Solder the red, black, white, and green wires to the corresponding pins on the USB-A connector. Make sure the connections are secure. As with the USB-C connector, use a multimeter to check for shorts after soldering.
3. Assemble the Housing: Carefully reassemble the USB-A connector housing, ensuring that all the wires are properly positioned and protected.
1. Visual Inspection: Before connecting the cable to any devices, perform a thorough visual inspection to ensure there are no loose wires, exposed connections, or other potential issues.
2. Continuity Test: Use a multimeter to perform a continuity test on each of the wires, from the USB-A connector to the USB-C connector. This will confirm that the wires are properly connected and that there are no breaks in the circuit.
3. Functionality Test: Connect the cable to a USB power source and a device that supports USB charging. Verify that the device charges correctly. Then, test the data transfer functionality by connecting the cable between a computer and a USB drive or other data storage device. Confirm that data can be transferred reliably.

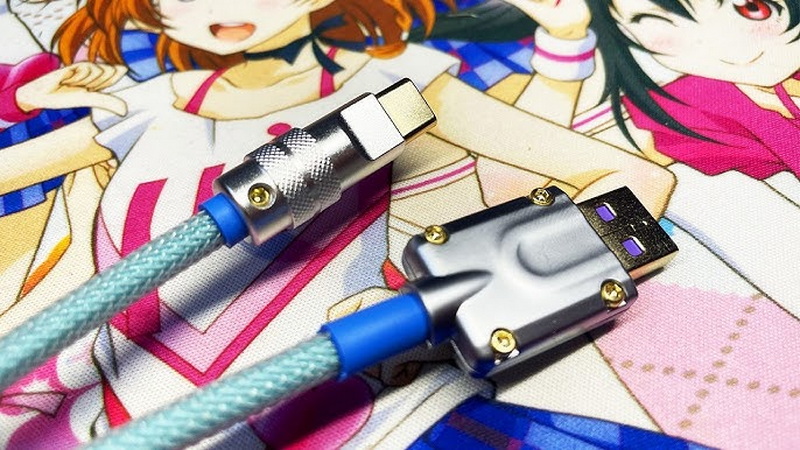

1. Sleeving: For a more professional look, consider adding sleeving to the cable. Techflex or paracord sleeving can be used to cover the entire length of the cable, providing added protection and a custom appearance.
2. Heat Shrink Accents: Use different colors of heat shrink tubing to add accents to the cable. You can create unique designs and patterns to make your cable stand out.
3. Cable Management: Use cable ties or Velcro straps to keep the cable neatly organized and prevent tangling.
1. Shielding: For cables that need to handle high-speed data transfer, consider adding shielding to protect against electromagnetic interference (EMI). Braided shielding mesh or silver conductive textile can be wrapped around the internal wires to provide shielding.
2. Coaxial Cables: For very high-speed data transfer, such as USB 3.1 Gen 2 or Thunderbolt, you may need to use coaxial cables for the data lines. Coaxial cables provide better signal integrity and reduce signal loss.
3. Adding Tensile Strength: To make the cable more durable, you can add tensile fibers to the cable. These fibers provide added strength and prevent the cable from breaking due to pulling or bending.
1. Proper Soldering: High-quality solder joints are essential for a reliable and safe USB-C cable. Take your time and use a good soldering iron to create strong, clean connections.
2. Insulation: Make sure all connections are properly insulated to prevent shorts and electrical hazards. Use heat shrink tubing or electrical tape to insulate any exposed wires or connections.
3. Testing: Thoroughly test the cable after assembly to ensure that it functions correctly and that there are no safety issues. Use a multimeter to check for shorts and continuity, and test the cable with different devices to verify its functionality.
4. Compliance: Be aware of USB-C specifications and compliance requirements. Using non-compliant cables can damage your devices or pose a safety risk.
Throughout the entire process, precision is key. A slight miscalculation, a shaky hand during soldering, or a failure to properly insulate can all lead to a malfunctioning or even dangerous cable. Investing in quality tools, taking the time to understand the pinouts, and practicing your soldering technique are all worthwhile endeavors that will contribute to a successful cable-making project.
Additionally, consider the long-term implications of your work. A well-made cable can last for years, providing reliable power and data transfer. A poorly made cable, on the other hand, may fail prematurely or even damage the devices it's connected to.
Finally, remember that cable making, like any skill, improves with practice. Don't be discouraged if your first attempt isn't perfect. Keep experimenting, learning from your mistakes, and refining your technique, and you'll eventually be able to produce high-quality, custom USB-C cables that meet your specific needs.
Creating your own USB-C cable is a rewarding project that allows for customization and can save you money in the long run. By following this comprehensive guide, you can create a cable that meets your specific needs and preferences. Remember to take your time, pay attention to detail, and prioritize safety throughout the process. With a little practice, you'll be able to make high-quality USB-C cables that are both functional and aesthetically pleasing.
Yes, if you follow proper safety precautions and ensure that all connections are properly insulated. Always test the cable thoroughly before using it with sensitive devices.
Soldering the tiny pins on the USB-C connector can be challenging due to their small size and close proximity. Using a magnifying glass and a fine-tipped soldering iron can help.
Yes, you can adapt this method to create a USB-C to USB-C cable by using a USB-C connector on both ends. Make sure to follow the correct pinout for both connectors.
Use a rosin-core solder that is specifically designed for electronics. This type of solder will provide a strong and reliable connection.
Use strain relief techniques, such as applying hot glue or epoxy around the connections, and use heat shrink tubing to provide additional support and protection.
28 AWG wire is generally suitable for USB-C cables, but you can use thicker wire for power delivery if needed. Refer to USB specifications for current carrying capabilities.
You can find USB-C pinout diagrams on various electronics websites and forums. Ensure you're using a reliable source to avoid errors.
Yes, but it requires more advanced techniques, such as using coaxial cables for the data lines and ensuring proper shielding. These cables are more sensitive to signal integrity issues.
First, double-check all of your connections to ensure they are properly soldered and insulated. Use a multimeter to check for shorts and continuity. If you still can't find the problem, try disassembling and reassembling the cable.
Creating Thunderbolt cables is very complex and requires specialized knowledge and equipment. It is not recommended for beginners.
