Introduction

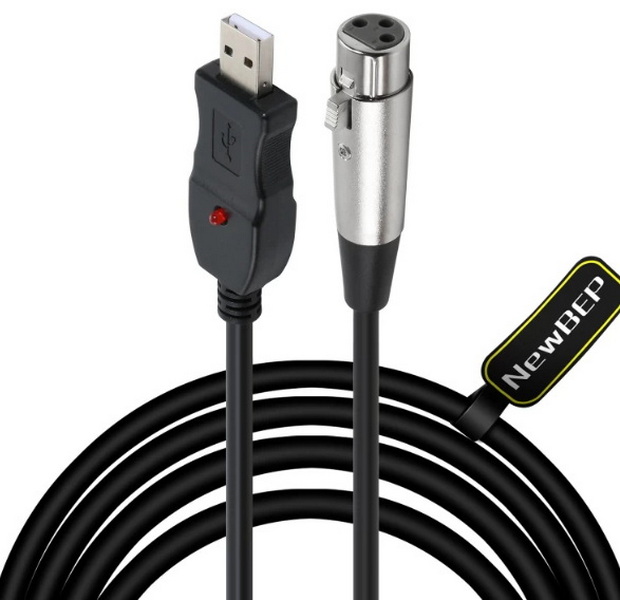

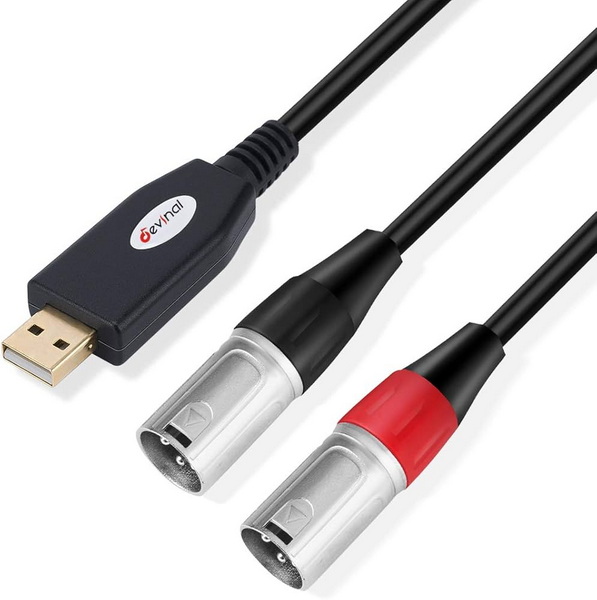

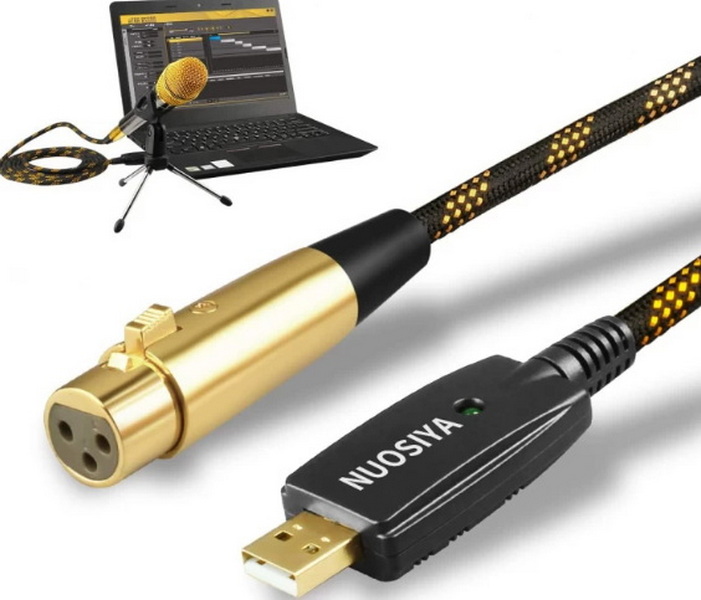

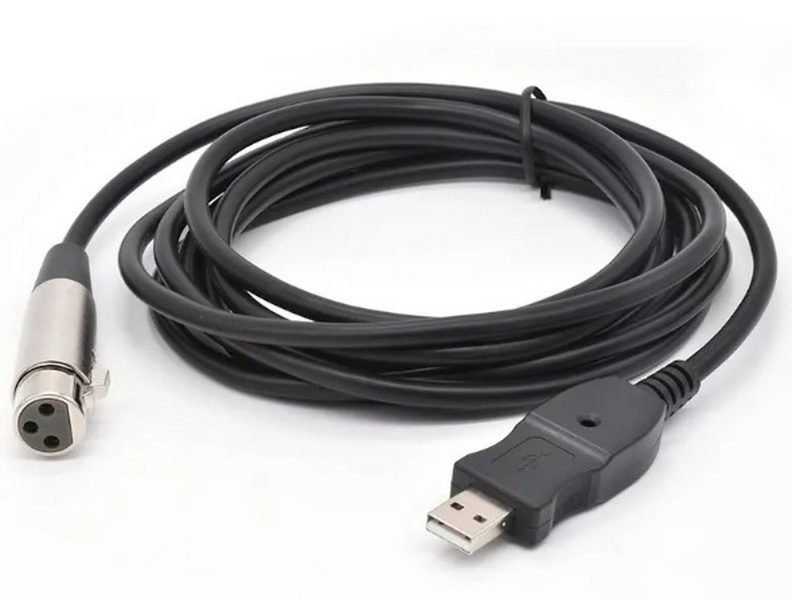

An XLR to USB cable allows you to connect a microphone with an XLR output directly to a computer via USB. XLR connectors are typically used for professional audio equipment, such as microphones, mixing boards, and audio interfaces. These cables are useful for recording, podcasting, streaming, and other applications where you need to capture audio directly into a computer.
Components Needed
To create your own XLR to USB cable, you'll need a few key components.
- An XLR connector (male)
- A USB connector (Type-A or Type-C depending on your computer's port)
- Cable
- Soldering iron and solder
- Wire strippers
- Multimeter (optional, for testing continuity)
Step-by-Step Guide
1. Prepare the Cables: Use wire strippers to expose the ends of the wires in both the XLR and USB cables. Be careful not to cut or nick the wires, as this can affect the signal quality. Generally, a USB cable will have four wires: VCC (power), Data+, Data-, and Ground. An XLR cable typically has three pins: Pin 1 (Ground), Pin 2 (Positive/Hot), and Pin 3 (Negative/Cold).
2. Identify the Wires: Understanding which wire in the USB cable corresponds to which function is crucial. Usually, red is VCC, white is Data-, green is Data+, and black is Ground. However, this can vary, so check the specifications of your USB cable. For the XLR cable, Pin 1 is always Ground, Pin 2 carries the positive audio signal, and Pin 3 carries the negative audio signal.
3. Soldering Connections: This is the most delicate part of the process. Solder the wires from the USB cable to the corresponding pins on the XLR connector. The connection scheme is as follows:
- USB Ground to XLR Pin 1 (Ground)
- USB Data+ to XLR Pin 2 (Positive/Hot)
- USB Data- to XLR Pin 3 (Negative/Cold)
- Leave the USB VCC (power) wire unconnected. Condenser microphones require power, which is typically provided via phantom power from an audio interface or mixer. Directly connecting the USB power to the XLR could damage your microphone or computer. Dynamic microphones do not require external power.
Ensure each solder joint is clean and secure. Use a soldering iron to heat the pin and the wire simultaneously, then apply solder to create a strong, conductive bond. Avoid creating "cold" solder joints, which are weak and can cause signal issues.
4. Insulate Connections: After soldering, insulate each connection to prevent short circuits. You can use electrical tape or heat-shrink tubing. Heat-shrink tubing is preferable as it provides a more secure and cleaner insulation. Slide the tubing over the wire before soldering, then position it over the soldered joint and use a heat gun or lighter to shrink it tightly around the connection.
5. Test the Cable: Before fully assembling the connectors, test the cable using a multimeter. Check for continuity between the corresponding pins and wires. Also, check for shorts between different pins to ensure no unintended connections.
6. Assemble the Connectors: Carefully assemble the XLR and USB connectors, ensuring that all wires are securely in place and properly insulated. Tighten any screws or clamps to secure the connectors' housings.
Understanding the Limitations
While it is technically feasible to create an XLR to USB cable, it's essential to understand its limitations. Microphones with XLR outputs are generally designed to work with audio interfaces or mixers that provide preamplification, phantom power (for condenser microphones), and analog-to-digital conversion.
Connecting an XLR microphone directly to a USB port bypasses these crucial components. The USB port on a computer is not designed to provide the necessary gain for a microphone signal, which is why the audio quality may be significantly lower compared to using an audio interface. Furthermore, most computers do not provide phantom power through their USB ports, meaning a condenser microphone will not function without an external power source.
The Role of Audio Interfaces
An audio interface is a device that serves as an intermediary between a microphone and a computer. It provides several essential functions:
- Preamplification: Audio interfaces have built-in preamps that boost the microphone signal to a usable level.
- Phantom Power: Many audio interfaces offer 48V phantom power, which is required for condenser microphones.
- Analog-to-Digital Conversion (ADC): The interface converts the analog signal from the microphone into a digital signal that the computer can understand.
- Improved Audio Quality: Audio interfaces typically have higher-quality components and better signal processing than the built-in sound card on a computer, resulting in superior audio quality.
When an XLR to USB Cable Might Work
Despite the limitations, there are some scenarios where an XLR to USB cable might be adequate:
- Dynamic Microphones: Dynamic microphones do not require phantom power and generally have a stronger output signal than condenser microphones. Therefore, they are more likely to function (albeit with potentially lower audio quality) when connected directly to a USB port.
- Specific USB Microphones: Some microphones are specifically designed as USB microphones, meaning they have built-in preamps and ADCs within the microphone body. These microphones can connect directly to a computer via USB and provide decent audio quality. However, these are not the same as converting a standard XLR microphone with a DIY cable.
Troubleshooting Common Issues
If you encounter problems after creating your XLR to USB cable, consider the following troubleshooting steps:
- No Signal: Ensure that all connections are properly soldered and insulated. Check the continuity of each wire with a multimeter. Verify that the microphone is turned on (if it has an on/off switch) and that the input volume is turned up on your computer.
- Low Signal: The USB port may not be providing enough gain for the microphone signal. Try using a different USB port or an external USB preamp.
- Noise or Hum: This could be due to a ground loop or poor shielding. Ensure that the ground connection is solid and that the cable is not running near any sources of electrical interference.
- Compatibility Issues: Some computers or operating systems may not recognize the microphone when connected directly via USB. Try installing the latest drivers for your sound card or using a different recording software.
Alternatives to DIY XLR to USB Cable
If you're not comfortable with soldering or if you want a more reliable and higher-quality solution, consider these alternatives:
- USB Microphones: As mentioned earlier, USB microphones have built-in preamps and ADCs and are designed to connect directly to a computer via USB. They are available in a wide range of prices and quality levels.
- Audio Interfaces: An audio interface is the best option for professional-quality recording. It provides preamplification, phantom power, and high-quality analog-to-digital conversion.
- XLR to 3.5mm Adapter: If your computer has a 3.5mm microphone input, you can use an XLR to 3.5mm adapter. However, this will still not provide phantom power or preamplification, so it is only suitable for dynamic microphones or microphones with their own power source.
Advanced Considerations
For those looking to delve deeper into audio connectivity, understanding balanced and unbalanced signals is essential. XLR cables carry balanced signals, which are less susceptible to noise and interference than unbalanced signals. USB, on the other hand, carries digital data. When you create an XLR to USB cable, you're essentially trying to bridge an analog balanced signal to a digital unbalanced connection, which can introduce complexities.
Furthermore, the quality of the components you use will significantly impact the final audio quality. Using high-quality XLR and USB connectors, as well as well-shielded cable, can help minimize noise and interference.
The Digital Audio Workstation (DAW)
Once you have connected your microphone to your computer, you'll need a Digital Audio Workstation (DAW) to record and edit your audio. Popular DAWs include:
- Audacity: A free and open-source DAW that is suitable for basic recording and editing.
- GarageBand: A free DAW that comes with macOS. It is user-friendly and offers a range of features for recording and editing music and audio.
- Adobe Audition: A professional-grade DAW that offers advanced features for audio recording, editing, and mixing.
- Pro Tools: Another industry-standard DAW that is widely used in professional recording studios.
Optimizing Recording Settings
Within your DAW, you'll need to configure the recording settings to ensure you're capturing the best possible audio. This includes:
- Sample Rate: The number of samples taken per second. Higher sample rates (e.g., 48kHz or 96kHz) result in better audio quality but also require more storage space.
- Bit Depth: The number of bits used to represent each sample. Higher bit depths (e.g., 24-bit) provide a wider dynamic range and lower noise floor.
- Input Level: Adjust the input level to ensure that the audio signal is not too low (resulting in noise) or too high (resulting in clipping).
Final Thoughts on Audio Quality
Ultimately, the quality of your audio will depend on several factors, including the quality of your microphone, the quality of your recording equipment, and your recording environment. Even with the best equipment, poor acoustics can ruin a recording. Consider using acoustic treatment (such as foam panels) to reduce reverb and reflections in your recording space.
Conclusion
While creating an XLR to USB cable is technically possible and can be a fun DIY project, it's essential to understand the limitations. The resulting audio quality may not be optimal due to the lack of preamplification and phantom power (for condenser microphones). For professional-quality recording, investing in an audio interface is highly recommended. However, for simple applications with dynamic microphones, a DIY cable may suffice. Always prioritize safety when working with electronics and ensure all connections are properly insulated to prevent short circuits. Remember to test your cable thoroughly before relying on it for important recordings.
FAQ
1. Can I use an XLR to USB cable with any microphone?
Not all microphones are suitable for direct connection via an XLR to USB cable. Dynamic microphones are more likely to work because they don't require phantom power. Condenser microphones, which need phantom power, typically won't function correctly without an audio interface.
2. Will an XLR to USB cable provide the same audio quality as an audio interface?
No, an XLR to USB cable generally won't provide the same audio quality as an audio interface. Audio interfaces offer preamplification, phantom power (if needed), and higher-quality analog-to-digital conversion, all of which improve the sound.
3. Is it safe to connect a condenser microphone directly to a computer via a DIY XLR to USB cable?
It's generally not recommended to connect a condenser microphone directly to a computer via a DIY XLR to USB cable, as the computer's USB port typically does not supply phantom power. Without phantom power, the condenser microphone will not function. You might damage the microphone or the computer if you improperly connect a power source.
4. What should I do if my computer doesn't recognize the microphone after connecting it with an XLR to USB cable?
First, ensure that all connections are secure and properly soldered. Check your computer's audio settings to ensure that the microphone is selected as the input device. If the microphone still isn't recognized, you may need to install drivers or use an external USB preamp.
5. Can I use an XLR to USB cable for professional recording purposes?
For professional recording, it's best to use an audio interface rather than an XLR to USB cable. An audio interface provides better audio quality, preamplification, and phantom power, which are essential for capturing high-quality recordings.
