Creating a USB to HDMI cable at home is a challenging project that requires a good understanding of electronics and the right tools. This guide will walk you through the process, explaining the challenges and providing alternative solutions for connecting USB devices to HDMI-enabled displays.
USB (Universal Serial Bus) is primarily used for data transfer and charging, operating on a protocol designed for communication between devices. It is commonly found on computers and older devices. On the other hand, HDMI (High-Definition Multimedia Interface) is a standard for transmitting high-definition video and audio signals, designed for point-to-point connections. It is widely used in home entertainment systems, including TVs, projectors, and gaming consoles.
Due to these differences, creating a direct cable is not as simple as splicing wires. Instead, active adapters or converters are required to bridge the gap between these two technologies. These adapters convert the digital signals from USB into a format that HDMI can understand.
To make a functional USB to HDMI cable or adapter, you will need the following components:
- USB Connector: A male connector compatible with your device. Ensure it matches the type of USB port on your device (e.g., USB-A or USB-C).
- HDMI Connector: A male connector to connect to your TV or monitor. Typically, this is an HDMI Type A connector.
- Active Converter Chip: Necessary for converting USB signals into HDMI-compatible signals. This chip is crucial for handling the complex signal conversion required.
- Soldering Kit: For assembling the components. This includes a soldering iron, solder, and possibly a soldering stand.
- Heat Shrink Tubing: To insulate the connections and protect them from environmental factors.
- Multimeter: To test connectivity and ensure proper wiring before plugging the cable into your devices.
- Cable Management Tools: Optional tools like cable ties or electrical tape can help keep the assembly organized.

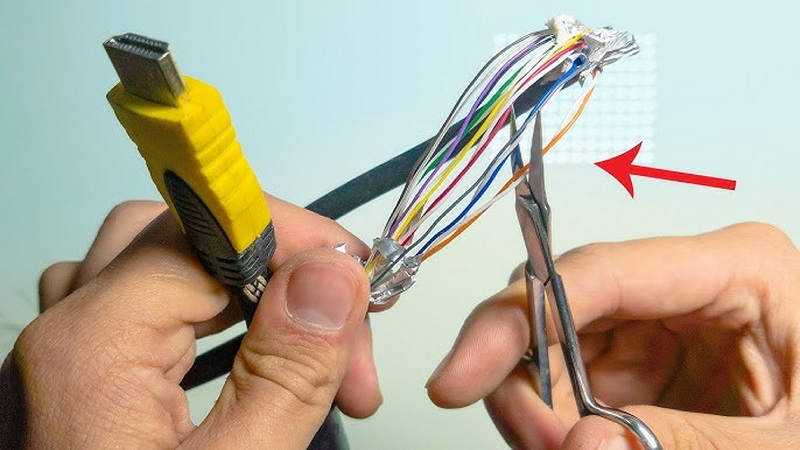

Strip the wires of both the USB and HDMI cables. This will expose the conductors that need to be connected. Be careful not to damage the insulation or the conductors themselves.
Identify the pins on each connector using their respective pinout diagrams. For USB, there are typically four pins (VCC, D-, D+, and GND), while HDMI has 19 pins. Understanding these pinouts is crucial for making the correct connections.
Using a soldering iron, match the corresponding pins (e.g., power, ground) from the USB to the HDMI connector. However, this step is highly complex and generally not feasible without an active converter chip. The converter chip will handle the signal conversion necessary for HDMI output.
Attach an active converter chip between the connectors if required. This chip will handle the signal conversion necessary for HDMI output. Ensure the chip is compatible with both USB and HDMI protocols.
Use heat shrink tubing to cover exposed wires. This step is important for protecting the connections from moisture and other environmental factors.
Test the cable using a multimeter to ensure proper connections before plugging it into your devices. This step is crucial to avoid damaging your equipment.

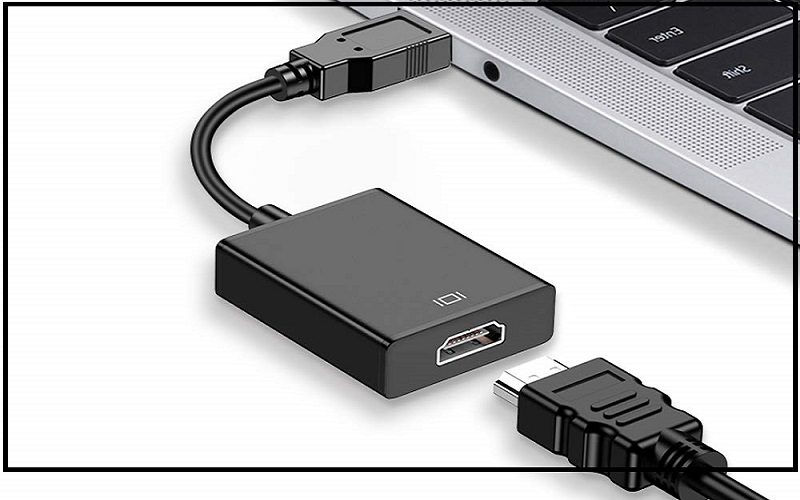

While making your own USB to HDMI cable is possible, it is often more practical and reliable to purchase a ready-made adapter. Here are some alternatives:
- USB-C to HDMI Adapters: These are widely available and can be used with devices that support USB-C. Ensure the adapter supports video output.
- Wireless Casting Devices: Devices like Chromecast allow you to stream content wirelessly from your device to a TV. This method eliminates the need for cables altogether.
Creating a USB to HDMI cable can be challenging, and several issues may arise:
- Incompatible Signals: USB and HDMI use different communication protocols, requiring an active converter for signal conversion.
- Device Compatibility: Not all devices support video output via USB. Check your device's specifications for compatibility.
- Safety Risks: Improper wiring can damage devices or pose safety hazards. Always test connections thoroughly.
When using a USB to HDMI adapter, the signal quality and resolution can vary depending on the adapter's capabilities. Some adapters may support up to 4K resolution, while others may only support lower resolutions like 1080p. Ensure the adapter meets your display's resolution requirements.
USB ports typically provide limited power, which can be insufficient for powering an HDMI adapter, especially if it includes additional components like amplifiers or signal boosters. In such cases, an external power source may be necessary.
Different devices have varying levels of support for video output via USB. For example, some smartphones may support video output through USB-C, while others may not. Always check your device's specifications before attempting to use a USB to HDMI adapter.
If you're not getting a signal on your display, check the following:
- Ensure the adapter is properly connected to both the USB device and the HDMI display.
- Verify that the device supports video output via USB.
- Check if the display is set to the correct HDMI input.
If the video quality is poor, consider the following:
- Check the resolution supported by the adapter and ensure it matches the display's capabilities.
- Adjust the display settings to optimize video quality.
- Consider using a higher-quality adapter if necessary.
Creating a USB to HDMI cable at home is a complex project that requires technical expertise and specialized components. While it is possible to build one, purchasing a ready-made adapter is often more practical and reliable. Understanding your device's requirements is crucial for success, whether you choose a DIY or pre-built solution.
- No, splicing is not sufficient because USB and HDMI use different communication protocols. An active converter is required to handle the signal conversion.
- Check your device's specifications in its user manual or online documentation for video output capabilities.
- Yes, improper wiring can damage your devices or pose safety hazards. Always proceed with caution and test connections thoroughly.
- In most cases, purchasing an adapter is more cost-effective and reliable than building one from scratch due to the complexity of signal conversion.
- Alternatives include using wireless casting devices like Chromecast or purchasing USB-C to HDMI adapters if your device supports USB-C.
