Creating a USB data transfer cable is a practical DIY project that can help you transfer files between devices efficiently. This guide will walk you through the process of making a USB data transfer cable, including the materials needed, step-by-step instructions, and troubleshooting tips.
Introduction to USB Data Transfer Cables
USB data transfer cables are essential tools for transferring files between devices, charging gadgets, or even powering small electronics. While store-bought options are widely available, creating your own USB data transfer cable can be a rewarding DIY project. This guide will walk you through the process step-by-step, complete with detailed instructions and tips.
USB cables are versatile tools used for:
- Data Transfer: Between devices like computers, phones, and cameras.
- Charging: Electronic devices.
- Connecting Peripherals: Keyboards and mice.

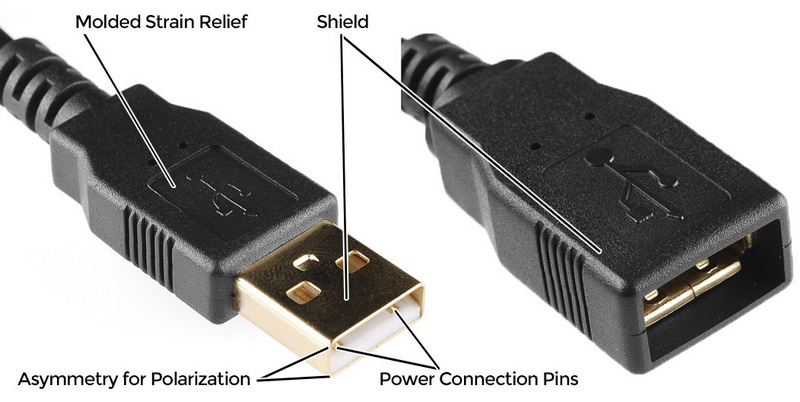

USB connectors come in various shapes and types:
- Type-A: The standard rectangular connector found on most computers.
- Type-B: Square-shaped connectors often used for printers.
- Type-C: A reversible connector used for modern devices.
- Mini and Micro USB: Smaller connectors used for portable devices.
Each connector type serves different purposes, so understanding your requirements is crucial before starting the DIY process.
Materials Needed
To create your own USB data transfer cable, gather the following materials:
- A Piece of Cat-5 or Other Suitable Cable: This can be used for making a USB data transfer cable, though traditional USB cables are recommended for better performance.
- Two USB Connectors (Type-A or Type-C): Depending on your needs.
- Soldering Iron and Solder: For securely connecting wires to the connectors.
- Heat Shrink Tubing: To insulate and protect the connections.
- Wire Strippers and Pliers: For preparing the wires.
- Electrical Tape (Optional): For additional insulation.
- Multimeter (Optional): To test for continuity and proper wiring.
Step-by-Step Guide
Step 1: Cut the Cable
Cut the cable to your desired length. Keep in mind the maximum recommended length for USB cables: 5 meters for USB 2.0 and 3 meters for USB 3.0.
Step 2: Strip the Cable Insulation
Use a wire stripper to carefully remove the outer insulation of the cable on both ends, exposing the four internal wires (red, black, white, and green).
Step 3: Identify the Wires
Identify the four essential wires:
- Red Wire: Power (+5V)
- Black Wire: Ground (GND)
- White Wire: Data- (D-)
- Green Wire: Data+ (D+)
Step 4: Prepare the USB Connectors
Open the USB connectors carefully using pliers. Identify the pins inside the connectors:
- Pin 1: Power (Red wire)
- Pin 2: Data- (White wire)
- Pin 3: Data+ (Green wire)
- Pin 4: Ground (Black wire)
Step 5: Solder the Wires to the Connectors
Solder each wire to its corresponding pin on one connector:
- Red wire to Pin 1.
- White wire to Pin 2.
- Green wire to Pin 3.
- Black wire to Pin 4.
Repeat this process for the other end of the cable.
Step 6: Insulate the Connections
Cover each soldered connection with electrical tape or heat shrink tubing to prevent shorts.
Step 7: Test the Cable
Use a multimeter to check continuity and ensure that corresponding pins on both ends are connected properly.
Troubleshooting Common Issues
Device Cannot Be Found
If your device is not recognized when connected via the cable, check the cable for defects or damage. Ensure that the connections are secure and not short-circuited.
Signal Loss
If you experience signal loss or data transfer issues, consider using a USB hub or a repeater cable to boost the signal.
No Sound
If there is no sound when connecting a device like a home theater, ensure the cable is not too long and that the connections are secure.
Advanced Techniques
For those looking to enhance their DIY skills, consider using shielded cables for better signal quality and durability. You can also experiment with different types of connectors, such as USB-C or USB 3.0, for faster data transfer rates.
Customizing Your Cable
Using Different Connector Types
You can customize your cable by using different types of USB connectors, such as Type-C for faster data transfer or Type-B for printers. Understanding the different types of USB cables is essential for selecting the right one for your needs.
Shielding for Better Performance
Using shielded cables can improve signal quality by reducing interference. This is particularly important for longer cables or in environments with high electromagnetic interference.
Adding Additional Features
Consider adding features like ferrite cores to reduce electromagnetic interference or custom overmolding for better durability and aesthetics.
USB Cable Selection Guide
When selecting a USB cable, consider the following factors:
- Data Transfer Speed: Choose a cable that supports your required data transfer speed, such as USB 3.0 for faster speeds.
- Cable Length: Ensure the cable is not too long to avoid signal degradation.
- Shielding: Use shielded cables for better signal quality.
USB Cable Types and Applications
USB cables come in various types, each designed to serve specific purposes:
- USB Type-A: Commonly used for computers.
- USB Type-B: Often used for printers and other peripherals.
- USB Type-C: Offers reversible connections and faster data transfer speeds.
- Mini and Micro USB: Used for portable devices.
Understanding these types can help you choose the right cable for your needs.
Conclusion
Making a USB data transfer cable is a straightforward DIY project that can save you money and provide a learning experience in electronics. By following these steps and troubleshooting tips, you can create a reliable and functional USB data transfer cable for your needs.
Frequently Asked Questions
1. What is the maximum length for a USB data transfer cable?
- The maximum recommended length for a USB 2.0 cable is 5 meters, and for USB 3.0, it is 3 meters.
2. Why does my USB device not work with the data transfer cable?
- Check for defects in the cable, ensure proper connections, and consider using a USB hub if the cable is too long.
3. Can I use any type of wire for a USB data transfer cable?
- It's best to use shielded wire that matches USB specifications for better signal quality and durability.
4. How do I prevent signal loss in long USB data transfer cables?
- Use a USB repeater cable or a hub to boost the signal and prevent data transfer issues.
5. What tools do I need to make a USB data transfer cable?
- Basic tools include wire strippers, a soldering iron, electrical tape, and a multimeter for testing.
