Creating a USB extension cable at home can be a fun and rewarding DIY project. It allows you to extend the reach of your USB devices without having to purchase additional cables. This guide will walk you through the process step by step, including materials needed, the soldering process, and tips for ensuring a reliable connection.

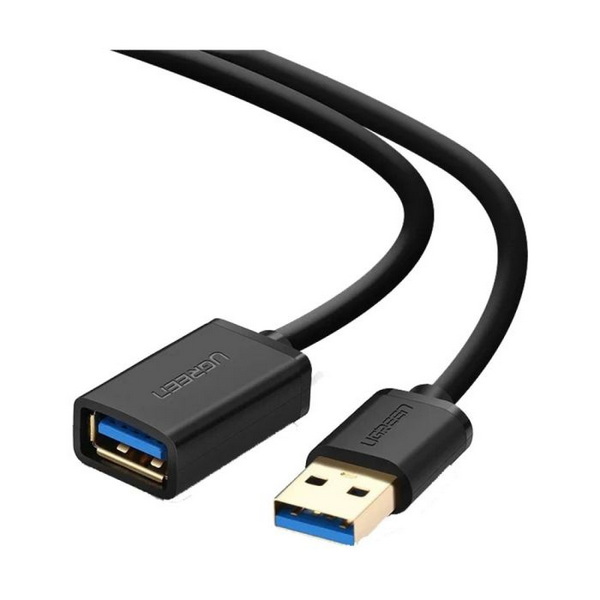

Introduction to USB Extension Cables
USB extension cables are essential for extending the reach of USB devices, such as game controllers, flash drives, or even USB 3G dongles. They can be used to connect devices that are too far from the computer or to improve signal strength by placing the device in a better location.
Why Make Your Own USB Extension Cable?
While USB extension cables are readily available online, making your own can be cost-effective and educational. It's a great way to reuse old USB cables and connectors, reducing electronic waste. Additionally, creating your own extension cable allows you to customize the length and quality of the cable to suit your specific needs.
Materials Needed
To make a basic USB extension cable, you will need the following materials:
- USB Male Connector (Type-A): This will connect to your computer or USB hub.
- USB Female Connector (Type-A): This will connect your USB device.
- USB Cable: You can use an existing USB cable or purchase a spool of shielded wire that matches USB specifications.
- Soldering Iron and Solder: For securely connecting wires to the connectors.
- Wire Stripper and Cutter: For preparing the wires.
- Heat Shrink Tubing or Electrical Tape: To insulate and protect the connections.
- Multimeter (Optional): To check for continuity and proper wiring.
USB Pinout
Understanding the USB pinout is crucial for making a functional extension cable. A standard USB cable has four wires:
- Red (VCC): Power (+5V)
- Black (GND): Ground
- White (D-): Data negative
- Green (D+): Data positive
Some high-quality cables may include an additional shielding ground wire, which is thicker and usually black. This shielding helps reduce electromagnetic interference (EMI) and ensures better data integrity.

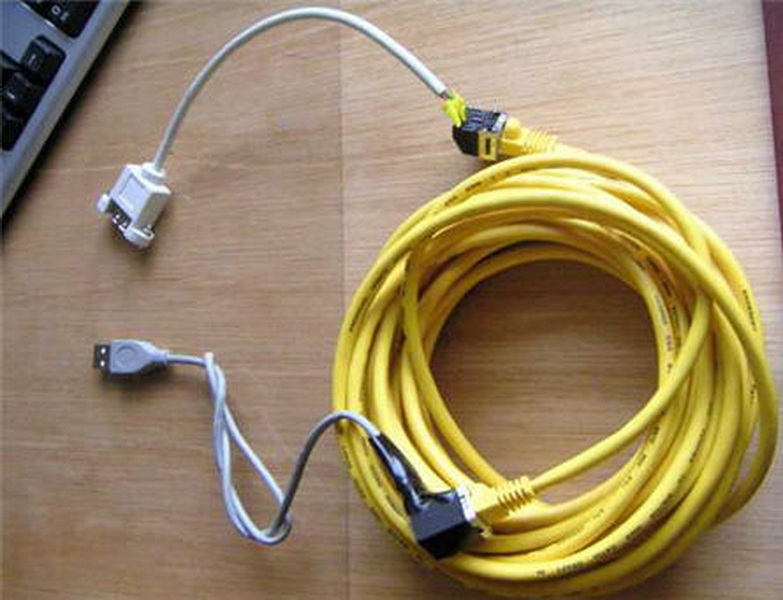

Step-by-Step Guide to Making a USB Extension Cable
Step 1: Cut the USB Cable
Cut the USB cable to the desired length. Keep in mind the maximum recommended lengths for different USB versions: 5 meters for USB 2.0 and 3 meters for USB 3.0. Longer cables can lead to signal degradation and may not function properly.
Step 2: Strip the Cable Insulation
Use a wire stripper to remove the outer insulation of the cable on both ends, exposing the four internal wires (red, black, white, and green). Be careful not to damage the wires during this process.
Step 3: Prepare the USB Male and Female Connectors
Open the connectors (or buy pre-made ones that you can solder onto). Each connector will have four solder pads or terminals for the four wires (VCC, GND, D-, D+). Ensure that the connectors are compatible with the type of USB cable you are using.
Step 4: Solder the Wires to the Connectors
Solder each wire to the appropriate terminal:
- Red wire (VCC) to the terminal marked VCC or V.
- Black wire (GND) to the terminal marked GND.
- White wire (D-) to the terminal marked D-.
- Green wire (D+) to the terminal marked D+.
It's crucial to ensure that the wires are securely attached to prevent any loose connections that could lead to data loss or device malfunction.
Step 5: Insulate and Protect the Connections
Use heat shrink tubing or electrical tape to cover the soldered connections. This ensures they are well-insulated and protected from environmental factors such as moisture and dust.
Step 6: Test the Cable
Before using your new extension cable, test it with a simple device like a flash drive. If the device is recognized by your computer, you've wired it correctly. Testing is essential to ensure that the cable is functioning properly and that there are no short circuits.
Tips and Considerations
- Use Shielded Wire: Shielded cables reduce electromagnetic interference and ensure better data integrity. This is particularly important for longer cables or in environments with high levels of electrical noise.
- Avoid Mixing Grounds: Ensure the shielding ground wire is connected to the outer metal case of the female USB connector and not mixed with the USB ground. This helps maintain the integrity of the shielding.
- Use Proper Materials: Nickel or gold-plated connectors provide better conductivity and durability compared to cheaper alternatives.
Common Issues and Troubleshooting
If your cable doesn't work as expected, check for the following:
- Short Circuits: Ensure no wires are touching each other. A short circuit can cause the device to malfunction or not be recognized at all.
- Incorrect Wiring: Double-check the connections against the USB pinout. Incorrect wiring is a common mistake that can render the cable useless.
- Damaged Wires: Inspect the cable for any internal damage. Damaged wires can lead to intermittent connectivity issues or complete failure.
Advanced Considerations for USB 3.0 and USB-C Cables
For USB 3.0 cables, you will need additional wires for the SuperSpeed data lines. USB 3.0 cables have nine wires in total, including the four standard USB 2.0 wires. This complexity makes USB 3.0 extension cables more challenging to create at home.
USB-C cables, on the other hand, are even more complex due to their reversible design and higher speeds. Making a USB-C extension cable requires specialized connectors and a good understanding of the USB-C protocol, which supports multiple modes of operation, including USB, DisplayPort, and Power Delivery.
Safety Precautions
When working with electrical components, safety is paramount. Always use a soldering iron with caution, keeping it away from flammable materials and ensuring that the workspace is well-ventilated. Wear protective goggles to prevent eye damage from solder splashes.
Conclusion
Making a USB extension cable at home is a straightforward process that requires basic electronics knowledge and tools. It's a great way to extend the reach of your USB devices while reusing old materials. By following these steps and tips, you can create a reliable and durable extension cable tailored to your needs.
Frequently Asked Questions
1. What is the maximum length for a USB extension cable?
- The maximum recommended length for USB 2.0 cables is 5 meters, while for USB 3.0, it is 3 meters.
2. Can I use any type of wire for making a USB extension cable?
- It's best to use shielded wire that matches USB specifications to minimize interference and ensure reliable data transfer.
3. How do I protect the soldered connections?
- Use heat shrink tubing or electrical tape to insulate and protect the connections.
4. What if my USB extension cable doesn't work?
- Check for short circuits, incorrect wiring, and damaged wires. Test the cable with a simple device like a flash drive.
5. Can I make a USB-C extension cable at home?
- While possible, making a USB-C extension cable requires more complex components and is generally more challenging than making a USB-A extension cable.
