Creating your own USB data cable is a rewarding DIY project that can save you money and provide a custom solution tailored to your needs. This guide will walk you through the process step-by-step, covering everything from materials to assembly, while also providing detailed explanations to enhance your understanding.
Before you start, gather the following materials:
- USB Connectors: Depending on the type of cable you want to create (Type-A, Type-B, or Type-C).
- USB Cable: A suitable length of 28 AWG wire.
- Wire Strippers: For removing insulation from the wires.
- Soldering Iron and Solder: For connecting wires to connectors.
- Heat Shrink Tubing: To insulate and protect soldered connections.
- Electrical Tape: For additional insulation.
- Scissors or a Knife: For cutting the cable and tubing.
1. Cut the Cable: Decide on the desired length of your USB cable and cut it accordingly. Ensure that the length is sufficient for your needs but not so long that it becomes cumbersome or prone to signal degradation.
2. Strip the Insulation: Use wire strippers to remove about 1 inch of the outer insulation from both ends of the cable. Be careful not to damage the inner wires. If you accidentally cut into a wire, it's best to cut off the damaged section and start again.

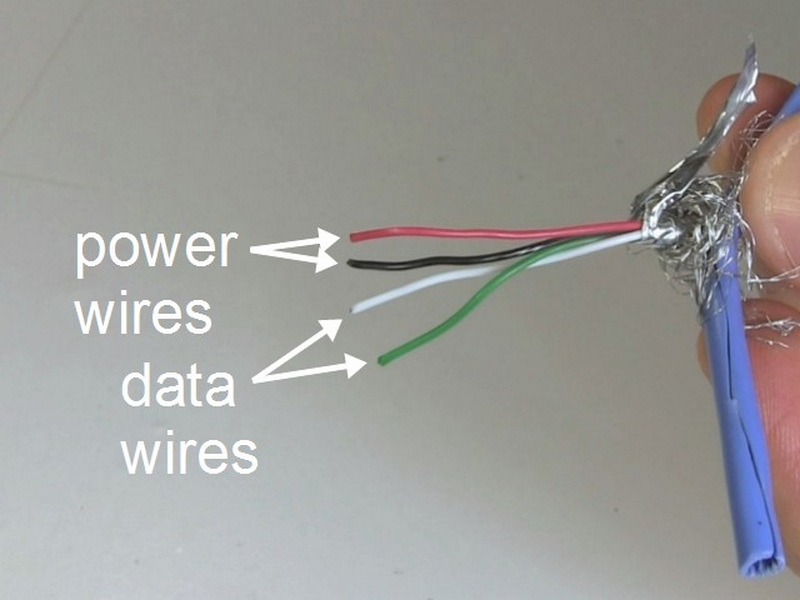

Inside a typical USB cable, you will find four wires:
- Red (VCC): Power
- White (D-): Data -
- Green (D+): Data +
- Black (Ground): Ground
For a standard data cable, you will need all four wires. If you are making a power-only cable, you can omit the data wires. It's crucial to identify these wires correctly to ensure your cable functions properly.
1. Tin the Wires: Heat your soldering iron and apply a small amount of solder to each wire end. This process is called "tinning" and helps make connections easier by creating a smooth surface for soldering.
2. Connect Wires to USB Connectors:
- Refer to a pinout diagram for your specific USB connector type. The pinout will guide you on which wire connects to which pin.
- Solder each wire to its corresponding pin on the connector. Ensure that the solder flows smoothly and covers the entire connection without creating bridges between pins.
1. Apply Heat Shrink Tubing: Slide heat shrink tubing over each soldered connection before heating it with a heat gun or lighter to shrink it tightly around the connection. This step is crucial for protecting the connections from moisture and physical damage.
2. Wrap with Electrical Tape: For added protection, wrap electrical tape around the connections. This provides an extra layer of insulation and helps prevent wear and tear.

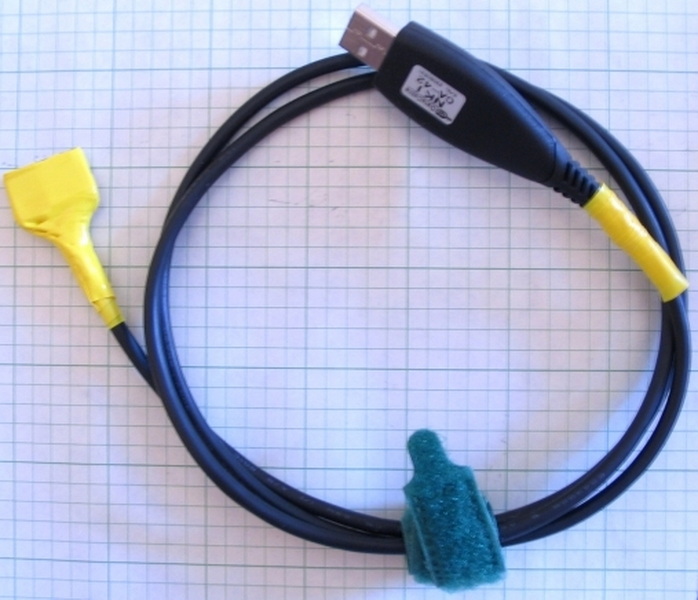

1. Assemble Connectors: If your connectors have housings, assemble them according to the manufacturer's instructions. Make sure all parts fit snugly and securely.
2. Test Your Cable: Before using your new USB cable, test it with a device to ensure it works correctly. Plug it into a computer and a peripheral device to verify both power and data transfer.
USB cables come in various types, each designed for specific applications:
- Type-A: Commonly used for connecting devices to computers.
- Type-B: Often used for printers and other peripherals.
- Type-C: A newer, reversible connector that supports faster speeds and higher power delivery.
- Mini and Micro USB: Used in older devices like smartphones and cameras.
Each type of connector has its own pinout and design considerations, so it's important to choose the right one for your project.
When working with electrical components, safety is paramount:
- Use Protective Gear: Wear safety glasses and keep loose clothing tied back when soldering.
- Avoid Overheating: Keep your soldering iron at a moderate temperature to prevent burning yourself or damaging components.
- Work in a Well-Ventilated Area: Solder fumes can be harmful; ensure good airflow in your workspace.
If your cable doesn't work as expected, here are some common issues to check:
- Incorrect Wiring: Double-check your connections against a pinout diagram.
- Poor Solder Joints: Inspect your soldering for cold joints or bridges.
- Damaged Wires: Check for cuts or frays in the wires.
Fixing these issues can often resolve connectivity problems.
One of the benefits of making your own USB cable is the ability to customize it:
- Length: Choose a length that suits your needs, whether it's for a desktop setup or a portable device.
- Color: Use colored heat shrink tubing or electrical tape to match your cable to your setup.
- Shielding: Add additional shielding to reduce electromagnetic interference (EMI) if needed.
Customization can enhance both the functionality and aesthetics of your cable.
Making your own USB data cable can be a fulfilling project that allows for customization in length and design. With just a few tools and materials, you can create cables that suit your specific needs while saving money in the process. This guide has provided detailed steps to assist you in successfully crafting your own USB cable.
You can make various types of USB cables, including Type-A, Type-B, Type-C, Mini USB, and Micro USB cables.
Basic tools like wire strippers, a soldering iron, and heat shrink tubing are essential for making a USB cable.
It's recommended to use 28 AWG wire specifically designed for USB cables for optimal performance.
Refer to a pinout diagram specific to your USB connector type for accurate wiring connections.
Yes, as long as you follow proper safety precautions when using tools and ensure that all connections are secure.
