Creating a SATA to USB cable at home can be a challenging but rewarding DIY project. It requires understanding the differences between SATA and USB protocols and how to bridge them. This article will guide you through the process, highlighting key considerations and steps involved.
SATA (Serial Advanced Technology Attachment) and USB (Universal Serial Bus) are two different interfaces used for data transfer and storage. SATA is commonly used for internal hard drives and solid-state drives (SSDs), while USB is used for external devices like flash drives and external hard drives. To connect a SATA device to a USB port, you need a bridge chip that converts the SATA protocol to USB.

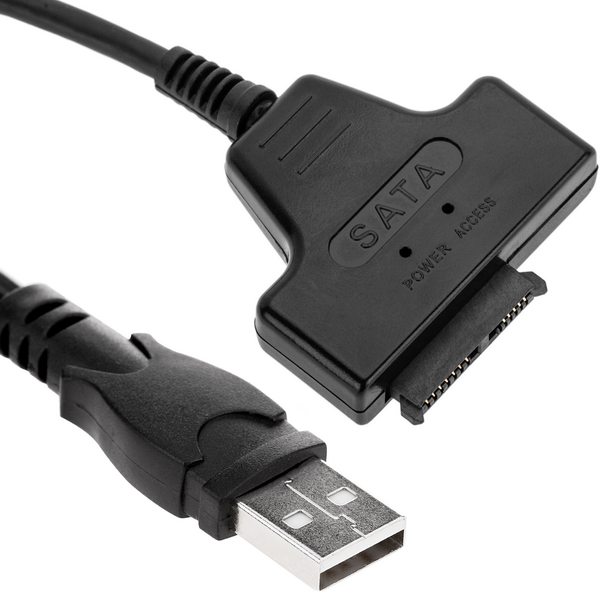

The SATA to USB bridge chip is crucial for converting the SATA protocol to USB. This chip acts as an interpreter, allowing data to be transferred between the two interfaces. You can purchase these chips online or use pre-made SATA to USB adapters available in the market. Popular bridge chips include those from JMicron and ASMedia, known for their reliability and compatibility with various SATA devices.
- SATA to USB Bridge Chip: This is the core component for converting SATA signals to USB.
- PCB (Printed Circuit Board): You need a PCB to mount the bridge chip and other components.
- SATA Connector: For connecting the SATA device.
- USB Connector: For connecting to a USB port.
- Power Source: Depending on the device, you might need an external power source (e.g., for 3.5-inch hard drives).
Designing a PCB requires knowledge of electronics and circuit design. You can use software like KiCad or Eagle to create your design. Ensure that your PCB can accommodate the bridge chip, SATA connector, USB connector, and any necessary power components. The design should be compact yet allow for easy assembly and debugging.

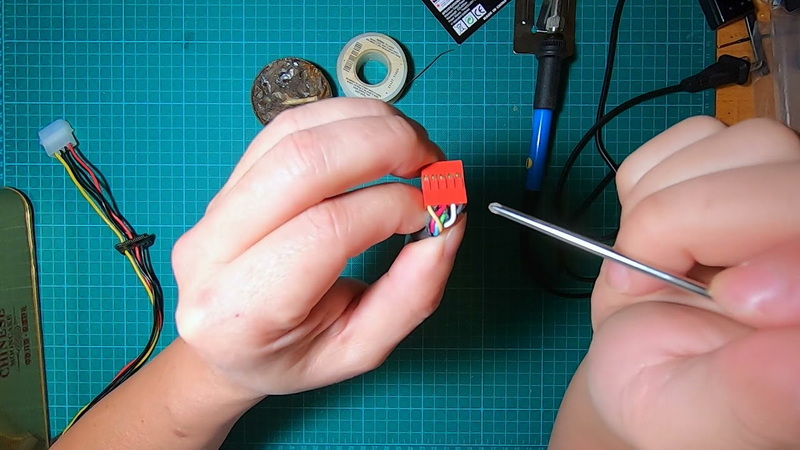

Once you have your PCB design, assemble the components. This involves soldering the bridge chip, connectors, and any other components onto the PCB. Make sure all connections are secure and correctly aligned. Use a soldering iron with a fine tip to ensure precision.
After assembling the components, test your SATA to USB cable. Connect the SATA device to the SATA connector and the other end to a USB port on your computer. Ensure that the device is recognized by your computer. If it's not recognized, check for loose connections or incorrect assembly.

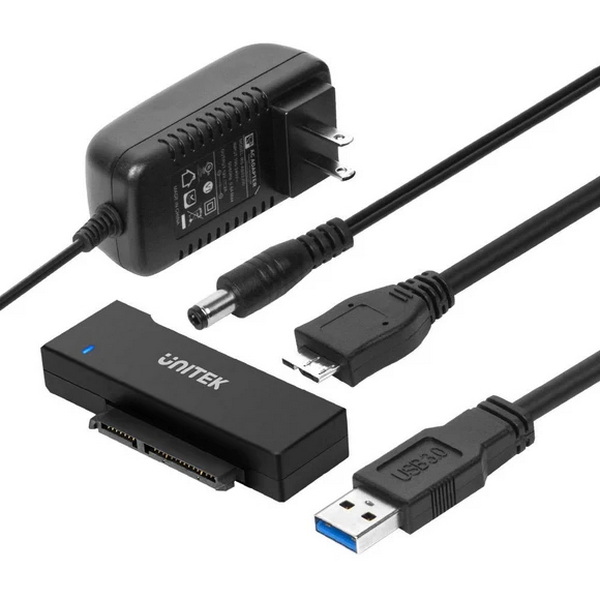

SATA devices, especially 3.5-inch hard drives, require more power than what a standard USB port can provide. You may need an external power adapter to ensure the device operates correctly. For example, a 3.5-inch hard drive typically requires 12V, which is not available from a standard USB port.
Not all SATA to USB adapters work with every device. Ensure that your bridge chip supports the SATA device you are using. Some bridge chips may have specific requirements or limitations, such as speed or capacity restrictions.
- Device Not Recognized: Check for loose connections or incorrect assembly.
- Insufficient Power: Ensure that your device is receiving enough power, especially if it requires more than what a USB port can provide.
- Speed Issues: Check if the bridge chip supports the full speed of your SATA device.
For high-speed data transfer, ensure that your SATA to USB adapter supports USB 3.0 or higher. This will allow for faster data transfer rates compared to older USB versions.
If you plan to use your SATA device frequently, consider building an enclosure for the adapter. This can protect the components and make it easier to manage cables.
Always use protective gear like gloves and safety glasses when soldering. Ensure your workspace is well-ventilated and avoid touching electrical components with your bare hands.
If you're new to DIY electronics projects, it's essential to start with simpler projects to build your skills. Practice soldering and circuit assembly before attempting a SATA to USB adapter. Online tutorials and forums can provide valuable resources for learning and troubleshooting.
Creating a SATA to USB cable at home is a complex project that requires careful planning and execution. It involves understanding the technical differences between SATA and USB interfaces and using a bridge chip to convert between them. While it can be a rewarding DIY project, it's important to consider the complexity and potential risks involved.
- No, SATA and USB use different protocols and require a bridge chip for conversion.
- SATA devices require 3.3V, 5V, and sometimes 12V for larger drives. USB ports typically provide only 5V.
- Choose a chip that supports your SATA device type and ensures compatibility.
- Use protective gear, ensure good ventilation, and avoid touching components with bare hands.
- Yes, but ensure the adapter supports the specific device you are using.
- When choosing a SATA to USB bridge chip, consider the type of SATA device you are using (e.g., SSD or hard drive) and ensure the chip supports it. Popular options include the JMicron and ASMedia chips.
- SATA devices require different voltages: 3.3V, 5V, and sometimes 12V for larger hard drives. USB ports typically provide only 5V, so an external power source may be necessary.
- No, you cannot directly connect SATA to USB without a bridge chip. SATA and USB use different protocols, requiring conversion for compatibility.
- Designing a PCB involves using software to layout the components and connections. Ensure that your design includes space for the bridge chip, connectors, and any necessary power components.
- Always use protective gear like gloves and safety glasses when soldering. Ensure your workspace is well-ventilated and avoid touching electrical components with your bare hands.
