Making a micro USB cable can be a fun and rewarding DIY project, allowing you to customize the length and appearance of your cable. This guide will walk you through the process step by step, including materials needed, detailed instructions, and tips for ensuring a high-quality finish.
Introduction to Micro USB Cables
Micro USB cables are widely used for charging and data transfer between devices such as smartphones, tablets, and other portable electronics. They consist of a micro USB connector at one end and a standard USB connector at the other. The micro USB connector has five pins: VBUS (power), D- (data minus), D+ (data plus), ID (identification), and GND (ground). Understanding the function of each pin is crucial for correctly assembling the cable.
Materials Needed
To make a micro USB cable, you will need the following materials:
- Micro USB connector: Available at most electronics stores. Ensure it is compatible with your device.
- Standard USB connector: Can be salvaged from an old USB cable or purchased separately.
- Four-conductor wire: Typically colored red (VBUS), black (GND), green (D+), and white (D-). The quality of the wire affects the cable's performance.
- Soldering iron and solder: For connecting the wires to the connectors. A good soldering iron should have adjustable temperature settings.
- Heat shrink tubing: To insulate and protect the soldered connections. Various sizes and colors are available.
- Wire strippers: For stripping the insulation from the wire ends. Ensure they are sharp to avoid damaging the wire.
- Razor knife or wire cutters: For cutting the wire to the desired length. Safety precautions should be taken when handling sharp objects.
Step-by-Step Instructions
Step 1: Prepare the Connectors
1. Disassemble the Micro USB Connector: If using a pre-assembled micro USB connector, you may need to disassemble it to access the pins. This typically involves removing a metal casing to expose the five pins. Be careful not to damage the connector during disassembly.
2. Prepare the Standard USB Connector: If salvaging from an old cable, ensure it is clean and free of debris. Use a soft brush or cloth to remove any dirt.
Step 2: Cut and Strip the Wire
1. Cut the Wire: Use wire cutters to cut four pieces of wire to the desired length. Ensure they are long enough to connect both ends of the cable comfortably, with some extra length for flexibility.
2. Strip the Wire Ends: Use wire strippers to remove about 1 cm of insulation from each end of the wire. Be precise to avoid stripping too much insulation, which can lead to exposed conductors.
Step 3: Solder the Micro USB End
1. Identify the Pins: Match each wire to its corresponding pin on the micro USB connector:
- Red (VBUS) to Pin 1
- White (D-) to Pin 2
- Green (D+) to Pin 3
- Black (GND) to Pin 5
- The ID pin (Pin 4) is typically not connected in standard micro USB cables.
2. Solder the Wires: Use a soldering iron to attach each wire to its corresponding pin. Ensure the connections are secure and not touching other pins. Apply a small amount of solder to avoid creating a mess.
Step 4: Solder the Standard USB End
1. Identify the Pins: Match each wire to its corresponding pin on the standard USB connector:
- Red (VBUS) to Pin 1
- White (D-) to Pin 2
- Green (D+) to Pin 3
- Black (GND) to Pin 4
2. Solder the Wires: Use a soldering iron to attach each wire to its corresponding pin. Double-check the connections to ensure they are correct and secure.
Step 5: Insulate the Connections
1. Use Heat Shrink Tubing: Slide heat shrink tubing over the soldered connections on both ends. Use a heat gun to shrink the tubing, ensuring a snug fit. This step is crucial for protecting the connections from environmental factors.
2. Add Additional Insulation: If desired, use electrical tape to further protect the connections. This can provide extra durability and prevent wear over time.
Step 6: Test the Cable
1. Connect the Cable: Plug the micro USB end into a device and the standard USB end into a computer or charger.
2. Verify Functionality: Ensure the device charges or data transfers correctly. If the cable does not work, refer to the troubleshooting section.
Customizing Your Cable
Using Different Materials

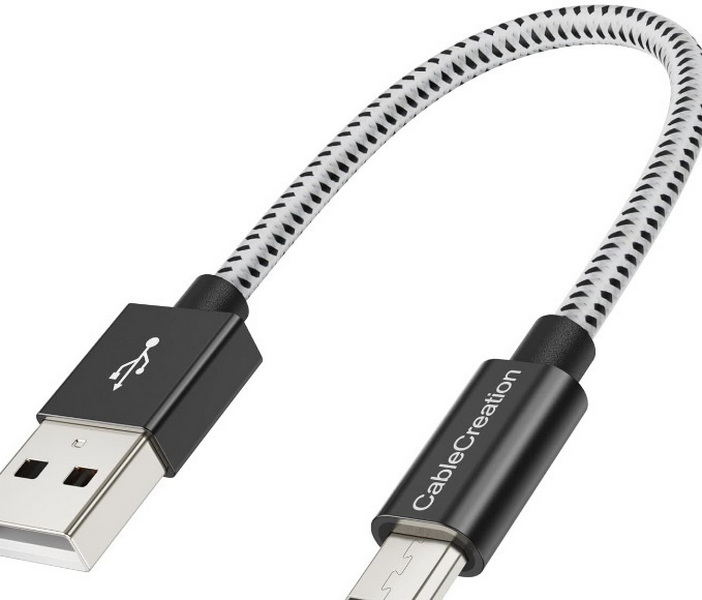

- Paracord Sleeving: Wrap paracord around the cable for a durable and stylish finish. This can add a unique aesthetic to your cable.
- Heat-Shrink Tubing Colors: Use colored heat shrink tubing to match your cable's aesthetic. This can help differentiate your custom cable from standard ones.
Tips for a Professional Finish
- Use High-Quality Materials: Ensure the wire and connectors are durable and reliable. High-quality materials will result in a longer-lasting cable.
- Keep Connections Clean: Avoid solder spills and ensure connections are secure. Cleanliness is key to preventing electrical issues.
- Test Thoroughly: Verify the cable works correctly before finishing. This includes checking for both charging and data transfer functionality.
Troubleshooting Common Issues
If your cable does not work as expected, check the following:
- Solder Connections: Ensure all connections are secure and not touching other pins. A loose connection can prevent the cable from functioning.
- Wire Damage: Check for any damage to the wire, such as cuts or frays. Damaged wires can lead to intermittent connectivity issues.
- Connector Alignment: Verify that the connectors are properly aligned and seated. Misaligned connectors can prevent the cable from working correctly.
Advanced Techniques for Cable Customization
Cable Length and Flexibility
- Custom Lengths: One of the benefits of making your own cable is the ability to choose the exact length you need. This can be particularly useful for specific applications where standard lengths are not suitable.
- Flexible Cables: Using flexible wire can improve the durability of your cable, especially if it will be subject to frequent bending or movement.
Cable Protection
- Sleeving Options: Besides paracord, other materials like nylon or PVC sleeving can provide additional protection against abrasion and environmental factors.
- Reinforced Connectors: Using reinforced connectors can add extra durability to the cable ends, which are often the weakest points.
Safety Precautions
When working with electrical components and tools, safety is paramount:
- Use Protective Gear: Wear safety glasses and gloves when handling sharp objects or hot soldering irons.
- Work in a Well-Ventilated Area: Avoid inhaling solder fumes or other chemicals.
- Keep Children Away: Ensure children do not touch electrical components or tools.
Conclusion
Making a micro USB cable is a straightforward DIY project that can save you money and allow for customization. By following these steps and using quality materials, you can create a reliable and durable cable for your devices. Whether you're looking to replace a damaged cable or create a custom solution, this guide provides everything you need to get started.
Frequently Asked Questions
1. What materials are needed to make a micro USB cable?
- Micro USB connector
- Standard USB connector
- Four-conductor wire
- Soldering iron and solder
- Heat shrink tubing
- Wire strippers
- Razor knife or wire cutters
2. How do I identify the pins on a micro USB connector?
- VBUS (power) to Pin 1
- D- (data minus) to Pin 2
- D+ (data plus) to Pin 3
- ID (identification) to Pin 4 (typically not connected)
- GND (ground) to Pin 5
3. Why is my micro USB cable not working?
- Check solder connections for security and cleanliness.
- Verify wire integrity; look for cuts or frays.
- Ensure connectors are properly aligned and seated.
4. Can I customize the appearance of my micro USB cable?
- Yes, you can use paracord sleeving or colored heat shrink tubing to customize the cable's appearance.
5. Do I need special tools to make a micro USB cable?
- Basic tools include a soldering iron, wire strippers, and a razor knife. Additional tools like a heat gun can be helpful but are not necessary.
