Creating a male to male USB cable is a useful DIY project for connecting devices that require a direct USB connection without the need for a female port. This guide will walk you through the process step by step, including materials needed, the soldering process, and tips for ensuring a reliable connection.
Introduction

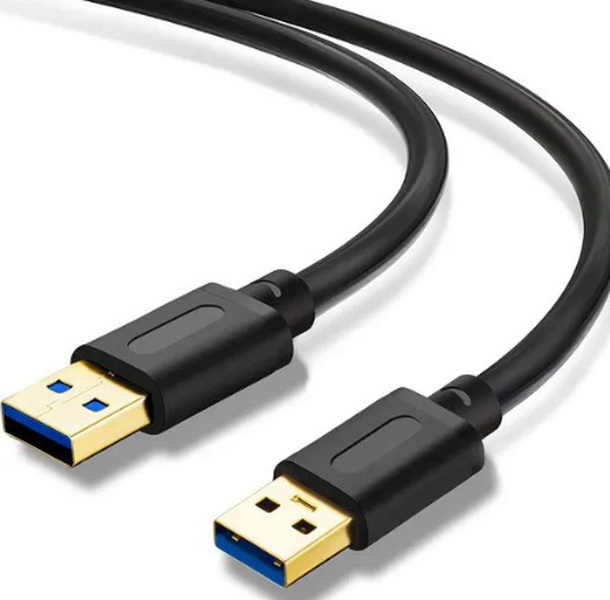

Male to male USB cables are less common than other types of USB cables but are essential for specific applications, such as providing external power to USB hubs or connecting certain devices directly to a computer. Before starting, ensure you have the necessary tools and materials.
Materials Needed:

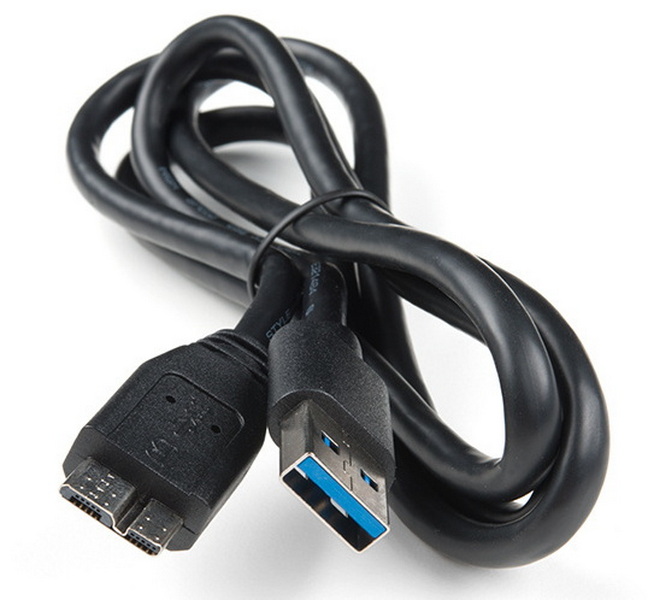

- 2 spare USB cables or 1 spare USB cable and a Type A USB plug
- Multimeter or continuity tester
- Soldering equipment (a basic 30W soldering iron is sufficient)
- Electrical tape or heat shrink tubes
- Wire strippers and/or cutting pliers
- Hot glue or superglue
Step-by-Step Guide
Step 1: Prepare the Cables
Cut the ends of the USB cables and strip about 2 cm of the external protective layer. You will find four wires, each colored differently. The standard colors are:
- Red for power (VCC)
- White for data positive (D+)
- Green for data negative (D-)
- Black for ground (GND)
Use a multimeter to identify the corresponding pins on the USB plug:
- Pin 1: VCC (Red)
- Pin 2: D- (Green)
- Pin 3: D+ (White)
- Pin 4: GND (Black)
Step 2: Solder the Wires
Solder the wires from one cable to the corresponding wires of the other cable. Ensure that:
- VCC (Red) is connected to VCC (Red)
- D- (Green) is connected to D- (Green)
- D+ (White) is connected to D+ (White)
- GND (Black) is connected to GND (Black)
Step 3: Insulate the Wires
Use electrical tape or heat shrink tubes to insulate the soldered wires. Heat shrink tubes provide a neater finish and better protection against shorts.
Step 4: Final Assembly
Once the wires are insulated, you can assemble the cable. Use hot glue or superglue to secure any loose parts.
Tips and Considerations
- Use proper insulation to prevent electrical shorts.
- Test the cable before using it to ensure all connections are correct.
- Consider using a cable with a thicker gauge for longer cables to minimize voltage drop.Advanced Techniques
For those looking to enhance their DIY skills, here are some advanced techniques:
Customizing Cable Length
If you need a longer or shorter cable, you can use additional wire to extend or shorten it. Ensure that the wire gauge is appropriate for the length to avoid significant voltage drop.
Using Different Materials
Experiment with different types of insulation, such as silicone tubing or braided sleeving, for added durability and aesthetics.
Troubleshooting Common Issues
- No Power: Check if the VCC wire is properly connected.
- Data Transfer Issues: Verify that D+ and D- wires are correctly soldered.
- Short Circuits: Inspect for any exposed wires or improper insulation.
Safety Precautions
When working with electrical components, safety is paramount:
- Use protective gear like safety glasses and gloves.
- Work in a well-ventilated area to avoid inhaling solder fumes.
- Keep children and pets away from the workspace.
Conclusion
Creating a male to male USB cable is a straightforward DIY project that requires basic soldering skills and attention to detail. By following these steps and using the right materials, you can create a reliable cable for your specific needs.
FAQ
1. Why Do I Need a Male to Male USB Cable?
Male to male USB cables are necessary for devices that require a direct connection without a female port, such as some USB hubs or custom setups.
2. How Do I Ensure Proper Insulation?
Use heat shrink tubes or electrical tape to insulate the wires. Heat shrink tubes are recommended for a more professional finish.
3. Can I Use Any Type of USB Cable for This Project?
It's best to use standard USB cables with the typical four-wire configuration. Avoid using cables with additional wires unless you know their purpose.
4. What Are the Risks of Improper Soldering?
Improper soldering can lead to electrical shorts or poor connections, which may damage your devices. Ensure all connections are secure and insulated.
5. How Do I Test My Male to Male USB Cable?
Test the cable by connecting it between two devices that support USB communication. Use a multimeter to check for voltage drop if necessary.
6. What are male to male USB cables used for?
They are used for connecting devices that require a direct USB connection without a female port.
7. Can I use any USB cable for this project?
It's best to use standard USB cables with the typical four-wire configuration.
8. How do I ensure proper insulation?
Use heat shrink tubes or electrical tape to insulate the wires.
9. What are the risks of improper soldering?
Improper soldering can lead to electrical shorts or poor connections, potentially damaging devices.
10. How do I test my male to male USB cable?
Test the cable by connecting it between two devices that support USB communication.
