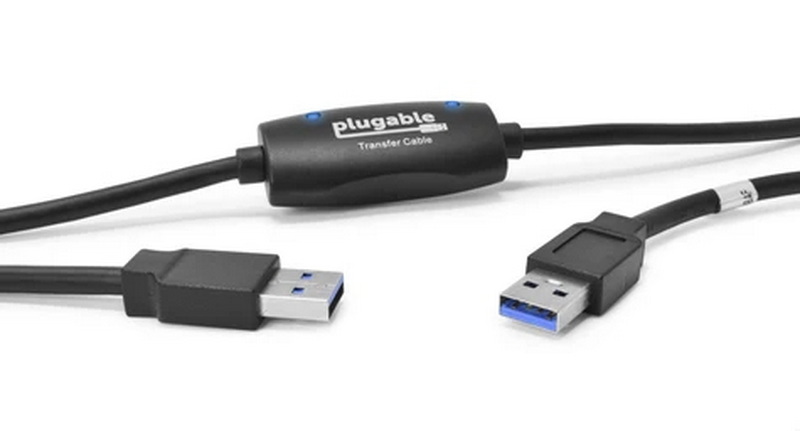

USB data transfer cables are essential tools for transferring files between devices, charging gadgets, or even powering small electronics. While store-bought options are widely available, creating your own USB data transfer cable can be a rewarding DIY project. This guide will walk you through the process step-by-step, complete with detailed instructions and tips.
Understanding USB Cables
USB cables are versatile tools used for:
- Data transfer between devices like computers, phones, and cameras.
- Charging electronic devices.
- Connecting peripherals like keyboards and mice.
Types of USB Connectors
USB connectors come in various shapes and types:

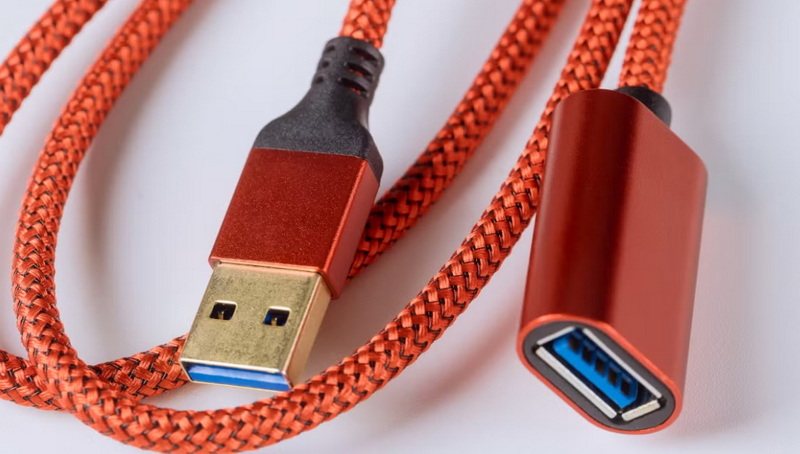

- Type-A: The standard rectangular connector found on most computers.

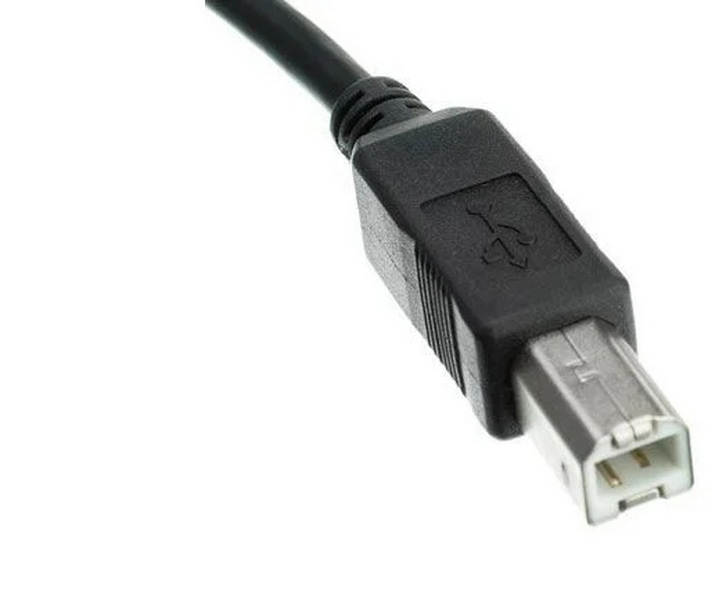

- Type-B: Square-shaped connectors often used for printers.
- Type-C: A reversible connector used for modern devices.
- Mini and Micro USB: Smaller connectors used for portable devices.
Each connector type serves different purposes, so understanding your requirements is crucial before starting the DIY process.
Materials Needed
To create your own USB data transfer cable, gather the following materials:
- A piece of Cat-5 or other suitable cable.
- Two USB connectors (Type-A or Type-C, depending on your needs).
- Soldering iron and solder.
- Heat shrink tubing.
- Wire strippers and pliers.
- Electrical tape (optional).
- Multimeter (optional but recommended for testing).
Step-by-Step Guide to Making a USB Data Transfer Cable
Step 1: Prepare the Cable
1. Cut the cable to your desired length.
2. Strip about 2 cm of insulation from both ends of the cable to expose the wires inside.
3. Identify the four essential wires:
- Red: Power (+5V)
- Black: Ground (GND)
- White: Data-
- Green: Data+
Step 2: Prepare the Connectors
1. Open the USB connectors carefully using pliers.
2. Identify the pins inside the connectors:
- Pin 1: Power (Red wire)
- Pin 2: Data-
- Pin 3: Data+
- Pin 4: Ground (Black wire)
Step 3: Solder the Wires
1. Solder each wire to its corresponding pin on one connector:
- Red wire to Pin 1.
- White wire to Pin 2.
- Green wire to Pin 3.
- Black wire to Pin 4.
2. Repeat the process for the second connector at the other end of the cable.
Step 4: Insulate and Protect
1. Slide heat shrink tubing over each soldered joint and shrink it using a heat source.
2. Cover any exposed wires with electrical tape for added protection.
Step 5: Test Your Cable
1. Use a multimeter to check continuity between corresponding pins on both ends of the cable.
2. Connect your cable to devices and verify that it works for data transfer or charging.
Tips for Customizing Your Cable
1. Choose High-Quality Materials: Use durable cables and connectors to ensure longevity.

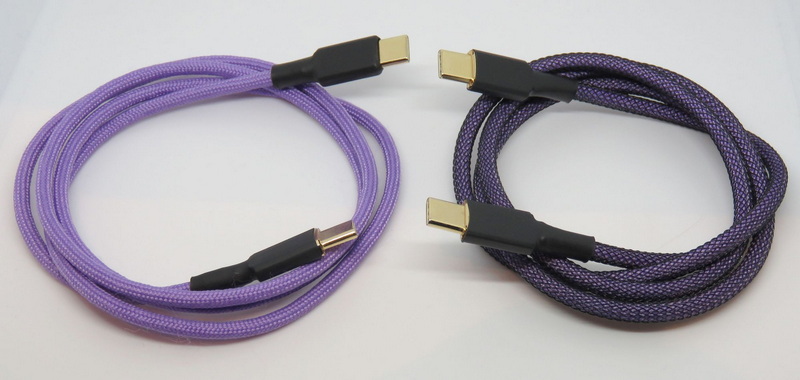

2. Add Sleeving: For aesthetics, add braided sleeving over your cable.
3. Label Ends: Mark one end as "Device" and the other as "Host" for easy identification.
Advanced Customization
If you're looking to create a more specialized cable, consider adding additional features:
- LED Indicators: Add small LEDs to indicate power or data transfer.
- Shielding: Use shielded cables to reduce electromagnetic interference (EMI).
- Custom Lengths: Make cables of specific lengths tailored to your workspace or setup.
Troubleshooting Common Issues
1. Cable Doesn't Work
- Check Connections: Ensure all wires are securely soldered to the correct pins.
- Test Continuity: Use a multimeter to verify there are no breaks in the wires.
2. Slow Data Transfer
- Cable Quality: Use high-quality cables with low resistance.
- Interference: Minimize electromagnetic interference by using shielded cables.
3. Cable Overheats
- Power Load: Ensure the cable is not carrying too much power.
- Insulation: Check for proper insulation to prevent short circuits.
4. Cable Damage
- Handle with Care: Avoid bending or stretching the cable excessively.
- Protective Sleeving: Use protective sleeving to prevent abrasion.
5. Compatibility Issues
- Connector Types: Ensure you are using the correct type of USB connector for your devices.
- Device Settings: Check device settings to ensure USB ports are enabled.
Safety Precautions
When working with electrical components, safety is paramount:
- Use Protective Gear: Wear safety glasses and gloves to protect yourself from solder splashes.
- Work in a Well-Ventilated Area: Avoid inhaling solder fumes.
- Avoid Overheating: Keep your soldering iron at a safe temperature to prevent burns.
Conclusion
Creating your own USB data transfer cable is a practical skill that can save money and allow customization for specific needs. By following this guide, you can craft a functional and reliable cable tailored to your requirements. Whether you're a DIY enthusiast or just looking for a fun project, making a USB cable can be both educational and rewarding.
FAQs
1. Can I use any type of wire to make a USB cable?
No, you need wires capable of carrying both power and data signals. Cat-5 cables or similar are recommended due to their durability and compatibility.
2. What tools are essential for this project?
A soldering iron, wire strippers, pliers, and heat shrink tubing are essential tools for making a USB cable.
3. How do I ensure my DIY cable supports fast charging?
Use high-quality wires with low resistance and ensure proper soldering connections to minimize power loss.
4. Can I make a USB-C cable with this method?
Yes, but you'll need USB-C connectors and should follow their specific pinout configuration.
5. What should I do if my cable doesn't work?
Check all connections with a multimeter to ensure continuity and verify that no wires are shorted.
