In today's digital age, USB-C cables have become an essential part of our daily lives. Whether you're charging your smartphone, connecting peripherals to your computer, or transferring data, a reliable USB-C cable is crucial. While you can easily purchase one from a store, making your own custom USB-C cable can be a rewarding and cost-effective experience. This guide will walk you through the process of creating your own USB-C cable, providing you with the knowledge and skills to craft a high-quality, personalized cable that meets your specific needs.
Why Make Your Own USB-C Cable?
Before we dive into the process, let's consider why you might want to make your own USB-C cable:
1. Customization: Create a cable that matches your style or setup.
2. Quality control: Ensure the use of high-quality components.
3. Cost-effectiveness: Save money in the long run by making durable cables.
4. Learning experience: Gain valuable skills in electronics and DIY projects.
5. Repair and maintenance: Be able to fix your cables when they malfunction.

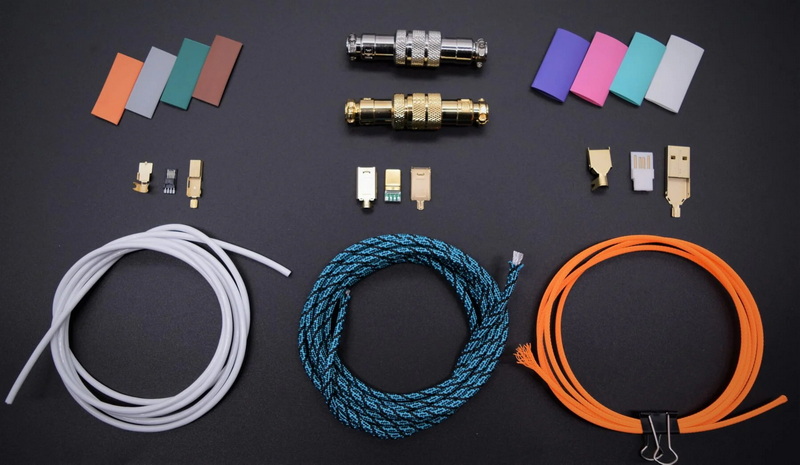

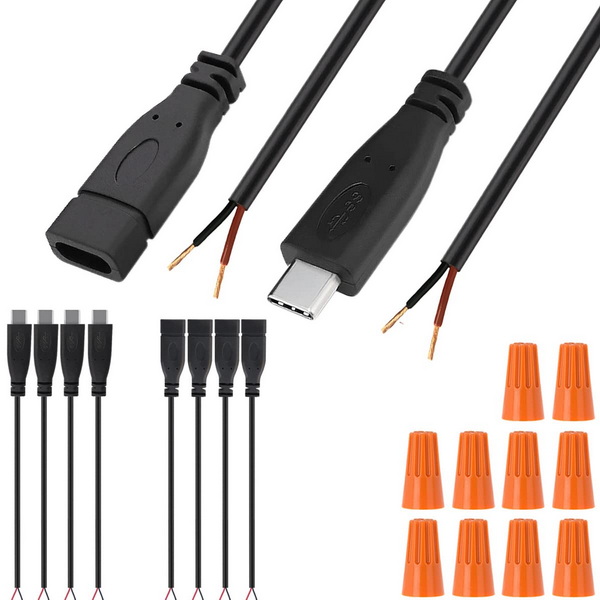

Materials Needed
To create your USB-C cable, you'll need the following materials:
- USB 2.0 cable (28 AWG, 4-core)
- USB-C male connector
- USB-A male connector (for the other end)
- Paracord (Type III, 550 lbs)
- PET expandable sleeving (4mm)
- Heat shrink tubing (various sizes)
- Soldering iron and solder
- Wire strippers
- Scissors
- Lighter or heat gun
- Multimeter for testing
Step-by-Step Guide
1. Prepare the Cable
Start by cutting your USB 2.0 cable to the desired length. Remember to account for any coils or bends you plan to incorporate into your design. Strip about 1 inch of the outer insulation from both ends of the cable, revealing the inner wires.
2. Install the Paracord Sleeve
Slide the paracord over the cable. This process can be tricky, so here's a helpful tip: use a straw to guide the cable through the paracord. Once the paracord is in place, use a lighter to carefully melt the ends, preventing fraying.
3. Add PET Expandable Sleeving
For added durability and a professional look, slide the PET expandable sleeving over the paracord. This double-sleeving technique not only enhances the cable's appearance but also provides extra protection.

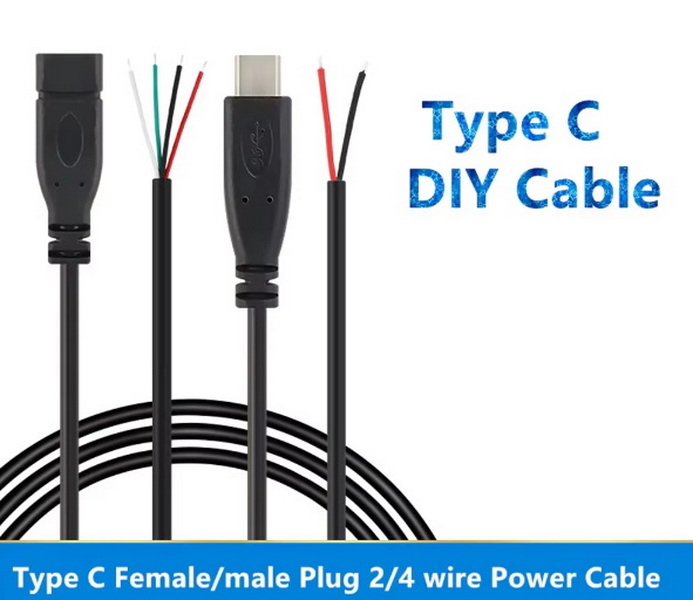

4. Prepare the Wires
Strip about 3mm of insulation from each of the four inner wires (red, white, green, and black). Tin the exposed copper with solder to prevent fraying and ensure better conductivity.
5. Solder the USB-C Connector
The USB-C connector has specific pinouts that need to be followed:
- Red wire to VBUS (Pin A4 or B4)
- White wire to D- (Pin A7)
- Green wire to D+ (Pin A6)
- Black wire to GND (Pin A1 or B1)
Carefully solder each wire to its corresponding pin on the USB-C connector. This step requires precision and patience.
6. Solder the USB-A Connector
For the USB-A end, follow this pinout:
- Red wire to Pin 1 (VBUS)
- White wire to Pin 2 (D-)
- Green wire to Pin 3 (D+)
- Black wire to Pin 4 (GND)
Solder these connections carefully, ensuring there are no bridges between pins.
7. Test the Connections
Before proceeding, use a multimeter to test the continuity between the USB-C and USB-A ends. This step is crucial to ensure your cable will function correctly.
8. Assemble the Connectors
Slide the connector housings over the soldered connections. For the USB-C end, you may need to use a small amount of hot glue to secure the housing. For the USB-A end, crimp the strain relief tabs to secure the cable.
9. Apply Heat Shrink Tubing
Cut small pieces of heat shrink tubing and slide them over the connector ends. Use a heat gun or lighter to shrink the tubing, creating a clean transition between the cable and connectors.
10. Final Testing
Connect your newly made USB-C cable to a device and power source to ensure it functions correctly. Check for proper charging and data transfer capabilities.
Tips for Success
- Take your time, especially during the soldering process.
- Use flux to make soldering easier and create better connections.
- Always double-check your wire connections before assembling the connectors.
- Practice on spare connectors before working on your final cable.
- Invest in quality tools and materials for the best results.
Customization Ideas
Once you've mastered the basic technique, consider these customization options:
1. Coiled cables: Create a coiled section in your cable for a unique look.

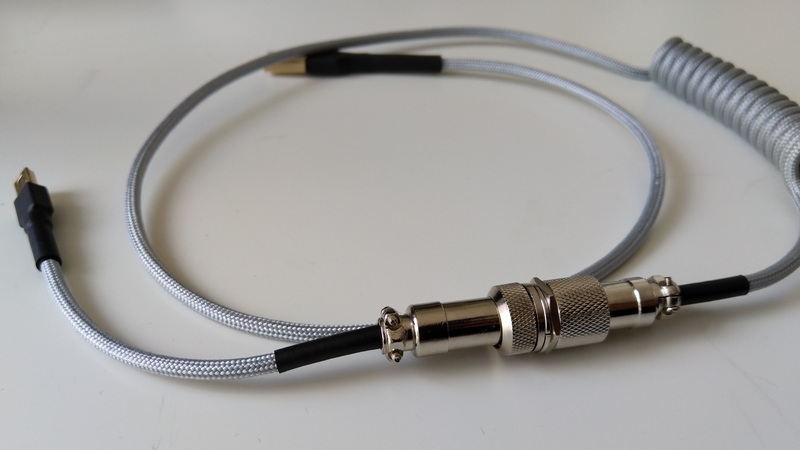

2. Aviator connectors: Add detachable sections to your cable for versatility.
3. Custom colors: Mix and match paracord and PET sleeving colors.
4. Length variations: Make cables of different lengths for various uses.
5. Themed designs: Create cables that match your keyboard or setup theme.
Troubleshooting Common Issues
If your cable isn't working correctly, check for these common problems:
1. Loose connections: Resolder any weak joints.
2. Incorrect wiring: Double-check your pinout connections.
3. Short circuits: Ensure no bare wires are touching each other.
4. Damaged components: Inspect connectors for any physical damage.
5. Faulty cable: Test the continuity of each wire in the cable.
Maintenance and Care
To ensure the longevity of your custom USB-C cable:
- Avoid sharp bends or kinks in the cable.
- Store the cable properly when not in use.
- Clean the connectors periodically with isopropyl alcohol.
- Avoid exposing the cable to extreme temperatures or moisture.
- If you notice any damage, repair or replace the cable promptly.
Advanced Techniques
For those looking to take their cable-making skills to the next level, consider incorporating advanced techniques:
1. Shielded cables: Use shielded wire to reduce electromagnetic interference.
2. Custom connectors: Experiment with different types of connectors, such as USB-C to USB-C or USB-C to Lightning.
3. Integrated cable management: Incorporate cable ties or clips into your design for better organization.
4. High-speed data transfer: Use higher gauge wires or specialized cables for faster data transfer rates.
5. Aesthetic enhancements: Add decorative elements like glow-in-the-dark sleeving or custom labels.
Safety Precautions
When working with electronics, safety is paramount:
1. Use protective gear: Wear safety glasses and gloves when soldering.
2. Work in a well-ventilated area: Avoid inhaling solder fumes.
3. Keep tools organized: Ensure your workspace is clear and clutter-free.
4. Avoid overloading: Never overload your soldering iron or other tools.
5. Follow proper soldering techniques: Use the correct temperature and avoid overheating components.
Conclusion
Creating your own USB-C cable is a rewarding project that combines technical skills with creativity. By following this guide, you can produce a high-quality, custom cable that not only meets your specific needs but also reflects your personal style. Remember that practice makes perfect, and don't be discouraged if your first attempt isn't flawless. With time and experience, you'll be crafting professional-grade USB-C cables that outperform many store-bought options.
FAQ
1: What tools are essential for making a USB-C cable?
1. A soldering iron with a fine tip
2. Wire strippers
3. Multimeter for testing
4. Heat gun or lighter
5. Precision scissors or wire cutters
2: How long does it typically take to make a USB-C cable?
The time can vary depending on your experience level, but generally:
1. For beginners: 1-2 hours
2. For intermediate makers: 30-60 minutes
3. For experienced cable makers: 15-30 minutes
4. This includes all steps from preparation to final testing
5. Practice will significantly reduce the time needed
3: Can I use any type of wire for making a USB-C cable?
Not all wires are suitable for USB-C cables:
1. Use 28 AWG USB 2.0 cable with 4 cores
2. Ensure the wire is rated for data transfer and power
3. Avoid using speaker wire or other non-USB cables
4. Look for UL certified cables for best quality
5. Consider shielded cables for better signal integrity
4: Is it safe to make my own USB-C cable?
When done correctly, making your own USB-C cable is safe:
1. Follow proper soldering techniques to avoid short circuits
2. Use quality components rated for USB-C specifications
3. Always test your cable before using it with devices
4. Be cautious when working with heat (soldering iron, heat gun)
5. If unsure, have an experienced maker check your work
5: What are the most common mistakes when making USB-C cables?
Avoid these common pitfalls:
1. Incorrect wire connections to the USB-C pins
2. Poor soldering leading to weak or intermittent connections
3. Forgetting to add strain relief to the connectors
4. Not testing the cable thoroughly before use
5. Using low-quality materials that may not meet USB-C standards
