Creating a serial to USB cable is a practical project for anyone interested in electronics and communication between devices. This guide will walk you through the process, including the necessary materials, steps, and troubleshooting tips. It also covers the basics of serial communication and how USB-serial adapters work.
Introduction to Serial Communication
Serial communication is a method of transmitting data one bit at a time over a single communication channel. It is commonly used in devices like modems, GPS modules, and microcontrollers. The most common serial interfaces include RS232 and TTL (Transistor-Transistor Logic) serial.
RS232 vs. TTL Serial
- RS232 Serial: This is a standard for serial communication that uses a DB9 connector and operates at higher voltage levels (typically between -15V and +15V). It is commonly used in older devices like modems and printers. RS232 is designed to handle longer cable lengths and can be more robust in noisy environments, but it requires more complex circuitry to handle the higher voltage levels.
- TTL Serial: This operates at lower voltage levels (typically 0V and 5V or 3.3V) and is commonly used in microcontrollers and other modern electronic devices. TTL serial is simpler and more cost-effective, making it ideal for embedded systems and DIY projects.
Materials Needed
To make a serial to USB cable, you will need the following materials:

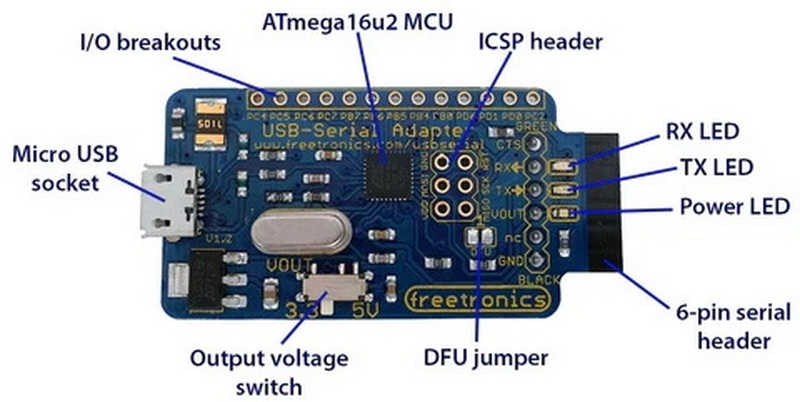

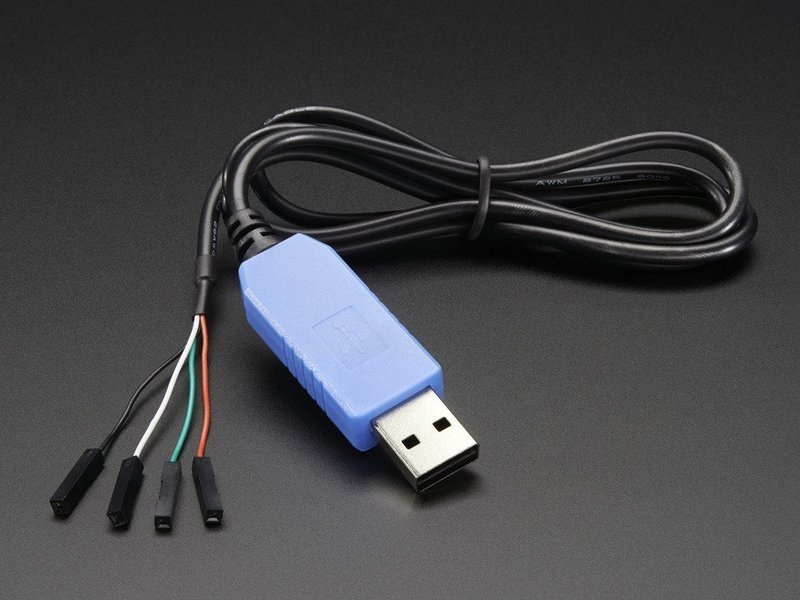

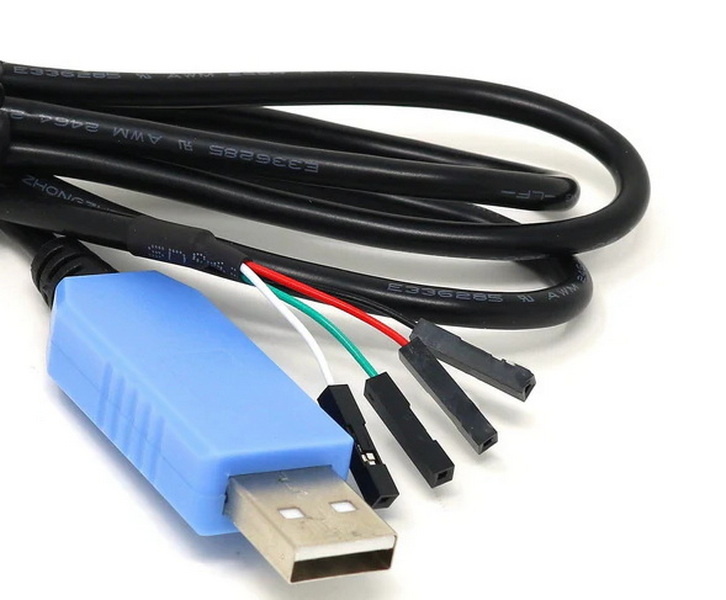

- USB to TTL Serial Adapter: This is the core component that converts USB signals to serial signals. Popular options include FTDI and CH340G-based adapters. The choice between these depends on compatibility and cost. FTDI adapters are generally more reliable and compatible with a wider range of devices, while CH340G adapters are more affordable but may require additional drivers.
- Breadboard and Jumper Wires: For connecting and testing the circuit. These are useful for prototyping and ensuring that all connections are correct before soldering.
- Serial Device (e.g., Arduino, Raspberry Pi): To test the serial communication. These devices are popular for DIY projects and provide a straightforward way to test serial communication.
- USB Cable: For connecting the adapter to your computer. Ensure the cable is in good condition to avoid any connectivity issues.
- Soldering Iron and Solder: If you need to solder any connections. Soldering provides a more permanent and reliable connection compared to using jumper wires.
Steps to Make a Serial to USB Cable
Step 1: Connect the USB to TTL Serial Adapter
1. Connect the USB Cable: Plug one end of the USB cable into your computer and the other end into the USB to TTL serial adapter. This establishes the connection between your computer and the serial adapter.
2. Install Drivers: If necessary, install the drivers for your USB to TTL serial adapter. Most modern operating systems will automatically detect and install the necessary drivers, but some adapters may require manual installation.
Step 2: Connect the Serial Device

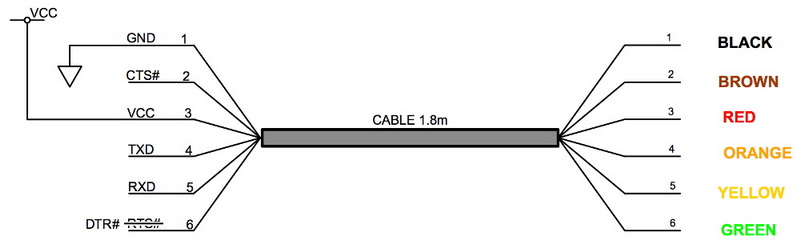

1. Identify Pins: Identify the TX (Transmit), RX (Receive), VCC (Power), and GND (Ground) pins on both the serial adapter and your device. Correctly identifying these pins is crucial to avoid damaging your device.
2. Connect Pins:
- Connect the TX pin of the serial adapter to the RX pin of your device. This allows data sent from your computer to be received by your device.
- Connect the RX pin of the serial adapter to the TX pin of your device. This allows data sent from your device to be received by your computer.
- Connect the VCC pin of the serial adapter to the power input of your device (if necessary). Ensure the voltage matches (e.g., 5V or 3.3V).
- Connect the GND pin of the serial adapter to the ground of your device. This completes the circuit and allows communication.
Step 3: Test the Connection
1. Open a Serial Terminal: Use a serial terminal program like PuTTY (Windows), minicom (Linux), or screen (MacOS) to connect to the serial port created by your adapter. These programs allow you to send and receive data over the serial connection.
2. Send and Receive Data: Type characters in the terminal to send them to your device. If everything is set up correctly, you should see the characters echoed back or processed by your device. This confirms that the serial communication is working.
Step 4: Optional - Add Power Supply
If your serial device requires power, you can connect the VCC pin of the serial adapter to the power input of your device. Ensure the voltage matches (e.g., 5V or 3.3V) and that the adapter can supply enough current for your device.
Troubleshooting Tips
- Check Connections: Ensure all connections are secure and correctly matched. Loose or incorrect connections are common causes of serial communication issues.
- Check Voltage Levels: Make sure the voltage levels of the serial adapter match those required by your device. Mismatched voltage levels can damage your device.
- Update Drivers: Ensure you have the latest drivers installed for your serial adapter. Outdated drivers can lead to compatibility issues.
Advanced Applications
Serial to USB cables are not just limited to basic communication. They can be used in a variety of advanced applications:
- Embedded Systems: Serial communication is often used in embedded systems for debugging and programming. For example, many microcontrollers like Arduino boards rely on serial communication for uploading code.
- Industrial Automation: Serial interfaces are used in industrial automation for controlling machinery and monitoring processes. RS232 is commonly used due to its robustness in noisy environments.
- GPS and Navigation: GPS modules often use serial communication to send location data to other devices. This is crucial for navigation systems in vehicles and handheld devices.
Common Issues and Solutions
Incorrect Connections
- Symptoms: Data is not transmitted correctly, or there is no response from the device.
- Solution: Double-check that all pins are correctly connected. Ensure TX is connected to RX and vice versa.
Voltage Mismatch
- Symptoms: Device does not power on or is damaged.
- Solution: Verify that the voltage output of the adapter matches the requirements of your device. Use a voltage regulator if necessary.
Driver Issues
- Symptoms: Computer does not recognize the serial adapter.
- Solution: Install or update the drivers for your serial adapter. Ensure the drivers are compatible with your operating system.
Conclusion
Creating a serial to USB cable is a straightforward process that allows you to connect serial devices to modern computers without serial ports. By following these steps and ensuring proper connections, you can establish reliable serial communication for debugging, data transfer, or other applications. Whether you're working with embedded systems, industrial automation, or navigation devices, serial communication remains a fundamental tool in electronics.
Frequently Asked Questions
1. What is the difference between RS232 and TTL serial?
- RS232 operates at higher voltage levels and is typically used in older devices, while TTL serial operates at lower voltage levels and is used in modern electronic devices.
2. How do I choose the right USB to TTL serial adapter?
- Choose an adapter that matches the voltage requirements of your device (e.g., 5V or 3.3V). Popular options include FTDI and CH340G-based adapters.
3. Why do I need to install drivers for my USB to TTL serial adapter?
- Drivers are necessary for your computer to recognize the adapter as a serial port. Most modern operating systems will automatically install drivers, but some may require manual installation.
4. Can I use a USB to TTL serial adapter to power my device?
- Yes, if the adapter provides a power output that matches your device's voltage requirements. However, ensure the adapter can supply enough current for your device.
5. How do I troubleshoot issues with my serial connection?
- Check all connections for security and correctness, ensure voltage levels match, and update drivers if necessary.
