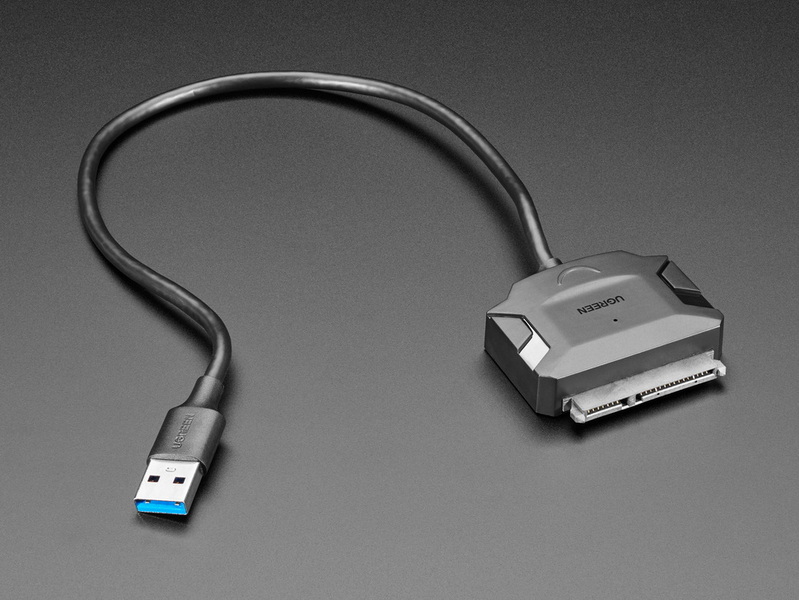

Creating a SATA to USB cable is a project that requires some technical knowledge and the right components. It involves converting a SATA drive, typically used inside a computer, into a removable USB device. This guide will walk you through the process, including the necessary materials, steps, and considerations for successfully making a SATA to USB cable.
Introduction to SATA and USB
SATA (Serial Advanced Technology Attachment) is a standard interface for connecting storage devices like hard drives and SSDs to a computer's motherboard. USB (Universal Serial Bus), on the other hand, is a widely used interface for connecting peripherals to a computer. To connect a SATA drive to a USB port, you need a bridge chip that can translate the SATA protocol into USB.
Materials Needed

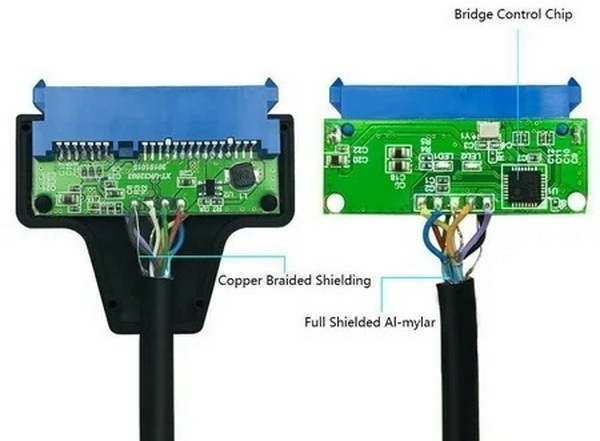

- SATA to USB Bridge Chip: This is the core component that converts SATA signals to USB. Popular options include the JMicron JMS567 and the ASMedia ASM1351.
- PCB (Printed Circuit Board): To mount the bridge chip and other components. You can design your own PCB using software like KiCad or Eagle.
- SATA Connector: For connecting the SATA drive. Ensure it matches the type of SATA drive you are using (e.g., SATA III).
- USB Connector: For connecting to a USB port. USB 3.0 or higher is recommended for faster data transfer.
- Power Supply: SATA drives require 3.3V, 5V, and 12V, while USB only provides 5V, so an external power source is necessary for 3.5-inch drives.
- Wires and Soldering Tools: For connecting components. High-quality solder and a reliable soldering iron are essential.
Step-by-Step Guide
Step 1: Design and Prepare the PCB
First, design a PCB that can accommodate the SATA to USB bridge chip. This chip is crucial for converting SATA signals to USB. You can use software like KiCad or Eagle to design the PCB. Ensure that the PCB layout is well-organized and allows for easy soldering.
Step 2: Mount Components on the PCB
Mount the bridge chip, SATA connector, and USB connector on the PCB. Ensure all components are securely soldered. Use a soldering iron with a fine tip to avoid damaging the components.
Step 3: Connect Power Supply

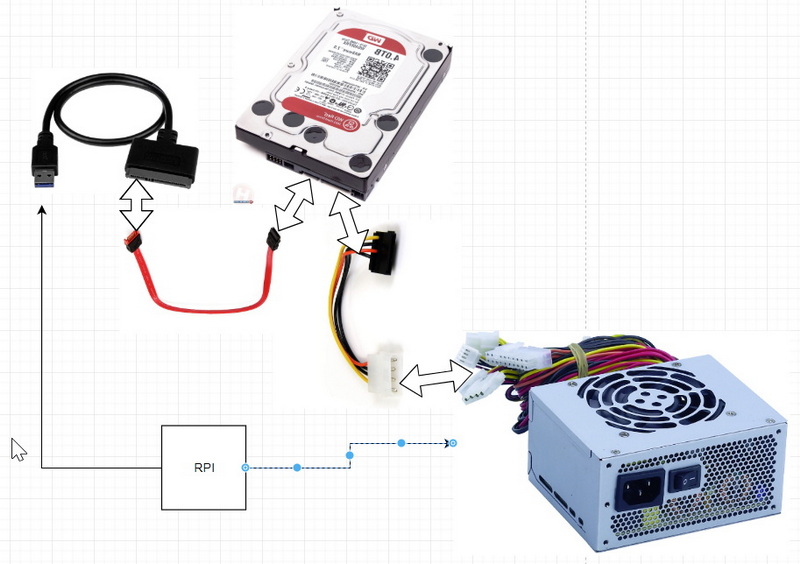

Connect the power supply to the PCB. For 3.5-inch drives, you will need an external power source to provide 12V. Use a regulated power supply to ensure stable voltage for your SATA drive.
Step 4: Test the Cable
Once everything is connected, test the cable by plugging it into a computer and ensuring the SATA drive is recognized. Check for any errors or warnings in the device manager.
Common Issues and Solutions
- Power Issues: Ensure the power supply is sufficient and stable. Overheating can occur if the power supply is inadequate.
- Recognition Issues: Check if the bridge chip is compatible with your SATA drive and computer. Some bridge chips may require specific drivers or firmware updates.
- Data Transfer Speed: If the data transfer speed is slow, ensure that you are using a USB 3.0 or higher port and that the bridge chip supports high-speed data transfer.
Problems and Solutions
1. How Do I Choose the Right SATA to USB Bridge Chip?
- Answer: Choose a chip that supports your SATA drive's speed and capacity. Ensure it is compatible with your computer's USB version. Popular options include the JMicron JMS567 and the ASMedia ASM1351.
2. What Power Supply Do I Need for a 3.5-Inch SATA Drive?
- Answer: You need a power supply that can provide 12V, as USB ports only provide 5V. A regulated power supply is recommended to prevent voltage fluctuations.
3. Can I Use a Regular USB Cable for This Conversion?
- Answer: No, a regular USB cable cannot directly connect SATA to USB without a bridge chip. The bridge chip is necessary for converting SATA signals to USB.
4. How Do I Ensure Stable Power for My SATA Drive?
- Answer: Use a regulated power supply to ensure stable voltage for your SATA drive. This helps prevent data corruption and ensures reliable operation.

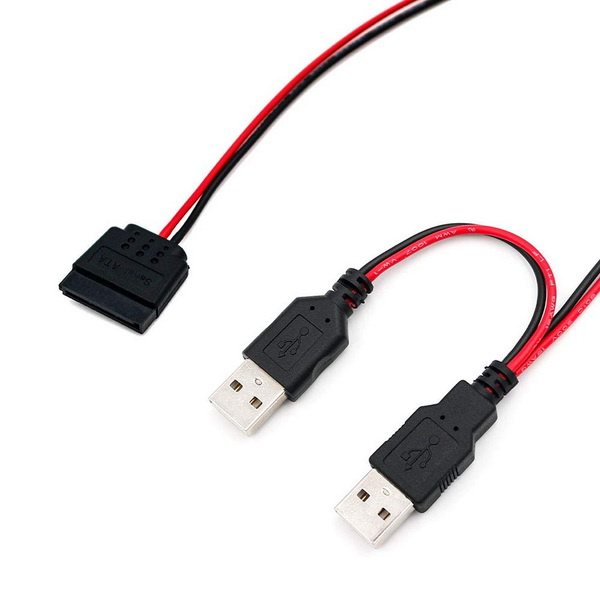

5. Can I Split a SATA Connection to Two USB Ports?
- Answer: While technically possible with the right circuitry, it's not straightforward and typically requires additional components. This setup may also affect data transfer speeds and reliability.
Advanced Considerations
Cooling and Heat Dissipation
When using high-capacity SATA drives, especially SSDs, heat dissipation becomes important. Ensure that your setup allows for adequate airflow or consider using a heatsink if necessary.
Compatibility with Different SATA Drives
Different SATA drives have varying speeds and capacities. Ensure that your bridge chip supports the specific SATA drive you are using. Some bridge chips may have limitations on the maximum capacity or speed they can handle.
Future Upgrades and Compatibility
As technology advances, newer SATA drives and USB standards emerge. Consider using bridge chips that support future-proof technologies like USB 3.2 Gen 2 or higher for faster data transfer speeds.
Troubleshooting Tips
- Device Not Recognized: Check the power supply and ensure all connections are secure. Try using a different USB port or updating the bridge chip's firmware.
- Slow Data Transfer: Ensure you are using a high-speed USB port and that the bridge chip supports fast data transfer. Check for any firmware updates for the bridge chip.
Conclusion
Creating a SATA to USB cable is a rewarding project that allows you to convert internal SATA drives into portable USB devices. However, it requires careful planning, the right components, and some technical expertise. By following this guide and understanding the common issues and solutions, you can successfully make your own SATA to USB cable.
FAQ
Q1: What is the purpose of a SATA to USB bridge chip?
- A: It converts SATA signals to USB, allowing SATA drives to be connected via USB.
Q2: Can I use a USB cable to directly connect SATA to USB?
- A: No, a bridge chip is necessary for the conversion.
Q3: How do I power a 3.5-inch SATA drive via USB?
- A: You need an external power source to provide 12V.
Q4: What materials are needed to make a SATA to USB cable?
- A: SATA to USB bridge chip, PCB, SATA connector, USB connector, power supply, and wires.
Q5: Is it possible to split a SATA connection to two USB ports?
- A: Technically possible but requires additional components and circuitry.
