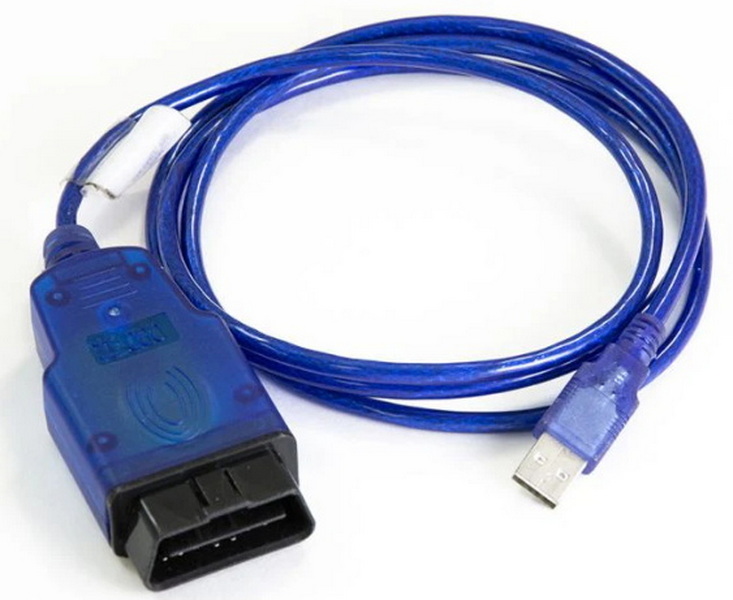

Creating an OBD2 USB cable is a practical project for car enthusiasts who want to monitor their vehicle's performance and diagnose issues using a computer. This guide will walk you through the process, highlighting the necessary components, steps, and troubleshooting tips. It also includes a section on frequently asked questions and common problems you might encounter.
OBD2 (On-Board Diagnostics II) is a standardized system that allows vehicles to self-diagnose and report issues. It uses a 16-pin connector, typically located near the steering column, to communicate with external devices. The OBD2 system supports various protocols, including CAN (Controller Area Network), which is the most common in modern vehicles.

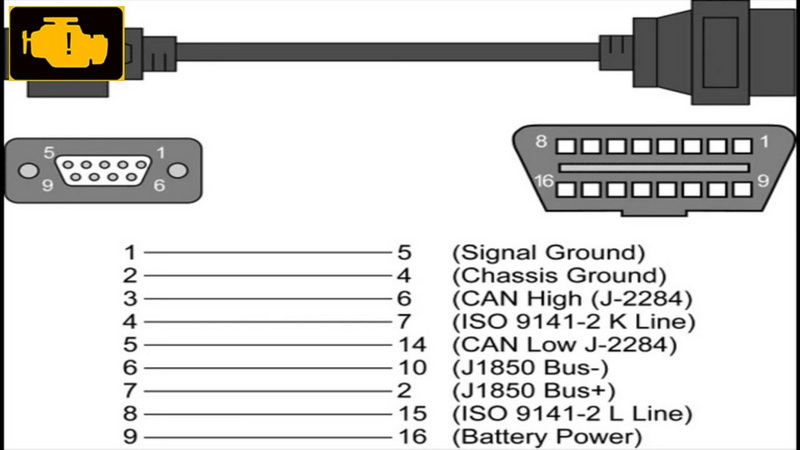

The OBD2 connector has 16 pins, each serving a specific function:
- Pin 1: Battery Positive (12V)
- Pin 2: Bus Positive Line (J1850 PWM)
- Pin 3: Bus Negative Line (J1850 PWM)
- Pin 4: Chassis Ground
- Pin 5: Signal Ground
- Pin 6: CAN High (CAN Bus)
- Pin 7: K-Line (ISO 9141-2)
- Pin 8: L-Line (ISO 9141-2)
- Pin 9: CAN Low (CAN Bus)
- Pin 10: Bus Negative Line (J1850 VPW)
- Pin 11: Bus Positive Line (J1850 VPW)
- Pin 12: Not Used
- Pin 13: Not Used
- Pin 14: CAN High (CAN Bus)
- Pin 15: L-Line (ISO 9141-2)
- Pin 16: Battery Positive (12V)
To make an OBD2 USB cable, you will need:
- OBD2 Connector (Female): This plugs into your car's OBD2 port.
- USB to TTL Serial Converter: Converts USB signals to serial signals that the OBD2 system can understand.
- Wires: For connecting the USB converter to the OBD2 connector.
- Soldering Iron and Solder: For making connections.
1. Acquire an OBD2 Female Connector: Ensure it matches the type used in your vehicle (Type A for cars).
2. Identify the Pins: Familiarize yourself with the pinout to avoid confusion.

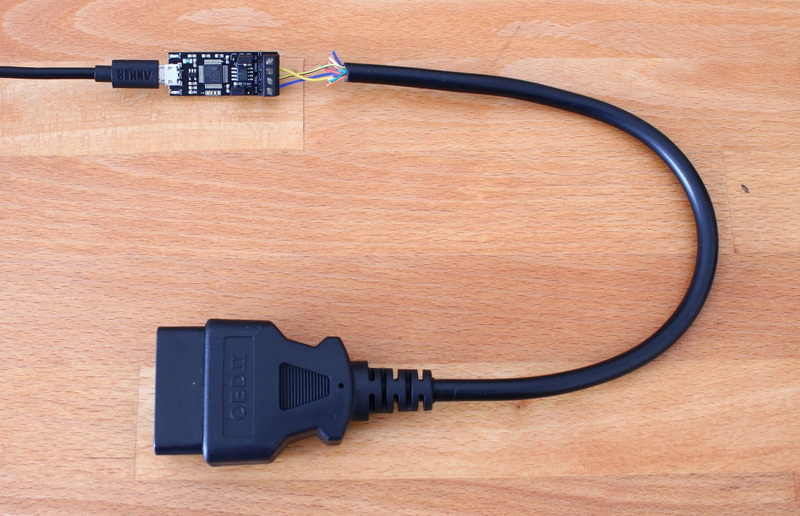

1. Choose a Converter: Select a USB to TTL serial converter with 5V, GND, TX, and RX wires.
2. Cut the Wires: Expose the ends of the green (TX), white (RX), and black (GND) wires.
1. Connect the Ground Wire: Black wire to Pin 5 (Signal Ground).
2. Connect the RX Wire: White wire to Pin 8 (L-Line for ISO 9141-2) or Pin 7 (K-Line for ISO 9141-2), depending on your vehicle's protocol.
3. Connect the TX Wire: Green wire to Pin 9 (CAN Low) if using CAN Bus, or Pin 7 (K-Line) for ISO 9141-2.
4. Leave the 5V Wire Unconnected: The OBD2 system is powered by the vehicle.
1. Plug into the Vehicle: Connect the OBD2 connector to the vehicle's port.
2. Turn the Ignition On: Ensure the vehicle's ignition is in the "on" position.
3. Connect to a Computer: Plug the USB end into a computer.
4. Use OBD2 Software: Open OBD2 software (like ECU Scan or ScanTool) to test the connection.
- Check the Connection: Ensure all wires are securely soldered.
- Verify the Protocol: Use the correct protocol for your vehicle.
- Update Drivers: Ensure USB to TTL drivers are up to date.
Solution: Check the ignition is on, and the OBD2 connector is securely plugged in. Ensure the correct protocol is selected in your software.
Solution: Research compatible software for your vehicle's protocol. Popular options include ECU Scan, ScanTool, and OBD Auto Doctor.
Solution: Not all converters are compatible. Ensure the converter supports the baud rate required by your vehicle's OBD2 system.
Solution: Some vehicles may not support all Parameter IDs (PIDs). Check your vehicle's manual or consult with a mechanic.
Solution: Use heat shrink tubing or cable ties to protect the wires. Avoid exposing the cable to extreme temperatures or moisture.
OBD2 allows you to monitor real-time data such as engine speed, coolant temperature, and fuel consumption. This can help you optimize your driving habits and improve fuel efficiency.
If your vehicle's OBD2 system detects a problem, it will store a DTC. Using an OBD2 cable and software, you can read these codes to diagnose issues without visiting a mechanic.
Some OBD2 software allows you to adjust vehicle performance parameters, such as engine timing or fuel injection rates. However, this should be done with caution and ideally by a professional.
- Avoid Overvoltage: Ensure your USB converter does not supply voltage to the OBD2 system, as this can damage your vehicle's electronics.
- Use Proper Insulation: Insulate exposed wires to prevent short circuits.
- Consult a Professional: If unsure about any part of the process, consult a mechanic or electronics expert.
Creating an OBD2 USB cable is a rewarding project that allows you to monitor and diagnose your vehicle's performance using a computer. By following these steps and troubleshooting tips, you can ensure a successful connection and enjoy the benefits of OBD2 diagnostics.
- The OBD2 system is designed to monitor and report vehicle performance issues, helping diagnose problems and improve fuel efficiency.
- No, ensure your vehicle is OBD2 compatible. Most vehicles manufactured after 1996 are compatible.
- Check your vehicle's manual or consult with a mechanic to determine the correct protocol (e.g., CAN, ISO 9141-2).
- While possible with crimp connectors, soldering provides a more reliable connection.
- Generally safe, but avoid leaving it connected for extended periods when the vehicle is off to prevent battery drain.
