Creating a micro USB to HDMI cable is an intriguing project for tech enthusiasts, but it requires a solid understanding of electronics and the right tools. This guide will walk you through the process, explain the challenges, and provide alternative solutions for connecting your micro USB devices to HDMI-enabled displays.
Understanding Micro USB and HDMI Technologies
Before diving into the process, it's essential to understand the fundamental differences between micro USB and HDMI:
- Micro USB: Primarily used for data transfer and charging, it operates on a protocol designed for communication between devices. Micro USB ports are commonly found on older smartphones and tablets, as well as various other electronic devices.
- HDMI: A standard for transmitting high-definition video and audio signals, designed for point-to-point connections. HDMI is widely used in home entertainment systems, including TVs, projectors, and gaming consoles.
Due to these differences, creating a direct cable is not as simple as splicing wires. Instead, active adapters or converters are required to bridge the gap between these two technologies. These adapters convert the digital signals from micro USB into a format that HDMI can understand.
What You'll Need
To make a functional micro USB to HDMI cable or adapter, gather the following tools and components:
1. Micro USB Connector: A male connector compatible with your device. Ensure it matches the type of micro USB port on your device (e.g., micro USB-B).
2. HDMI Connector: A male connector to connect to your TV or monitor. Typically, this is an HDMI Type A connector.
3. Active Converter Chip: Necessary for converting micro USB signals into HDMI-compatible signals. This chip is crucial for handling the complex signal conversion required.
4. Soldering Kit: For assembling the components. This includes a soldering iron, solder, and possibly a soldering stand.
5. Heat Shrink Tubing: To insulate the connections and protect them from environmental factors.
6. Multimeter: To test connectivity and ensure proper wiring before plugging the cable into your devices.
7. Cable Management Tools: Optional tools like cable ties or electrical tape can help keep the assembly organized.
Step-by-Step Guide
Step 1: Understand Your Device's Requirements
Some devices support MHL (Mobile High-Definition Link) technology, which allows micro USB ports to output HDMI signals. Check your device specifications to determine if it supports MHL. If not, you'll need an active converter.
Step 2: Prepare the Components
- Strip the wires of both the micro USB and HDMI cables.

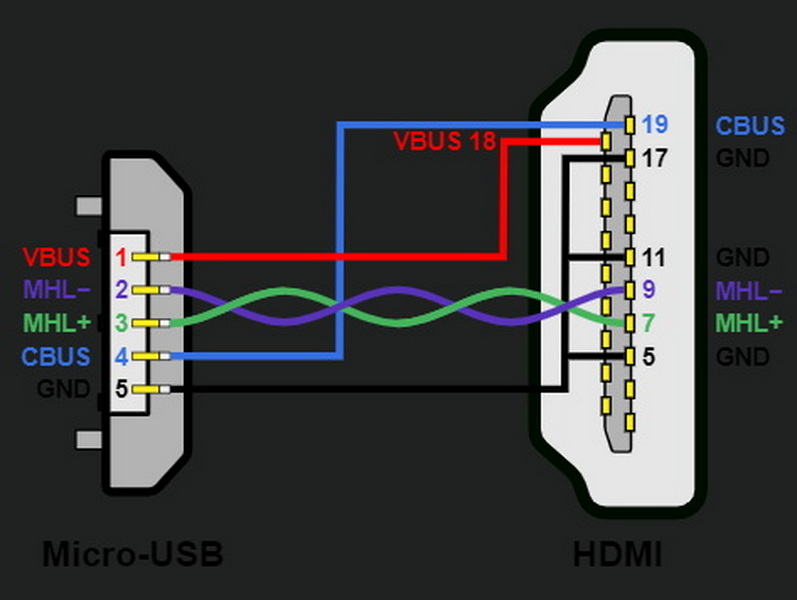

- Identify the pins on each connector using their respective pinout diagrams. For micro USB, there are typically five pins (VCC, D-, D+, ID, and GND), while HDMI has 19 pins.
Step 3: Connect the Wires
Using a soldering iron:
- Match the corresponding pins (e.g., power, ground) from the micro USB to the HDMI connector.
- Attach an active converter chip between the connectors if required. This chip will handle the signal conversion necessary for HDMI output.
Step 4: Insulate and Test
- Use heat shrink tubing to cover exposed wires.
- Test the cable using a multimeter to ensure proper connections before plugging it into your devices. This step is crucial to avoid damaging your equipment.
Step 5: Final Assembly
Secure all components inside a casing or use electrical tape for protection. Ensure the assembly is durable and can withstand regular use.
Challenges and Limitations
1. Signal Conversion: Micro USB does not natively support video output unless paired with MHL or similar technologies. This means that without an active converter, you cannot achieve HDMI output.
2. Device Compatibility: Not all devices support MHL or video output through micro USB. Always check your device's specifications before attempting to build or purchase an adapter.
3. Complexity: Building such a cable requires technical expertise and precision. Incorrect wiring can lead to device damage or safety hazards.
Alternative Solutions
If building a cable seems too complex, consider these alternatives:

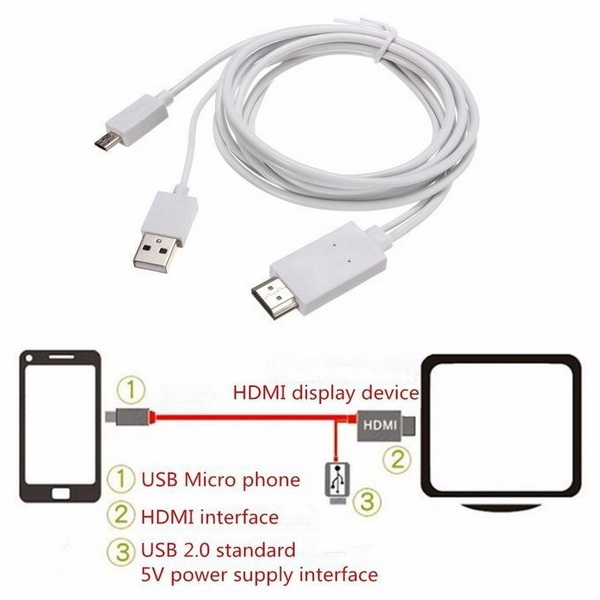

1. Purchase an MHL Adapter: These adapters are pre-built with active converters and are plug-and-play. They are widely available for devices that support MHL.
2. Use Wireless Casting Devices: Devices like Chromecast or Amazon Fire Stick can mirror your screen wirelessly, eliminating the need for cables altogether.
3. USB-C to HDMI Adapters: If your device supports USB-C, these adapters are more straightforward and often do not require active conversion for video output.
Advanced Considerations
For those interested in exploring more advanced solutions, consider the following:
- Custom Enclosures: Designing a custom enclosure can provide better protection and aesthetics for your DIY adapter.
- Signal Quality: Ensure that your cable or adapter maintains high signal quality to avoid video degradation or lag.
- Power Requirements: Some adapters may require external power sources to operate effectively, especially if they handle high-resolution video output.
Troubleshooting Common Issues
When building or using a micro USB to HDMI adapter, you might encounter several issues:
- No Video Output: Check if your device supports MHL or if the active converter is functioning correctly.
- Poor Video Quality: Ensure proper connections and consider using higher-quality cables or adapters.
- Device Not Recognized: Verify that the adapter is properly connected and powered if necessary.
Future Developments
As technology evolves, newer standards like USB-C and Thunderbolt are becoming more prevalent, offering easier and more versatile connectivity options. These newer ports often support multiple protocols, including video output, making adapters simpler and more efficient.
Conclusion
While making a micro USB to HDMI cable is technically possible, it requires advanced skills and specialized components like an active converter chip. For most users, purchasing a ready-made adapter is a more practical solution. Whether you choose DIY or pre-built options, understanding your device's requirements is crucial for success.
FAQ
1. Can I splice a micro USB cable directly to an HDMI cable?
No, splicing is not sufficient because micro USB and HDMI use different communication protocols. An active converter is required to handle the signal conversion.
2. What is an MHL adapter?
MHL (Mobile High-Definition Link) adapters convert micro USB signals into HDMI-compatible signals, enabling video output from supported devices.
3. Are there any risks in making my own cable?
Yes, improper wiring can damage your devices or pose safety hazards. Always proceed with caution and test connections thoroughly.
4. How do I know if my device supports MHL?
Check your device's specifications in its user manual or online documentation for MHL compatibility.
5. Is it cheaper to make my own cable than buying one?
In most cases, purchasing an adapter is more cost-effective and reliable than building one from scratch due to the complexity of signal conversion.
