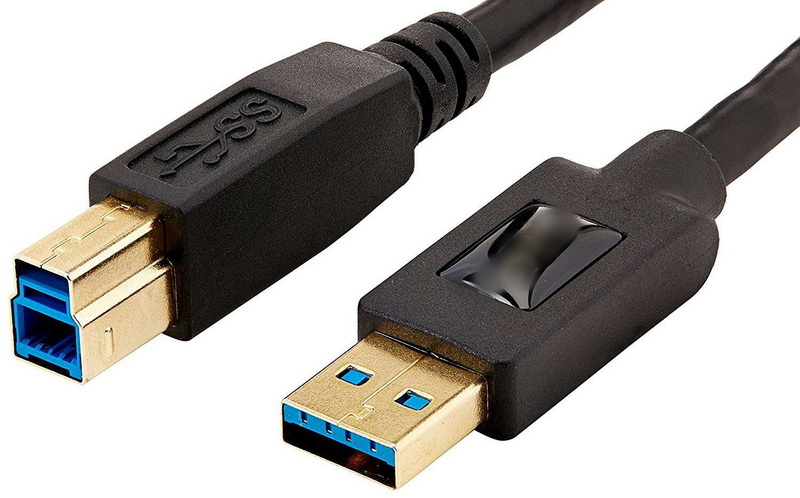

Fixing a broken USB cable end can be a cost-effective and environmentally friendly way to extend the life of your cables. Whether you're dealing with a Micro USB, USB-C, or standard USB cable, the process involves similar steps. This guide will walk you through the process, including materials needed, step-by-step instructions, and troubleshooting tips.
USB cables are ubiquitous in today's digital world, used for charging devices, transferring data, and connecting peripherals. However, with frequent use, these cables can wear out, especially at the connector ends. The good news is that repairing a USB cable is relatively straightforward and requires minimal tools.
To fix a USB cable end, you will need:
- USB Connector Replacement: Available in various types (e.g., Micro USB, USB-C) and can be purchased online.
- Wire Stripper: For stripping the insulation off the wires.
- Soldering Iron and Solder: For connecting the wires to the new connector.
- Electrical Tape or Hot Glue: For insulating and strengthening the connections.
- Pliers: For assembling the connector parts.
Identify the damaged part of the cable and cut it off using a pair of scissors or a utility knife. Be careful not to cut too much of the cable, as you want to preserve as much length as possible. It's also important to ensure that you cut the cable straight to avoid any uneven edges that might complicate the repair process.
Use a wire stripper to remove the outer insulation of the cable, exposing the inner wires. Be gentle to avoid damaging the wires. The outer jacket is typically made of a durable plastic material designed to protect the inner wires from environmental factors.
Strip the insulation off the ends of the inner wires using a wire stripper. This will expose the conductive parts of the wires. For most USB cables, you will find four or five wires inside:
- Red: 5V (Power)
- Black: GND (Ground)
- Green: Data+ (Positive Data)
- White: Data- (Negative Data)
- Drain Wire (if present): Connect to GND
If your new connector comes in parts, assemble it according to the manufacturer's instructions. Typically, you will have an outer shell and the connector itself. Ensure all parts are securely fitted together before proceeding.

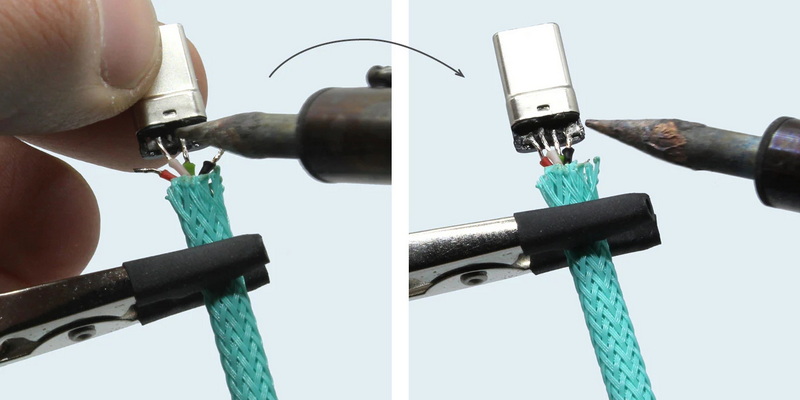

Match the wires to the correct pins on the connector. Solder each wire carefully to its corresponding pin. Make sure the solder flows smoothly and covers the entire connection point. It's crucial to avoid creating short circuits between the wires.
Use electrical tape or hot glue to insulate the soldered connections and strengthen the assembly. This step is important for preventing electrical shorts and ensuring the durability of the repair.
Place the wires through the outer shell of the connector and press everything together using pliers. Ensure the connector is securely closed to prevent any wires from coming loose over time.
- Check for Short Circuits: Use a multimeter to ensure there are no short circuits between the wires. This is a critical step to ensure the cable functions properly and safely.
- Test the Cable: Plug the repaired cable into a device to test if it works properly. Start with a simple task like charging a phone to verify the power connection, then proceed to test data transfer if applicable.
Solution: Check if the power wires (5V and GND) are properly connected. Ensure there are no short circuits. If the issue persists, verify that the soldering is secure and not causing any resistance.
Solution: Use cable protectors or sleeves to reduce wear at the connector ends. Handle cables gently to avoid bending or stretching. Regularly inspect your cables for signs of wear and address any issues promptly.
Solution: Yes, but USB-C cables often have more complex wiring and may require additional steps for data transfer lines. Always refer to the specific connector's datasheet for detailed instructions. USB-C cables also support faster data transfer rates and power delivery, so ensure your replacement connector supports these features if needed.
Solution: Consider using a solderless connector or seeking help from someone with soldering experience. Solderless connectors are available for many types of USB cables and can simplify the repair process.
Solution: Replacement connectors are available online from retailers like AliExpress, Amazon, or eBay. Ensure you purchase connectors that match your cable type and quality standards.
For more complex repairs, such as fixing a damaged USB-C cable with multiple data lines, you may need to use specialized tools like a USB-C breakout board to identify and connect each wire correctly. Additionally, some cables may have additional features like USB Power Delivery (PD), which require specific connectors to function properly.
When working with electrical components, safety is paramount. Always use protective gear like gloves and safety glasses when soldering. Ensure your workspace is well-ventilated and free from flammable materials.
Fixing a broken USB cable end is a simple DIY project that can save you money and reduce electronic waste. By following these steps and using the right materials, you can extend the life of your cables and keep your devices connected. Remember to handle the cables with care to prevent future damage.
