USB-C cables have become ubiquitous in modern electronics, offering high-speed data transfer and power delivery. However, like any other electronic component, they can suffer from wear and tear, leading to damage that may require repair. Repairing a broken USB-C cable can be challenging due to its complexity, but with the right tools and techniques, it's possible to restore its functionality without needing a replacement.
USB-C, also known as USB Type-C, is a versatile connector that can be used for both data transfer and power delivery. It supports multiple protocols, including USB 3.2, DisplayPort, and Power Delivery (PD), making it a convenient option for charging devices and transferring data. The reversible design of USB-C connectors also simplifies the connection process, as users no longer need to worry about the orientation of the plug.
Repairing a USB-C cable can be cost-effective and environmentally friendly. Instead of purchasing a new cable, which contributes to electronic waste, repairing the existing one extends its lifespan and reduces waste. Additionally, repairing cables can help develop DIY skills and provide a sense of accomplishment.
To repair a USB-C cable, you'll need the following tools:
- Soldering Iron and Solder: For connecting wires to the connector's solder pads.
- Cutter or Knife: To carefully cut the heat shrink tube and open the connector housing.
- Pliers: For handling small components and bending metal parts.
- Heat Shrink Tube: To insulate the repaired area.
- Lighter or Heat Gun: To shrink the heat shrink tube.
- Wire Strippers: To strip the insulation from the ends of the wires.
1. Unplug the Cable: Ensure the cable is disconnected from any power source.

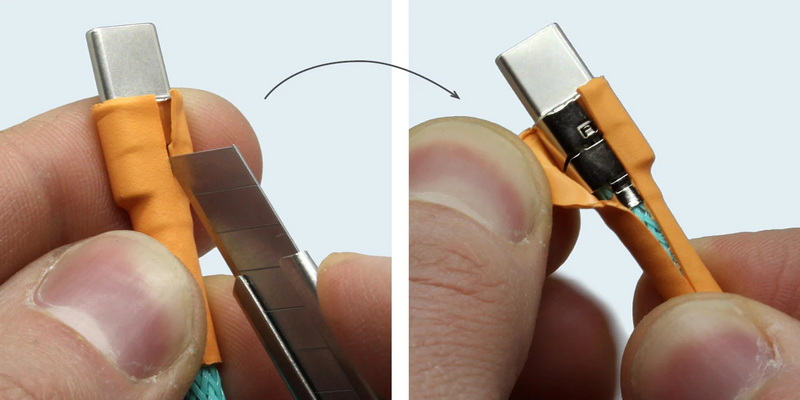

2. Remove Heat Shrink Tube: Carefully cut the heat shrink tube lengthwise and peel it off. This will expose the internal wires and any damaged sections.

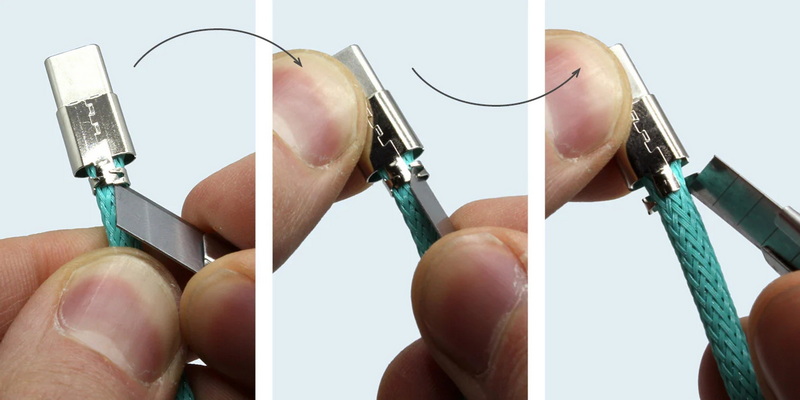

1. Bend Open Clips: Use a cutter or knife to bend open the strain relief clips.
2. Open the Housing: Carefully pry open the metal housing without breaking the hinge. This step requires patience to avoid damaging the connector's internal components.
1. Melt Solder: Use a soldering iron to melt the solder on each wire connection.
2. Remove Wires: Gently pull the wires off the solder pads. Be careful not to pull too hard, as this can damage the pads or the wires themselves.
1. Identify Damage: Locate the damaged part of the cable. This could be a frayed section or a spot where the insulation is cracked.
2. Cut the Cable: Use a side cutter to cut off the damaged section. Ensure that the cut is clean and does not leave any frayed ends.
1. Expose Strands: Strip the insulation from the ends of the wires using wire strippers.
2. Tin the Wires: Apply solder to the exposed strands. This helps create a strong bond when soldering the wires back together.
1. Match Wires to Pads: Align the wires with their corresponding solder pads. Ensure that each wire is connected to the correct pad to maintain the cable's functionality.
2. Solder the Connections: Use the soldering iron to secure the wires to the pads. Apply a small amount of solder to avoid creating a mess.
1. Apply Heat Shrink Tube: Slide the heat shrink tube over the repaired section. Ensure that the tube covers all exposed wires.
2. Shrink the Tube: Use a lighter or heat gun to shrink the tube. This will provide insulation and protect the repaired area from further damage.

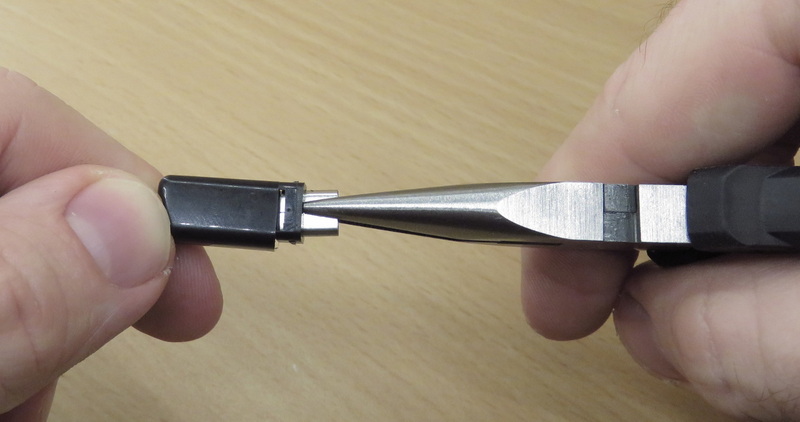

If the USB-C connector is loose, it may be due to wear on the springs inside the connector. In such cases, repairing the connector itself can be challenging, and it might be more practical to replace the cable. However, if the issue is with the cable's strain relief, you can try tightening it or replacing the strain relief mechanism.
Frayed wires can cause connectivity issues. Cutting off the damaged section and soldering the wires back together can resolve this problem. It's essential to ensure that the wires are properly insulated after repair to prevent short circuits.
Corrosion on the connector or solder pads can also affect the cable's performance. Cleaning the corrosion with a gentle chemical solution or replacing the affected parts may be necessary.
To extend the lifespan of your USB-C cables and prevent future damage, consider the following tips:
- Handle Cables Gently: Avoid bending or twisting the cables excessively, as this can cause stress on the internal wires.
- Store Cables Properly: Coil cables neatly and store them in a dry place to prevent moisture damage.
- Regular Inspection: Periodically inspect your cables for signs of wear, such as frayed wires or cracked insulation.
For more complex repairs, such as fixing damaged connectors or replacing internal components, specialized tools and expertise may be required. In these cases, consulting professional repair services might be the best option.
Repairing a broken USB-C cable requires patience and attention to detail but can be a rewarding process that extends the life of your cable. While it's not always possible to fix every issue, especially with complex connectors, many problems can be resolved with basic soldering skills and the right tools.
Not all USB-C cables can be repaired, especially if the damage involves complex components like the connector's internal springs. In such cases, replacing the cable might be more practical.
If your cable doesn't charge after repair, check the solder connections for any defects or short circuits. Ensure that all wires are properly connected to their corresponding pads.
Using a repaired USB-C cable is generally safe if the repair is done correctly. However, if the cable was damaged due to a short circuit or overheating, it might still pose a risk.
To prevent breakage, handle cables gently, avoid bending them excessively, and store them properly. Regularly inspecting the cables for signs of wear can also help identify potential issues early.
Replace your USB-C cable if the damage is extensive, involves complex components, or if you're not comfortable with the repair process. Replacing the cable ensures reliability and safety.
