Extending a USB cable using CAT5 Ethernet cables is a practical solution for situations where USB devices need to be connected over longer distances than standard USB cables allow. This method leverages the existing infrastructure of Ethernet cables, such as CAT5 or CAT6, to transmit USB signals. In this article, we will explore how to achieve this extension, the necessary hardware, and the benefits and limitations of using CAT5 cables for USB signal transmission.

how to extend a usb cable using cat5_3

Introduction to USB and CAT5 Cables

USB (Universal Serial Bus) cables are widely used for connecting peripherals to computers, but they have a limited range, typically up to 5 meters (16.4 feet) for USB 2.0 and 3 meters (9.8 feet) for USB 3.0/3.1. CAT5 and CAT6 cables, on the other hand, are designed for Ethernet connections and can support much longer distances without significant signal degradation.

Why Use CAT5 for USB Extension?

Using CAT5 cables for USB extension offers several advantages:

- Cost-Effectiveness: CAT5 cables are often less expensive than specialized USB extension cables.

- Convenience: CAT5 cables can be easily run and terminated to custom lengths, making them ideal for extending USB connections in environments where Ethernet infrastructure already exists.

- Distance: CAT5 cables can support longer distances compared to standard USB cables, making them suitable for applications where devices need to be placed far apart.

Necessary Hardware for USB over CAT5

To extend a USB connection using CAT5, you will need the following hardware:

- CAT5 or CAT6 Cables: These are the Ethernet cables used to transmit the USB signal.

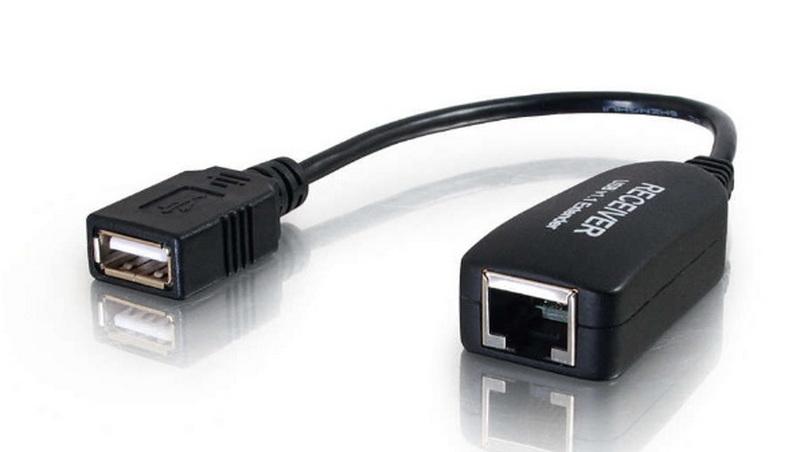

- RJ45 to USB Adapters: These adapters convert the USB signal to and from the RJ45 connector format used by Ethernet cables.

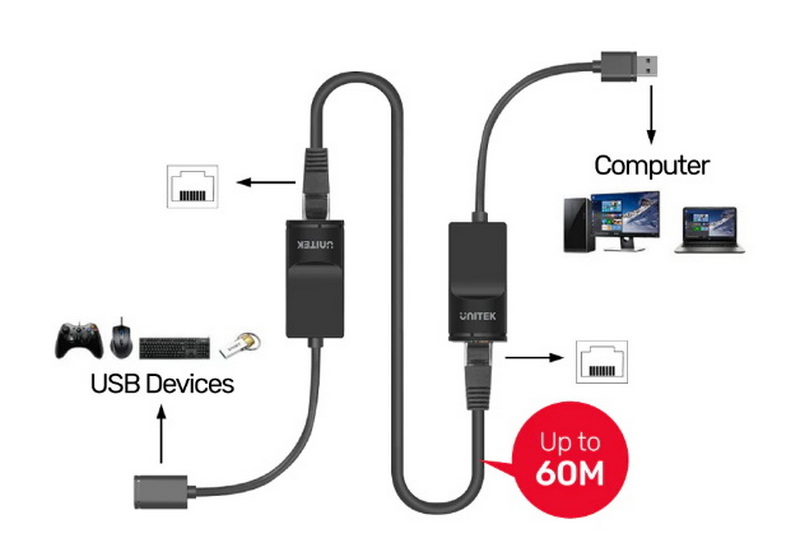

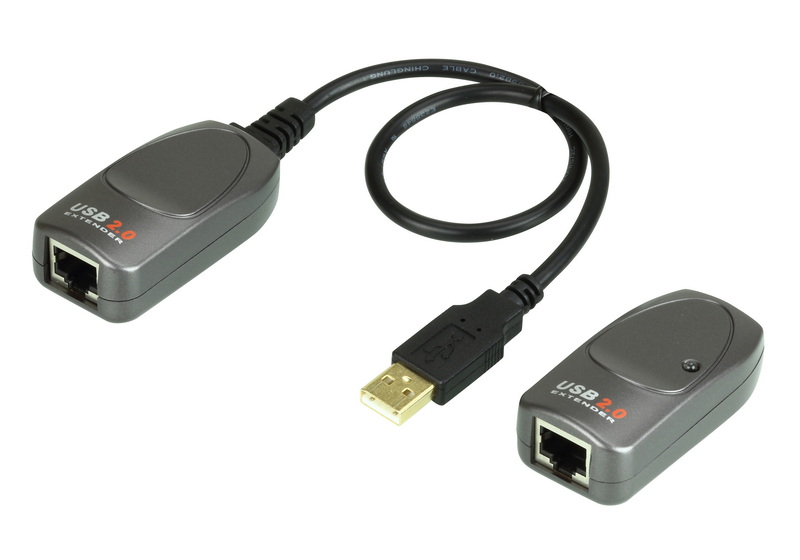

- USB over CAT5 Extenders: These are specialized devices that can amplify and repeat the USB signal to ensure reliable transmission over longer distances.

How to Set Up USB over CAT5

Setting up a USB over CAT5 connection involves the following steps:

1. Prepare the CAT5 Cable: Ensure the CAT5 cable is properly terminated with RJ45 connectors. This involves using a cable tester to verify that all wires are correctly connected and that there are no shorts or opens.

2. Connect the RJ45 to USB Adapters: Attach these adapters to both ends of the CAT5 cable. One end connects to the USB device, and the other end connects to the computer or hub. Make sure the adapters are compatible with the type of USB connection you are using (e.g., USB 2.0, USB 3.0).

3. Use USB over CAT5 Extenders if Necessary: For longer distances, use extenders to boost the signal. These extenders can be active or passive, depending on the length and quality of the signal required.

how to extend a usb cable using cat5_1

Benefits and Limitations

Benefits

- Longer Distance Support: CAT5 cables can support distances much longer than standard USB cables.

- Cost-Effective: Utilizes existing Ethernet infrastructure, reducing the need for specialized cables.

- Flexibility: Can be used in various environments, from home offices to large commercial spaces.

Limitations

- Signal Quality: The quality of the signal may degrade over longer distances, affecting device performance. This can be mitigated by using high-quality extenders and ensuring proper cable termination.

- Power Delivery: USB devices require power, which can be limited by the length of the cable and the efficiency of the power delivery system. Active extenders can help maintain power levels over longer distances.

- Compatibility: Not all USB devices are compatible with CAT5 extenders, so it's crucial to check compatibility before setting up.

Common Applications

USB over CAT5 is commonly used in scenarios where devices need to be placed far from the computer, such as:

- Security Cameras: Extending USB connections for security cameras to monitor remote areas. This is particularly useful in large facilities where cameras need to be placed at a distance from the monitoring station.

- Printers and Scanners: Placing printers or scanners in a central location accessible by multiple users. This can help streamline office workflows by allowing shared access to these devices.

- Home Automation: Extending USB connections for home automation devices, such as smart home hubs or sensors, which often need to be placed in strategic locations around the house.

how to extend a usb cable using cat5_4

Troubleshooting Common Issues

When using USB over CAT5, common issues include signal degradation and power delivery problems. These can be addressed by using high-quality extenders and ensuring proper cable termination. Here are some troubleshooting steps:

- Check Cable Quality: Ensure that the CAT5 cable is of high quality and properly terminated.

- Use Active Extenders: For longer distances, active extenders can help maintain signal strength and power delivery.

- Verify Compatibility: Ensure that all devices and extenders are compatible with each other.

Advanced Considerations

Power Delivery Over Long Distances

Power delivery is a critical aspect of extending USB connections. USB devices require power to operate, and this power must be delivered over the extended cable. Active extenders can help maintain power levels by boosting the voltage and current as needed. However, even with active extenders, there are limits to how far power can be delivered reliably. For very long distances, it may be necessary to use external power sources or power injectors to ensure that devices receive enough power.

Signal Integrity and Interference

Signal integrity is crucial for maintaining reliable data transmission over extended distances. CAT5 cables are designed to minimize electromagnetic interference (EMI), but improper termination or poor cable quality can introduce signal degradation. Using high-quality cables and ensuring proper termination can help mitigate these issues. Additionally, using shielded CAT5 cables can further reduce EMI and improve signal integrity.

Frequently Asked Questions and Solutions

1. What is the maximum distance for USB over CAT5?

The maximum distance for USB over CAT5 can vary depending on the quality of the cable and the extenders used. Generally, distances up to 100 meters (330 feet) are possible with the right equipment.

2. Can I use any CAT5 cable for USB extension?

While any CAT5 cable can be used, it's recommended to use high-quality cables to minimize signal degradation. CAT6 cables offer even better performance due to their higher bandwidth.

3. Do I need special software for USB over CAT5?

No special software is required for most USB over CAT5 setups. However, some extenders may come with software for configuration or monitoring.

4. Can I power devices over long distances using USB over CAT5?

Power delivery over long distances can be challenging due to voltage drop. Using active extenders or power injectors can help maintain sufficient power to devices.

5. Is USB over CAT5 secure?

USB over CAT5 is generally secure as it uses physical cables, which are harder to intercept compared to wireless connections. However, ensure that all devices connected are trusted.

Conclusion

Extending a USB cable using CAT5 is a viable solution for applications requiring longer distances than standard USB cables allow. While it offers cost-effectiveness and convenience, it also comes with limitations such as signal degradation and power delivery issues. By understanding the necessary hardware and setup process, users can effectively utilize this method to meet their connectivity needs. Whether for home use or in commercial environments, USB over CAT5 can provide a reliable and flexible way to connect devices over extended distances.

how to extend a usb cable using cat5_2

FAQs:

1: What is the primary advantage of using CAT5 for USB extension?

A: The primary advantage is the ability to extend USB connections over longer distances at a lower cost.

2: Can I use CAT5 cables for USB 3.0 devices?

A: Yes, but ensure that the extenders and adapters support USB 3.0 speeds.

3: How do I troubleshoot signal degradation issues?

A: Check the quality of the CAT5 cable and ensure proper termination. Use high-quality extenders if necessary.

4: Is USB over CAT5 compatible with all USB devices?

A: Most USB devices are compatible, but check the specifications of the extenders and adapters to ensure compatibility with your specific device.

5: Can I use USB over CAT5 for high-bandwidth devices like external hard drives?

A: Yes, but ensure that the extenders support the required bandwidth for your device.
