Introduction

LED strips have become increasingly popular for their versatility and ease of use in various lighting applications. One of the most convenient ways to power these strips is by using a USB cable. This guide will walk you through the process of connecting a USB cable to an LED strip, providing you with detailed instructions, helpful tips, and important considerations to ensure a successful setup.

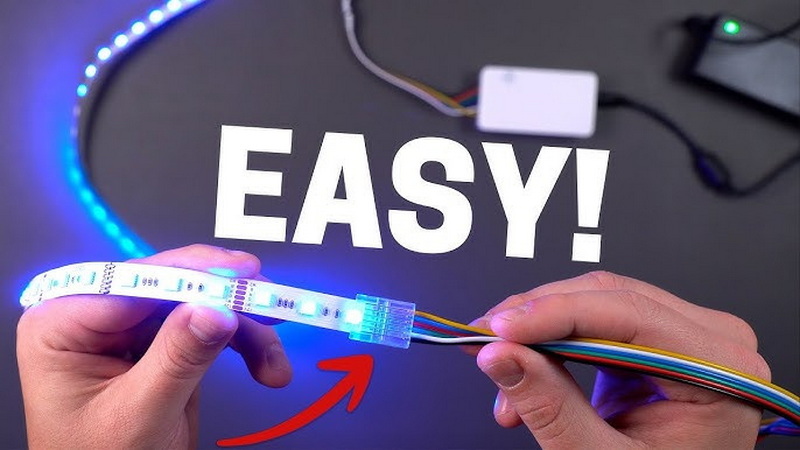

how to connect usb cable to led strip_4

Understanding LED Strips and USB Power

Before diving into the connection process, it's essential to understand the basics of LED strips and USB power.

LED Strip Basics

LED strips come in various types, including:

- Single-color strips

- RGB (Red, Green, Blue) strips

- RGBW (Red, Green, Blue, White) strips

- Addressable LED strips

Each type has different power requirements and control mechanisms, which can affect how they're connected to a USB power source.

USB Power Specifications

USB ports typically provide 5V DC power. The current capacity varies depending on the USB version:

- USB 2.0: Up to 500mA (0.5A)

- USB 3.0/3.1: Up to 900mA (0.9A)

- USB-C: Up to 3A (or more with USB Power Delivery)

It's crucial to ensure that your LED strip's power requirements match the USB power specifications to avoid damage or poor performance.

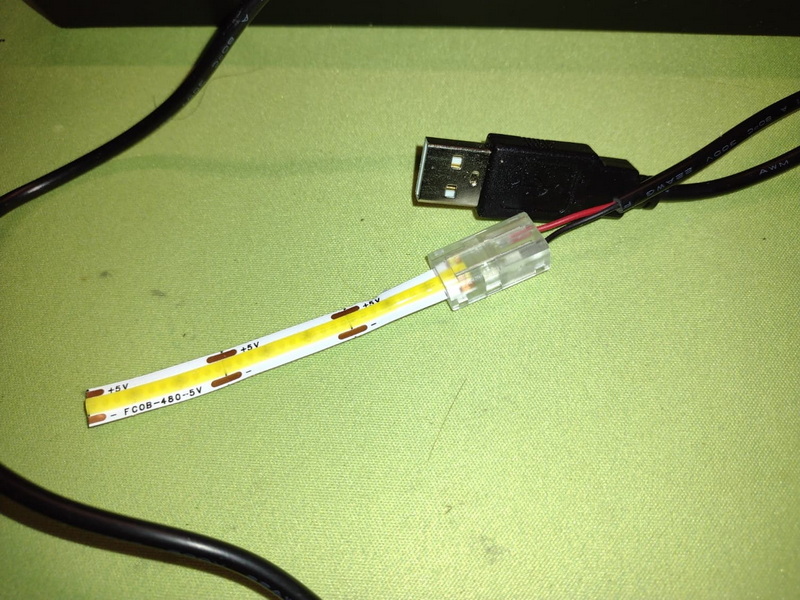

how to connect usb cable to led strip_3

Choosing the Right LED Strip for USB Power

When selecting an LED strip for USB power, consider the following factors:

1. Voltage: Choose a 5V LED strip to match USB output voltage.

2. Power consumption: Ensure the strip's power draw doesn't exceed the USB port's capacity.

3. Length: Shorter strips are more suitable for USB power due to limited current.

4. LED density: Lower density strips (e.g., 30 LEDs/meter) consume less power than higher density ones.

Required Materials and Tools

To connect a USB cable to an LED strip, you'll need:

- 5V LED strip

- USB cable (Type-A to bare wires or Type-C to bare wires)

- Wire strippers

- Soldering iron and solder

- Heat shrink tubing or electrical tape

- Multimeter (optional but recommended)

Step-by-Step Guide to Connecting USB Cable to LED Strip

1. Prepare the USB Cable

Start by preparing the USB cable:

1. Cut off the non-USB end of the cable.

2. Strip about 1 inch (2.5 cm) of the outer insulation to expose the inner wires.

3. Identify the power (red) and ground (black) wires. USB cables typically have four wires:

- Red: +5V (power)

- Black: Ground

- White: Data -

- Green: Data +

4. For LED strip connection, we only need the red and black wires. Cut off or insulate the data wires.

2. Prepare the LED Strip

Next, prepare the LED strip:

1. Identify the input end of the strip (usually marked with arrows or +/- symbols).

2. If necessary, cut the strip to the desired length along the designated cut lines.

3. Ensure the contact pads at the cut end are clean and exposed.

3. Connect the USB Cable to the LED Strip

Now, connect the USB cable to the LED strip:

1. Align the USB cable wires with the LED strip contacts:

- Red wire to the positive (+) contact

- Black wire to the negative (-) contact

2. Solder the wires to the contacts, ensuring a secure connection.

3. Cover the soldered connections with heat shrink tubing or electrical tape to insulate and protect them.

4. Test the Connection

Before finalizing the setup, test the connection:

1. Plug the USB connector into a power source (e.g., power bank, computer USB port, or USB wall adapter).

2. Verify that the LED strip lights up correctly.

3. If the strip doesn't light up or shows unusual behavior, double-check your connections and ensure the power source is adequate.

Tips for a Successful USB to LED Strip Connection

- Use a multimeter to verify the voltage and polarity before connecting the LED strip.

- For longer strips, consider using a powered USB hub or a dedicated 5V power supply with higher current capacity.

- If the LED strip flickers or doesn't reach full brightness, the USB power source may be insufficient. Try a different port or power source.

- For RGB or addressable LED strips, you may need additional components (e.g., controllers) to manage colors and effects.

how to connect usb cable to led strip_1

Safety Considerations

When working with electrical connections, always prioritize safety:

- Disconnect power sources before making any connections.

- Use proper insulation to prevent short circuits.

- Don't exceed the power limitations of your USB port or LED strip.

- If you're unsure about any step, consult a professional or seek additional guidance.

Enhancing Your USB-Powered LED Strip Setup

Once you've successfully connected your LED strip to a USB power source, consider these enhancements to improve functionality and aesthetics:

Adding a Switch or Dimmer

Incorporate a simple on/off switch or a dimmer control for added convenience:

1. Inline switch: Cut the positive wire and connect both ends to a small toggle switch.

2. USB dimmer: Use a USB dimmer module between the power source and LED strip for brightness control.

Mounting and Diffusion

Proper mounting can significantly improve the appearance of your LED strip installation:

1. Use adhesive backing or mounting clips to secure the strip in place.

2. Add a diffuser channel to create a more uniform light output and protect the LEDs.

Extending USB Cable Length

If you need to place your LED strip farther from the USB power source:

1. Use a USB extension cable for short distances.

2. For longer runs, consider using a thicker gauge wire to minimize voltage drop.

Creative Applications for USB-Powered LED Strips

USB-powered LED strips offer versatility for various lighting projects:

1. Computer case lighting

2. TV backlighting

3. Under-cabinet kitchen lighting

4. Bookshelf accent lighting

5. Portable lighting for camping or emergencies

Troubleshooting Common Issues

If you encounter problems with your USB-powered LED strip, try these troubleshooting steps:

1. Verify all connections are secure and correctly polarized.

2. Test with a different USB power source to rule out power supply issues.

3. Check for any visible damage to the LED strip or USB cable.

4. Ensure the total power draw of the LED strip doesn't exceed the USB port's capacity.

Conclusion

Connecting a USB cable to an LED strip opens up a world of convenient lighting possibilities. By following this guide, you can create custom lighting solutions powered by ubiquitous USB ports. Remember to prioritize safety, choose compatible components, and consider the power limitations of USB connections. With some creativity and careful planning, you can illuminate your space with ease and efficiency using USB-powered LED strips.

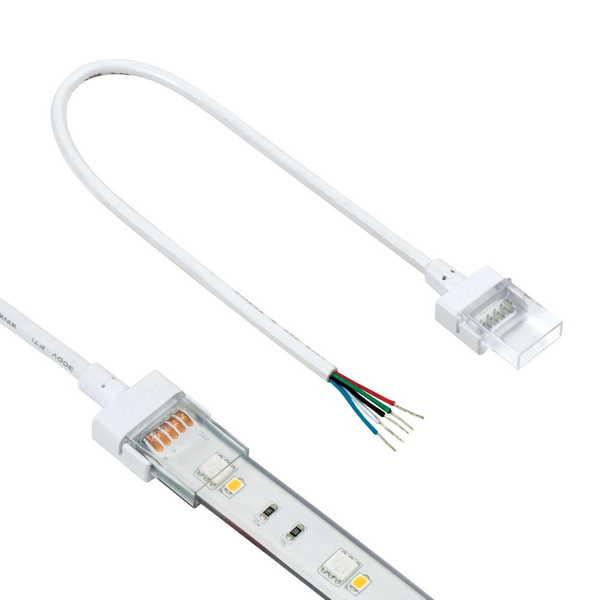

how to connect usb cable to led strip_2

Frequently Asked Questions (FAQ)

1. Can I power any LED strip with a USB cable?

No, not all LED strips can be powered directly by USB. You need to use 5V LED strips that are compatible with the 5V output of USB ports. 12V or 24V LED strips require voltage converters or different power sources.

2. How long of an LED strip can I power with USB?

The length depends on the LED strip's power consumption and the USB port's current capacity. Typically, you can power about 1-2 meters of a standard 5V LED strip (30 LEDs/meter) with a USB 3.0 port. Always calculate the total power draw to ensure it doesn't exceed the USB port's capacity.

3. Do I need a special controller for USB-powered LED strips?

For single-color LED strips, you don't need a special controller. However, for RGB or addressable LED strips, you may need a controller to manage colors and effects. Some USB-powered controllers are available that can be used between the USB power source and the LED strip.

4. Is it safe to leave USB-powered LED strips on continuously?

While USB-powered LED strips are generally safe for continuous use, it's always a good practice to turn them off when not needed. This conserves energy and extends the lifespan of the LEDs. Consider using a timer or smart plug for automated control.

5. Can I use a phone charger to power USB LED strips?

Yes, you can use a phone charger or any USB wall adapter to power LED strips, as long as it provides sufficient current. Most modern phone chargers output 5V and at least 1A, which is suitable for powering short to medium-length LED strips.
