Introduction

In today's digital age, USB cables have become an essential part of our daily lives, connecting our devices and enabling data transfer and charging. However, there are times when we need to extend the reach of our USB connections, and that's where connecting two USB cables together comes into play. This comprehensive guide will walk you through the process of joining USB cables, providing you with the knowledge and skills to tackle this task safely and effectively.

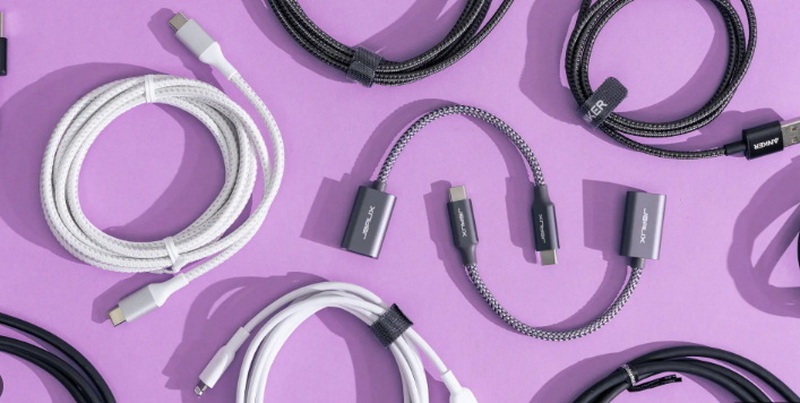

how to connect two usb cables together_4

Understanding USB Cables

Before we dive into the process of connecting USB cables, it's crucial to understand the basics of USB technology and the different types of USB cables available.

Types of USB Connectors

USB cables come in various types, each designed for specific purposes and devices. The most common types include:

- USB-A: The standard rectangular connector found on most computers and chargers

- USB-B: A square-shaped connector often used for printers and other peripherals

- USB-C: A newer, reversible connector that's becoming increasingly popular

- Micro-USB: A small connector commonly used in older smartphones and other portable devices

- Mini-USB: An older, slightly larger version of Micro-USB

USB Cable Structure

A typical USB cable consists of four main wires:

- Red: +5V (power)

- Black: Ground

- White: Data -

- Green: Data +

Understanding this structure is crucial when connecting USB cables together, as you'll need to match these wires correctly to ensure proper functionality.

how to connect two usb cables together_3

Why Connect USB Cables?

There are several reasons why you might want to connect two USB cables together:

1. Extending reach: When you need a longer cable than what's readily available

2. Repairing damaged cables: Salvaging functional parts of otherwise unusable cables

3. Custom projects: Creating unique USB solutions for specific needs

4. Cost-saving: Avoiding the purchase of new, longer cables

Safety Precautions

Before attempting to connect USB cables, it's essential to prioritize safety:

- Always work in a well-lit, dry area

- Disconnect any devices from power sources

- Use proper tools and protective equipment

- Be cautious of sharp edges when cutting or stripping wires

- Never connect USB cables to electrical outlets directly

Tools and Materials Needed

To successfully connect two USB cables, you'll need the following tools and materials:

- Wire cutters/strippers

- Soldering iron and solder

- Heat shrink tubing

- Electrical tape

- Multimeter (for testing)

- USB cables to be connected

Step-by-Step Guide to Connecting USB Cables

Now that we've covered the basics, let's dive into the process of connecting two USB cables together.

Step 1: Prepare the Cables

1. Measure and mark the point where you want to cut each cable

2. Use wire cutters to make a clean cut at the marked points

3. Strip about 1 inch (2.5 cm) of the outer insulation from each cut end, exposing the inner wires

Step 2: Identify and Match the Wires

1. Identify the four wires in each cable (red, black, white, and green)

2. If the colors don't match standard USB wiring, use a multimeter to identify each wire's function

3. Arrange the wires so that matching colors/functions are aligned

Step 3: Connect the Wires

1. Strip about 1/4 inch (0.6 cm) of insulation from the end of each wire

2. Twist matching wires together (red to red, black to black, etc.)

3. Solder the twisted wire pairs together, ensuring a strong and secure connection

Step 4: Insulate the Connections

1. Slide a piece of heat shrink tubing over each soldered connection

2. Use a heat gun or lighter to shrink the tubing, providing insulation for each wire

3. Wrap the entire connection area with electrical tape for added protection

Step 5: Test the Connection

1. Use a multimeter to check for continuity across the entire length of the connected cable

2. Test the cable with a device to ensure proper functionality

3. If issues arise, double-check your connections and repeat the process if necessary

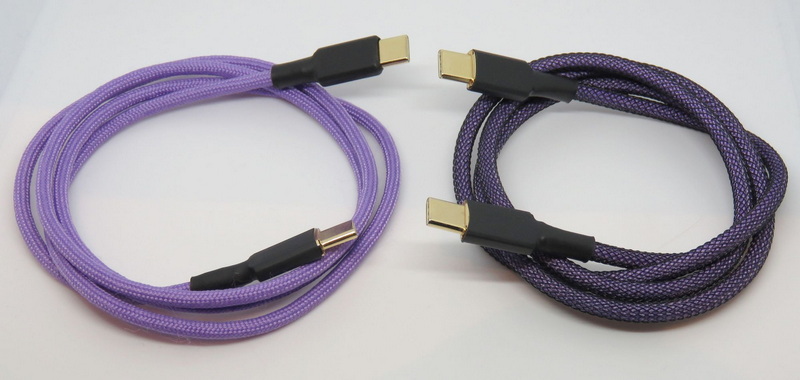

how to connect two usb cables together_1

Tips for Successful USB Cable Connections

- Always match wire colors/functions correctly

- Use high-quality solder and soldering techniques for strong connections

- Ensure proper insulation to prevent short circuits

- Test thoroughly before using the connected cable with valuable devices

Alternatives to DIY Cable Connections

If you're not comfortable with the DIY approach, consider these alternatives:

1. USB extension cables: Pre-made cables designed to extend USB connections

2. USB hubs: Devices that allow you to connect multiple USB devices to a single port

3. Wireless USB adapters: Solutions that eliminate the need for physical cable connections

Conclusion

Connecting two USB cables together can be a useful skill for extending the reach of your devices or repairing damaged cables. By following the steps outlined in this guide and prioritizing safety, you can successfully join USB cables and create custom solutions for your connectivity needs. Remember to always test your connections thoroughly and consider alternatives if you're unsure about the DIY approach.

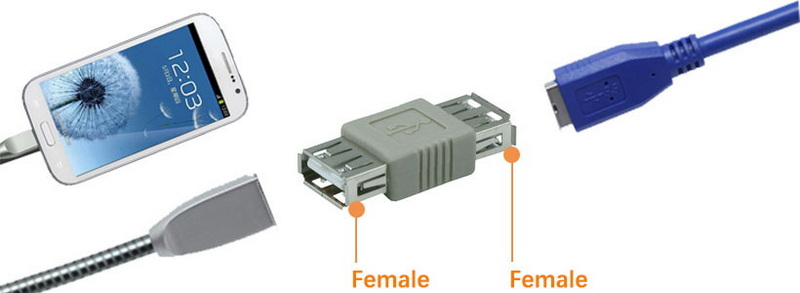

how to connect two usb cables together_2

Frequently Asked Questions

1. Is it safe to connect two USB cables together?

Connecting USB cables can be safe if done correctly. However, it requires careful attention to detail and proper insulation to prevent short circuits or damage to connected devices. If you're unsure about your skills, it's best to use pre-made extension cables or seek professional help.

2. Can I connect USB cables of different types?

While it's possible to connect different types of USB cables, it's generally not recommended unless you have a thorough understanding of USB protocols and pin configurations. Mismatching cable types can lead to compatibility issues or even damage to your devices.

3. How long can a USB cable be before signal degradation occurs?

The maximum recommended length for a USB 2.0 cable is about 5 meters (16 feet), while USB 3.0 can support lengths up to 3 meters (10 feet). Connecting cables beyond these lengths may result in signal degradation and reduced performance.

4. Will connecting USB cables affect data transfer speeds?

Properly connected USB cables should not significantly affect data transfer speeds. However, if the connection is not made correctly or if the combined cable length exceeds recommended limits, you may experience reduced speeds or connectivity issues.

5. Can I use this method to repair a damaged USB cable?

Yes, this method can be used to repair a damaged USB cable by cutting out the damaged section and reconnecting the functional parts. However, it's important to ensure that the damage hasn't affected the internal wires and that the repair is done carefully to maintain the cable's integrity.
