How To Connect Laptop To Laptop with Usb Cable?

Content Menu

● Introduction

● Understanding the Basics

● Types of USB Cables

● Connection Modes

● Step-by-Step Guide to Connecting Two Laptops with a USB Cable

>> Gather the Necessary Hardware and Software

>> Install the Drivers and Software

>> Connect the USB Cable

>> Configure the Connection Mode

>> Verify the Installation

>> Using Link Mode for File Transfer

>> Using Network Mode for Sharing and Internet Access

● Troubleshooting Common Issues

>> Cable Not Recognized

>> Slow Transfer Speeds

>> Connection Instability

>> Unable to Share Internet

● USB Connectors: Types and Standards

>> USB Type-A

>> USB Type-B

>> USB Type-C

● USB Standards and Speed

● Alternatives to USB Cable Connection

● Conclusion

● Frequently Asked Questions

>> 1. What type of USB cable do I need to connect two laptops?

>> 2. Do I need to install any software to connect the laptops?

>> 3. How do I transfer files between the laptops once they are connected?

>> 4. Can I share my internet connection between the two laptops using a USB cable?

>> 5. What should I do if the USB cable is not recognized by my computer?

● Citations:

Introduction

Connecting two laptops with a USB cable is a practical method for file transfer and establishing a basic network. This article will guide you through the process, covering the necessary hardware, software installation, connection modes, troubleshooting, and frequently asked questions.

Understanding the Basics

Before diving into the steps, it's crucial to understand the type of USB cable required and the connection modes available[1]. Not all USB cables are created equal, and using the wrong one can lead to connection problems or even hardware damage.

Types of USB Cables

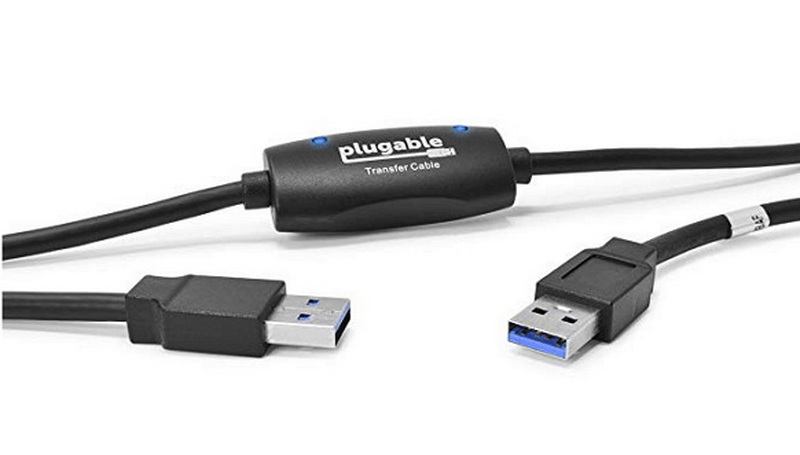

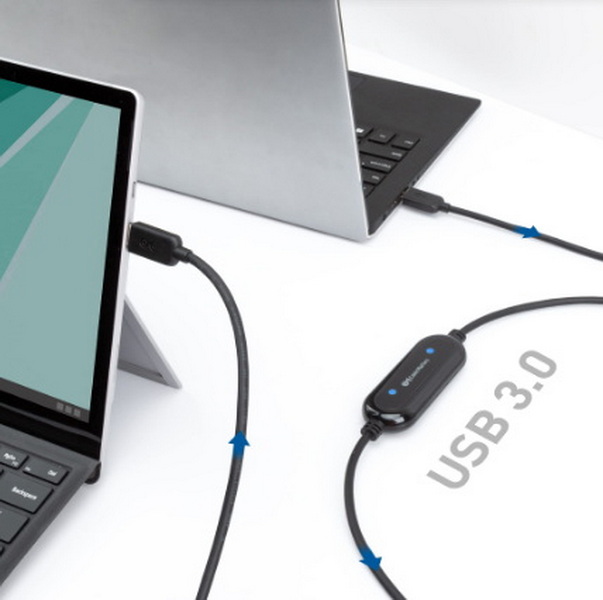

-  Bridged USB Cable (USB Networking Cable): This specialized cable contains an electronic circuit in the middle, which allows the two computers to communicate directly. It's designed for file transfer and creating a small network between the two laptops[1].

-  Standard A/A USB Cable: This type of cable is not suitable for connecting two laptops directly. Using a standard A/A USB cable can cause electrical issues and potentially damage the USB ports on your devices[7].

-  USB Type-A: The standard, rectangular-shaped USB connector found on most desktop PCs and older laptops[2].

-  USB Type-B: Commonly used to connect printers and external hard drives to computers[2].

-  USB Type-C: A smaller, thinner connector used in modern laptops, smartphones, and tablets. It supports various protocols, including data transfer, video output, and charging[2].

-  Micro-USB & Mini-USB: Older standards, with Micro-USB often found on older Android phones and Mini-USB on some older cameras and peripherals[2].

Connection Modes

When using a bridged USB cable, you typically have two connection modes to choose from[1]:

-  Link Mode: This mode allows you to simply drag and drop files between the two laptops. It's the easiest and quickest way to transfer files[1].

-  Network Mode: This mode creates a small network between the two computers, enabling you to share folders, printers, and even internet access[1].

Step-by-Step Guide to Connecting Two Laptops with a USB Cable

Gather the Necessary Hardware and Software

-  Bridged USB Cable: Ensure you have a USB-to-USB cable designed for connecting two computers[1]. These are also known as USB networking cables or USB data transfer cables.

-  Installation CD/DVD or Software: The USB cable typically comes with a CD or a download link for the necessary drivers and software[1]. Make sure you have this ready.

Install the Drivers and Software

-  Disconnect the USB Cable: Do not connect the USB cable to either laptop before installing the software[1].

-  Install on Both Laptops: Insert the CD or run the downloaded setup file on both laptops. Follow the on-screen instructions to install the drivers and software. Some manufacturers provide separate setup files for link mode and network mode[1]. Others have a single setup that lets you choose the mode during installation or within the transfer program.

-  Reboot if Prompted: Some installations may require you to restart your computer.

Connect the USB Cable

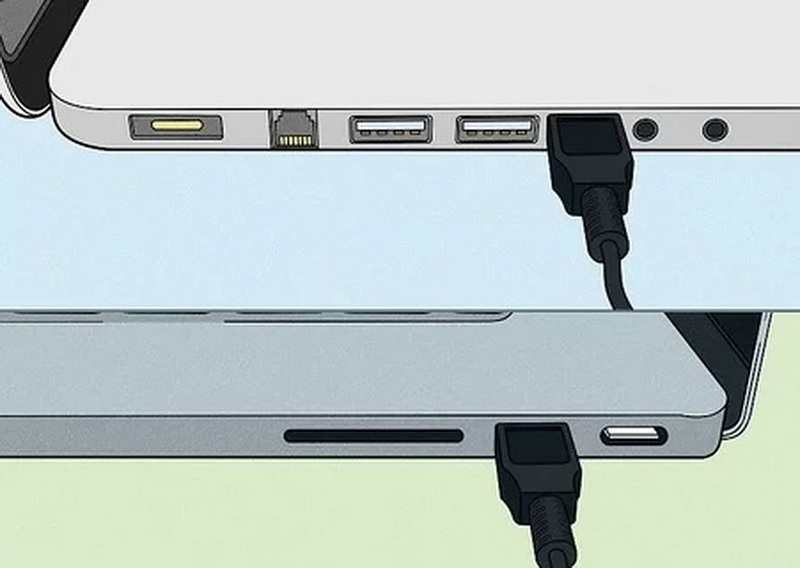

-  Plug into USB Ports: Once the software is installed on both laptops, you can connect the USB cable to the USB ports on each computer.

Configure the Connection Mode

-  Select Link Mode or Network Mode: Depending on the software and your needs, you may need to select the desired connection mode. This can usually be done within the transfer program or through the device settings[1].

Verify the Installation

-  Device Manager: To check if the cable is correctly installed, open Device Manager (right-click "My Computer," select "Properties," click "Hardware," and then "Device Manager").

-  Check Under "Universal Serial Bus Controllers": In Device Manager, the cable should be listed under "Universal Serial Bus controllers." It might be labeled as "Hi-Speed USB Bridge Cable" or something similar, depending on the manufacturer[1].

-  Check Under "Network Adapters": If using network mode, verify that the cable is correctly installed as a network adapter in the Device Manager, listed under “Network adapters”[1].

Using Link Mode for File Transfer

-  Launch the Transfer Program: Open the file transfer software that came with the USB cable on both laptops.

-  Select Files and Transfer: The software usually provides a user-friendly interface where you can select files and folders to transfer between the two laptops. Simply drag and drop the desired files from one window to the other[1].

Using Network Mode for Sharing and Internet Access

-  Configure Network Settings: After installing the cable, you need to configure both computers to use the USB cable as a network adapter.

-  Set IP Addresses: You may need to manually set IP addresses for both computers to allow them to communicate over the USB network.

-  Share Folders and Printers: Once the network is set up, you can share folders and printers as you would on a regular network.

-  Share Internet Access: If one laptop has an internet connection, you can share it with the other laptop through the USB network.

Troubleshooting Common Issues

Cable Not Recognized

-  Reinstall Drivers: If the cable is not recognized, try uninstalling and reinstalling the drivers.

-  Check USB Ports: Ensure the USB ports are functioning correctly. Try different USB ports on both laptops.

-  Update Drivers: Make sure you have the latest drivers for your USB ports and the USB cable.

Slow Transfer Speeds

-  USB Version: The speed of the transfer depends on the USB version supported by the cable and the laptops. USB 3.0 offers much faster transfer speeds than USB 2.0[8].

-  Cable Quality: A low-quality USB cable may result in slower transfer speeds.

-  Background Processes: Close any unnecessary programs or processes that may be consuming system resources.

Connection Instability

-  Check Cable Connection: Ensure the USB cable is securely plugged into both laptops.

-  Avoid USB Hubs: Connect the USB cable directly to the USB ports on the laptops, avoiding USB hubs or extenders.

-  Driver Compatibility: Verify that the drivers are compatible with your operating system.

Unable to Share Internet

-  Enable Internet Sharing: Make sure internet sharing is enabled on the laptop with the internet connection.

-  Firewall Settings: Check your firewall settings to ensure that the USB network connection is not blocked.

-  IP Address Configuration: Ensure that the IP addresses are correctly configured and that both laptops are on the same subnet.

USB Connectors: Types and Standards

Understanding the different types of USB connectors is essential for ensuring compatibility and optimal performance[6].

USB Type-A

The standard, rectangular connector is widely used on computers, laptops, and other devices[2]. USB Type-A connectors are backward compatible, meaning they can work with older USB versions, but the data transfer speed will be limited to the older generation's speed[6].

USB Type-B

This connector is typically used for connecting printers, scanners, and external hard drives to computers. USB Type-B has two different configurations: one for USB 1.1 and 2.0, and another for USB 3.0 and later[2].

USB Type-C

A smaller, reversible connector used in modern devices like smartphones, tablets, and laptops[2]. USB Type-C supports various protocols, including USB, Thunderbolt, DisplayPort, and HDMI[2]. It can also handle higher power delivery, making it suitable for charging laptops and other power-hungry devices[2].

USB Standards and Speed

Alternatives to USB Cable Connection

While connecting laptops with a USB cable can be useful, there are alternative methods for file transfer and networking[1]:

-  Ethernet Cable: Connecting two laptops with an Ethernet cable provides a fast and reliable connection for file transfer and network sharing. This method requires an Ethernet port on both laptops[1].

-  Wi-Fi: You can create a wireless network between the two laptops using Wi-Fi Direct or a similar technology. This allows for file sharing and network access without needing a physical cable.

-  Cloud Storage: Services like Google Drive, Dropbox, and OneDrive allow you to store files in the cloud and access them from multiple devices. This is a convenient way to share files between laptops, but it requires an internet connection.

-  External Hard Drive: You can copy files to an external hard drive and then connect the drive to the other laptop. This is a simple and effective way to transfer large files[2].

Conclusion

Connecting two laptops with a USB cable is a straightforward process that can be useful for file transfer and creating a basic network. By using a bridged USB cable, installing the necessary drivers, and configuring the connection mode, you can quickly and easily transfer files between two laptops or share resources like printers and internet access. While there are alternative methods available, using a USB cable can be a convenient option when you need a direct and secure connection. Always ensure that you are using the correct type of USB cable to avoid potential hardware damage, and follow the steps outlined in this guide for a successful connection.

Frequently Asked Questions

1. What type of USB cable do I need to connect two laptops?

You need a special "bridged" USB cable, also known as a USB networking cable or USB data transfer cable. Standard A/A USB cables are not designed for this purpose and can cause damage[1].

2. Do I need to install any software to connect the laptops?

Yes, the bridged USB cable typically comes with a CD or download link for the necessary drivers and software. You need to install this software on both laptops before connecting the cable[1].

3. How do I transfer files between the laptops once they are connected?

Once the laptops are connected and the software is installed, you can use the file transfer program that came with the USB cable. This program usually provides a user-friendly interface where you can drag and drop files between the two laptops[1].

4. Can I share my internet connection between the two laptops using a USB cable?

Yes, if you use the "network mode" when setting up the connection, you can share your internet connection from one laptop to the other[1]. You may need to configure network settings and enable internet sharing on the laptop with the internet connection.

5. What should I do if the USB cable is not recognized by my computer?

Try reinstalling the drivers, checking the USB ports, and updating your drivers. Make sure the cable is securely plugged in and that the drivers are compatible with your operating system.
