Introduction
In today's digital age, connecting devices for seamless audio and video transmission has become increasingly important. One common challenge many users face is connecting an HDMI cable to a USB port. This comprehensive guide will walk you through the process, explain the technology behind it, and provide solutions to common issues you may encounter.
Understanding HDMI and USB
Before diving into the connection process, it's essential to understand the basics of HDMI and USB technologies.
HDMI (High-Definition Multimedia Interface)
HDMI is a digital interface for transmitting high-quality, uncompressed video and audio data. It's widely used in modern televisions, monitors, gaming consoles, and other multimedia devices.
USB (Universal Serial Bus)
USB is a standard interface for connecting various devices to computers. It's primarily used for data transfer and power delivery. However, recent advancements have expanded its capabilities to include video output.
The Challenge: HDMI to USB Connection
Connecting an HDMI cable directly to a USB port is not possible due to the fundamental differences in these technologies. However, there are several solutions to bridge this gap.

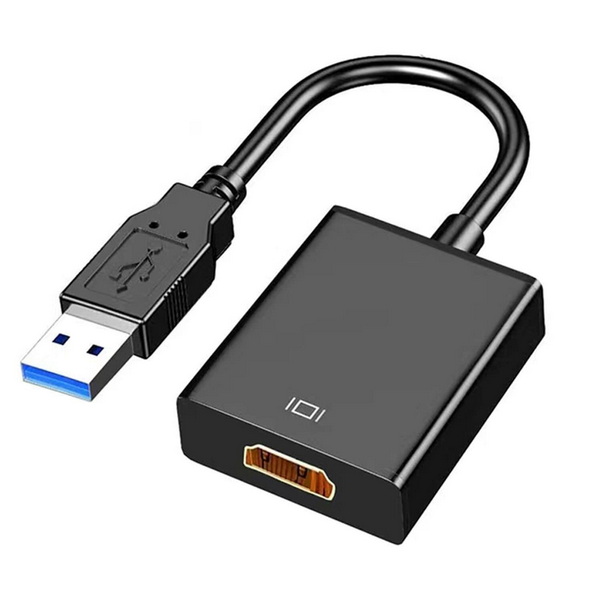

Solution 1: USB to HDMI Adapters
USB to HDMI adapters are the most common solution for connecting HDMI devices to USB ports.
How USB to HDMI Adapters Work
These adapters function as external GPUs, converting USB data into HDMI signals[1]. They typically require driver installation and can support various display modes, including extending or mirroring your desktop.
Steps to Use a USB to HDMI Adapter
1. Connect the adapter to your computer's USB port.
2. Install any necessary drivers provided by the adapter manufacturer.
3. Connect an HDMI cable from the adapter to your display device.
4. Adjust your computer's display settings to recognize the new display.

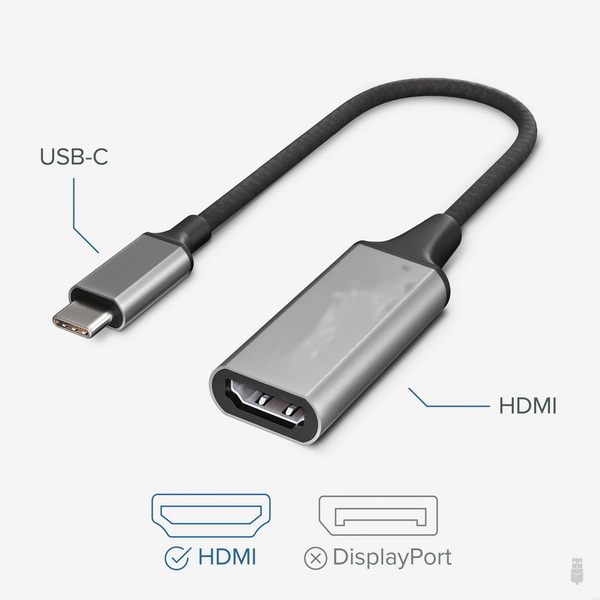

Solution 2: USB-C to HDMI Cables
For devices with USB-C ports, a direct USB-C to HDMI cable can be used.
USB-C and Alternate Mode
USB-C supports various "Alternate Modes," including DisplayPort Alternate Mode, which allows video output[1]. This enables direct video transmission through USB-C ports on compatible devices.
Using a USB-C to HDMI Cable
1. Ensure your device supports DisplayPort Alternate Mode over USB-C.
2. Connect the USB-C end to your device and the HDMI end to your display.
3. Your device should automatically detect the display and output video.

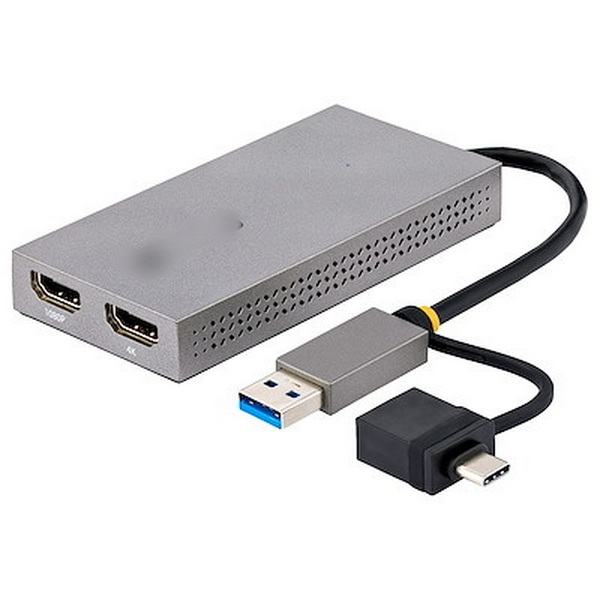

Solution 3: Docking Stations
For users needing multiple connections, including HDMI output, a docking station can be an excellent solution.
Benefits of Docking Stations
Docking stations offer various ports, including HDMI, USB, Ethernet, and more, all through a single USB or USB-C connection to your device.
Setting Up a Docking Station
1. Connect the docking station to your computer via USB or USB-C.
2. Install any necessary drivers.
3. Connect your HDMI display and other peripherals to the docking station.
4. Configure your computer's display settings as needed.
Choosing the Right Solution
When deciding which solution to use, consider the following factors:
1. Your device's available ports (USB, USB-C, Thunderbolt)
2. The number of displays you need to connect
3. Your budget
4. Portability requirements
Troubleshooting Common Issues
No Display Output
If you're not getting any display output:
1. Check all cable connections.
2. Ensure you've installed the latest drivers.
3. Verify that your device supports video output through the port you're using.
4. Try a different HDMI cable or adapter.
Poor Image Quality
For issues with image quality:
1. Check your display settings and adjust the resolution.
2. Ensure your adapter supports the desired resolution and refresh rate.
3. Use a high-quality HDMI cable.
Lag or Stuttering
If you experience lag or stuttering:
1. Update your graphics drivers.
2. Reduce the resolution or refresh rate.
3. Consider using a powered USB hub if your adapter requires more power.
Future of HDMI and USB Connectivity

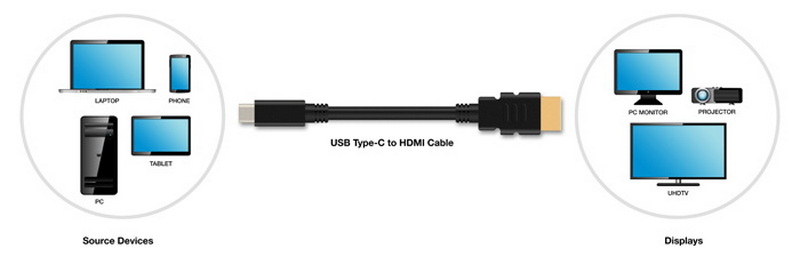

As technology evolves, we can expect to see more seamless integration between HDMI and USB technologies. The HDMI Alt Mode for USB Type-C is an exciting development that allows HDMI-enabled source devices to connect directly to HDMI-enabled displays using a USB Type-C connector[7].
This technology supports a wide range of HDMI 1.4b features, including:
- Resolutions up to 4K
- Surround sound
- Audio Return Channel (ARC)
- 3D (4K and HD)
- HDMI Ethernet Channel (HEC)
- Consumer Electronic Control (CEC)
- Deep Color, x.v.Color, and content types
- High Bandwidth Digital Content Protection (HDCP 1.4 and HDCP 2.2)
As this technology becomes more widespread, connecting HDMI devices to USB-C ports will become even more straightforward and versatile.
Conclusion
Connecting HDMI devices to USB ports may seem challenging at first, but with the right adapters or cables, it's entirely possible. Whether you opt for a USB to HDMI adapter, a USB-C to HDMI cable, or a docking station, you can easily extend your device's display capabilities. As technology continues to advance, we can expect even more seamless integration between these two essential interfaces.
FAQ
1. Can I connect an HDMI cable directly to a USB port?
No, you cannot connect an HDMI cable directly to a USB port. HDMI and USB use different protocols and connectors. You'll need an adapter or converter to bridge the gap between these two technologies.
2. What's the difference between a USB to HDMI adapter and a USB-C to HDMI cable?
A USB to HDMI adapter typically works with standard USB ports (USB-A) and requires software drivers to function. It acts as an external GPU to convert USB data into HDMI signals. A USB-C to HDMI cable, on the other hand, works with USB-C ports that support DisplayPort Alternate Mode and doesn't require additional software, making it a more plug-and-play solution.
3. Can I use a USB to HDMI adapter for gaming?
While you can use a USB to HDMI adapter for gaming, it may not provide the best experience for high-performance games. These adapters often have limitations in terms of resolution, refresh rate, and latency. For serious gaming, it's better to use a dedicated graphics card with native HDMI output.
4. Do all USB-C ports support video output?
No, not all USB-C ports support video output. The port needs to support DisplayPort Alternate Mode for video output to work. This feature is common in many modern laptops and smartphones, but it's not universal. Check your device's specifications to confirm if it supports video output over USB-C.
5. What should I do if my USB to HDMI adapter isn't working?
If your USB to HDMI adapter isn't working, try these troubleshooting steps:
1. Ensure you've installed the latest drivers for the adapter.
2. Check that your computer's USB port is functioning correctly.
3. Try a different HDMI cable.
4. Verify that your display device is set to the correct input.
5. Restart your computer and try again.
If none of these steps work, the adapter may be faulty and need replacement.
