Introduction

Transferring files between PCs is a common necessity in today's digital world. Whether you're upgrading your system, backing up important data, or simply sharing files with a colleague, having a reliable method for connecting two computers is essential. While wireless options are available, connecting via a USB cable offers a direct, secure, and often faster alternative. This comprehensive guide explores how to connect two PCs using a USB cable for file transfer and other functionalities.

Understanding USB Data Transfer Cables

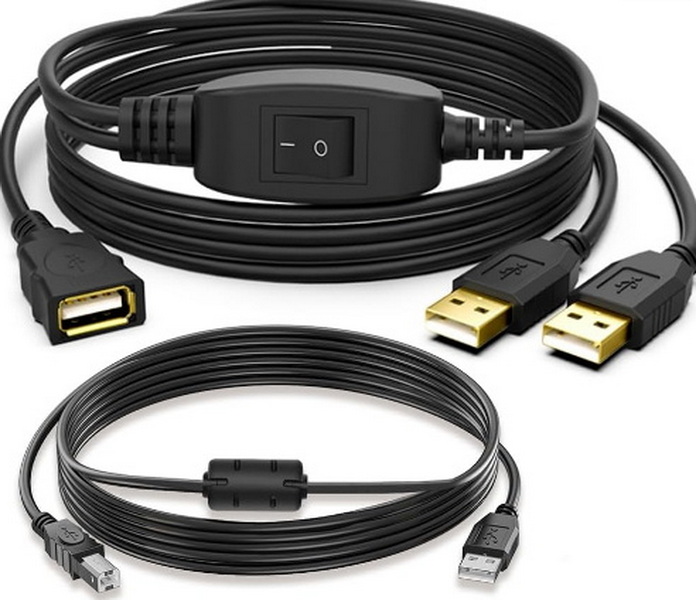

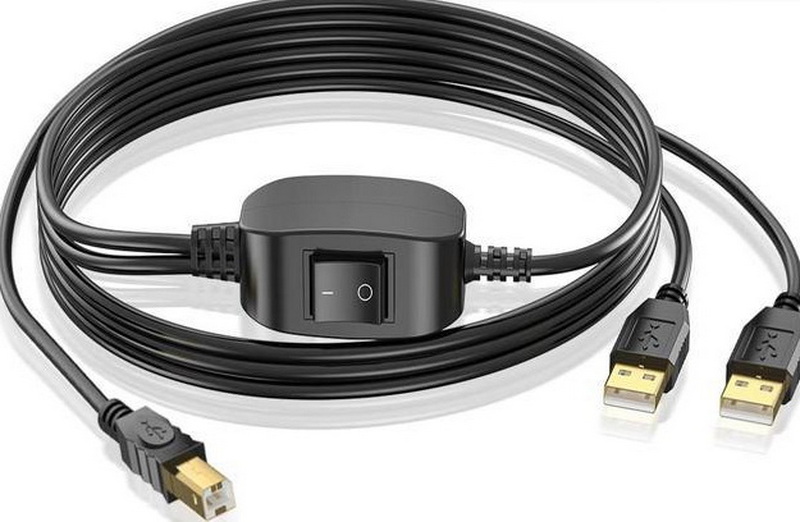

The Right Cable for the Job: Bridged USB Cables

When it comes to connecting two PCs via USB, it's crucial to use the correct type of cable. A standard USB A-to-A cable, commonly used to connect peripherals like printers or external hard drives, is not designed for direct PC-to-PC connections and can potentially cause electrical damage[1]. Instead, you'll need a bridged USB cable, also known as a USB data transfer cable or USB networking cable[1][3].

These specialized cables contain an electronic circuit in the middle that allows the two computers to communicate directly with each other without risking electrical issues[1].

Types of Bridged USB Cables

-  USB 2.0 Transfer Cables: While functional, these offer slower transfer speeds, making them suitable for smaller files[1].

-  USB 3.0/3.1/3.2 Transfer Cables: These provide significantly faster transfer speeds, ideal for large files, system backups, and demanding tasks[1].

-  USB-C Transfer Cables: Featuring the versatile USB-C connector, these are becoming increasingly common, particularly with newer PCs[1][8].

Features of Bridged USB Cables

-  Data Transfer Software: Most bridged USB cables come with proprietary software to manage the file transfer process[1][2]. This software typically features a user-friendly interface with drag-and-drop functionality and progress monitoring[1].

-  Link Mode: Allows you to select files and drag-and-drop them between the connected computers[3].

-  Network Mode: Some advanced cables offer a network mode, creating a small network for file sharing, printer access, and even internet sharing[3].

Preparing for Connection

Essential Hardware and Software

-  Two PCs: The computers you want to connect.

-  Bridged USB Cable: A compatible bridged USB cable (USB 3.0 or USB-C recommended)[1].

-  Installation Media/Software Download: The driver and software installation CD/DVD or a download link provided by the manufacturer[1][2][3].

Software Installation: A Crucial First Step

1. Install the Software (Before Connecting the Cable): Before physically connecting the USB cable, install the provided data transfer software on both PCs[1][2][3]. This is essential for the computers to recognize the cable and initiate the transfer process[1][2].

-  If using a CD/DVD, insert it into the optical drive of each PC and follow the on-screen prompts[2][3].

-  If downloading the software, locate the setup file and run it on both machines[2][3].

2. Choose the Correct Installation Type: The installation process might prompt you to select an installation type. Choose the option that corresponds to your specific USB cable (e.g., "USB Super Link Adapter")[3].

3. Select the Desired Mode: Depending on the cable, you might need to select the working mode (link mode or network mode) during the installation or within the transfer program[3].

Connecting the PCs and Transferring Files

Step-by-Step Connection Guide

1. Power On Both PCs: Ensure both PCs are powered on and fully booted into their respective operating systems[1].

2. Connect the Bridged USB Cable: Carefully plug one end of the USB data transfer cable into a free USB port on one PC and the other end into a free USB port on the second PC[1][2].

3. Allow Device Recognition: Wait for both PCs to recognize the USB cable[2]. This might trigger an installation wizard or a notification indicating a new device has been detected.

Verifying the Connection in Device Manager

1. Open Device Manager: On both PCs, open the Device Manager. Search for "devmgmt.msc" in the Windows search bar and press Enter[3].

2. Locate the USB Cable: Expand the "System Devices" or "Universal Serial Bus controllers" section. Verify that your USB cable is listed (e.g., "Hi-Speed USB Bridge Cable")[3]. The exact name may vary depending on the manufacturer.

3. Troubleshooting Driver Issues: If the cable is not recognized or has a yellow exclamation mark next to it, you might need to manually install the drivers from the installation media or downloaded software[3].

Transferring Your Files

1. Launch the Transfer Software: Open the data transfer software on both PCs[1][2].

2. Software Interface: The software typically displays a split-screen window, showing the file systems of both connected PCs[1][2].

3. Select Files and Folders: Browse the file systems on both PCs and select the files and folders you wish to transfer[1][2].

4. Drag and Drop (or Use the Software's Transfer Function): Drag the selected files and folders from one computer's window to the desired location on the other computer's window[1]. Alternatively, the software may have dedicated "send" or "receive" buttons.

5. Monitor the Transfer Progress: The software will display a progress bar indicating the transfer status and estimated time remaining[1][2].

6. Wait for Completion: Allow the transfer to complete fully before disconnecting the USB cable to avoid data corruption or transfer errors[1].

Alternative File Transfer Methods

While a USB cable offers a direct connection, other methods exist for transferring files between PCs. Here's a brief overview:

-  External Hard Drive: Copy files to an external hard drive and then connect the drive to the second PC to transfer them.

-  Network Share: Create a shared folder on one PC and access it from the other PC over a local network.

-  Cloud Storage: Use services like Google Drive, Dropbox, or OneDrive to upload files from one PC and download them to the other.

-  Ethernet Cable: Connect the PCs directly with an Ethernet cable for fast network transfers.

-  Wi-Fi Direct: Some PCs support Wi-Fi Direct, allowing for direct wireless connections for file sharing.

Troubleshooting Common Problems

Cable Not Recognized by Either PC

-  Try Different USB Ports: Test the cable with different USB ports on both PCs[3]. Some ports might have power or connectivity issues.

-  Reinstall the Drivers: Uninstall and reinstall the USB cable drivers. Sometimes, a fresh driver installation can resolve recognition problems[2][3].

-  Check Cable Compatibility: Make sure the USB cable is compatible with the operating systems of both PCs[3]. Check the manufacturer's website for compatibility information.

Slow File Transfer Speeds

-  USB Version Matters: Ensure you're using a USB 3.0 or USB-C transfer cable for the fastest possible speeds[1]. USB 2.0 cables are significantly slower.

-  Close Unnecessary Applications: Close any resource-intensive applications running in the background on both PCs[1]. This frees up system resources and can improve transfer speeds.

-  Transfer Smaller Batches: Try transferring large files in smaller batches to improve stability and potentially increase overall transfer speed.

Software Errors or Compatibility Issues

-  Check Software Compatibility: Ensure the data transfer software is compatible with the operating systems of both PCs[2][3].

-  Look for Updates: Check for software updates or patches from the cable manufacturer. Updates often address bugs and compatibility issues.

-  Reinstall the Software: Try uninstalling and reinstalling the data transfer software on both PCs[2][3]. A clean installation can sometimes resolve software-related problems.

Conclusion

Connecting two PCs with a bridged USB cable offers a reliable, secure, and often faster method for transferring files compared to wireless alternatives. By understanding the importance of using the correct cable type, carefully installing the necessary software, and following the step-by-step instructions, you can seamlessly transfer your data between PCs.

FAQ

1. Can I use a standard USB A-to-A cable to connect two PCs for file transfer?

No, you cannot use a standard USB A-to-A cable. It's designed for connecting peripherals, not for direct PC-to-PC communication, and can potentially cause electrical damage[1]. You need a bridged USB cable[1][3].

2. Do I need to install software to use a bridged USB data transfer cable?

Yes, almost all bridged USB data transfer cables require you to install proprietary software on both PCs[1][2][3]. This software handles the communication between the computers and provides the interface for file transfer[1].

3. What's the difference between "link mode" and "network mode" on a bridged USB cable?

Link mode allows you to directly select and drag-and-drop files between the connected computers using the transfer software[3]. Network mode creates a small network between the two computers, allowing you to share files, printers, and even internet access, similar to a small home network[3].

4. How do I check if the bridged USB cable is correctly installed?

Open the Device Manager on both PCs. Look for the USB cable listed under "System Devices" or "Universal Serial Bus controllers." If it's listed without any errors (like a yellow exclamation mark), it's likely installed correctly[3].

5. What should I do if the file transfer speed is very slow?

First, ensure you're using a USB 3.0 or USB-C transfer cable for the fastest speeds[1]. Close any unnecessary applications running on both PCs to free up resources. If you're transferring very large files, try breaking them up into smaller batches.
